Nice SPIDER8000 800N Operator for sectional and overhead doors
PURPOSE OF THE DRIVE:
Automation of garage doors with a surface area of:
- Up-and-over door - up to 12.6 m
- Sectional door - up to 11.4 m
SPIDER is an electromechanical actuator for the automation of sectional,
protruding, and non-protruding swing doors.
The control unit included with the product, in addition to powering the DC
motor, enables excellent torque and speed regulation of the gearmotor, precise
position limiter reading, gradual start and close, and obstacle detection.
Furthermore, it is equipped with an internal counter that allows recording of
maneuvers performed by the gearmotor throughout its entire use period.
The integrated standby power supply module guarantees 90% lower energy
consumption when the product is in standby mode.
Security:
- Anti-theft function: If a break-in attempt is detected,
a notification will be received via the MyNice app and a new closing maneuver
will be automatically initiated.
- Eye Check, visual control system: Green and red LEDs
built into the motor indicate potential problems/maintenance requirements or
show that everything is running smoothly.
Gate lock after opening and closing. Once the gate has finished moving,
the motor automatically locks it, preventing it from opening. Thanks to this
feature, the user does not need to additionally lock the gate with a lock or
bolt, which increases comfort and safety.
The gearmotor is equipped with a mechanical unlocking system that allows the
gate to be manually opened and closed. These manual operations should be
performed in the event of a power outage, malfunctions, or during installation.
The actuator is equipped with additional LED lighting. This illuminates the
area under the actuator after starting a maneuver. The lighting automatically
turns off when the actuator stops.

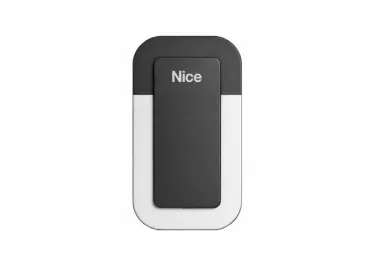

The MYGO4 remote control provides radio control with a dynamically changing
code at a frequency of 433.92 MHz, ensuring a high level of operational safety
and making the code impossible to copy.
MYGO4 has a secret code called the "SWITCHING CODE." By transferring
this code from a memorized transmitter to a new transmitter, the latter is
automatically recognized (and memorized) by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with "O-Code" radio
coding.
TECHNICAL DATA:
- Power supply: 230 VAC 50/60 Hz
- Current: 1.1A
- Power: 180W
- Standby power: <1W
- Speed: 0.2m/s
- Force: 800N
- Work intensity: 50 cycles/day
- Protection rating: IP40
- Operating temperature: -20°C / +55°C
- Dimensions: 225 x 395 x 105.5 mm
- Weight: 4.9 kg
