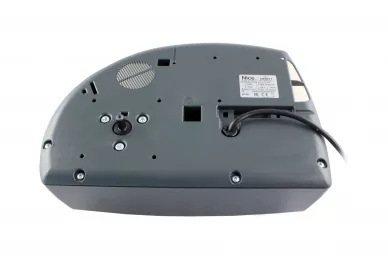

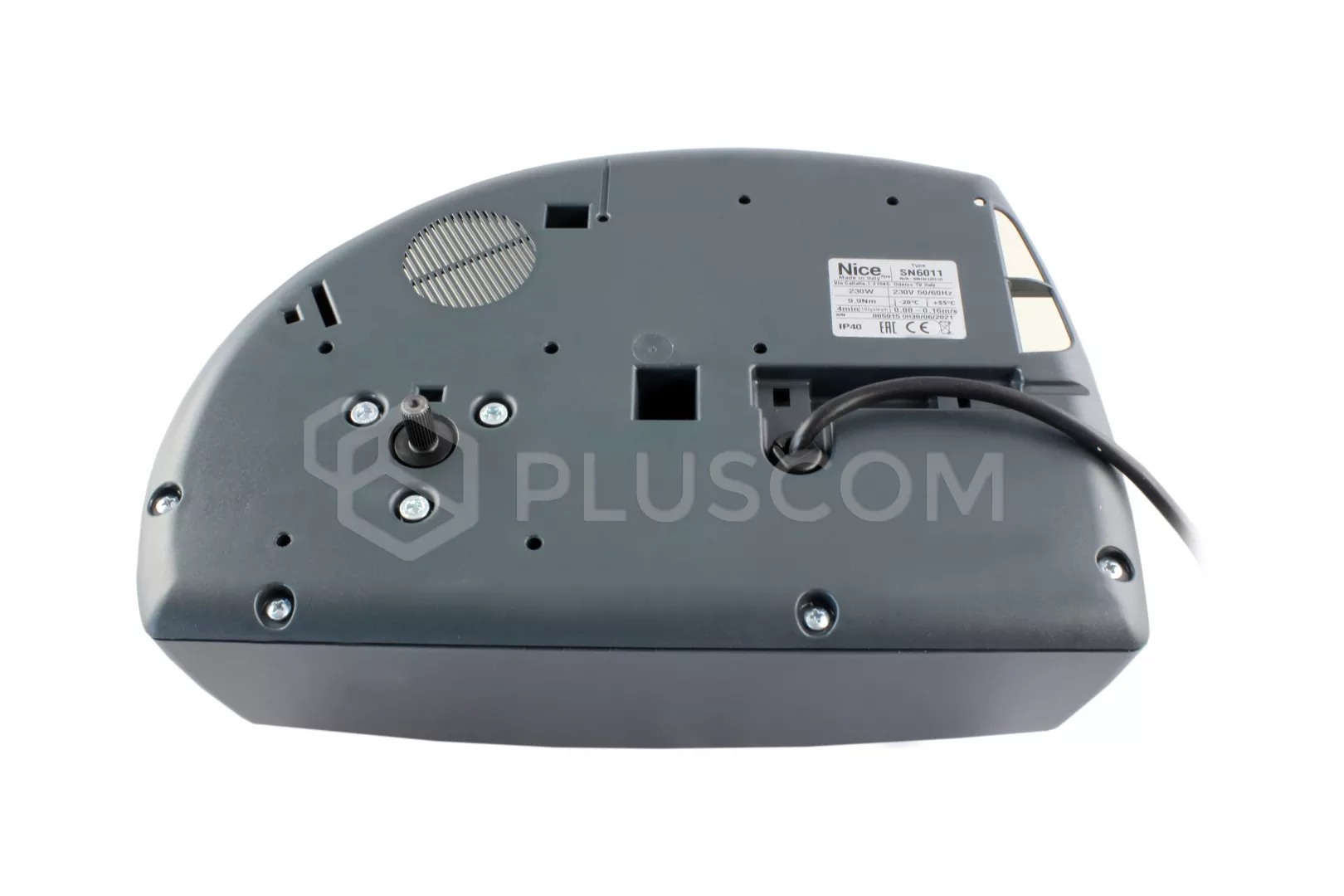

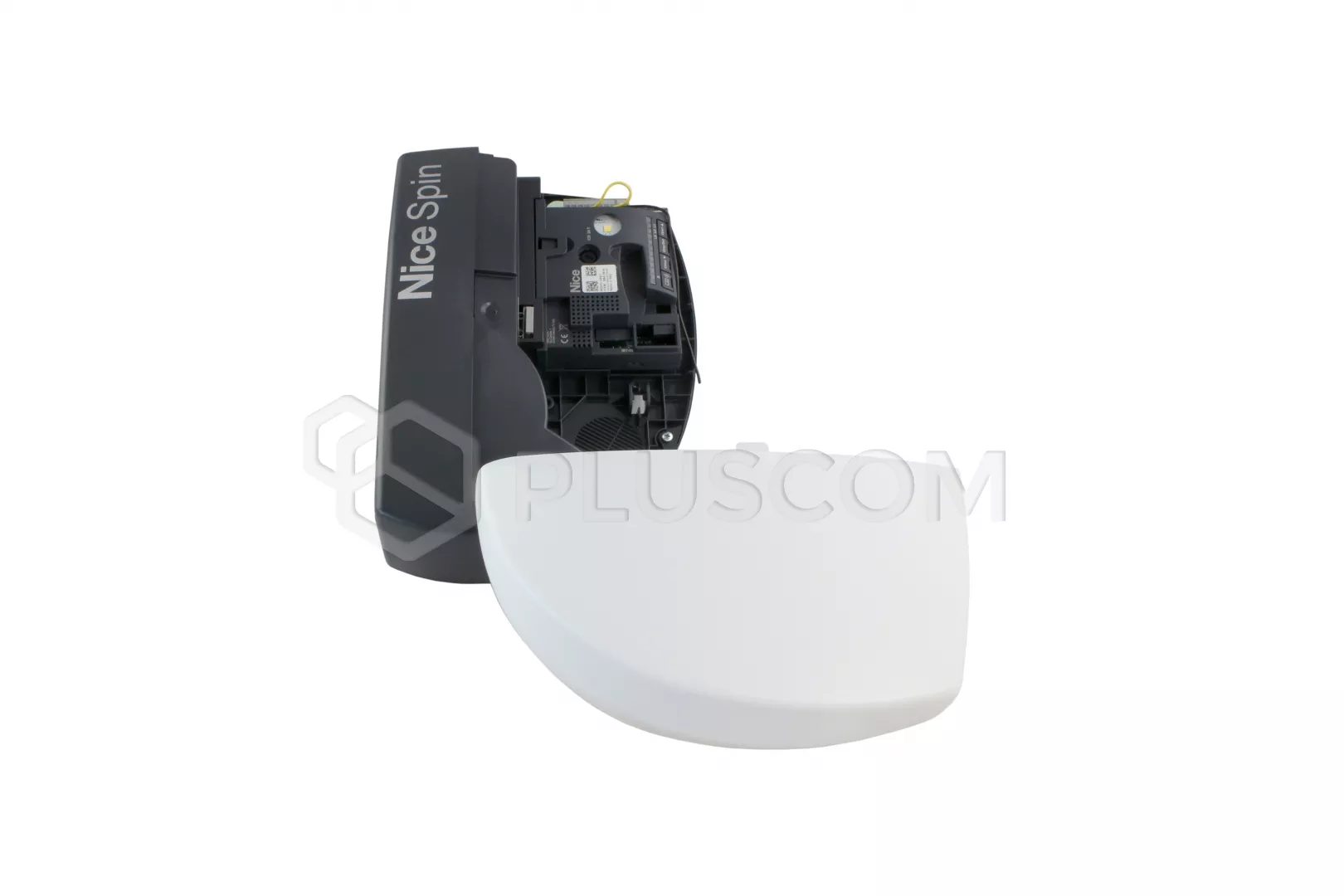

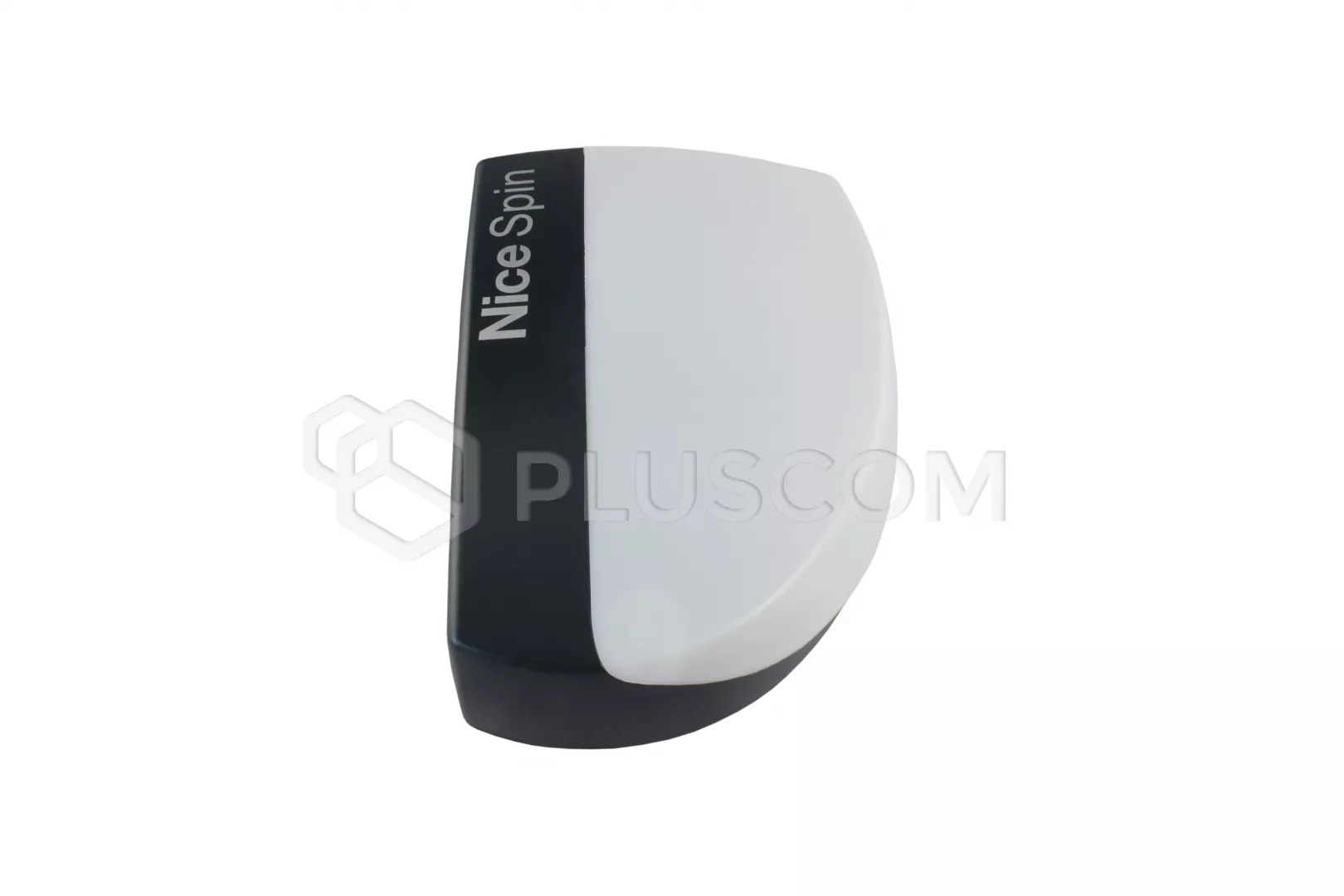

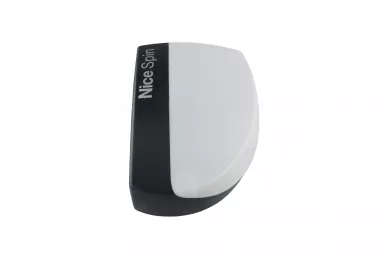

Nice SPIN 11 Electromechanical gear motor (head)

Nice SPIN 11 Garage Door Operator for Doors Up to 8m²

PURPOSE OF THE DRIVE:
Automation of garage doors up to 235cm high and up to 9m².

• Up-and-over door - height 2.2m, width up to 3.5m.
• Sectional door - height 2.35m, width up to 3.7m.


PRODUCT DESCRIPTION:
Easy-to-use and highly functional garage door operator. A durable, reinforced toothed belt is used to transmit the drive, whose greatest advantage is its quiet operation and lack of maintenance. The modern control panel enables easy programming of functions (only three convenient buttons and LEDs) and constantly monitors connected additional devices. The type of error is signaled by the appropriate number of flashes of the indicator light.

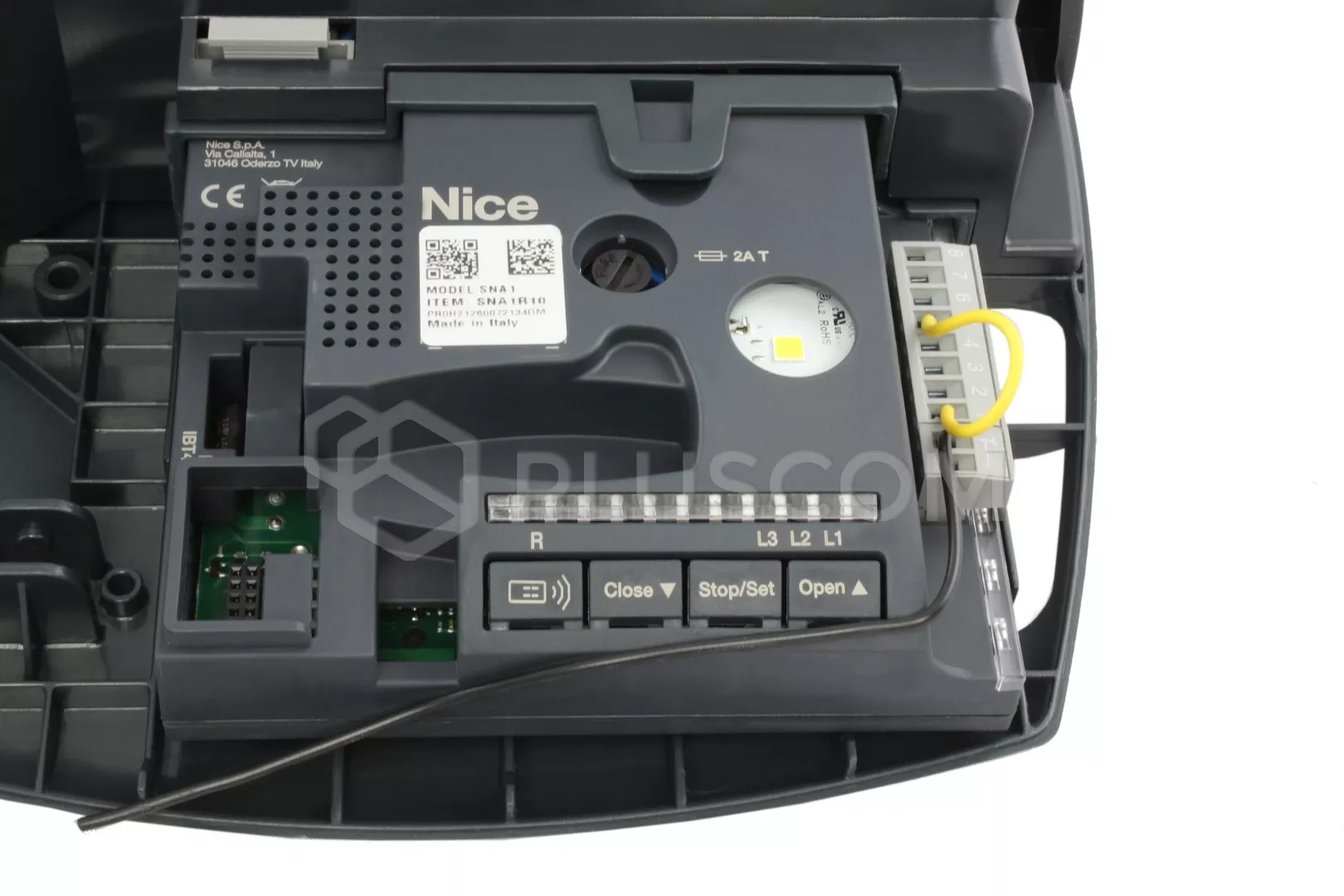

Several practical functions performed by the modern SNA1R10 control unit and features that distinguish the SPIN11 model:

Auto-programming: During the first start-up, the motor automatically determines and remembers the gate's end positions.
Electronic speed control: During start-up, the gate moves gently and slowly. Before closing, the drive slows down to close the gate quietly. The entire movement is smooth, without jerks or noise.
Amperometric obstacle detection system: allows for detection of any obstacle, stopping the gate, and immediate reversal of its movement.
Partial gate opening: A practical function that allows ventilation of exhaust fumes from the garage.

TECHNICAL DATA:

• Power supply/motor power supply: 230/24V
• Power consumption: 200W
• Speed: 0.08 - 0.14 m/s
• Pulse force: 550N
• Work intensity: 30 cycles per day
• Operating temperature: -20°C to +50°C
• Protection level: 40IP
• Dimensions: 225x330x100mm
• Weight: 13kg
