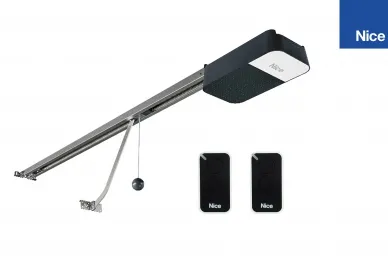

Nice SPIDO1000 garage door kit with 3.2m rail

386,04 EUR including 22.00% VAT
Product code: #40995
Manufacturer: Nice
  • Single piece 3.2m guide rail with chain
  • Maximum thrust: 1000N
  • Surface of the gate: to 13.2m²
  • Built-in control panel and radio

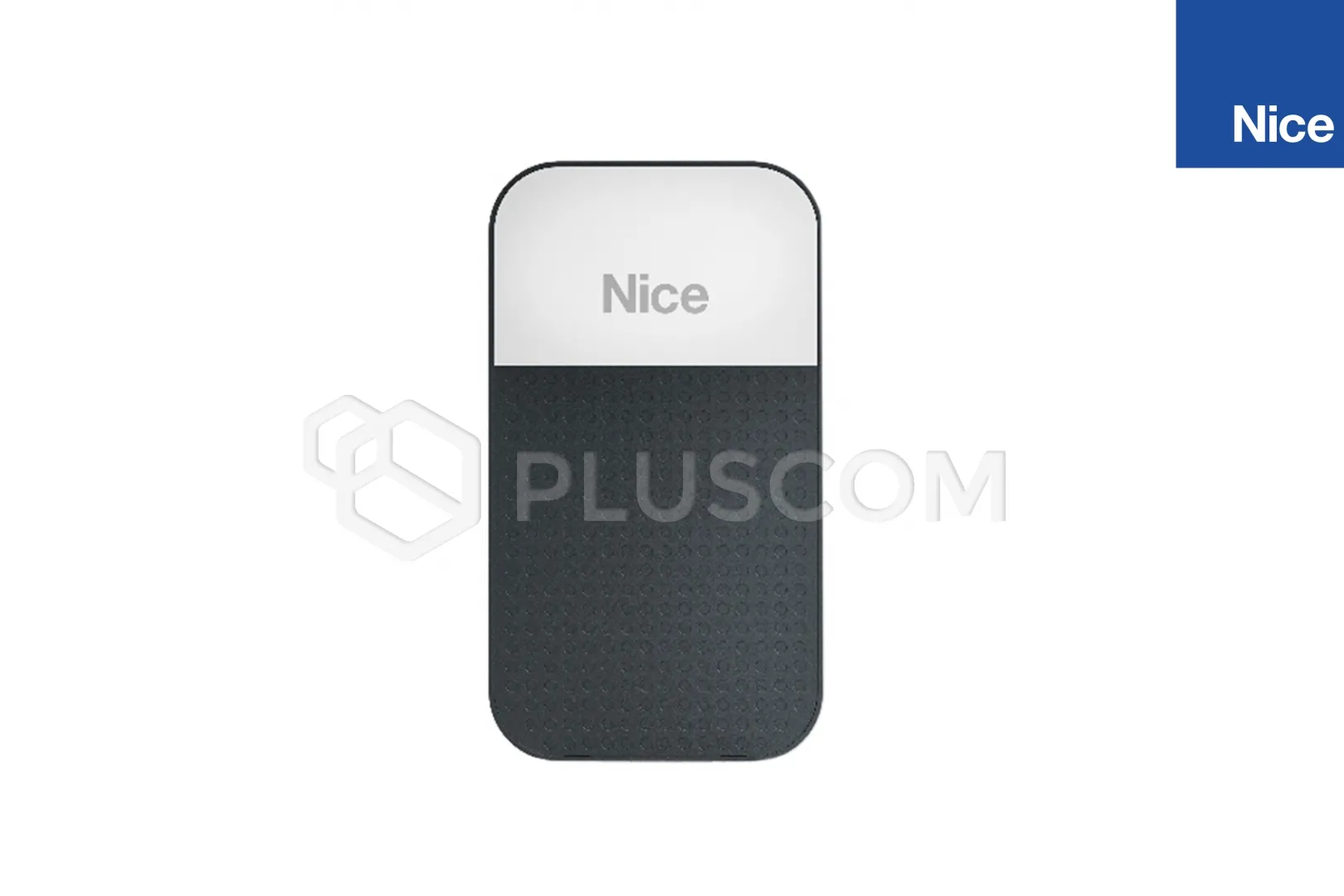

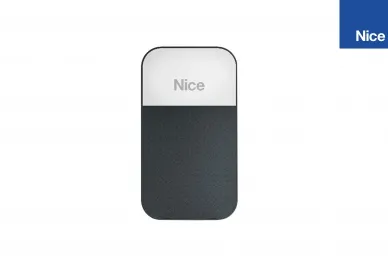

  • Included: 2 INTI2 two-channel remote controls
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice PS124 24 V battery with integrated battery charger Photocell Nice EPM ERA Medium Nice IBT4ZWAVE Plug-in BiDi-ZWave Interface Nice BiDi WiFi module for programming and configuration of control panels Nice SRA1 Quick ceiling mount brackets

Nice SPIDO 1000 Set for sectional garage doors 13.2 m² or tilting 11.5 m² with a 3.2m rail with a chain


PURPOSE OF THE DRIVE:
Automation of garage doors with an area of:
  • tilting door - up to 11.5m²
  • sectional door - up to 13.2m²

KIT COMPOSITION:
Nice SPO1032CKCE SPIDO1000 garage door kit with 3.2m rail

Nice SPO1032CKCE SPIDO1000 garage door kit with 3.2m rail
Fast, convenient and reliable drive, guarantees peace of mind for many years of use.

The new 1000N actuator with built-in control unit and receiver can be remotely controlled via the MyNice application, thanks to the Nice Core Wifi-Radio interface.
Using the O-View/Pro-View programmer, it is possible to set the function parameters very precisely.

The gear motor is equipped with a mechanical unlocking system that enables manual opening and closing of the gate.

The most important features of SPIDO1000:
  • precise adjustment of limit switches. No need to install and adjust the end stops on the rail
  • friendly programming thanks to the single-digit display
  • nice, modern design
  • convenient and safe transport: The rail is 30 mm high and is fully integrated with the carriage and rail end
  • only 9 cm high, fits perfectly into your garage
  • easy access to the control unit thanks to the convenient cover
  • fast - opens the garage door in just 10 seconds
  • longer useful stroke: the rail is 20 cm longer, ideal for most garage doors on the market
  • very bright additional LED lighting
The built-in control unit contains a radio receiver compatible with all transmitters supporting the NICE OPERA radio coding protocols. It has 90 memory units. One unit can memorize one transmitter (i.e. a set of its buttons and commands) or one button with the appropriate command.

TECHNICAL DATA:
  • power supply: 230V
  • engine power supply: 24V
  • maximum force: 1000 N
  • maximum power consumption: 280W
  • maximum number of cycles/day: 100
  • protection class: IP40
  • operating temperature: -20°C ... +55°C
  • dimensions: 192x344x90mm
  • weight: 4.5kg
