Nice SPIDER800 Set with 2x1.6m rail and reinforced belt
PURPOSE OF THE DRIVE:
Automation of garage doors with an area of:
- tilt door - up to 12.6m²
- sectional door - up to 11.4m²
tbody>
KIT COMPOSITION:
|

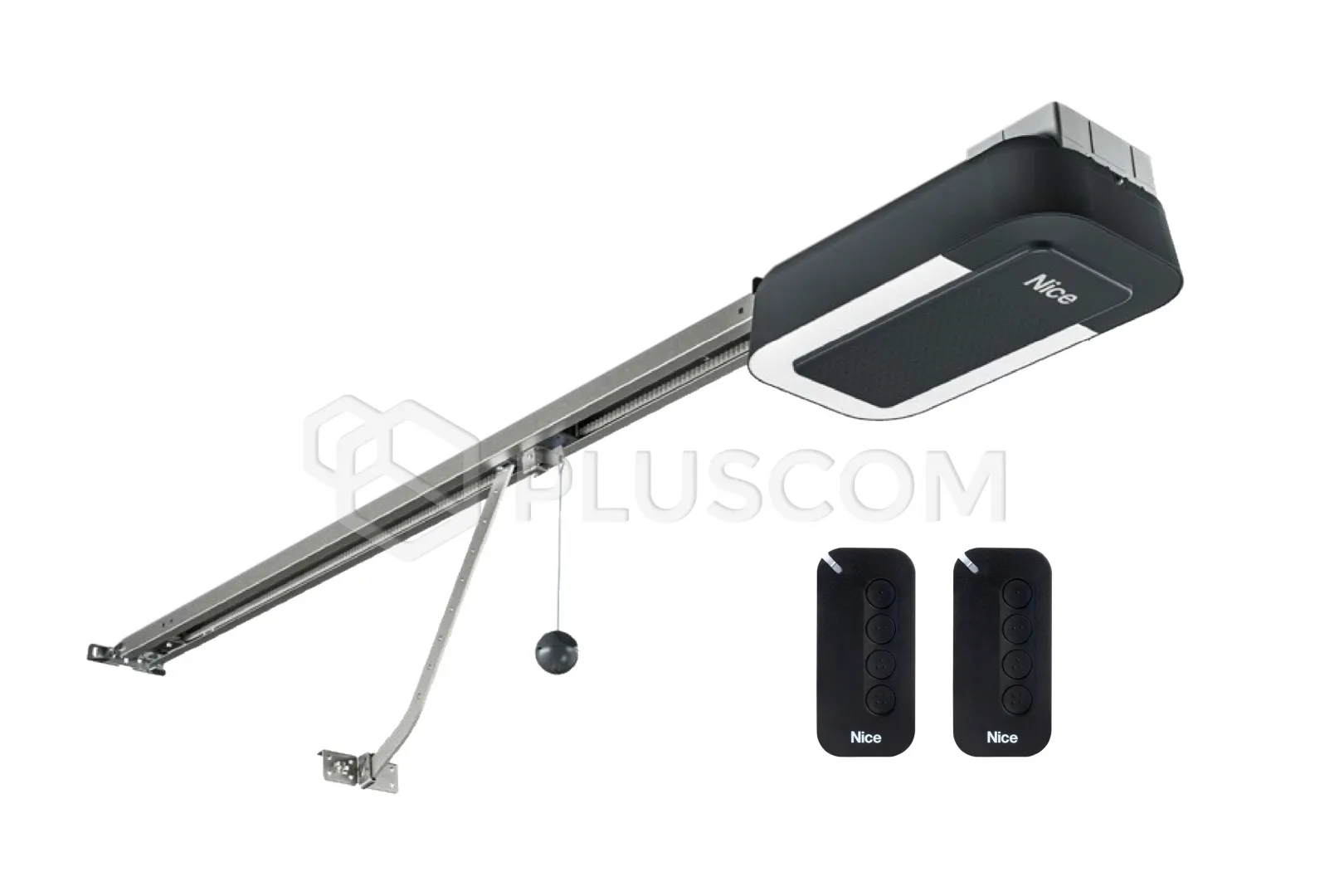

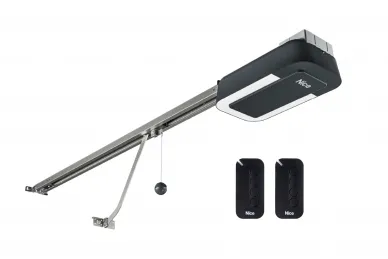

Nice SPIDER800 sectional door kit with 2x1.6m rail and belt
|
SPIDER is an electromechanical actuator for the automation of
sectional, protruding and non-protruding swinging doors.
The control unit included with the product, in addition to powering the DC
motor, enables excellent regulation of the torque and speed of the gear motor,
precise reading of the position limiter, gradual start-up and closing, reading
of obstacles. In addition, it is equipped with an internal counter that allows
recording of the manoeuvres performed by the gear motor during the entire use
period.
The integrated standby power supply module guarantees 90% lower energy
consumption when the product is in standby mode.
Security:
- Anti-theft function: if an attempted break-in is
detected, a notification will be received via the MyNice app and a new
closing manoeuvre will be automatically forced
- Eye Check, a visual control system: green and red LEDs
built into the motor signal potential problems / maintenance necessity or
show that everything is working smoothly
Gate lock after opening and closing. After the gate movement is finished,
the actuator automatically locks it, which prevents it from opening. Thanks to
this feature, the user does not have to additionally lock the gate with a lock
or bolt, which increases the comfort and safety of use.
The gear motor is equipped with a mechanical release system that allows manual
opening and closing of the gate. These manual operations must be performed in
the event of power failure, faults and during installation operations.
The actuator is equipped with additional LED lighting. Thanks to this, after
starting the manoeuvre, the space under the actuator is illuminated. The
lighting turns off automatically when the actuator stops.

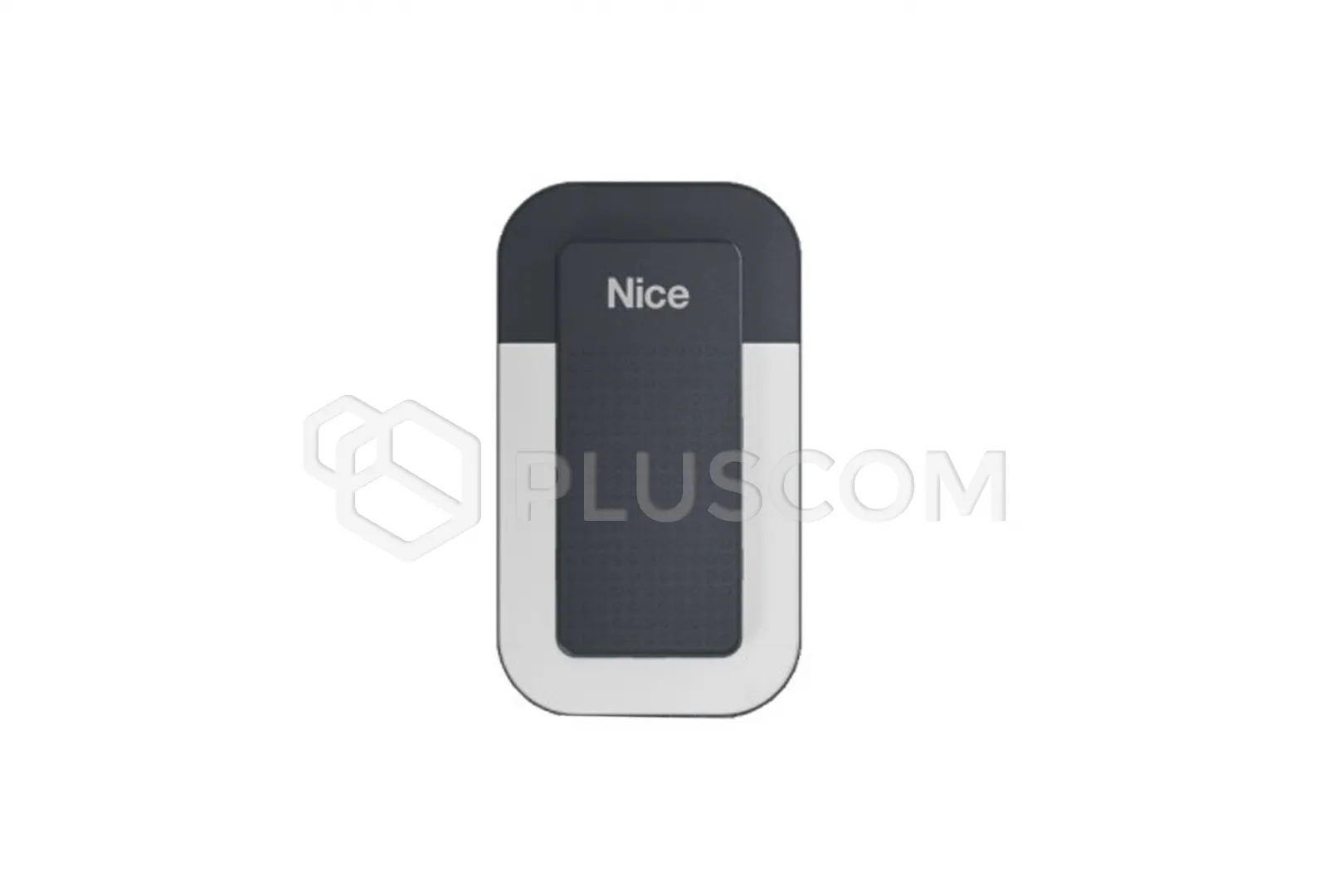

The MYGO4 remote control provides radio control with a
dynamically changing code, with a frequency of 433.92 MHz, which provides a
high level of use safety and makes the code impossible to copy.
MYGO4 has a secret code, the so-called "SWITCHING CODE". By
transferring this code from a memorized transmitter to a new transmitter, the
latter is recognized (and remembered) automatically by the receiver.
The MYGO4 transmitter can be programmed using the ProView device. The remote
control is configured by default in one-way mode with radio coding
"O-Code".
TECHNICAL DATA:
- Power supply: 230 VAC 50/60 Hz
- Current: 1.1A
- Power: 180W
- Power in standby mode: <1W
- Speed: 0.2m/s
- Force: 800N
- Work intensity: 50 cycles/day
- Protection class: IP40
- Working temperature: -20°C / +55°C
- Dimensions: 225 x 395 x 105.5 mm
- Weight: 4.9 kg
