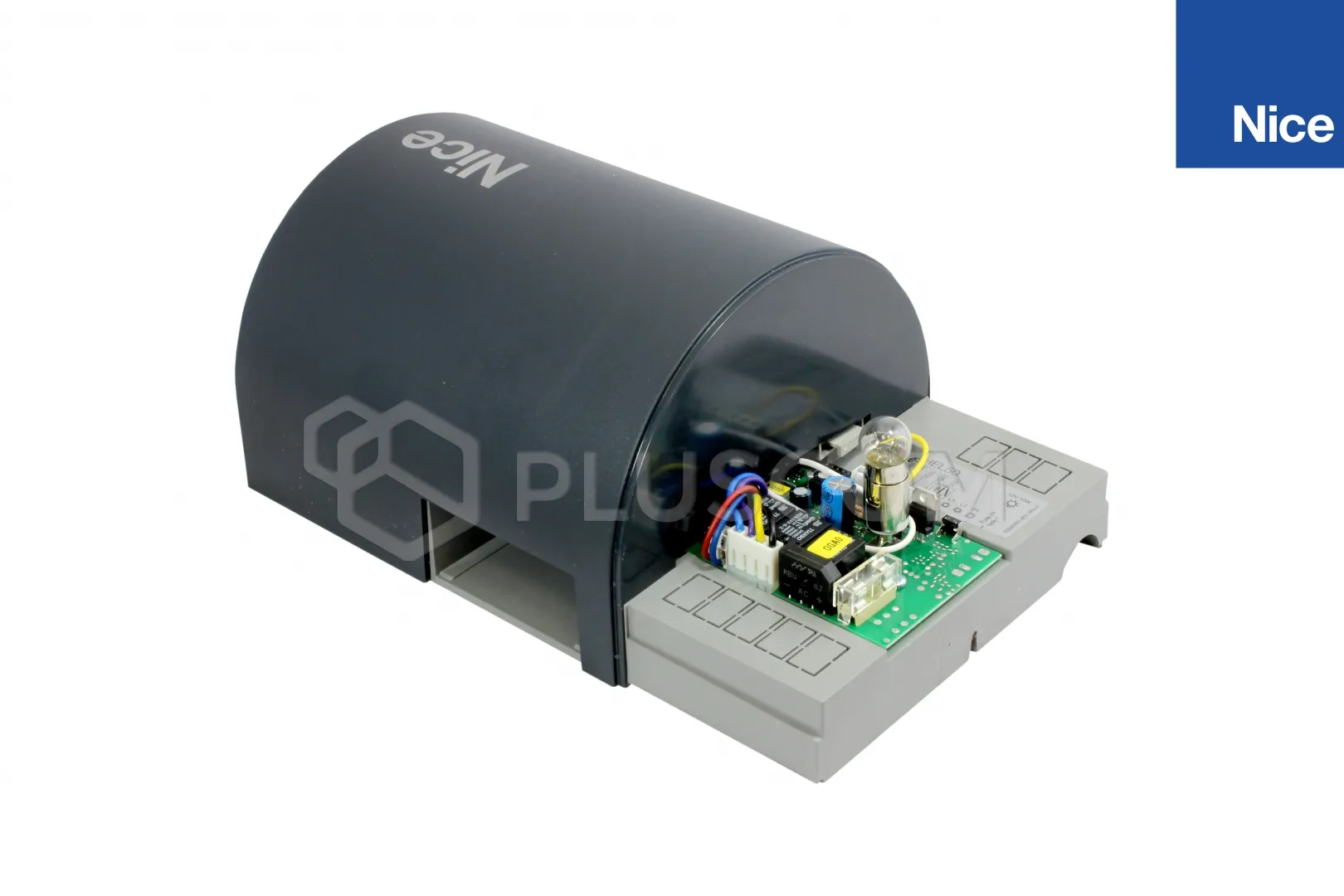

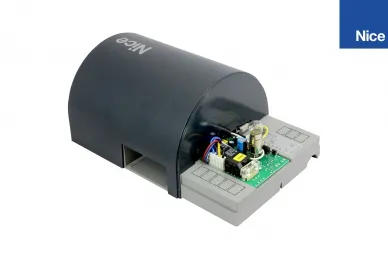

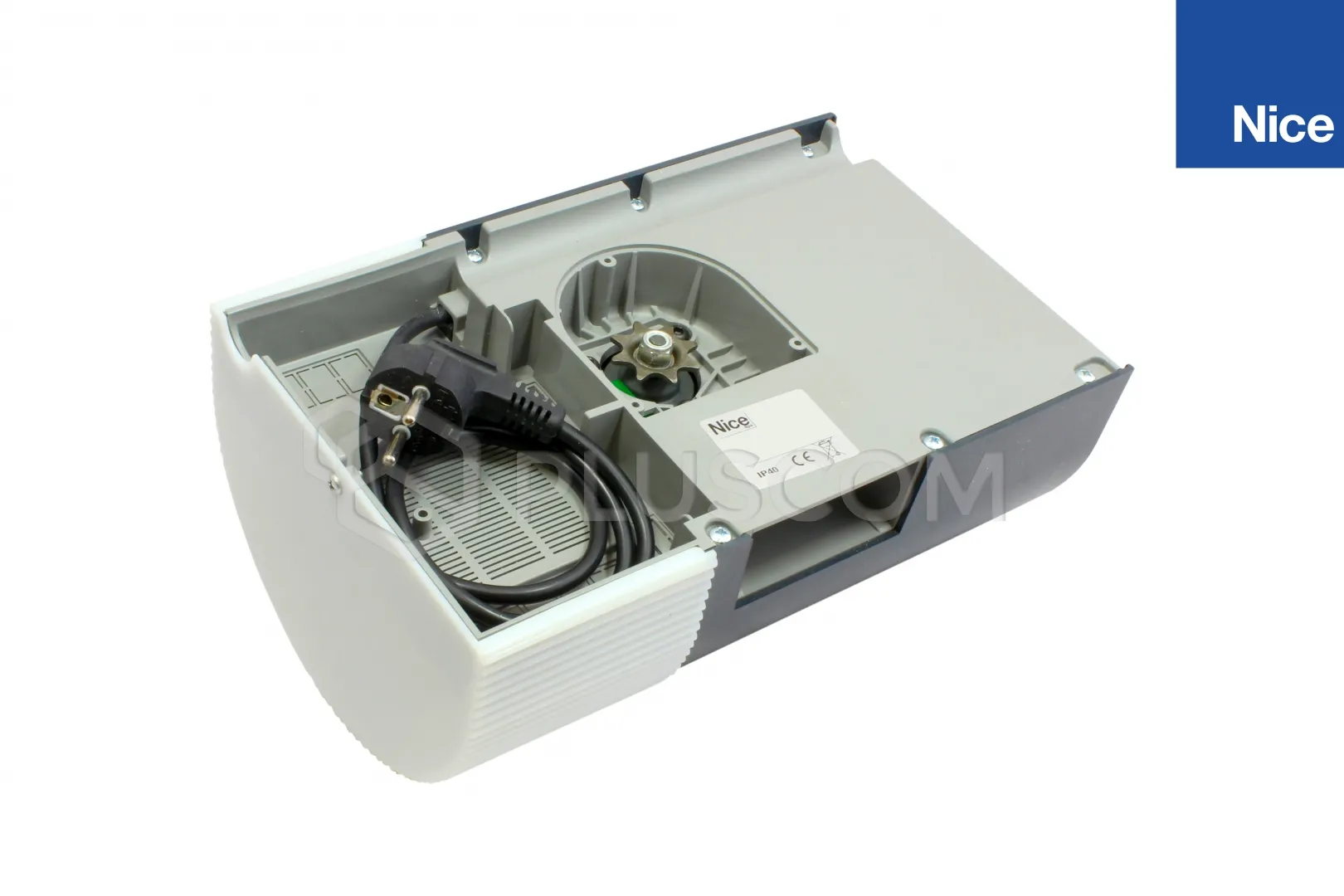

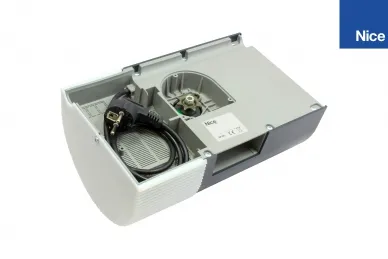

Nice SHEL75 R10 Actuator head

Nice SHEL 75 Garage Door Operator (sectional or overhead) with chain drive.

MOTOR PARAMETERS

• 24V motor
• Pulse force: 750N
• Work intensity: 8 cycles/h


GATE PARAMETERS

• for sectional doors: height: 2.25m, width: 4m
• for overhead doors: height: 2.2m, width: 4m

DISTINCTIVE FEATURES

SHEL75 Drive It allows you to automate sectional or overhead garage doors approximately 2.2 m high and up to 4 m wide. The 24V DC motor is characterized by high operating smoothness (no sudden jerks) and allows for a smooth start and stop of the maneuver.

The entire system has been designed to perform perfectly in private households (working intensity of 8 cycles per hour). The pre-assembled 2850 mm guide rail and all necessary mounting hardware included allow for quick installation in any typical installation location.

AUTOMATIC PROGRAMMING
Programming is performed with a single button. After activating the auto-programming function, the actuator performs three consecutive maneuvers, automatically learning both end positions. In the next stage, the actuator performs 3 or 4 full opening and closing maneuvers, and the control unit remembers the force required to move the gate at each point in the maneuver.

SAFE
During operation, an amperometric system monitors current consumption. Detecting an obstacle causes the gate to stop and briefly move in the opposite direction. The control unit works with optional EPM/BF photocells and an 8.2 KOhm resistive edge.

ADDITIONAL CONTROL UNIT FUNCTIONS

• Integrated 433.92 MHz radio receiver
• Automatic recognition of connected safety devices (photocells)
• Compatibility with an 8.2 KOhm resistive edge
• Automatic closing
• Partial gate opening
• Pause time adjustment
• Obstacle detection sensitivity adjustment
• Short reverse after the maneuver to reduce stress on the drivetrain
