Nice SHEL 75 REA FLOR kit for garage doors 750N

Out of stock. Archived Product.

Items bought with this product:

Nice SHEL 75 ERA FLOR set for garage doors (sectional or tilting) with chain drive.

Nice SHEL75 kit for garage doors 750N

PARAMETERS OF THE ACTUATOR

24V engine
750N pull force
work intensity: 8 cycles / h

GATE PARAMETERS

for sectional door:
- height: 2.25m width 4m
for a hinged gate:
- height: 2.2m width 4m

The above restrictions result from the use of a 2850mm rail. It is possible to extend the rail by 1m with the help of the Nice SH1 set

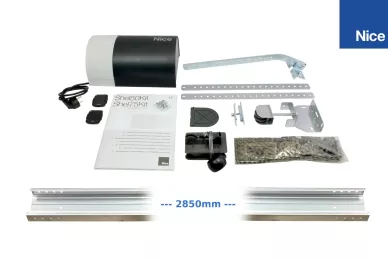

We DELIVER

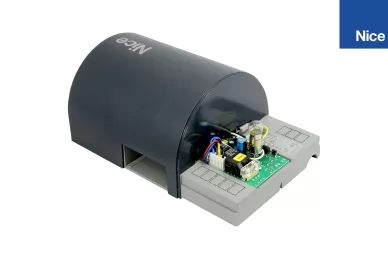

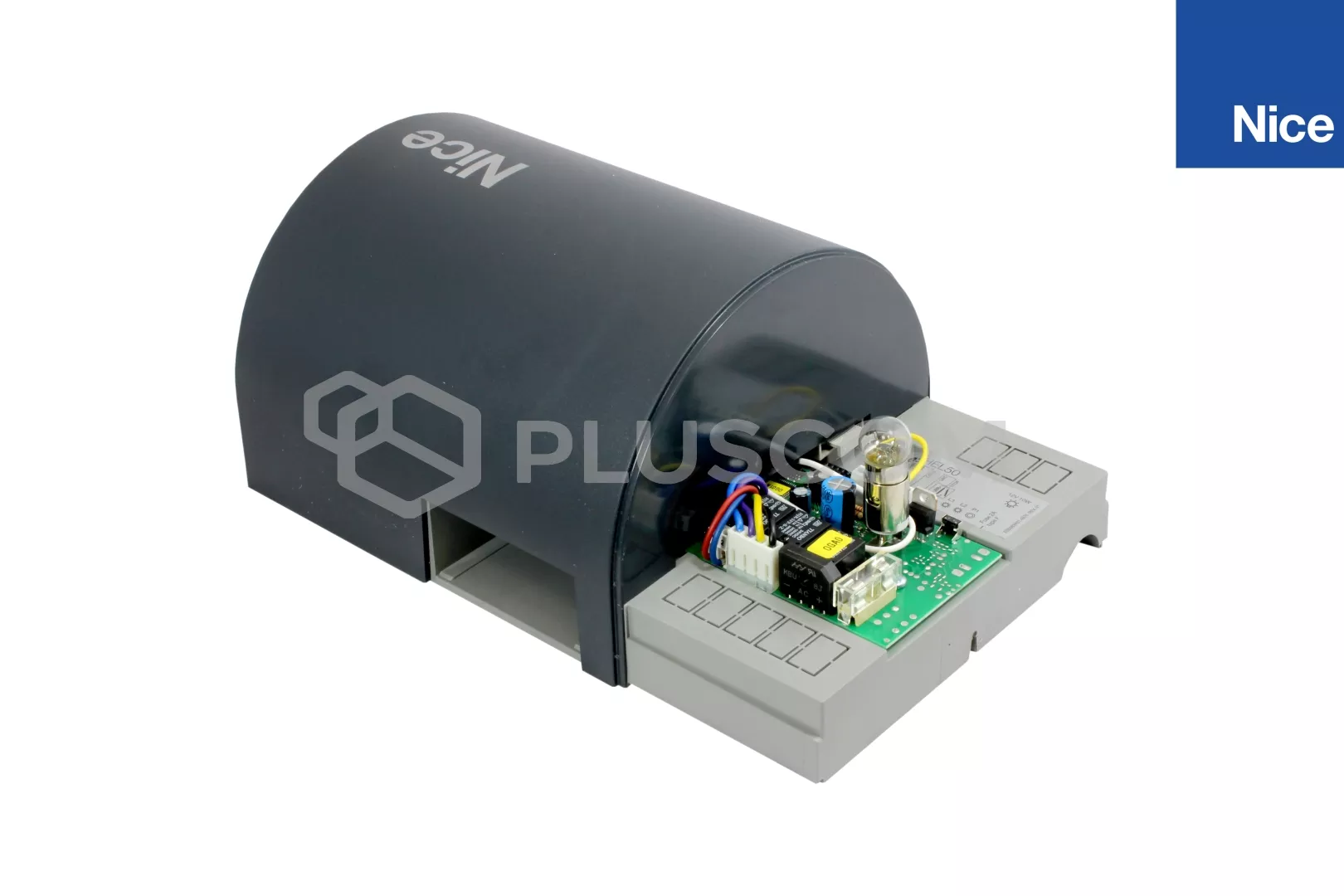

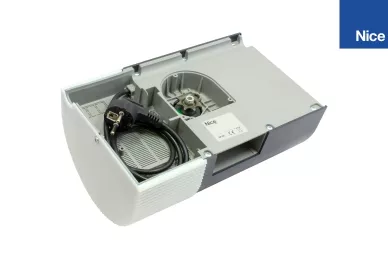

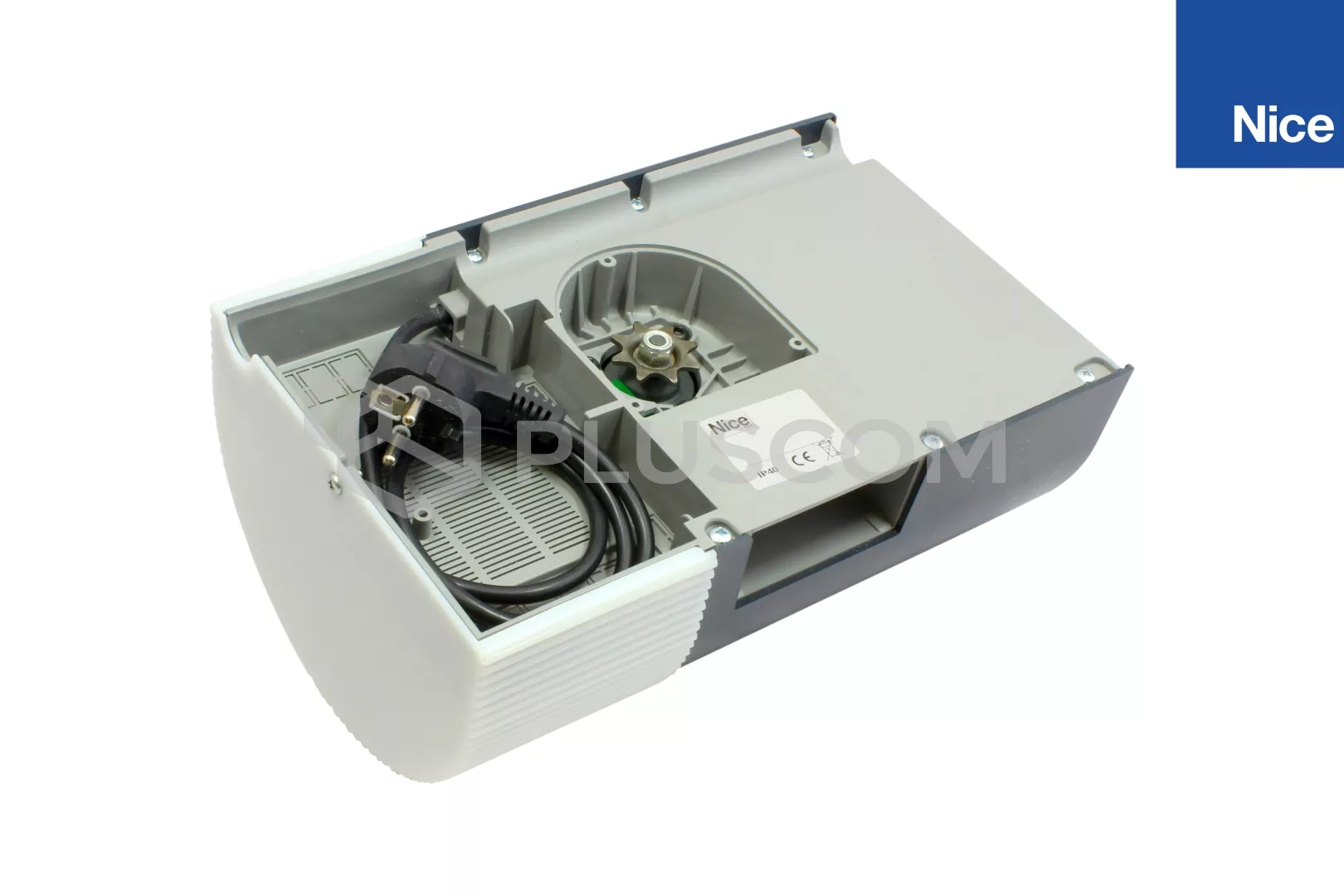

SHEL75 actuator with built-in OGA2N control panel and 433MHz radio
Nice FLO4RE 4-channel remote - 2 pcs
Nice PMD1621R01.4 complete rail SHEL75

PERFECTING FEATURES

The SHEL75 drive allows automation of sectional or tilting garage doors with a height of approx. 2.2 m and a width of up to 4 m. The 24V DC motor is characterized by high work culture (no sudden jerks) and allows a gentle start and end of the maneuver.

The whole set has been designed to perfectly cope with private households (intensity of work 8 cycles per hour) Pre-assembled guide rail with a length of 2850mm and attached all necessary handles and assembly elements allow for quick assembly in any typical installation location.

ADDITIONAL FUNCTIONS OF THE CENTER

integrated with the plate radio 433,92MHz
automatic recognition of connected safety devices (photocells)
cooperation with a resistance strip of 8.2 KOhm
automatic closing
partial opening of the gate
regulation of pause time
regulation of the speed of movement
sensitivity adjustment when recognizing an obstacle
short reverse after completing the maneuver to reduce stress in the drive train
