Nice Set S-BAR R10 up to 4m, passage 379cm

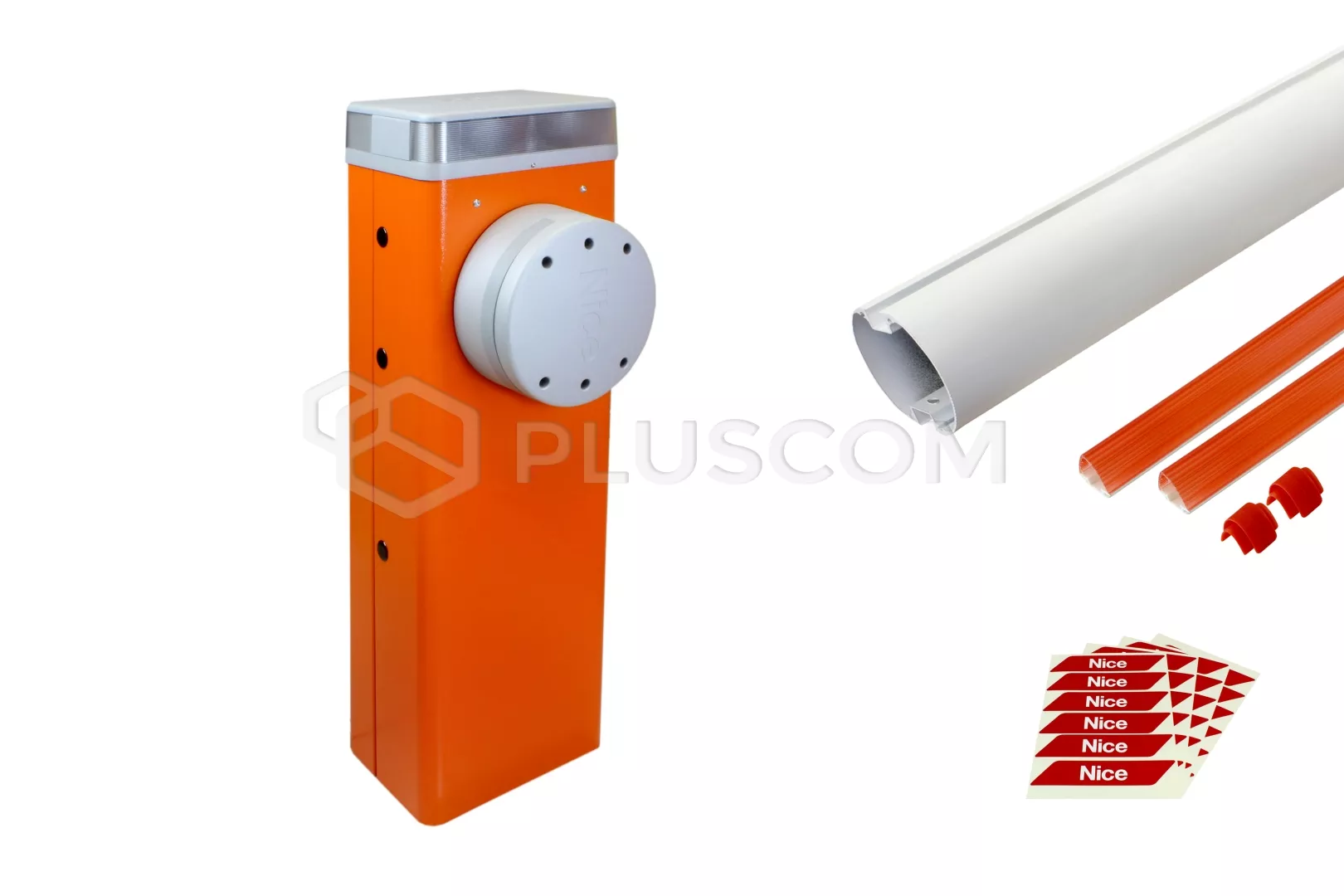

The set includes:

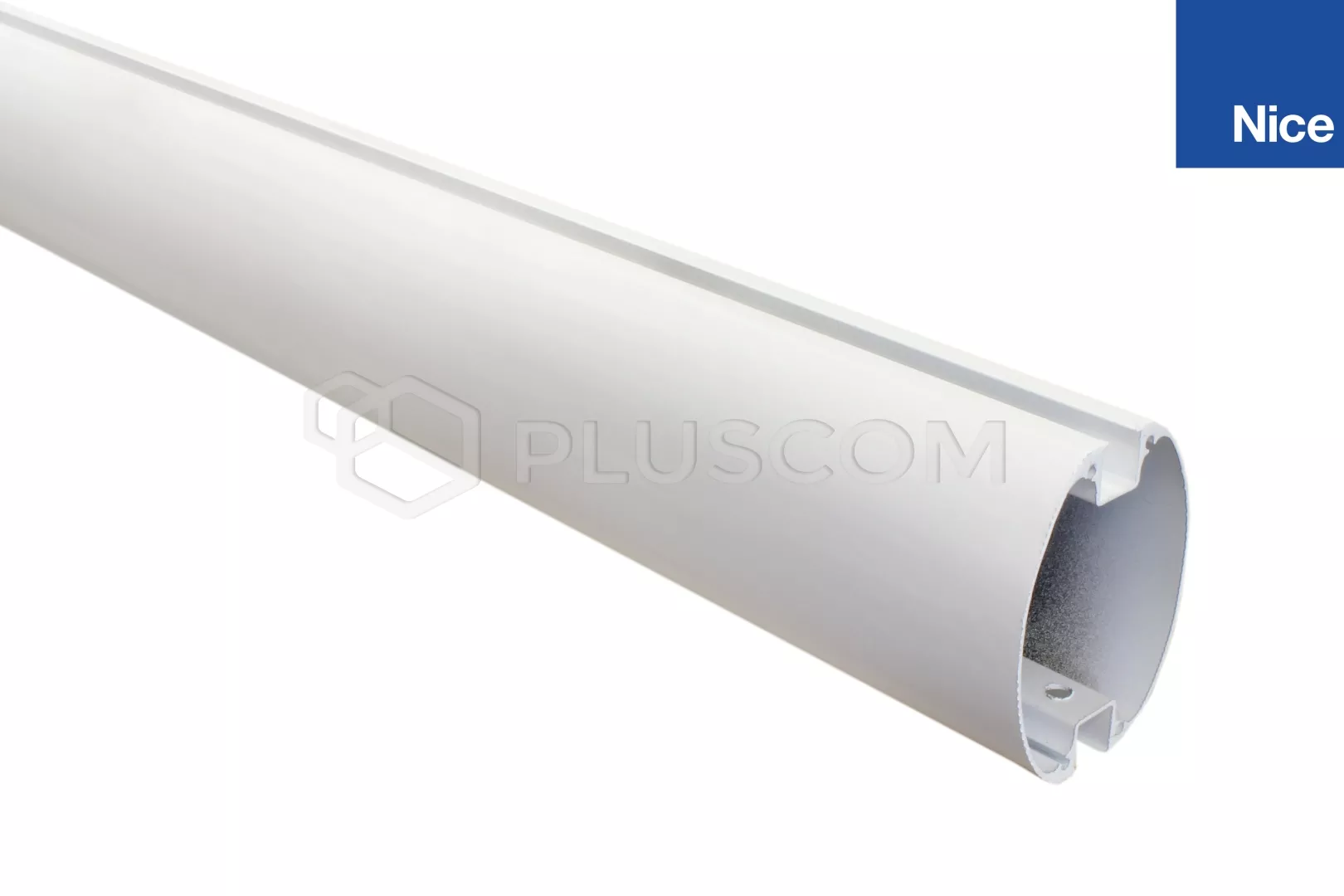

Nice Set S-BAR R10to 4m

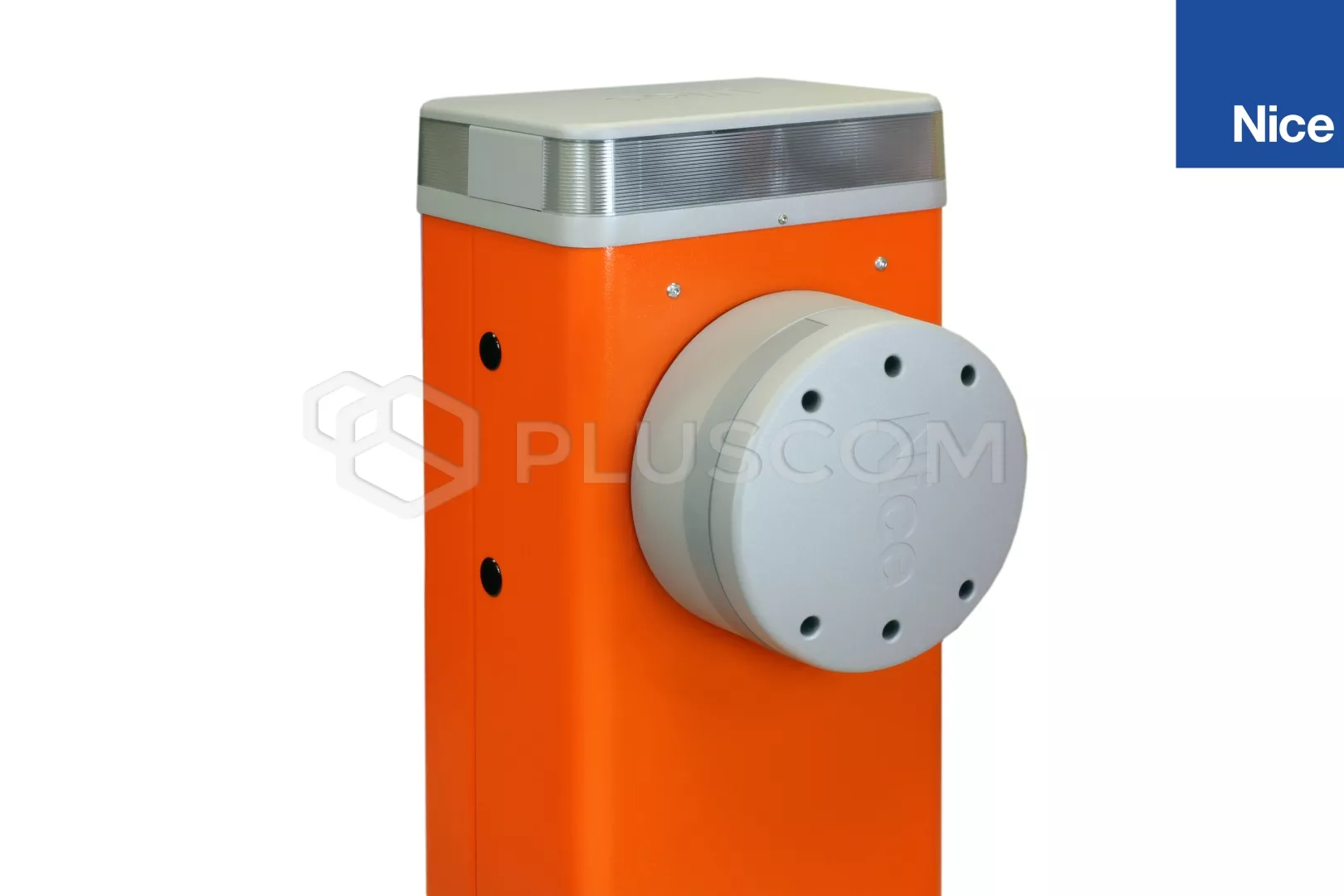

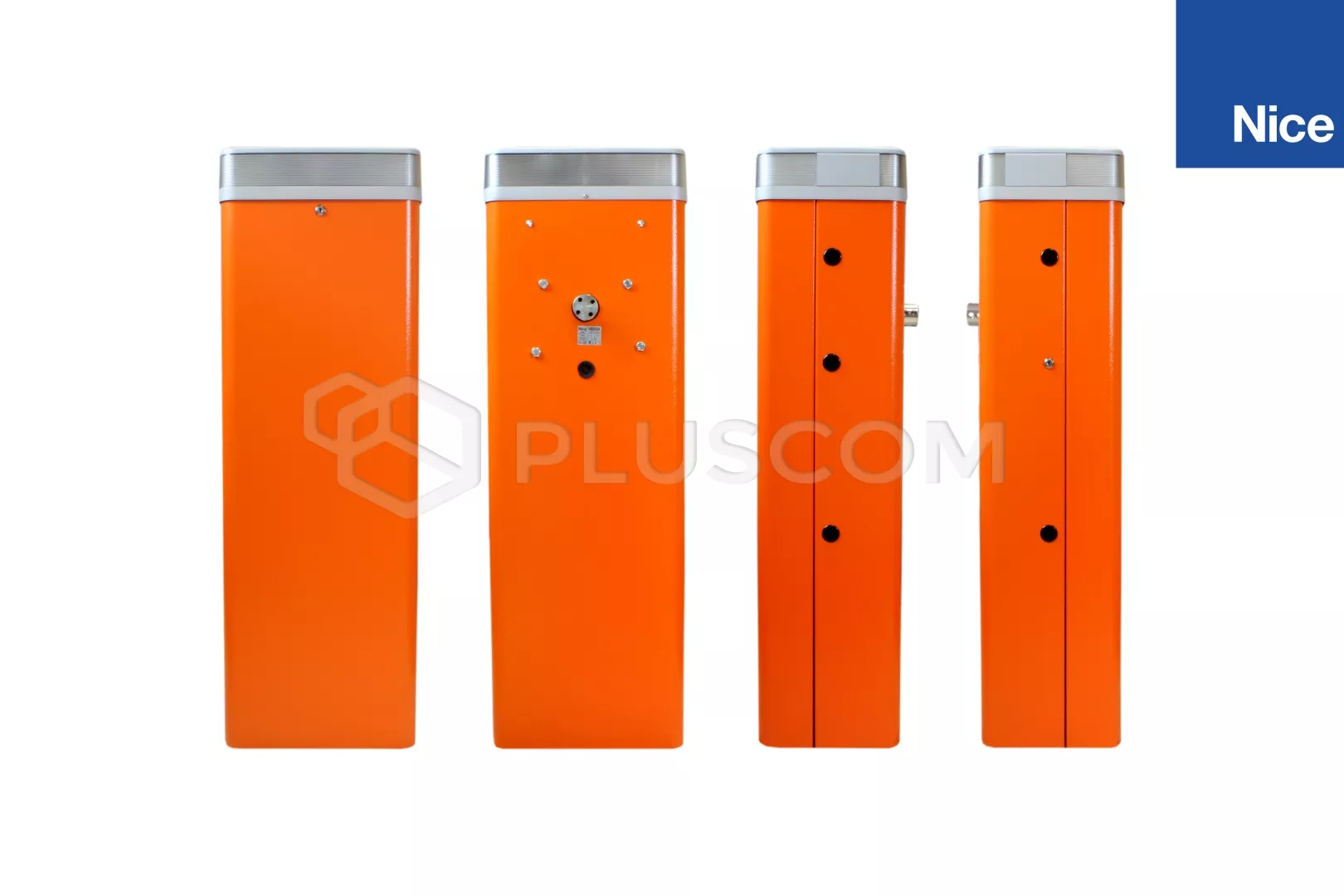

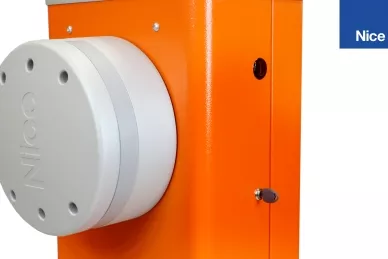

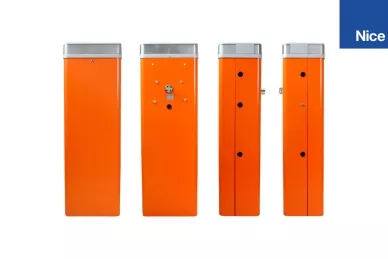

NICE S-BAR CENTRAL UNIT FOR ARM UP TO 4m
The electromechanical barrier as an element of access control works perfectly
at all guarded car parks, at universities, offices, communities residential and
other industrial facilities. Solid construction of the barriers NICE makes them
suitable for intensive work and guarantees up to a million cycles. Modular

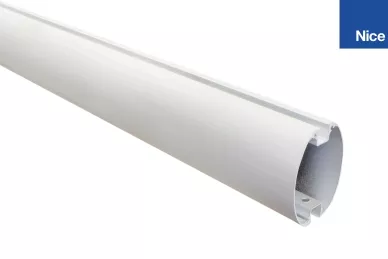

construction of the arms and a large number of additional accessories allow for
unique adjustment of the NICE barrier to a specific place installation.
PARAMETERS
- arm length max 4m
- work intensity: 100 cycles/h
- minimum open time: 4s
The Nice S-BAR central unit allows the installation of an o maximum length
of 4m. 24V motor with 300W encoder has torque 100Nm. The built-in control panel
XBA20R10 with Bluebus technology has radio connector type OXI, SMXI, SMXIS.
DISTINGUISHING FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY
Steel construction, durable balancing springs, elliptical arms resistant to
strong winds.
VISIBLE
Distinctive
orange
color, optional LED lighting in the unit cover and LED lighting
warning lights on the arm (option), operation of semaphores and the possibility

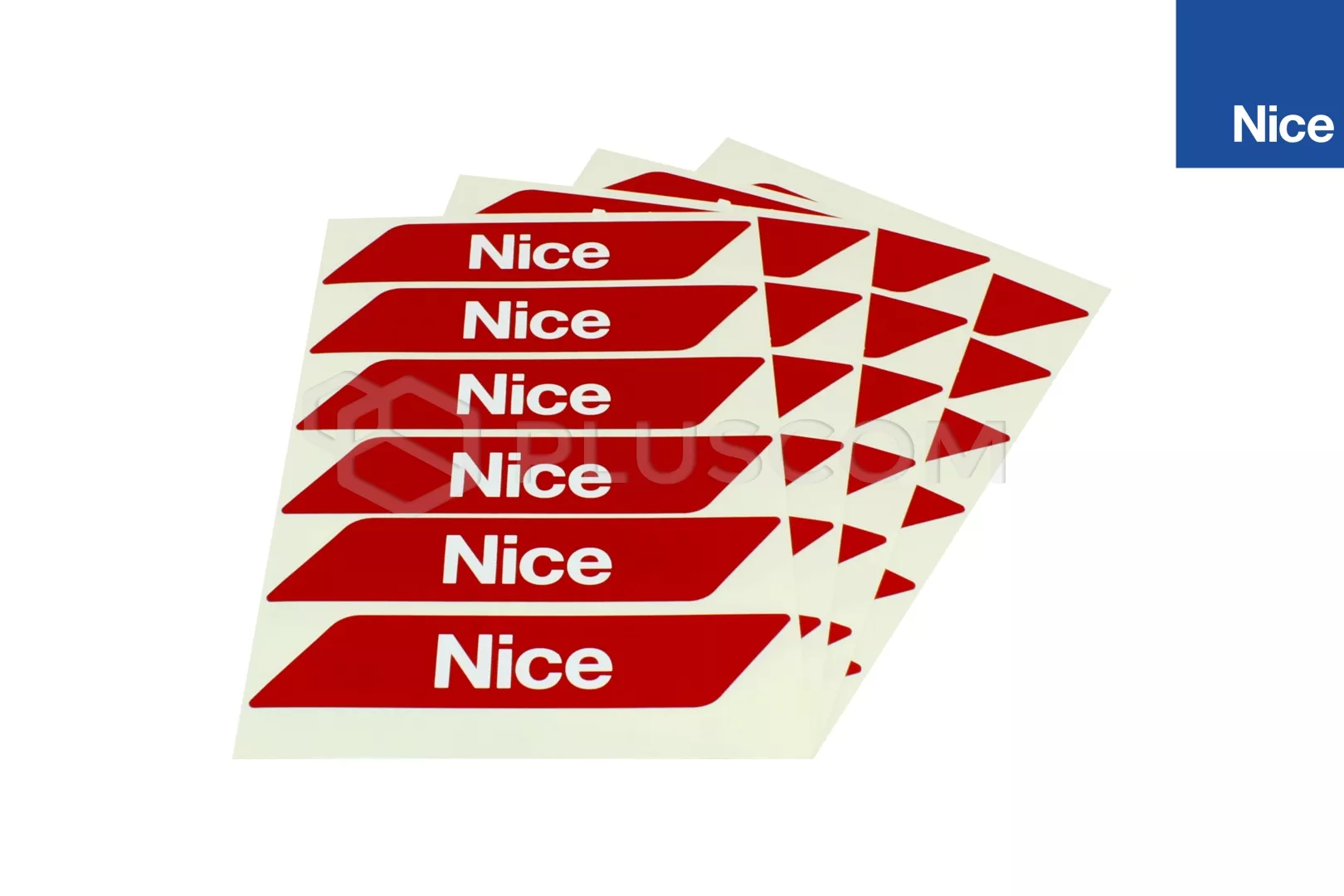

sticking warning stickers makes it impossible to go next to the NICE barrier
pass by indifferently.
SAFE
In the housing of the central unit using special optional holders photocells
can be installed to protect the area directly below the working area barrier
arm. During operation, the control panel controls the current drawn by when an
obstacle is detected, the motor immediately stops its movement programmed

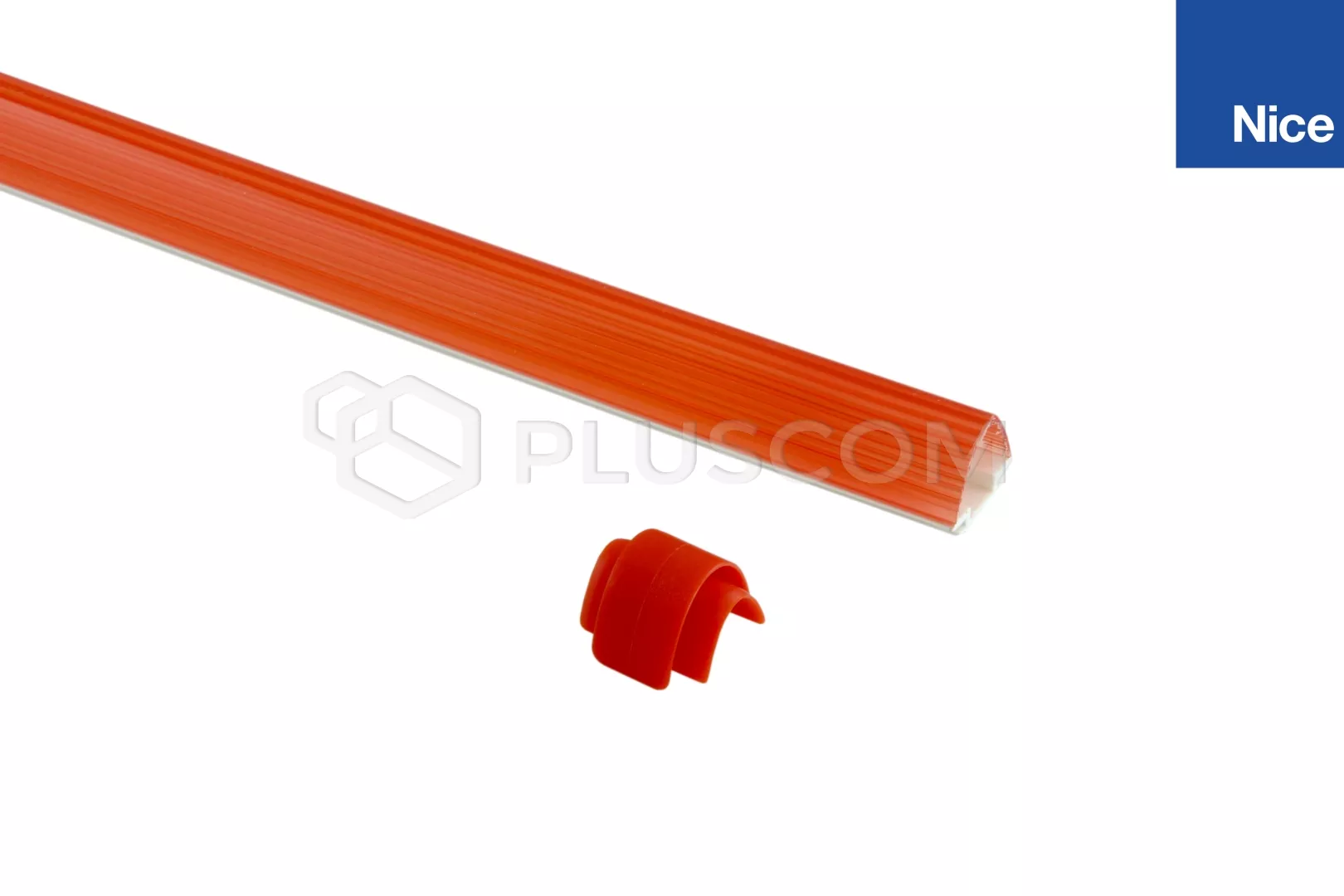

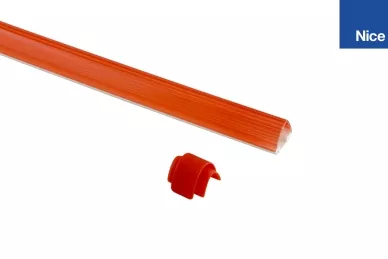

reaction, e.g. (retraction, short retraction, stop). Optional the arm can be
equipped with red rubber protection strips or a strip resistive (8.2KOhm).
ECONOMICAL AND ALWAYS READY TO WORK - POWER
As standard, the drive is powered by 230V. Can also be used optional SOLEMYO
system. An additional PS124 battery provides power emergency in case of
interruptions in electricity supply, which makes it a barrier ''always
working''. In the standby mode, the control panel limits the power
consumption energy by switching to "Stand by"
SOPHISTICATED, PROGRAMMING AND SERVICE
Separate zones in the housing for electronics and mechanics make it much easier
drive operation. The control unit is located at the top of the barrier through
every installer has easy access to settings and plugins.
The self-diagnosis function detects malfunctions in the operation of the
barrier and with flashes indicates the type of error.

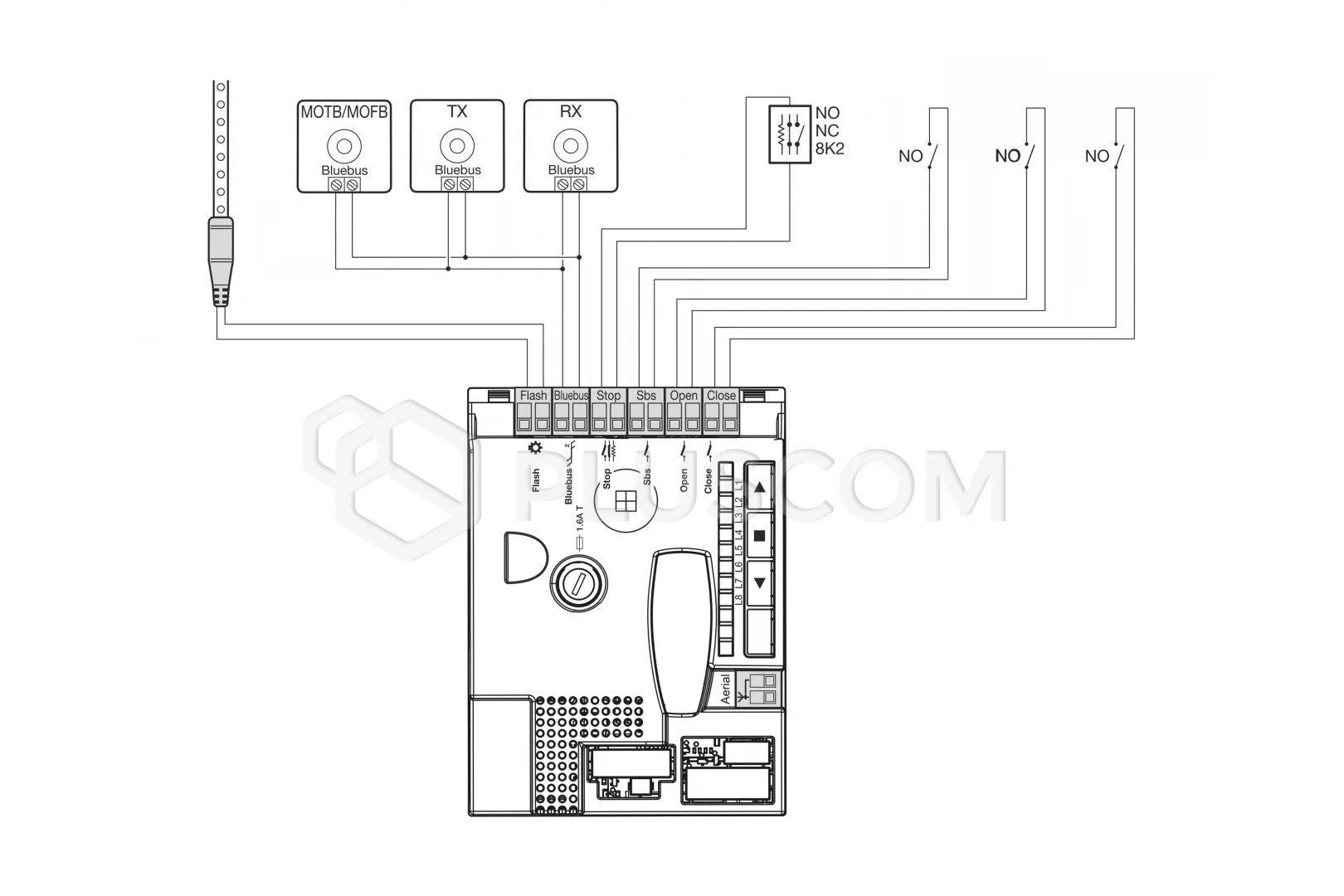

The built-in XBA20R10 Bluebus modular control panel works with O-View
programmer. It allows access to additional function parameters and
configuration of very detailed parameters.
Here are some useful functions:
- adjustment of the opening angle with an accuracy of 1°
- regulation of release in the final phase of opening
- additional reactions in the event of an alarm on a photo: e.g. stop i
retraction, stop and short retraction, temporary stop
- setting the hours of authorization of the control pilots
