Nice ME3024 underground actuator for gates up to 3.5m/24V, heavy-duty operation

529,33 EUR including 23.00% VAT
Product code: #4376
Manufacturer: Nice
  • maximum leaf width 3.5m
  • maximum leaf weight 600kg
  • 24V DC motor power supply
  • for intensive use

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Nice ON3EBD 3-channel remote two-way Nice OVIEW/A R01 Display programmer +IBT4N interface Nice OXIBD 4-channels receiver two-way Nice MC824H R10 BLUEBUS control unit Nice PLA10 Electric lock vertical Nice MEA2 emergency release mechanism with key Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger Nice MECX underground housing for M-FAB, stainless steel, requires MEA2/MEA3 lock

Nice ME3024 Irreversible 24 Vdc with built-in mechanical stop

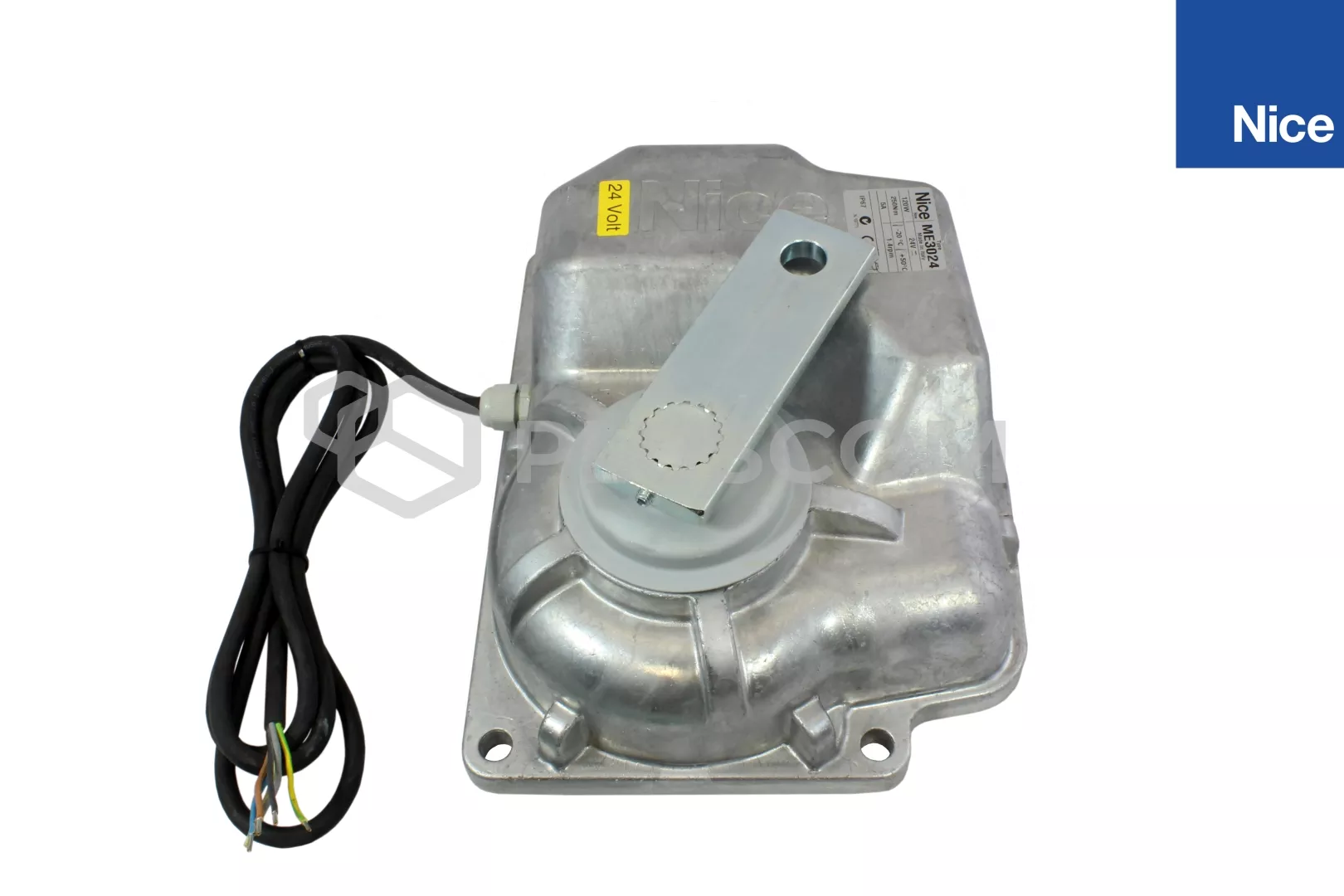

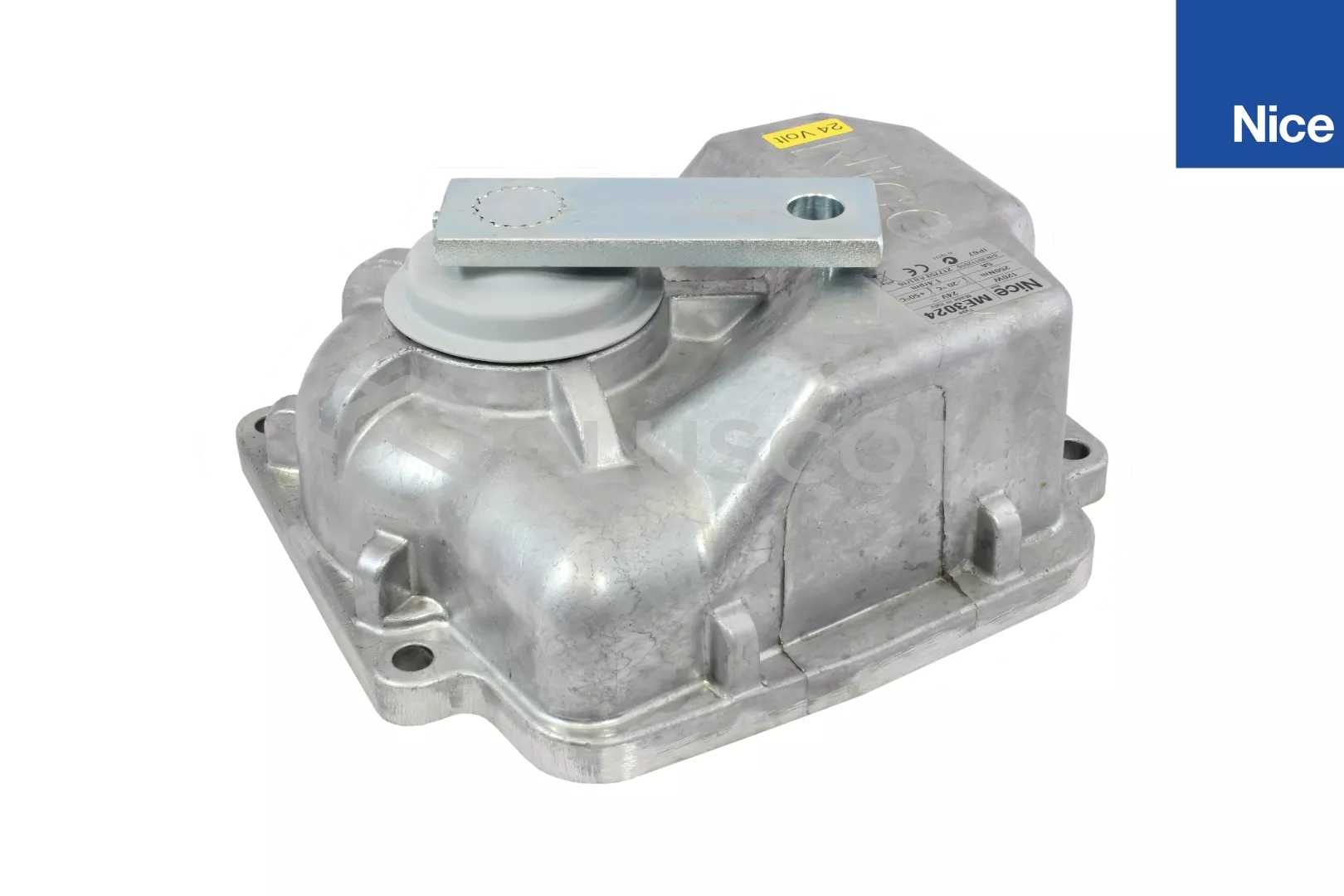

Nice M-FAB ME3024 Underground actuator 24V

Nice M-FAB ME3024 Underground actuator 24V



For swing gates with leaves up to 3.5m, underground installation. Irreversible electromechanical gear motor.

Foundation boxes with mechanical stop on opening:
  • in stainless steel MECX, ideal for use in extreme conditions,
  • with cataphoresis paint finish MECF, highly resistant to corrosion.

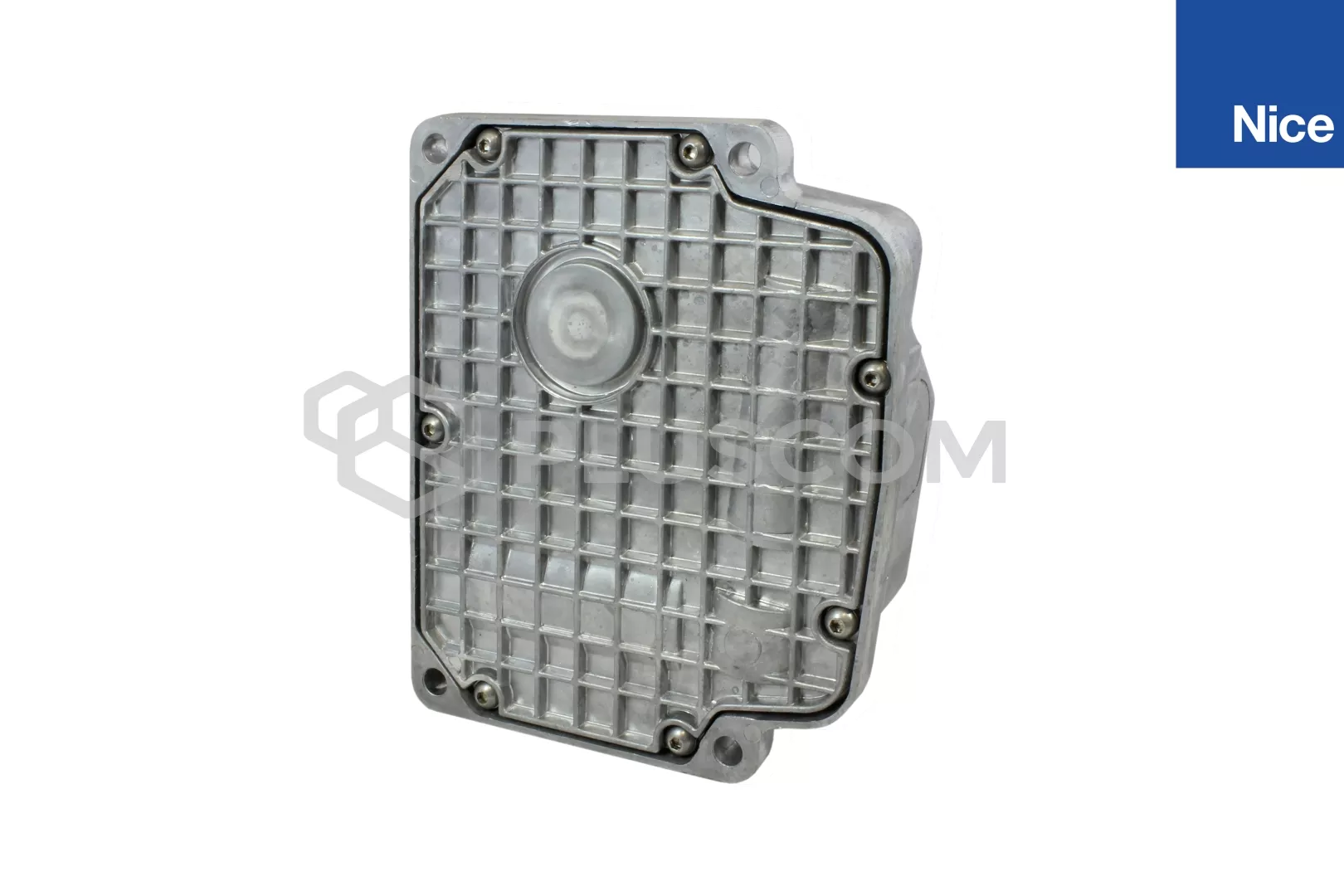

Bottom view:

Bottom view:


Maximum freedom of choice: release from inside or outside, two key or lever operated models, freely combinable and easy to operate with just one hand.

Simple installation: built-in mechanical stop system on closure.
Standard opening to 110° or optional 360°

PARAMETERS

  • power: 230V
  • motor power: 230V
  • power consumption: 250W
  • speed: 1,14 r/min
  • torque: 300Nm
  • intensity: 30%
  • degree of protection: IP67
  • operating temperature: -20°C...+50°C
  • dimensions: 372x306x143mm

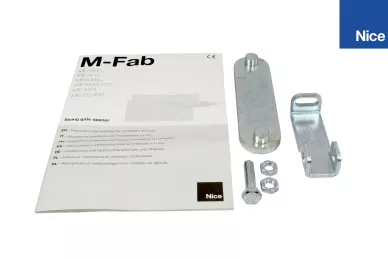

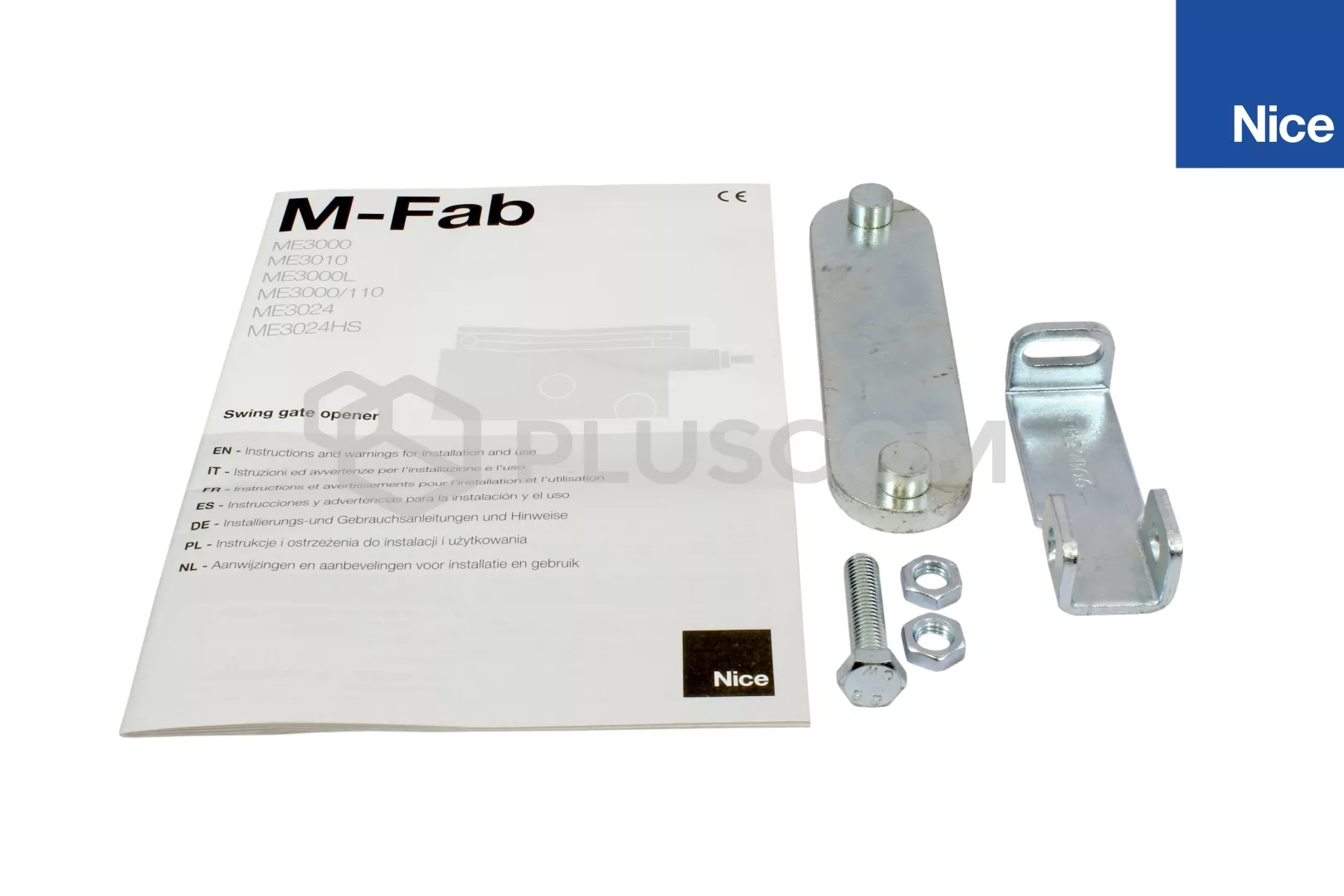

BOX contents, accessories:

BOX contents, accessories:
