Nice M7BAR R30 Kit with 6m oval boom, 604cm passage width

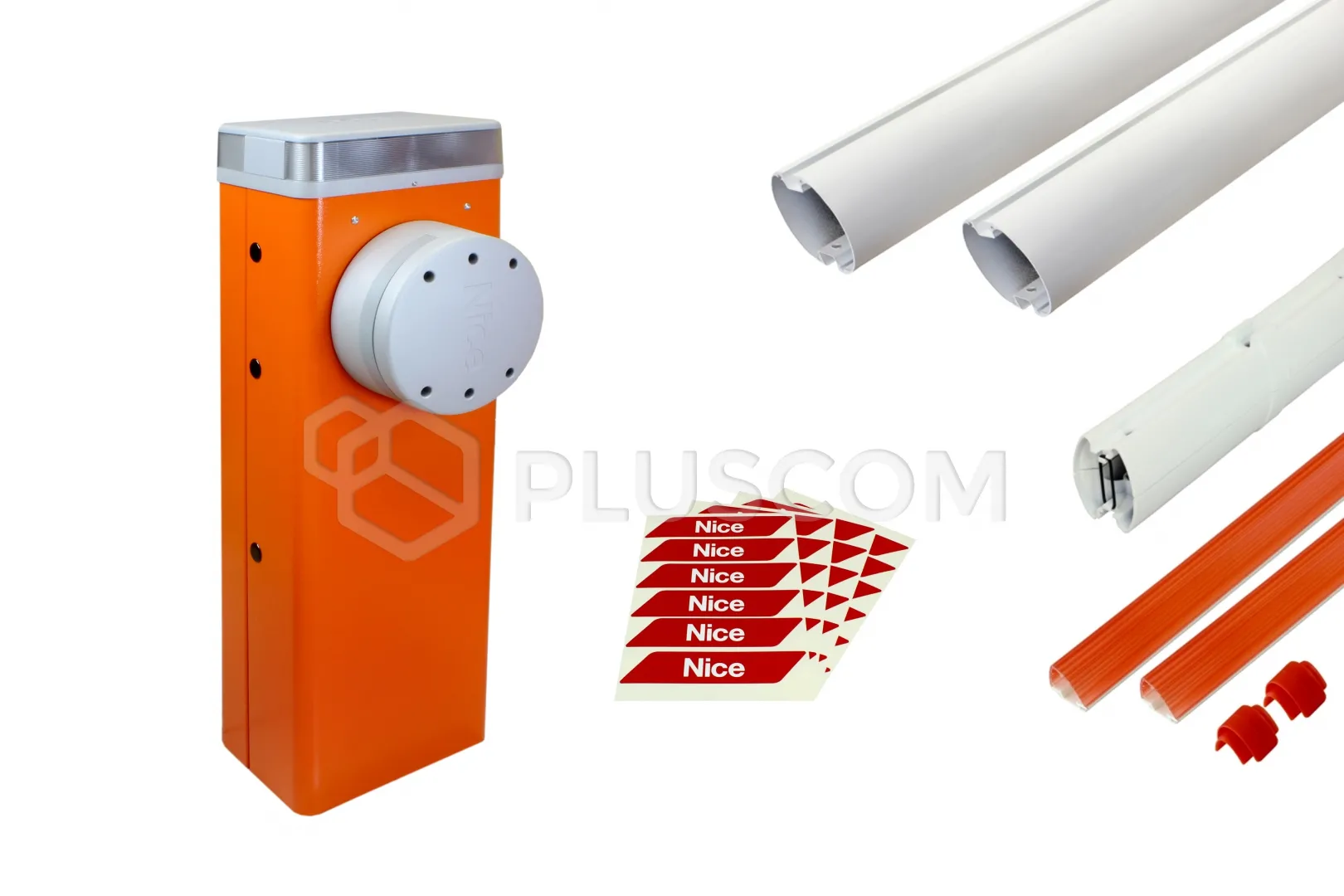

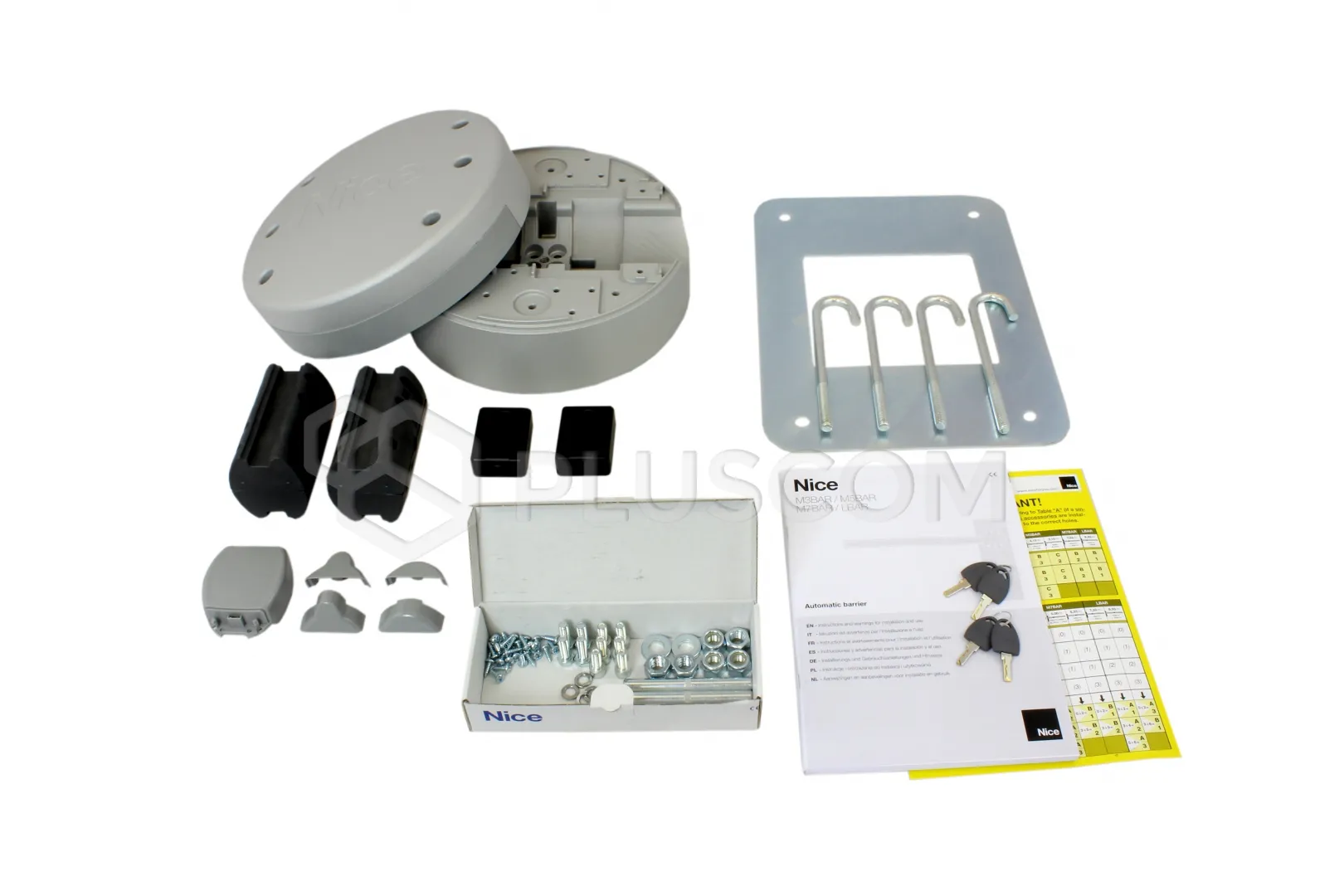

The kit includes:
Nice M7BARR10 set with oval arm up to 6m

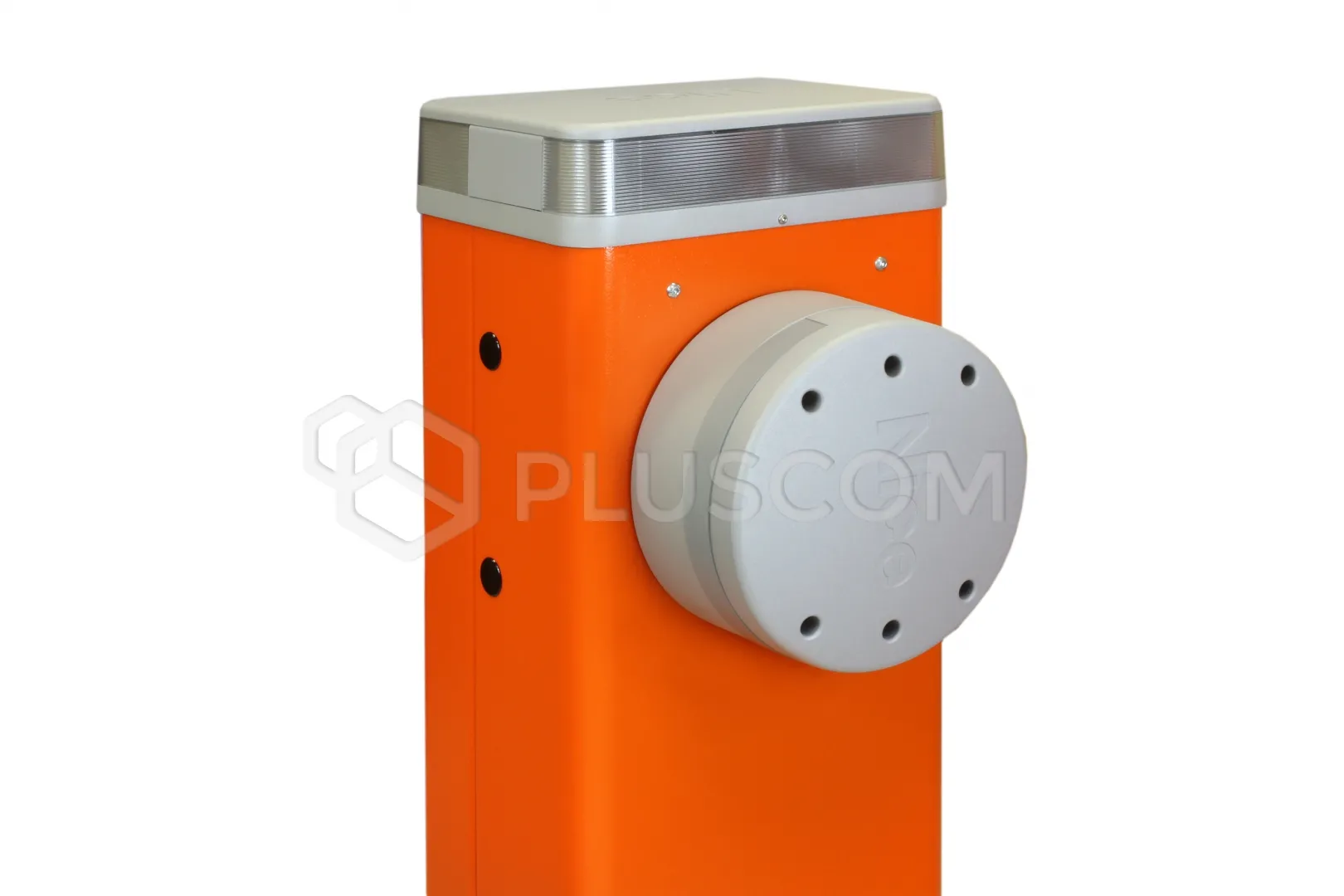

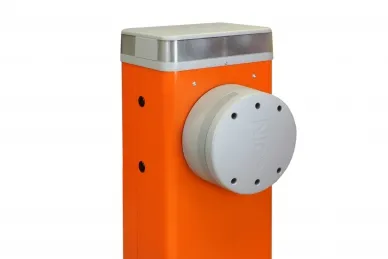

NICE M7BAR MAIN UNIT FOR BOOM UP TO 6m
As an access control element, this electromechanical barrier is ideal for
guarded parking lots, universities, government offices, residential complexes,
and industrial facilities. The robust construction of NICE barriers makes them
suitable for intensive use, guaranteeing up to one million cycles. The modular
boom design and a wide range of accessories allow the NICE barrier to be
uniquely tailored to the specific installation site.
SPECIFICATIONS
- boom length: 6m
- duty cycle: 200 cycles/h
- minimum opening time: 6s
Nice M7BAR main unit with a 6m boom. The 110W, 24V motor with an encoder
delivers 300 Nm of torque.

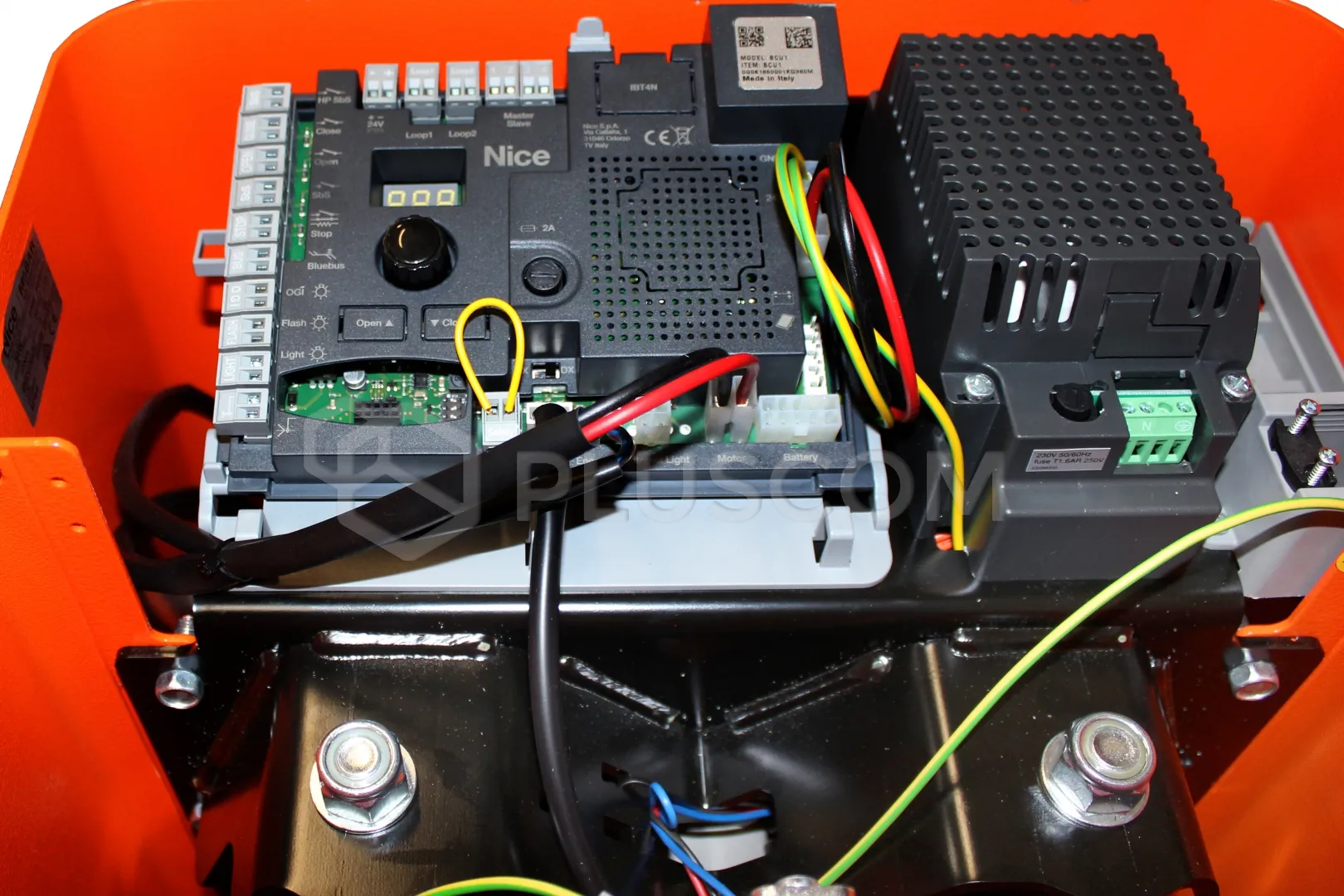

At the heart of the barrier is the proven
and reliable BCU1 control unit, featuring the manufacturer's latest
quarterly specifications (optimized firmware version) while maintaining

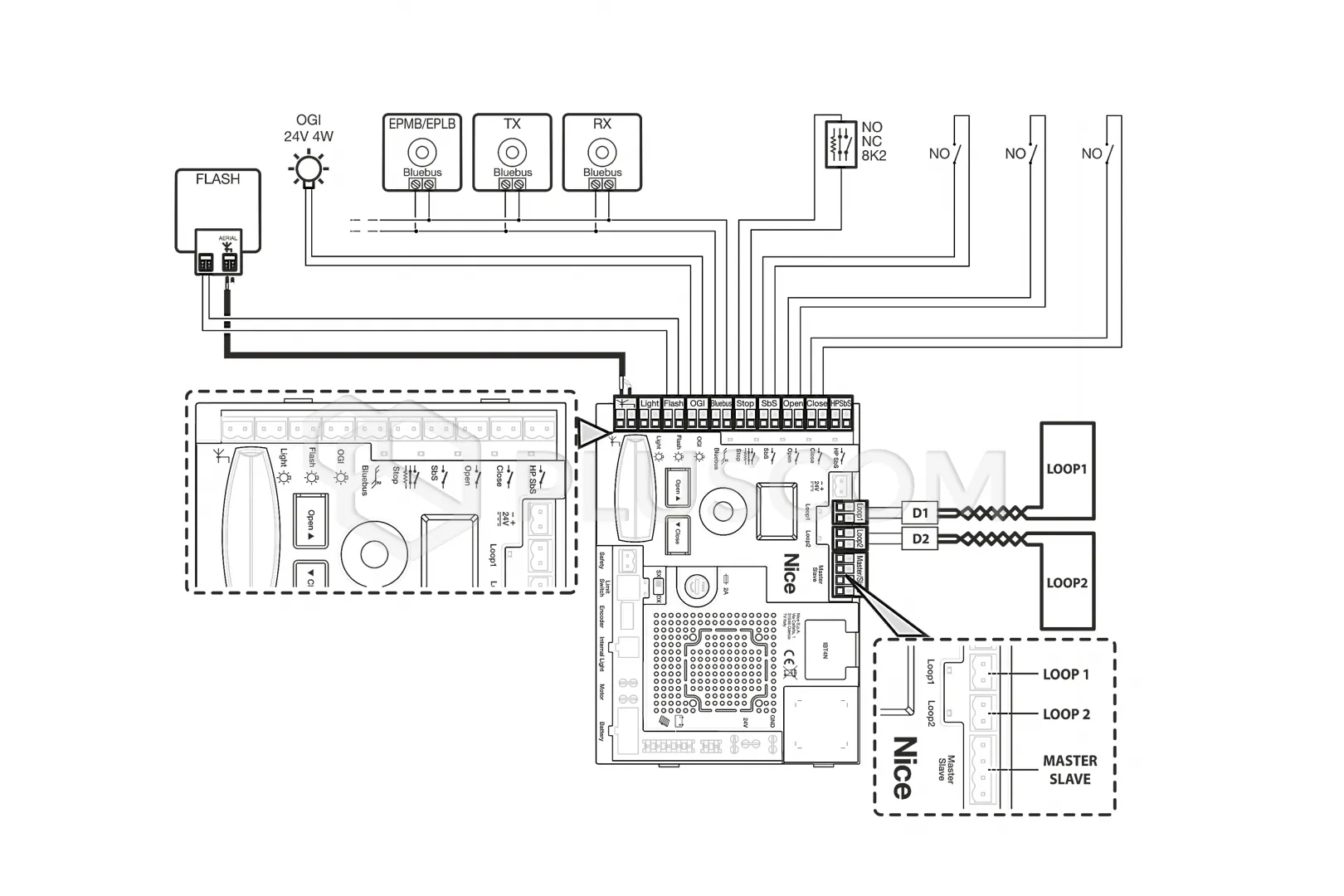

identical wiring diagrams, electrical parameters, and full functionality of the
BlueBUS system and Yubii device support.
The latest electronics iteration features updated firmware, improved overload
detection (amperometric sensing), and enhanced native compatibility with new
accessories in the Nice ecosystem (e.g., OXIBD receivers and Smart Home
systems). Designed for intensive use, the built-in control unit meets the
requirements of parking, industrial, and residential installations.
KEY FEATURES OF NICE BARRIERS
DURABILITY AND RELIABILITY
Steel construction, robust balancing springs, and elliptical-profile arms
resistant to strong winds.
HIGH VISIBILITY
Its distinctive
orange
color, optional LED lighting in the unit housing and warning
lights on the arm (optional), traffic light support, and the option to apply
warning decals ensure that a NICE barrier cannot go unnoticed.
SAFE
Using special optional brackets, photocells can be mounted on the central unit
housing to protect the area directly beneath the operating barrier arm. During
operation, the control unit monitors the motor's current draw; if an
obstacle is detected, it instantly halts movement and executes a programmed
response (e.g., reversal, brief reversal, or stop). Optionally, the arm can be
fitted with red rubber protective strips or a resistive safety edge (8.2 kΩ).
ENERGY-EFFICIENT AND ALWAYS READY – POWER SUPPLY
The drive is powered by 230 V as standard. The optional SOLEMYO system can also
be used. An additional PS224 battery provides backup power during outages,
ensuring the barrier "always operates." When idle, the control unit
minimizes energy consumption by switching to "Standby" mode.
SOPHISTICATED DESIGN, PROGRAMMING, AND MAINTENANCE

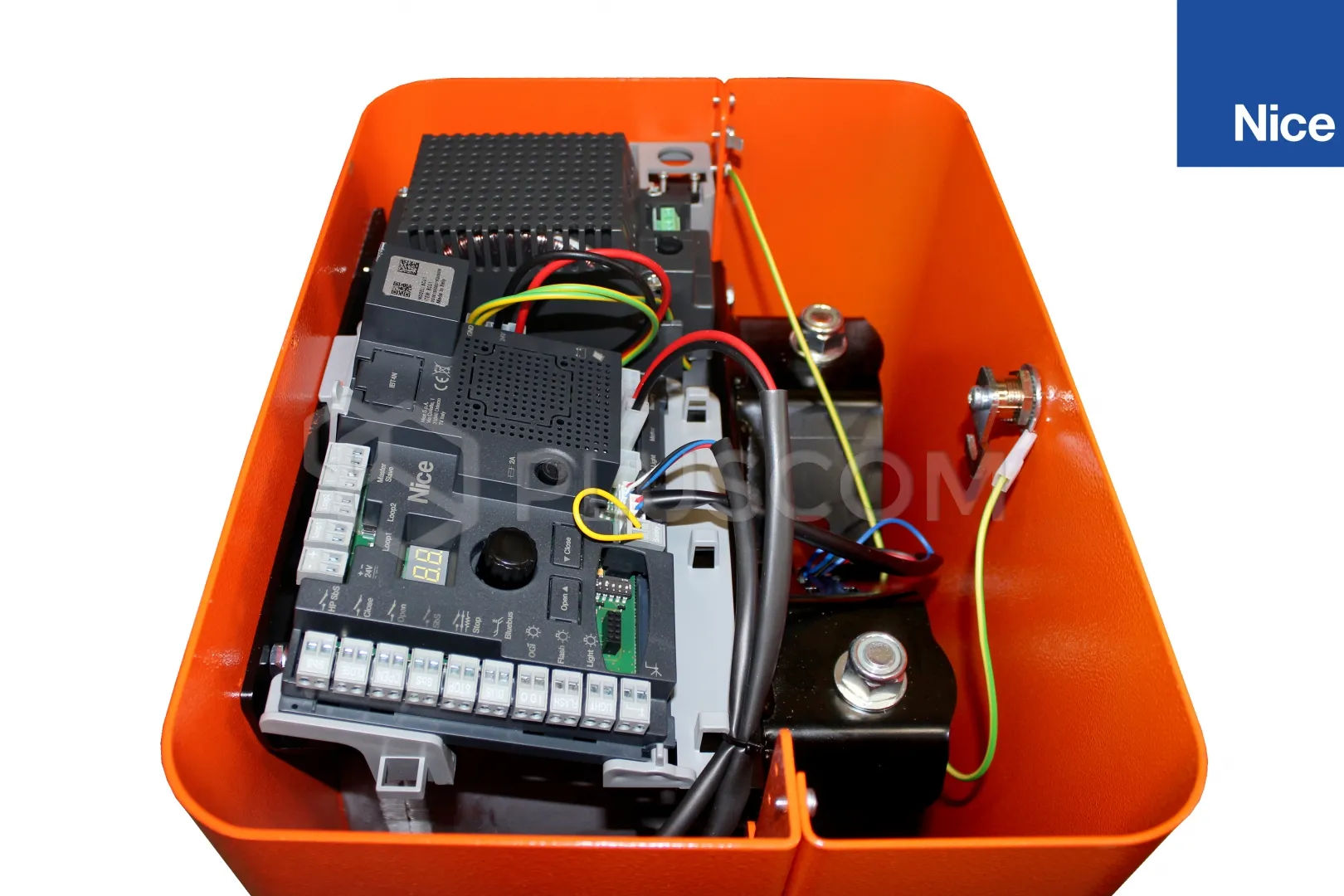

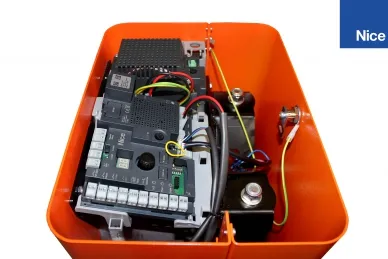

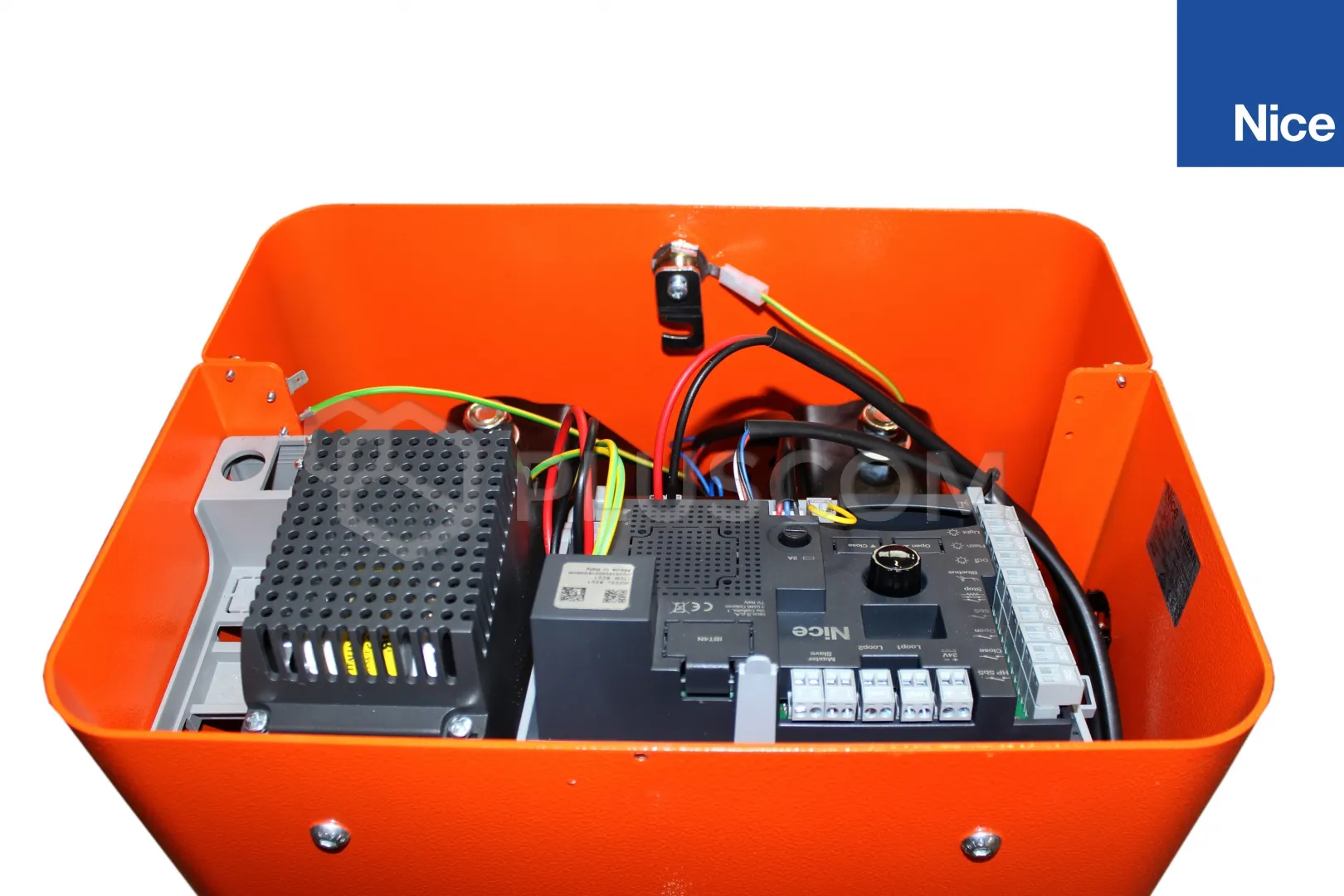

Separate compartments within the housing for electronics and mechanics
significantly simplify drive maintenance. The control unit is located in the
upper section of the barrier, providing the installer with easy access to
settings and connectors.
A self-diagnosis function detects operational faults and indicates the error
type via flashing light signals.
