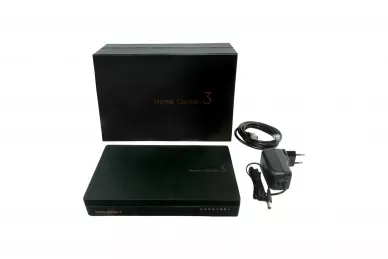

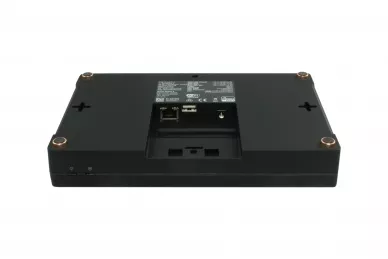

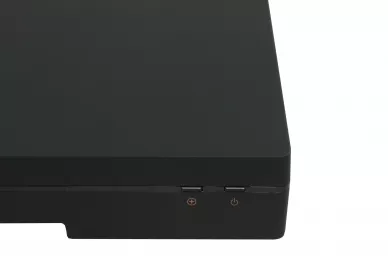

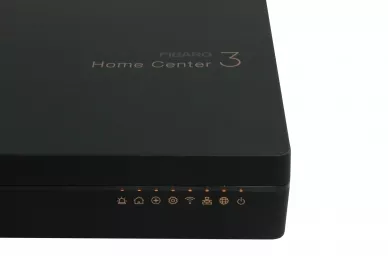

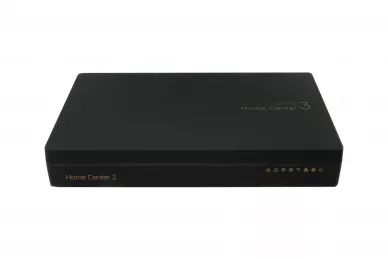

Control system central FIBARO Z-Wave FGHC3 EU Black
FIBARO Home Center 3 is the latest intelligent management panel building
created on the basis of many years of experience, comments and comments
installers and users. This is a breakthrough product that sets new ones
directions in the entire FIBARO offer.
Home Center 3 is the reliable and efficient heart of the entire system.
controls all elements of the FIBARO system and other compatible devices using
following radio standards.
- Z-Wave (500 series)
- Wi-Fi 2,4GHz i 5GHz (802.11 b/g/n/a/ac)
It doesn't require an internet cable, it also works in Wi-Fi, it can also
work as an access point expanding the range of Wi-Fi. The system is working all
the time even when the internet connection disappears.
The modern interface is designed for ease of use. Is clear and intuitive. All
devices connected to the system are located now on one screen. Elements of the
system are assigned to rooms and change settings is done on one page.
Householders will appreciate the functionality offered by profiles. This is a
set of settings which adapt the house to the needs of the user with one click.
e.g. profile SEN will turn off the lights in the living area of the house,
reduce the temperature unused rooms, will activate the perimeter watch, close
the blinds. Additional extended schedules and the ability to create scenes give
virtually unlimited the possibility of creating an intelligent building and an
environment that responds to our needs.
Great emphasis was placed on system security. State of the art security
technologies available on the market have been implemented in the control
panel. The triple data security system allows you to restore earlier data
software version. A special PenDrive for installer has been introduced
(so-called system C) enabling recovery of settings in the event of system A and
B failure.
TECHNICAL SPECIFICATIONS
- CPU: Quad-core Arm Cortex A53 (4x 1.2GHz) - 1,3x faster CPU then Home
Center 2
- RAM: RAM 2GB LPDDR3 - 2x more memory than the Home Center 2
- Flash memory: 8GB eMMC - 4x more than Home Center 2
- Power supply: 12V DC (adapter included) plug 5,5x2,5mm
- Interfejs:
-
- LAN 10/100Mbit
- USB 2.0 - 1szt
- Communication:
- Z-Wave 500 (868.0-868.6 MHz 869.7-870.0MHz)
- Wi-Fi 2,4GHz 5GHz (802.11 b/g/n/a/ac)
- Operating temperature: 0-40 ° C humidity max. 75%
- Dimensions: 220x140x35mm
Product code: FGHC3
