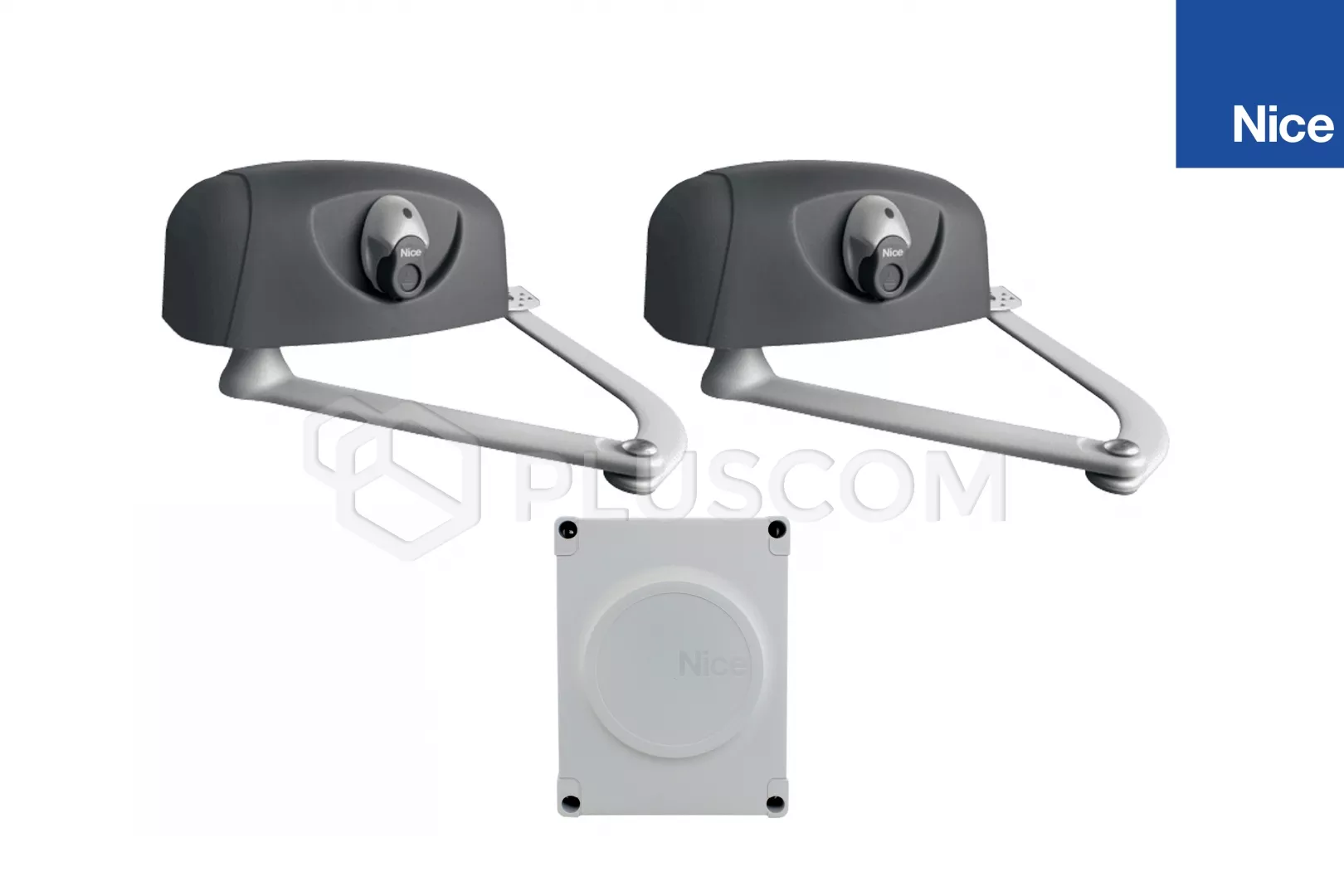

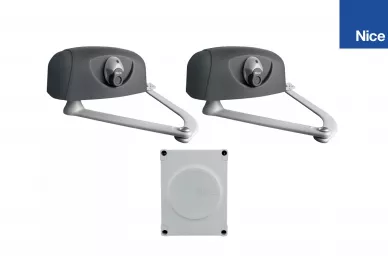

Nice HY7024 Set for a two-leaf gate 3m/200kg with MC824HR10 control panel
(FOR SPECIAL ORDER)
Nice HY7024 Set for a two-leaf gate with MC824HR10 control panel
Electromechanical irreversible gear motor, surface mounted, in 24 V DC
version with magnetic encoder, and articulated arm.
Single model for right and left leaves.
Easy and quick to install: thanks to
fewer connections and nothing welded to the gates. Fewer connections mean
quicker installation.
Nice HYPPO HY7024, dimensions and usage range
Long-lasting: solid metal
mechanics.
Compact: shockproof bodywork with no
sharp corners.
Recommended control unit for HY7024:
Moonclever MC824H.
24 V DC version with magnetic encoder.
ACTUATOR PARAMETERS:
- power supply: 24V
- current load: 5A
- power consumption: 120W
- speed: 2 obr/min
- torque: 250Nm
- work intensity: 80%
- operating temperature: -20°C...+50°C
- protection level: IP44
- weight: 13
Perfect for intensive use, compatible with the control unit
Moonclever MC824H:
• simple programming, by means of a single key;
• self-learning of opening and closing limit positions;
• automatic fault diagnostics;
• programming of pause time;
• pedestrian pass door;
• deceleration on opening and closing;
• obstacle detection with dual technology;
• operation in event of power failure by means of optional rechargeable
batteries (PS324);
• provision for connection of latest generation resistive sensitive
edges.
