Nice HY7005 Base set

1401,92 EUR including 20.00% VAT
Product code: #22825
Manufacturer: Nice
  • maximum leaf width 3m
  • for mounting on very wide posts (up to 45 cm)
  • 230V AC motors
  • auto programing, works with Oview, BLUEBUS intput
  • SM, OXIBD radio connector
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
0,00 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELAC LED flashing signal light 230V Photocell Nice EPM ERA Medium Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger Nice KIO Key-operated selector switch with cord-type release Nice HYA12 longer articulated arm Nice KA1 6m cable release kit for KIO

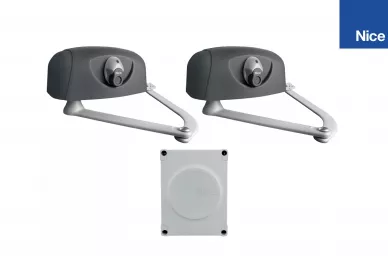

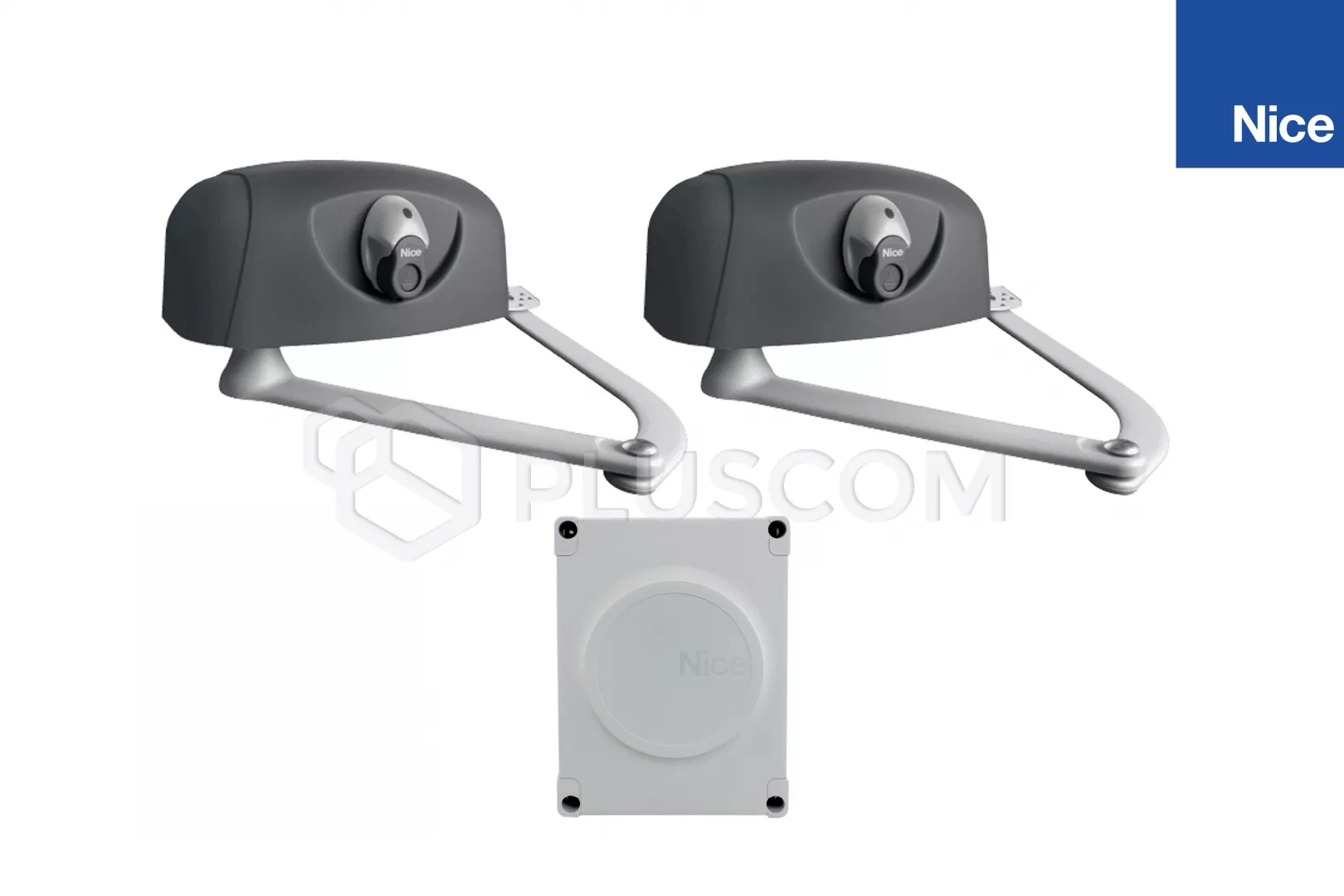

Nice HY7005 Set for a two-leaf gate 3m with MC200 control panel


KIT CONTENTS:
Nice HY7005 Set for a two-leaf gate with MC800 control panel

Nice HY7005 Set for a two-leaf gate with MC800 control panel

Nice HY7005 with a control panel is a set for home use in gates two-leaf.

It has an easy and ergonomic unlocking mechanism in the absence of tension.
It is designed for mounting on very wide posts, up to 45 cm.
Quick and easy installation: switches limit switches for opening and closing.

ACTUATOR PARAMETERS:
  • power supply: 230V
  • current load: 1.2A
  • power consumption: 250W
  • built-in capacitor: 10uF
  • speed: 1.7 obr/min
  • torque: 400Nm
  • work intensity: 30%
  • operating temperature: -20°C...+50°C
  • protection level: IP44
  • weight: 13

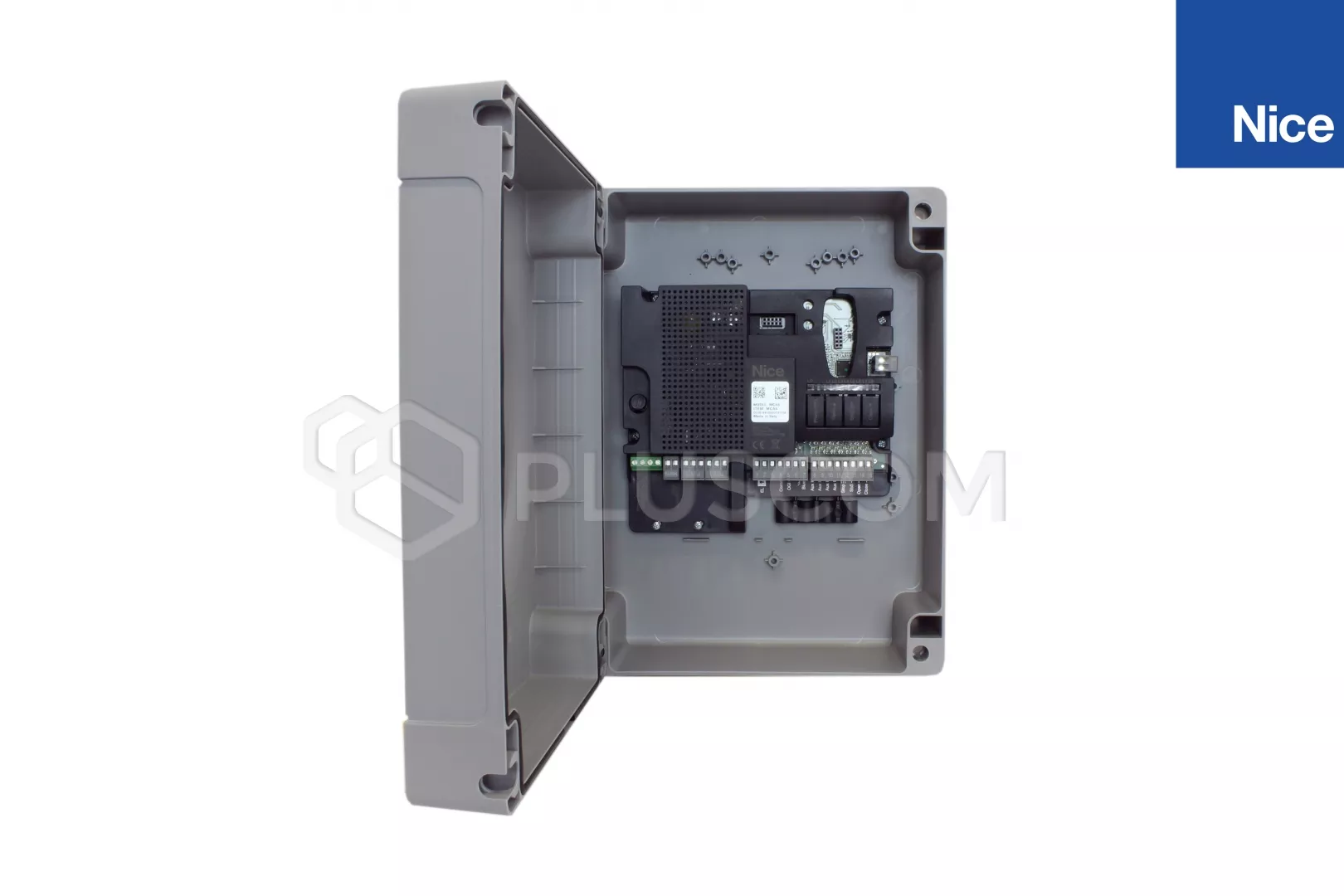

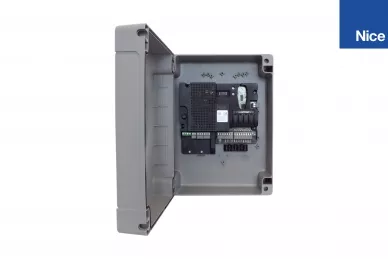

The work of the actuators is controlled by the MC800 control panel, which implements a number of useful ones functions:
  • recognition of BLUEBUS line devices (including - input STOP status)
  • recognition of the range of motion of each gate leaf
  • cooperation with the Oview programmer (via the IBT4N)
  • simple programming, friendly two-level programming way 8 1st level functions (ON-OFF) and 8 parametric functions
  • soft start and close release
  • partial gate opening function - wicket
  • control of two 230V actuators
  • semi-automatic, automatic operation
  • auto programming during the first programming by the control panel automatically determines and stores the end positions of the gate
  • support for electric lock
Download
User Manual 2.23 MB
