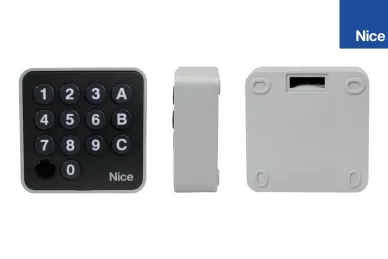

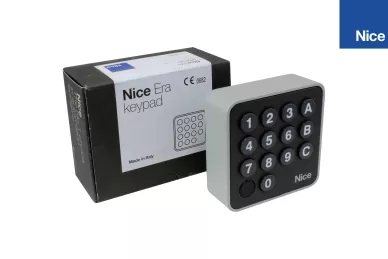

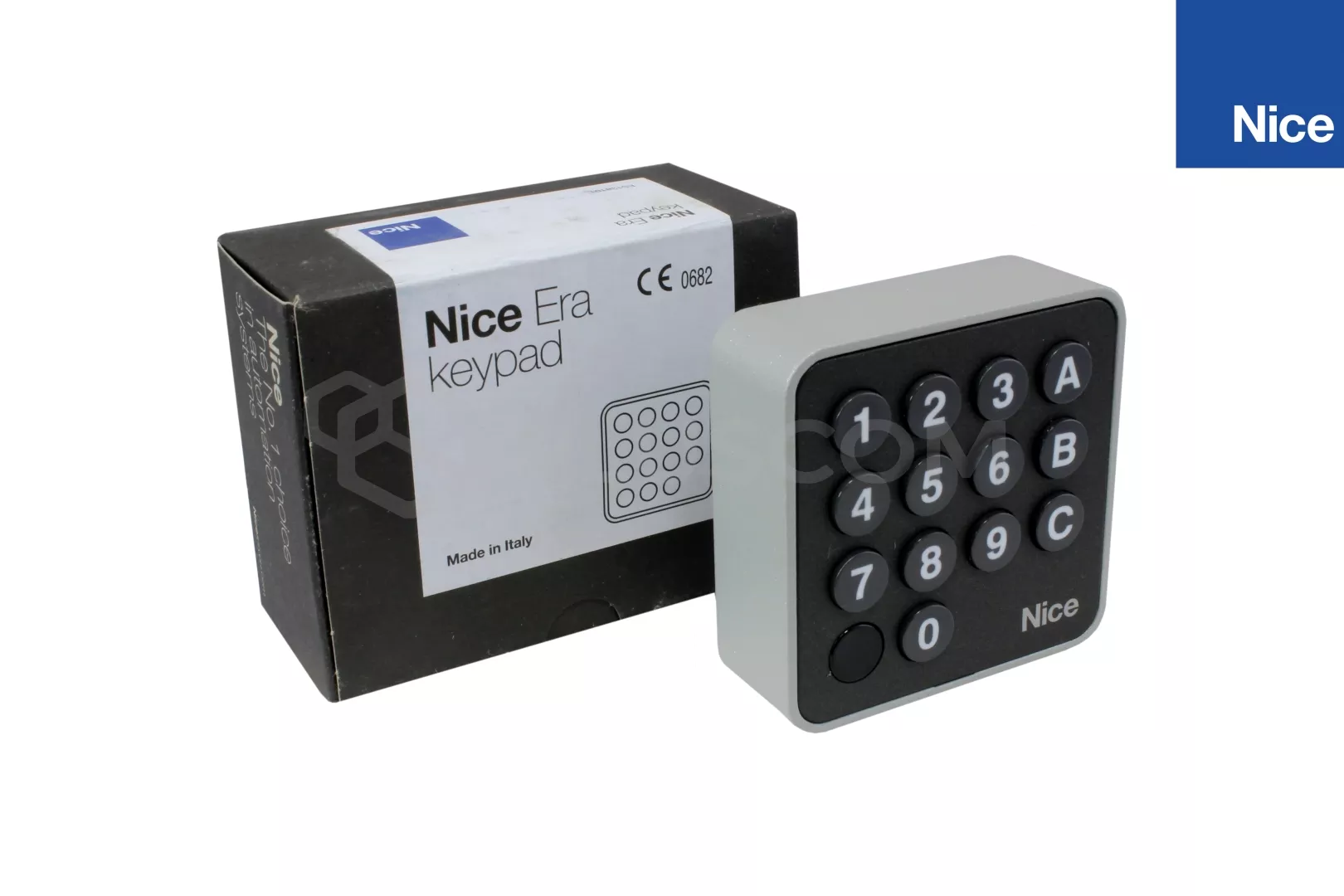

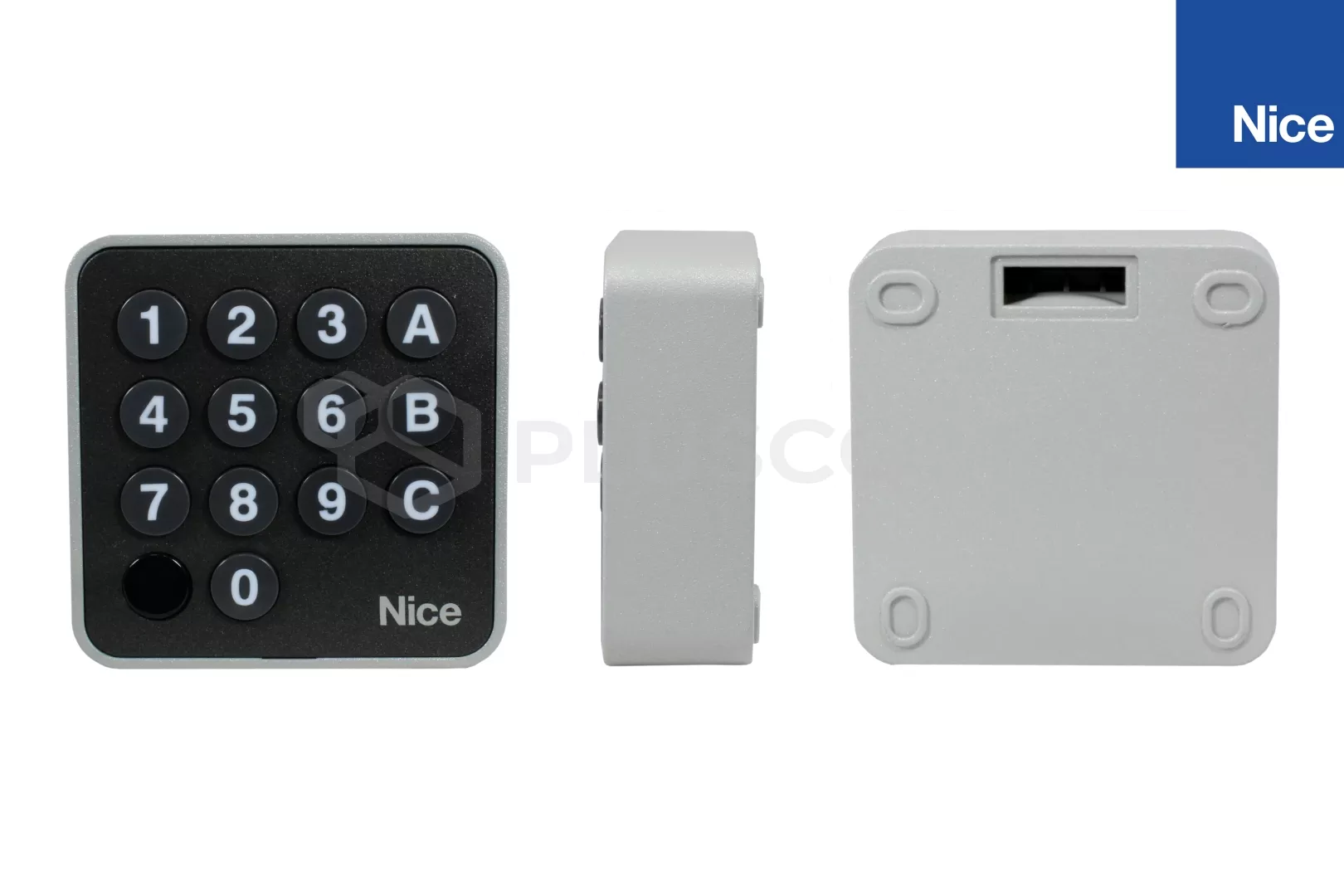

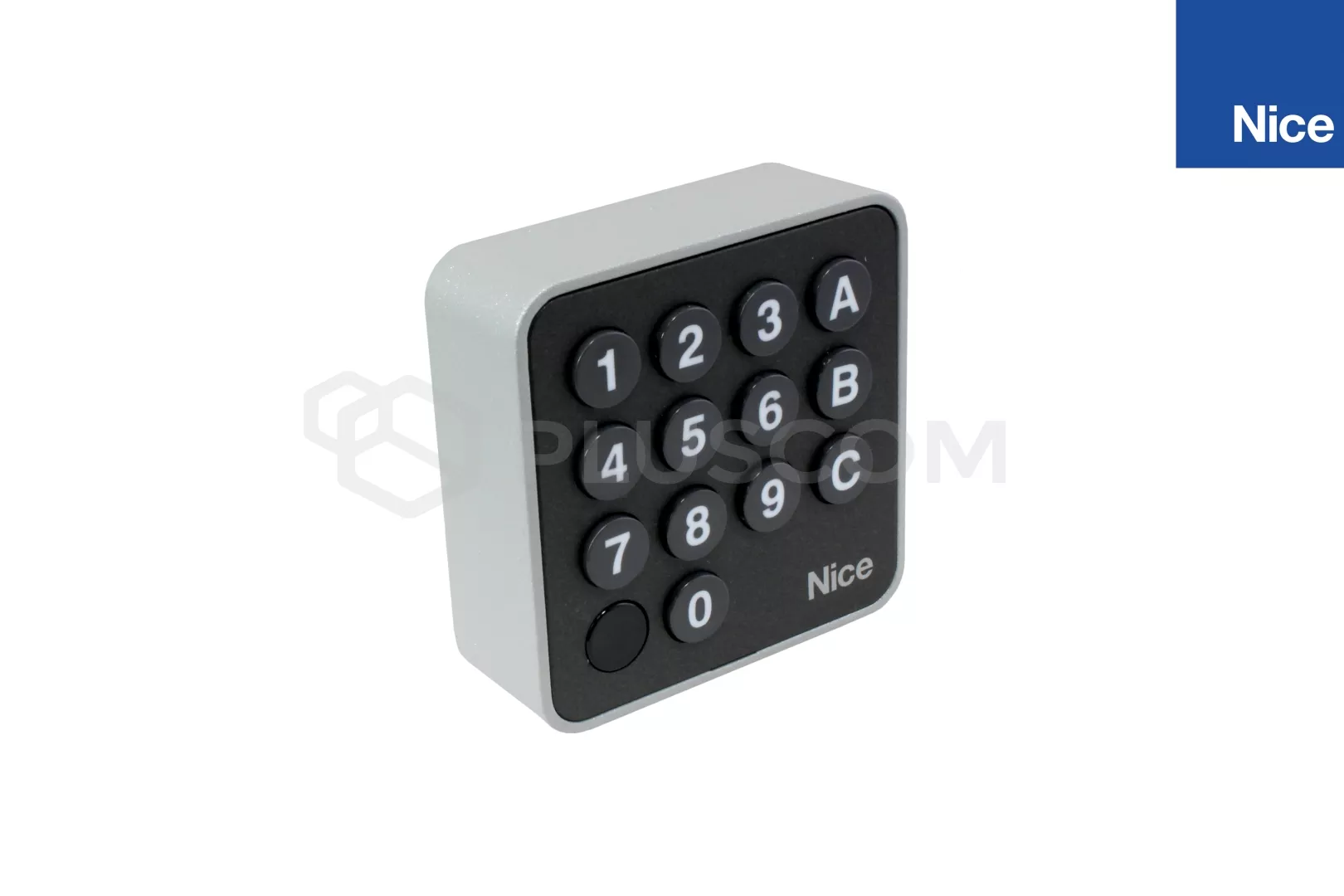

Nice EDSWG Wireless keypad 3-channel

Nice EDSWG Wireless Keyboard

Nice EDSWG Wireless 3-channel code keyboard for controlling shutter, awning or gate automation.

Communication is done at 433.92 MHz frequency coding FLOR

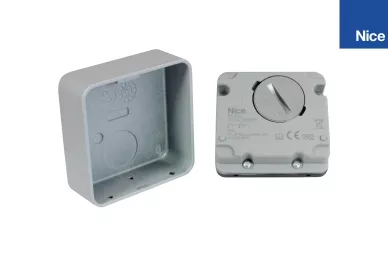

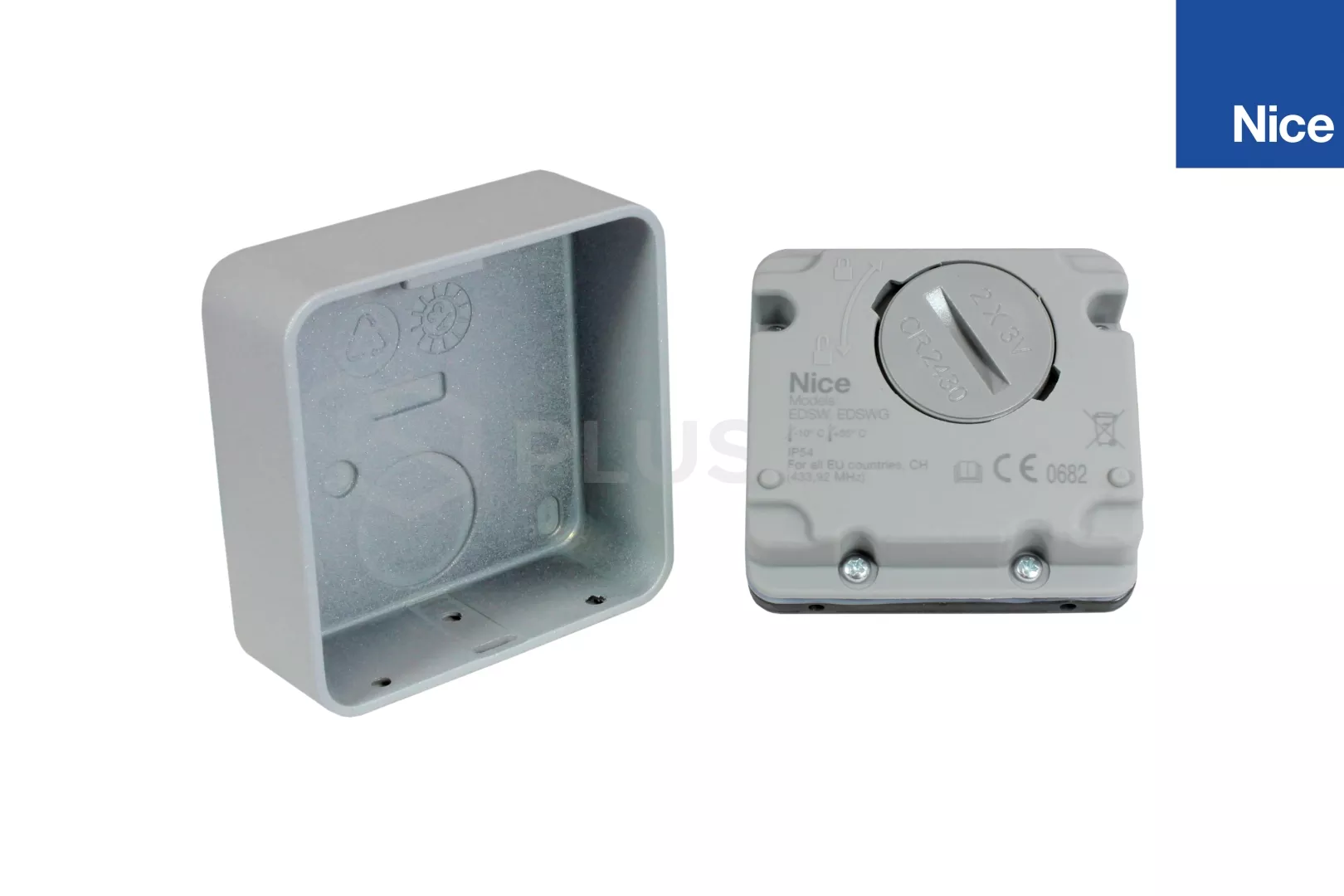

The keyboard is designed for surface mounting. It can be installed outdoors or indoors. Solid aluminum housing (degree of protection IP54) protects against adverse weather conditions.

Nice EDSWG has a numeric keypad 0-9 for entering a security code and three '' commands '' A, B, C.
To use the transmitter first enter the password and then press the command button. Each command button may have its own password set which may consist of one to a maximum of eight digits from 0-9.
You can disable the code entry request for the selected command.

Automatic keyboard backlight activates at the first press of the button and goes out after 6 seconds.

TECHNICAL PARAMETERS:

• 6V battery 2xCR2430 (battery life about 2 years with 10 events in a day)
• radio frequency: 433,92MHz FLOR radio encoding
• estimated range: 100m outdoors, 20m inside
• 3-channel keyboard command buttons A, B, C
• password: digits 0-9 (number of digits in code 1-8), possibility to deactivate password for selected command button
• button illumination, red light (activated by first pressing)


• operating temperature: -10°C...55°C
• degree of protection: IP54
• dimensions: 70x70x27mm
• weight: 215g
