Nice BM4024 Underground actuator 4m/24V

592,37 EUR including 20.00% VAT
Product code: #4293
Manufacturer: Nice
  • maximum leaf width 4m
  • maximum leaf weight 650kg
  • 24V AC actuators
  • for intensive use
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice ELDC LED flashing signal light 12/24V Photocell Nice EPMB ERA Medium BLUEBUS Nice ON3EBD 3-channel remote two-way Nice OXIBD 4-channels receiver two-way Nice MC824H R10 BLUEBUS control unit Nice PLA10 Electric lock vertical Nice PLA11 Electric lock horizontal Nice PS324 24V battery with integrated battery charger Nice SYKCE SOLEMYO solar power set Nice MEA5 Lever for MEA3 (additional)
Nice BM4024 Irreversible 24 Vdc with magnetic encoder and mechanical stop, for intensive use.

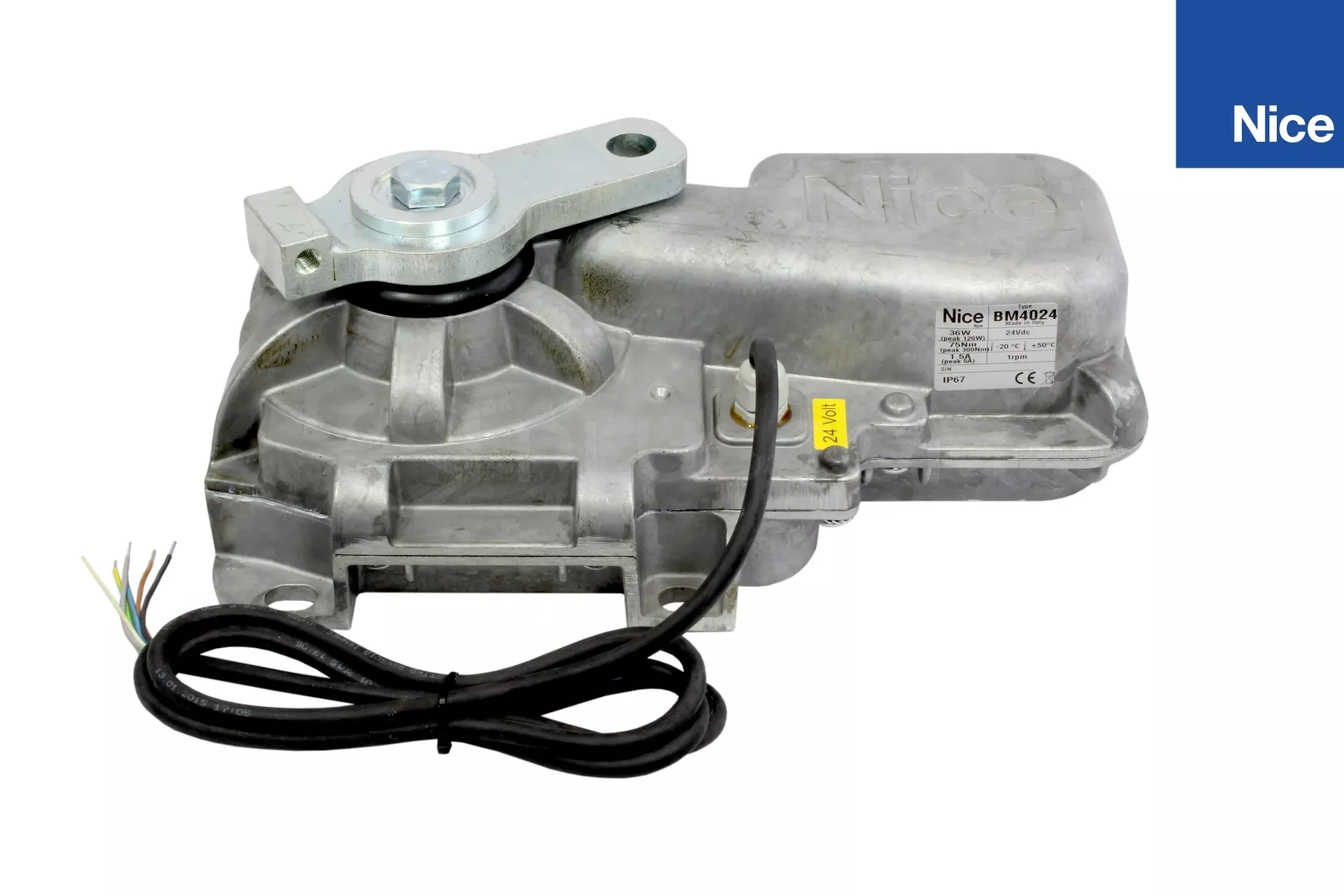

Nice L-FAB BM4024 Underground actuator 24V

Nice L-FAB BM4024 Underground actuator 24V



For swing gates with leaves up to 4m, underground installation. Irreversible electromechanical gear motor.

Foundation boxes with mechanical stop on opening:
  • in stainless steel (BMBOX4I), ideal for use in extreme conditions,
  • with cataphoresis paint finish (BMBOX4), highly resistant to corrosion.
Maximum freedom of choice: release from inside or outside, two key or lever operated models, freely combinable and easy to operate with just one hand.

Simple installation: built-in mechanical stop system on closure.
Standard opening to 110° or optional 360°

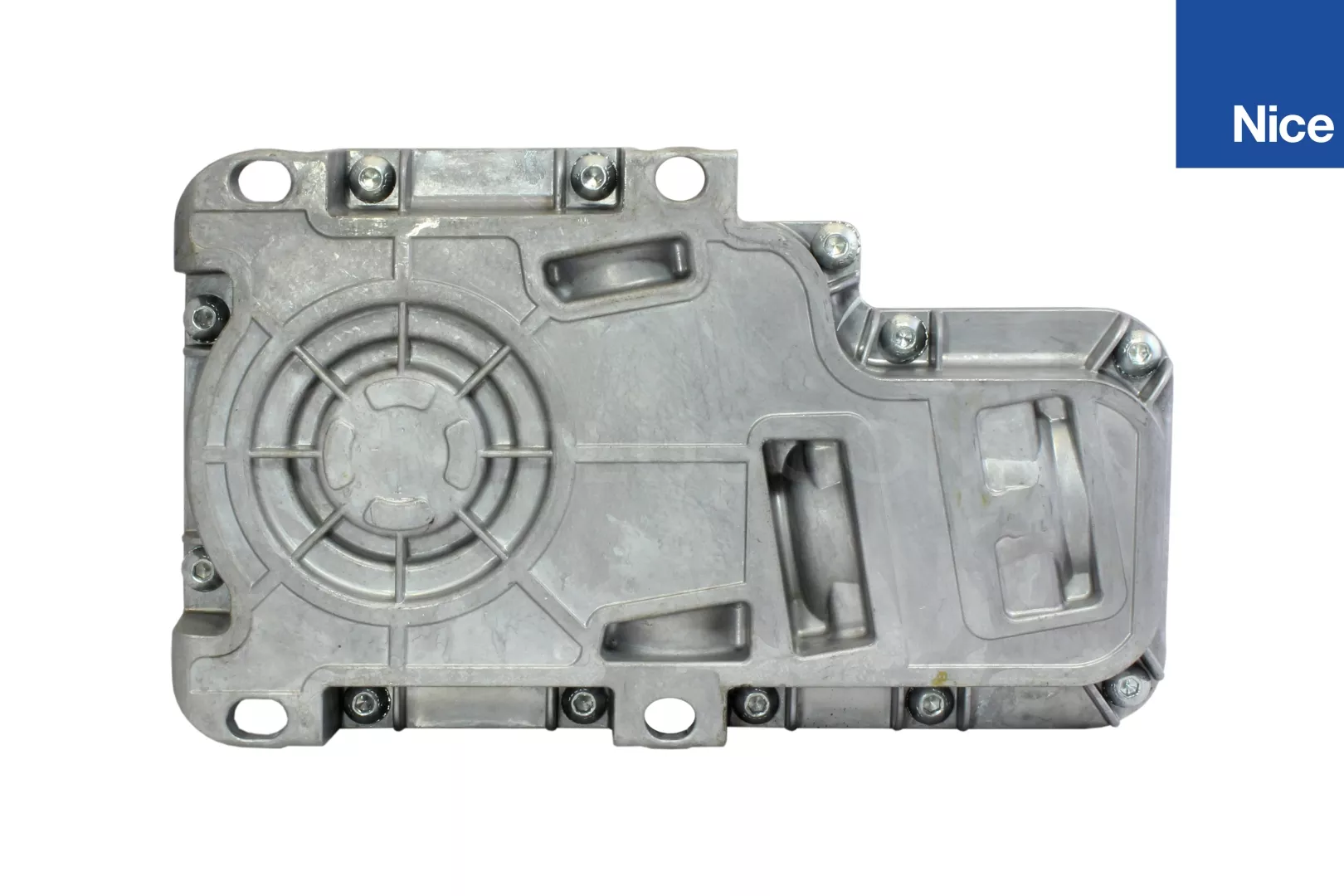

Bottom view:

Bottom view:



PARAMETERS
  • power: 230V
  • motor power: 24V
  • power consumption: 120W max
  • speed: 1 r/min
  • torque: 300Nm
  • intensity of 60 cycles/h
  • degree of protection: IP67
  • operating temperature: -20°C...+50°C
  • dimensions: 375x225x110mm

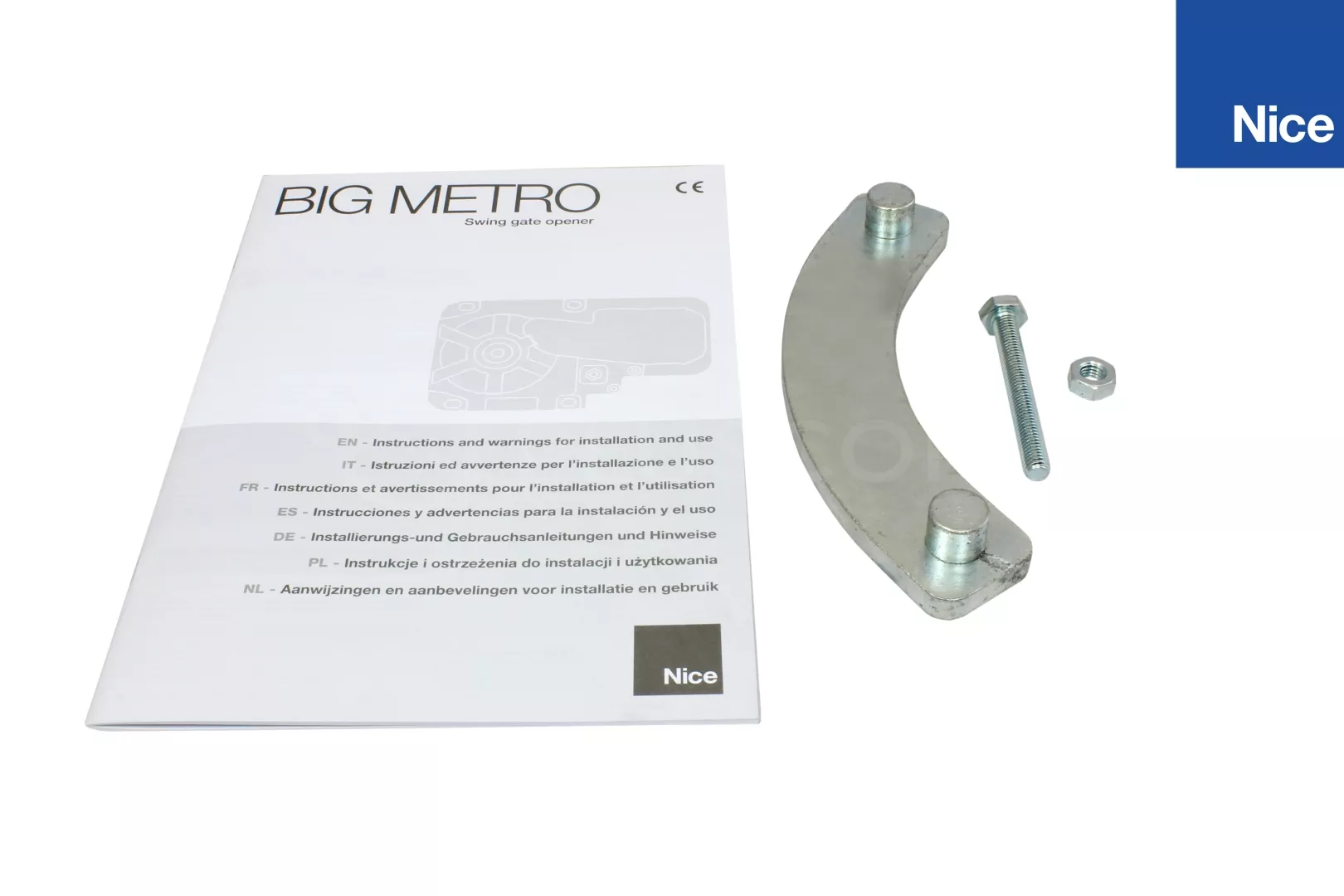

BOX contents:

BOX contents:
