Moovo XW432KM Kit for double-leaf gates up to 2m

Moovo XW432KM Kit for double-leaf gates up to 2m

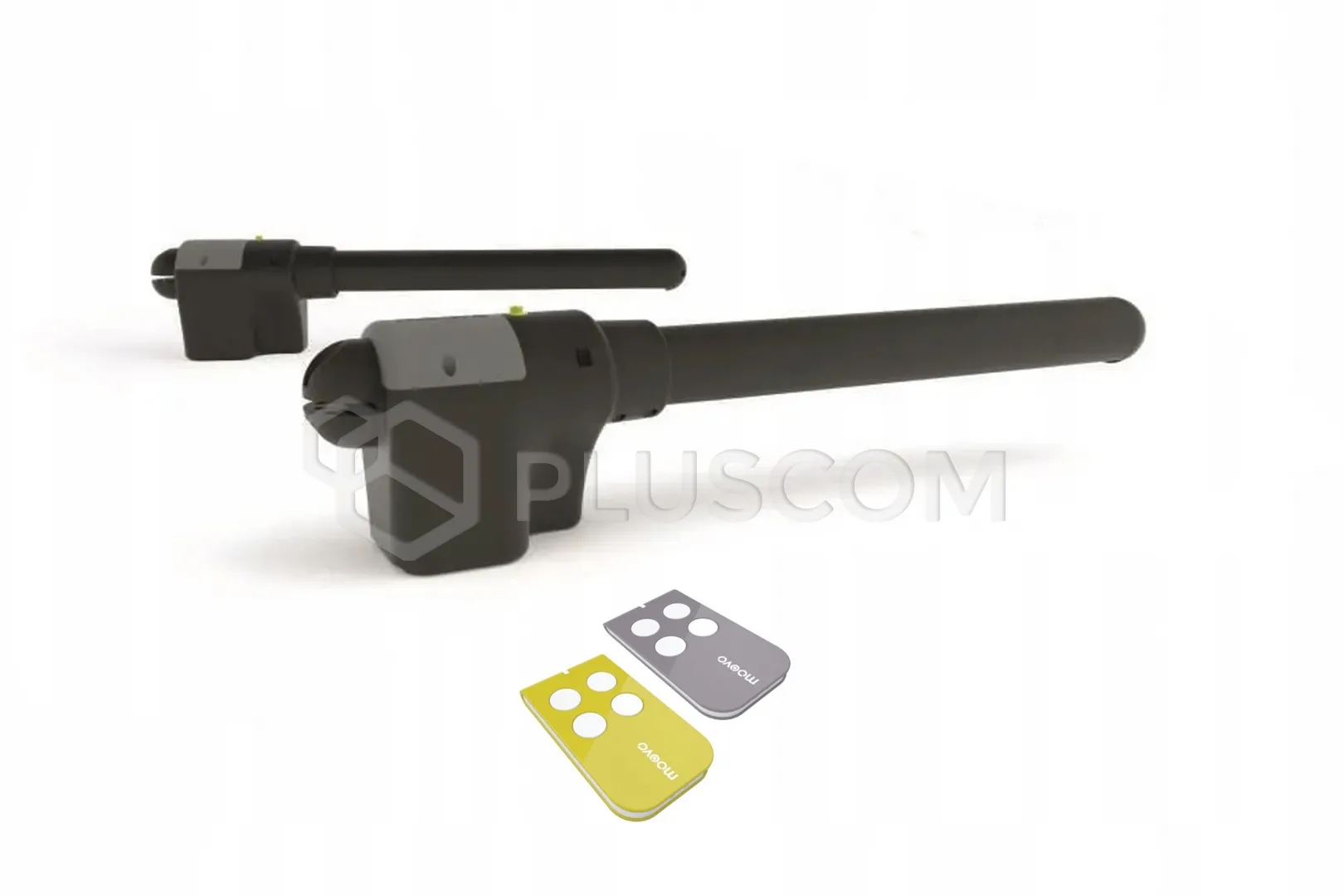

SET INCLUDES: Moovo XW432 Single actuator for 2m gate leaf Moovo XW432E Single actuator with control unit for 2m gate leaf Moovo XW432 Single actuator for 2m gate leaf Moovo MT4G 4-channel remote control Moovo MT4V 4-channel remote control

Moovo XW432KM Kit for double-leaf gates up to 2m

A kit for double-leaf gates with a leaf width of up to 2.00 m and a weight of up to 180 kg, ideal for installation on narrow posts (e.g., 120x120 mm closed profile).

Moovo BUS system - enables quick and easy (color-coded plugs) connection of all accessories using a 2x0.5 mm² two-wire cable.

FEATURES:

• Automatic programming
• Safety - 12V low voltage circuits
• Automatic obstacle detection
• Soft release
• Self-diagnosis system
• Modular control unit with built-in radio receiver, built into the motor
• Four opening/closing speeds
• Four automatic closing times
• Ability to memorize 150 remote controls into the radio receiver
• Leaf tension reduction function
• Four levels of obstacle sensitivity adjustment
• Four pedestrian function options
• Capacity - up to 50 cycles per day (1 cycle = full opening/closing)

Technical specifications:

• Power supply: 230Vac 50-60Hz
• Maximum power consumption: 250W
• Maximum pulling force: 800N
• Nominal pulling force: 380N
• No-load linear speed: min 0.011 - max 0.020 (m/s)
• Nominal linear speed: min 0.09 - max 0.017 (m/s)
• Stroke: 417 mm
• Maximum work intensity: 8 cycles/h*
• Maximum number of non-stop maneuvers: 5
• Operating temperature: -20°C / +50°C
• Protection rating: IP44
• Dimensions: 742 x 110 x 161 mm
• Weight: 3.1 kg
