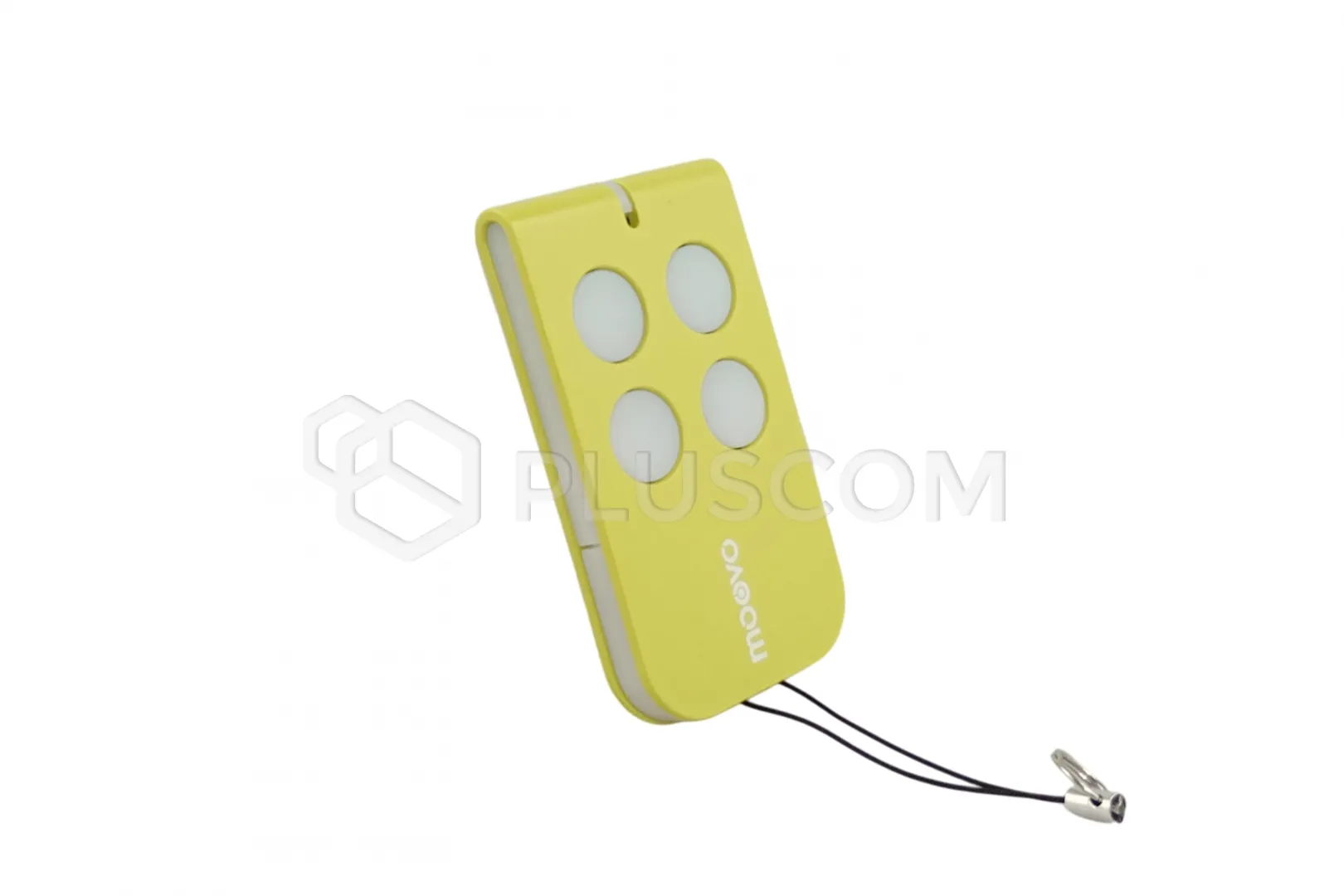

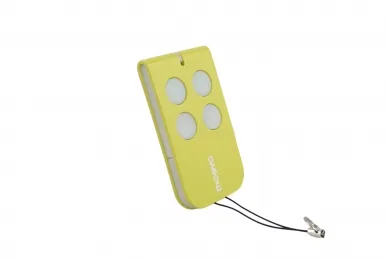

Moovo MT4V 4-channel remote control, green
The MOOVO MT4V remote control is a 4-channel remote control, compatible with
all Moovo and Mhouse transmitters. It uses 64-bit rolling-code transmission
technology. It is powered by an internal 3V lithium battery.
The number of combinations of all possible codes in the case of the Moovo MT4V
remote control is as many as 18 trillion, which makes it virtually impossible
for the code to reoccur.
Operating range with the ABFKIT/ABF antenna in open terrain from 100 to 200 m.
Programming a new MOOVO MT4V remote control (transmitter) from a
distance:
You can use an already adapted and working remote control. The transmitters
will be named "NEW" - the one to be saved and "OLD" the one
already saved. The "NEW" transmitter will receive the properties of
the "OLD" transmitter. When the "OLD" transmitter has been
saved in the way and "NEW" will be saved in the way I. Conversely,
when "OLD" will be saved in the way II; in this case you should press
the buttons in both transmitters correctly.
- On the "NEW" transmitter, press the button for 10 seconds, then
release it
- On the "OLD" transmitter, press and release the button 3 times
holding it down for 1 second each time
- On the "NEW" transmitter, press and release the button 1 time
for 1 second
Remember to leave the new Nice remote control for 15 seconds after
programming to properly save the data in the remote control (radio receiver).
Programming should take place within the range of the old remote control. We
recommend that the distance between the transmitter and the drive (radio
receiver) is not greater than 3 meters.
If the device's drive starts during programming of the new remote control,
interrupt this operation, suspend the device and start programming again.
TECHNICAL DATA:
- Number of channels: 4
- Number of buttons: 4
- Frequency: 433.92 MHz (+- 100 kHz)
- Transmitted power: average 1 dBm E.R.P.
- Coding: dynamic variable, Rolling-Code, 64 bit
- Operating range:
-
- up to 200 m (outdoors with antenna)
- 35 m (indoors)
- Battery type: CR2032, 3V lithium battery
- Protection class: IP40
- Operating temperature range: -20° C to +50° C
- Dimensions: 40 x 70w x 8 mm
- Weight: 25 g
