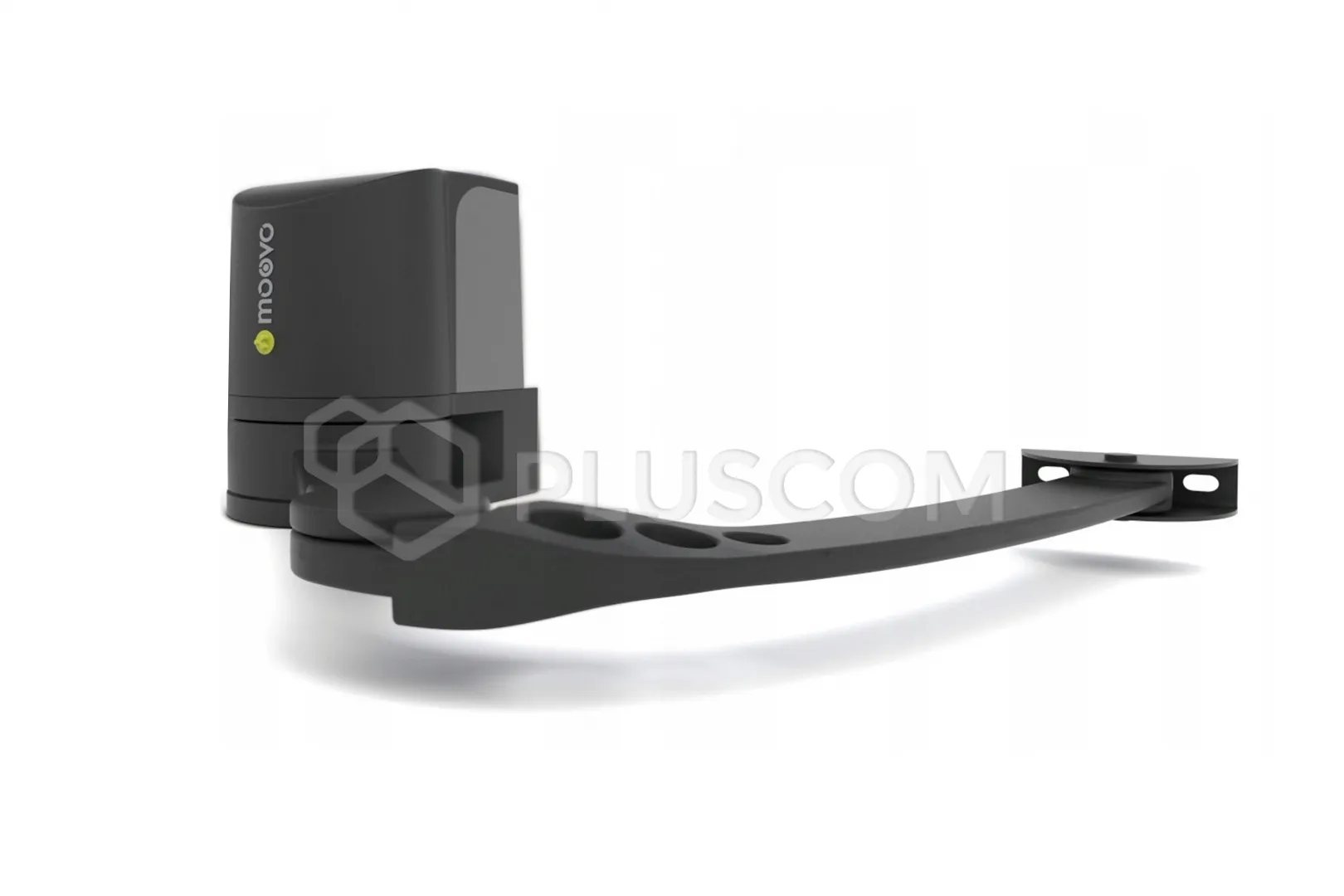

Moovo XA432KM single actuator for gate leaf 1.8m

Moovo XA432KM single actuator for gate leaf 1.8m

A drive for opening double-leaf gates designed for installation on wide posts. It allows for the automation of swing gates with a leaf length up to 1.8 m and a weight of up to 250 kg. The actuator is made of durable metal (both the body and the arm). It also allows for the automation of gates and offers the possibility of selecting one of four opening speeds, as well as adjusting release, pause time or obstacle sensitivity.

The Moovo BUS system used allows for the installation of additional devices even by a user who does not have much experience - the connection is made using marked plugs. The use of low-voltage cables guarantees high connection safety. Safety also means automatic obstacle detection and release in the final phase of opening and closing the gate.

FEATURES:

• BUS technology for connecting photocells and warning light only two wires are enough
• The built-in control unit, for easy technical service, has "Plug'n Play" connections with identification of wires and connectors
• Automatically calculates the most appropriate operating parameters for a specific gate
• Possibility of connecting an emergency battery
• Obstacle detection
• 12V motor
• Self-diagnostic system identifies and immediately signals any possible faults

The built-in control unit has advanced self-diagnostic features (identification and communication of faults) and self-programming (matching the best parameters of the entrance gate). In the event of a power failure, it is possible to easily disengage the actuator to manually open the gate. When using additional MB batteries, it is possible to perform 10 openings and closings even in the event of a power outage.

CONTROL UNIT FEATURES:

• 4 speeds
• automatic closing with adjustable delay
• adding new transmitters (max. 150 remotes)
• partial opening ("wicket" function)
• adjustment of obstacle recognition sensitivity
