Leelen video intercom set JB305 N60B with doorphone No18pc, power supply
and 3x key ring
The set will find its application in single-family homes. It's simple in
installation, durable and elegant in appearance.

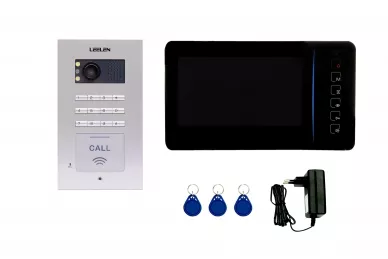

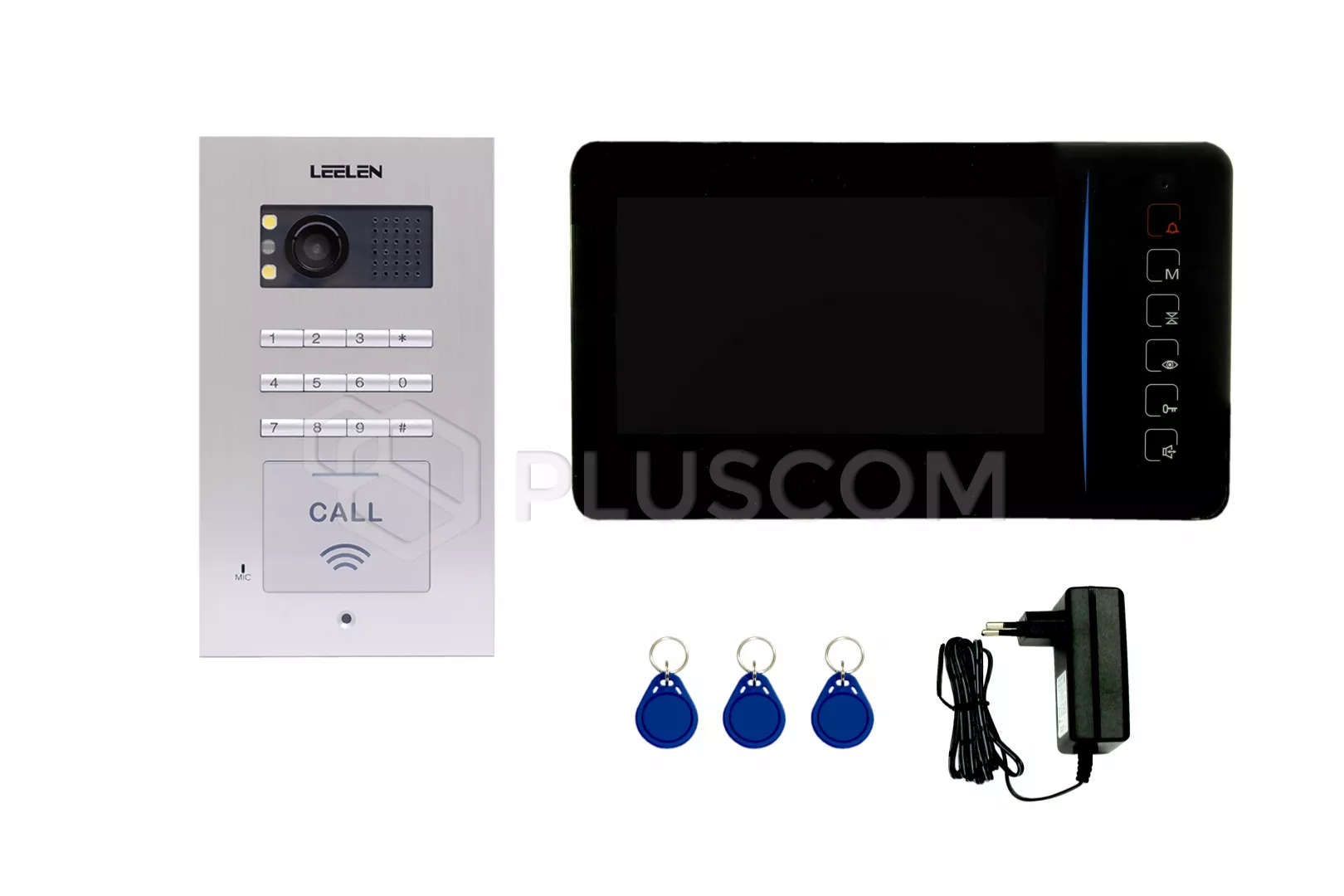

Leelen Video Doorphone Set JB305 N60B, No18pc, power supply, 3x keyfob
The kit includes:
- Monitor N60B 7 'Black
- Doorphone No18pc

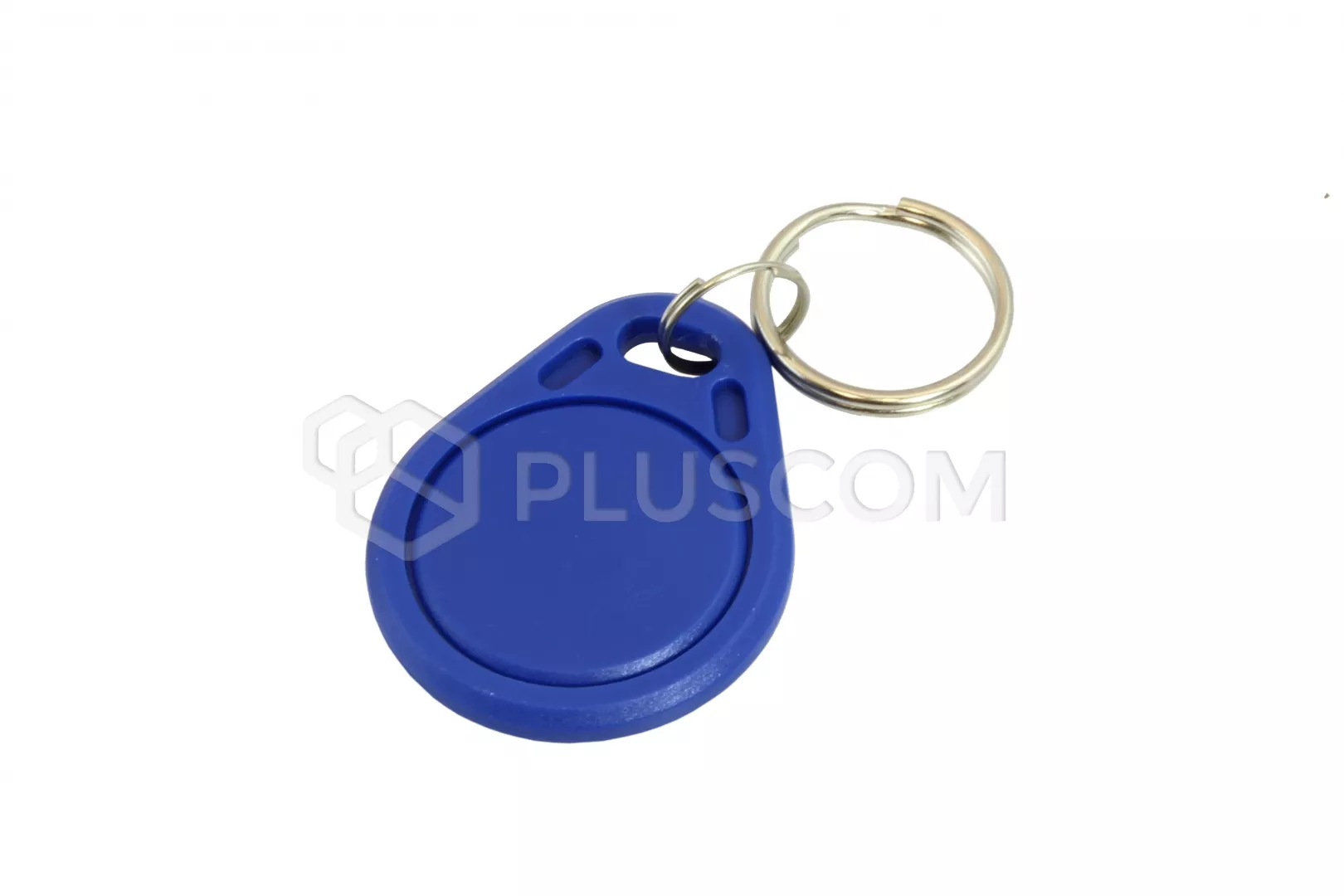

- 3x Key ring

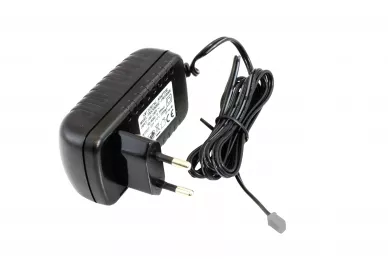

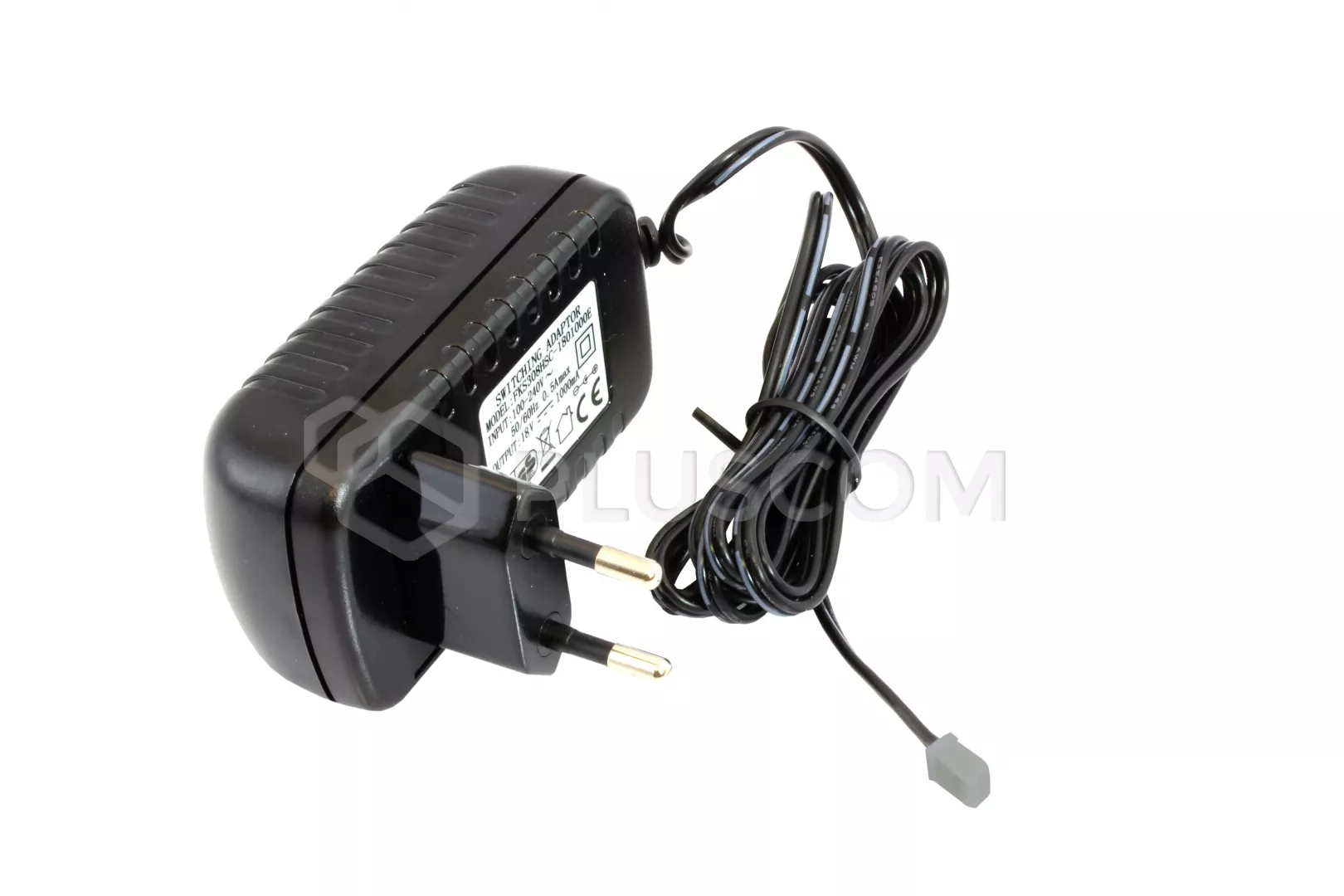

- Plug-in power supply 18VDC 1A
The JB-305 video intercom system is the successor of the JB-304 system and
works on four-wire bus. A modern procsor was used in JB-305, which
significantly improves the quality of calls and video, while reducing noise and
increases stability.
The most important features of the set include:
- easy assembly PLUG&PLAY
- flush mounting
- expandable with 3 doorphones and 4 monitors
- service of electric locks
- possibility to open the door with key rings, proximity cards or code
- support for CCTV cameras
- vandal and waterproof doorphones
- independent gate control button
- proximity reader
- EXIT button
- high image and sound quality as well as trouble-free operation
- intercom function - conversation between tenants
The No18pc doorphone has a concealed casing made of cast aluminum, making
it walnado and waterproof. It also has a built-in access control system, so we
have the option of opening the entries using cards proximity, key rings or code
(built-in encryptor).

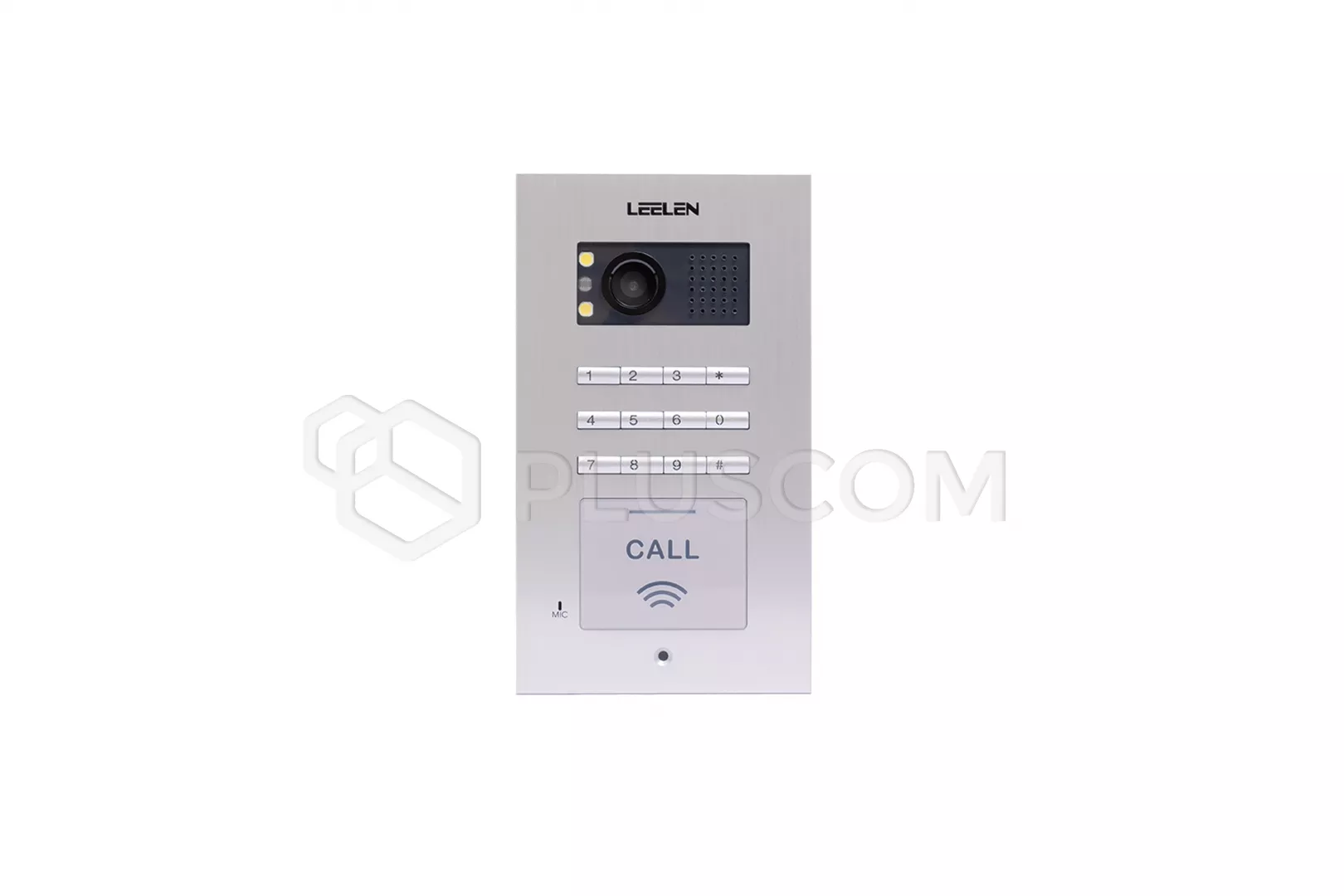

Doorphone JB305 No18pc
Key features:
- Flush mounting
- Installation via 4-wire cable
- The panel is made of cast aluminum
- Built-in proximity reader for kayfobs and RFID proximity cards
- Built-in numeric keypad (encryptor)
- Backlit keyboard
- SONY CCD camera (420 TV Lines) with an angle of view of 92°
- Illuminated headlamp with white LEDs
- The device is compatible with most electric locks available on Polish
Market </ li>
- Integration with the JB305_Gate2ch module
The JB305 N60B monitor is an elegant interior panel that is equipped with
touch buttons and a 7 'color screen, equipped with additional relay - an
independent button to open the gate.
JB305 video monitor facilitates the identification of the caller, gives a
picture resolution 800x480. Model N60 works with doorphones giving both audio
and video transmission. It also works with analog CCTV cameras thanks
additional modules.

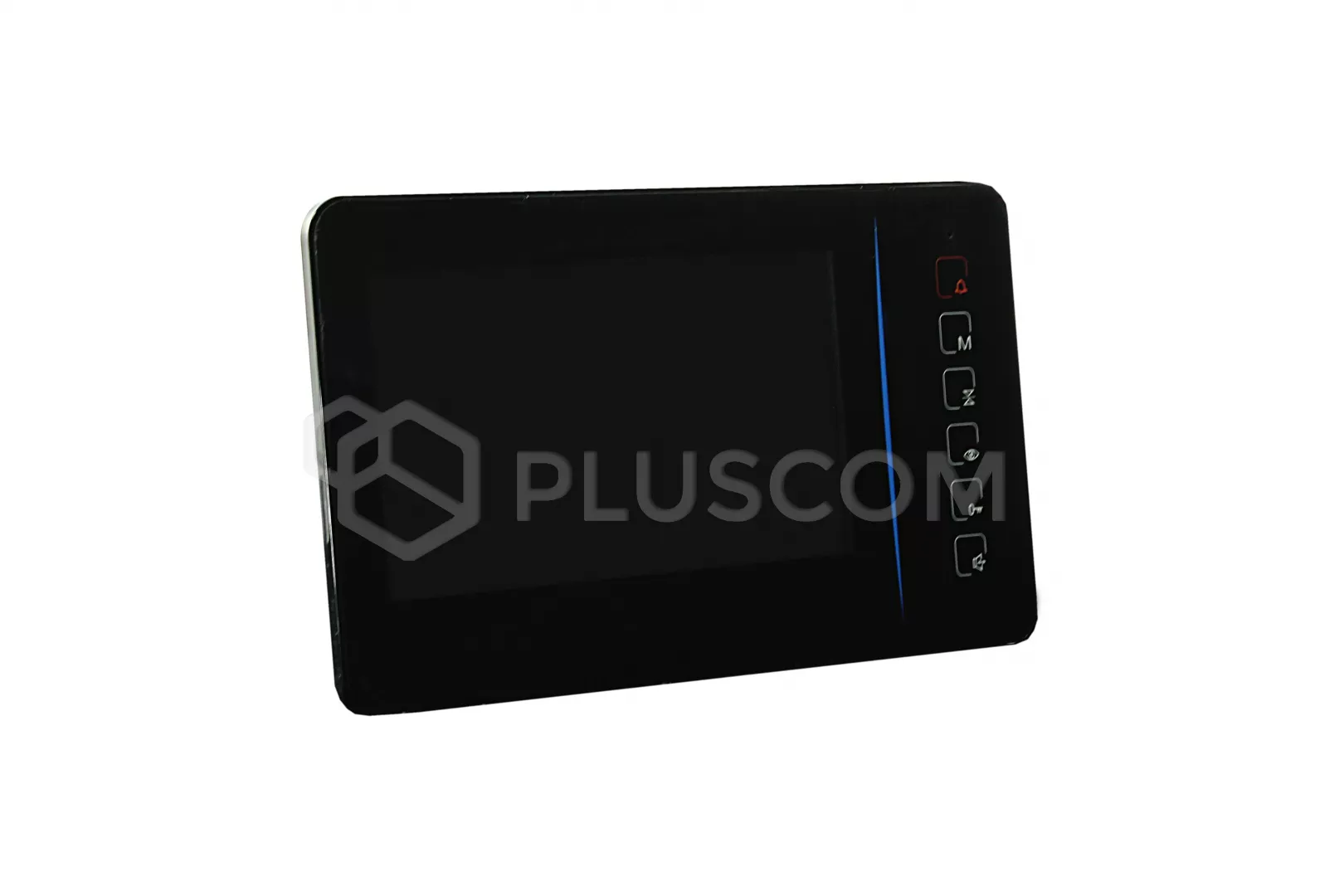

Video intercom JB305 N60 black
Key features:
- Screen: 7'' TFT-LCD
- the ability to view the image from the external panel
- conversation button and remote door opening
- independent opening of the gate
- built-in loudspeaker and volume control by means of a potentiometer,
choice from 10 different bells

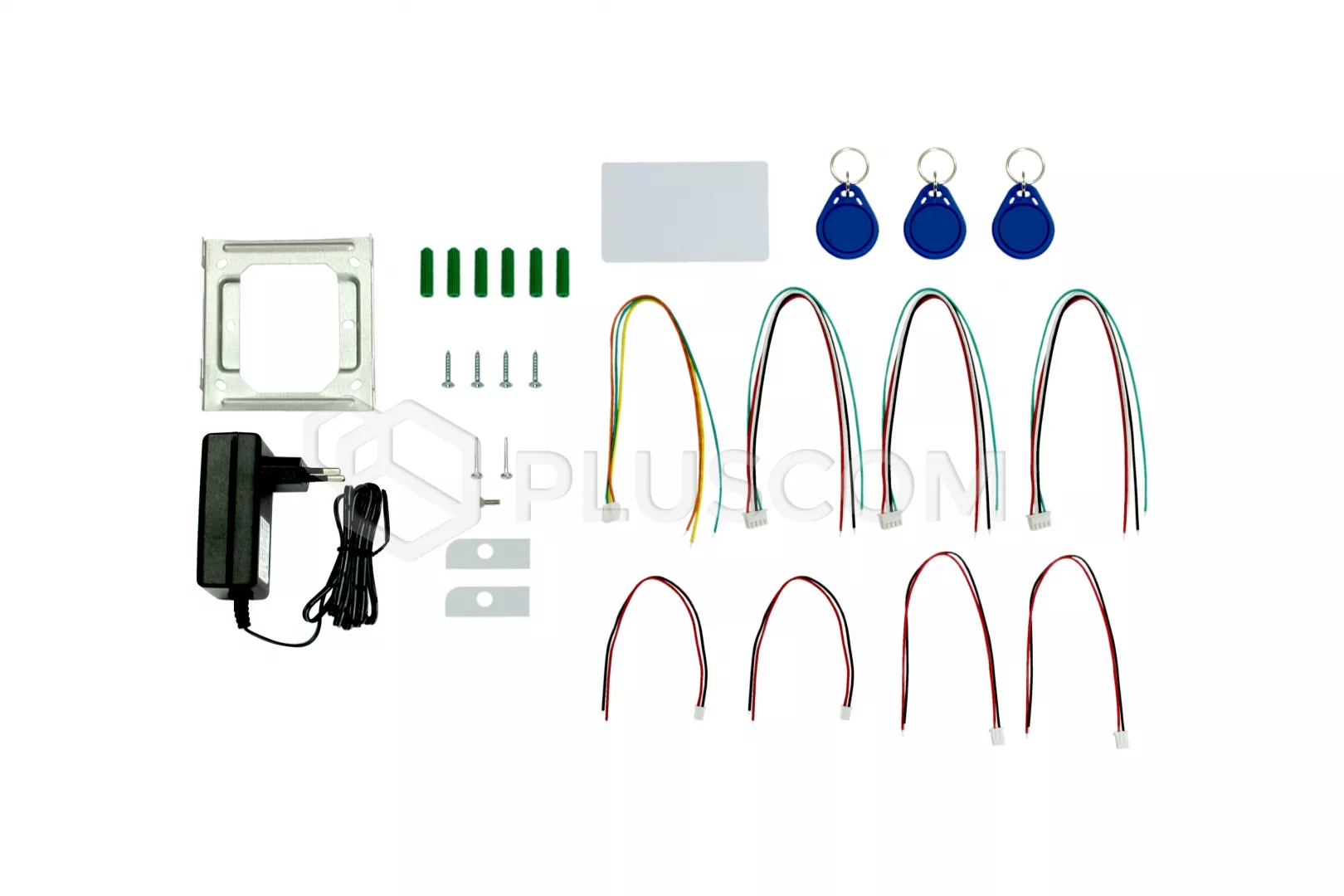

Accesories:
