KINGgates ROLLS 1200 Set for garage doors up to 340cm high

397,64 EUR including 19.00% VAT
Product code: #15202
Manufacturer: KingGates
  • maximum thrust: 1200N
  • surface of the gate: up to 23m²
  • built-in control unit STAR GDO 100
  • 1 x STYLO 4K

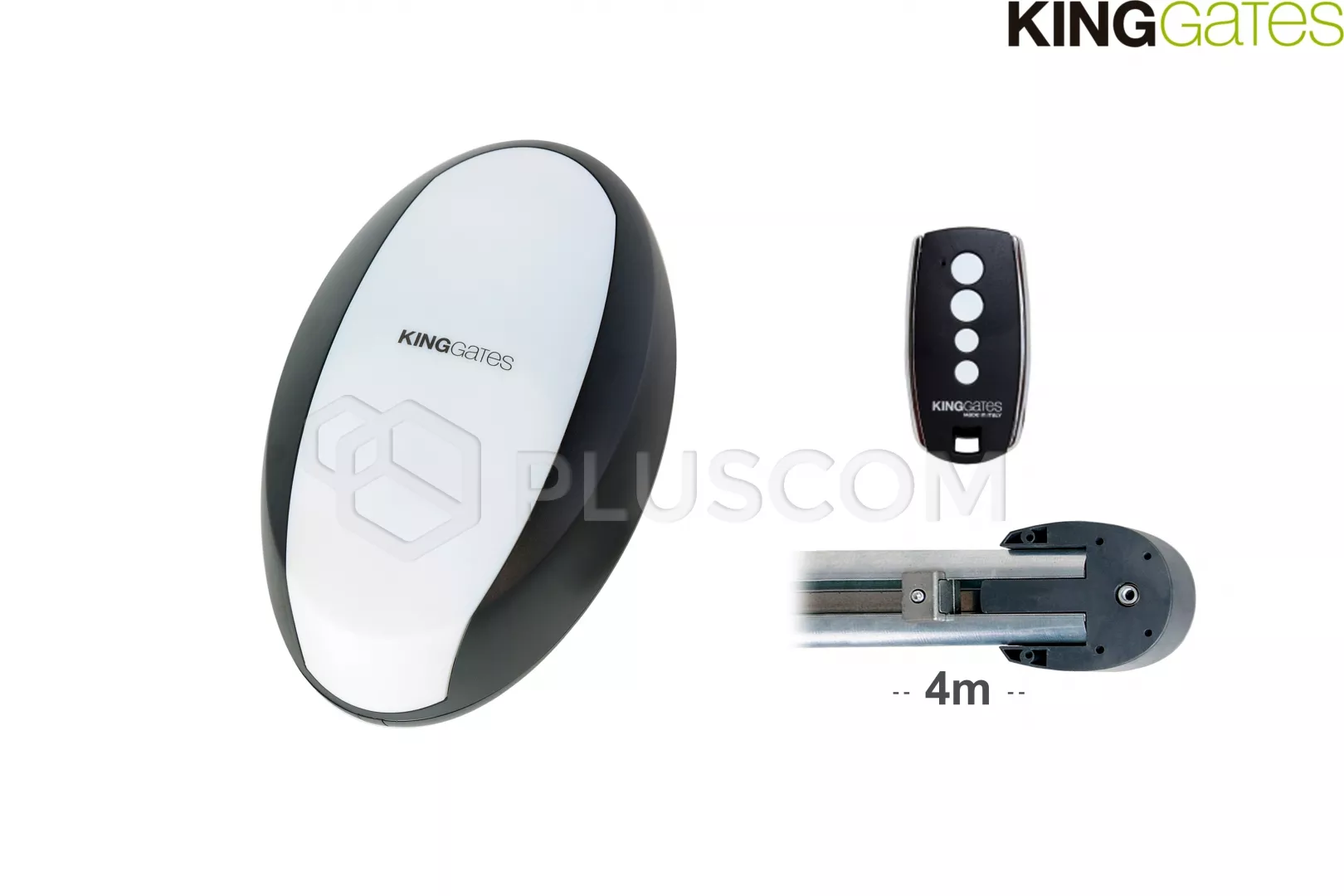

  • rail 3m + 1m (GRB4), toothed belt
Delivery and tax:
Germany VAT: 19.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
KingGates STYLO4K 4-channel KINGgates NOVO TX4 4-channel wall remote control KINGgates Photocells NOVO PH180 KINGgates NOVO LED PLUS Signal light with 433.92MHz antenna Nice SBLO 01 zestaw wysprzęglania KingGates BAT12K 24V battery pack with charging card

KINGgates ROLLS 1200 Automation for sectional doors up to 23 m2 and overhead doors up to 14 m2


Automation of garage doors up to 340 cm high:
  • Max dimensions sectional door 23m²
  • Max dimensions overhead door 14m²
SET COMPOSITION:
TECHNICAL PARAMETERS:
  • Force max: 1200N
  • Working cycle: 60 cycles per day
  • power supply: 230V
  • motor supply: 24V
  • Maximum power drawa: 300W
  • IP40
  • working temperature: -20 ° C ÷ + 55 ° C
  • dimensions: 414x264x110mm
KINGgates ROLLS 1200 Set for garage doors up to 3.4 m high

KINGgates ROLLS 1200 Set for garage doors up to 3.4 m high


Easy to use and at the same time very functional gate operator garage. A tensile force of 1200 N is sufficient to handle the gate tilted with an area of up to 14 m² and a sectional door with an area up to 23 m².
The rotating lid gives the user easy access to the control center the actuator on the rail provides us with metric screws.
For transmitting the drive, a reinforced toothed belt is used, thanks to which work the drive is quiet and there is no need for maintenance.
An innovative manual release system makes it possible to unhitch the door a drive trolley or through an external unlocking system. Thanks to the possibilities installation of emergency BAT 12K batteries, the drive can work effectively even when there is no power supply. We can then open and close manually gate without having to re-release, and after closing the gate in mode manually, we can open it in automatic mode.

ROLLS 1200 has a built-in STAR GDO100 control unit, whose operation is easy and intuitive - has a plastic cover equipped with 3 programming buttons.

FEATURES AND FUNCTIONS CONTROL UNIT:
  • the ability to control additional lighting
  • built-in radio, compatible with KING GATES remote controls
  • programmable with 3 buttons
  • wbudowany enkoder
  • built-in signal lamp
  • built-in antenna
  • praca w trybie "otwarcie - pauza - zamykanie"
  • work in a step-by-step mode
  • automatic closing function
  • soft start function
  • self-test function
