KingGates JET KIT 230V witch Star 2230 Box control panel

559,40 EUR including 23.00% VAT

Add to cart

Product code: #19517

Manufacturer: KingGates

Ask about this product

Maximum leaf length 3m
Maximum leaf weight 600kg
Power supply/Motor 230V/230V

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

KingGates DIGY PAD 3-channel radio keyboard

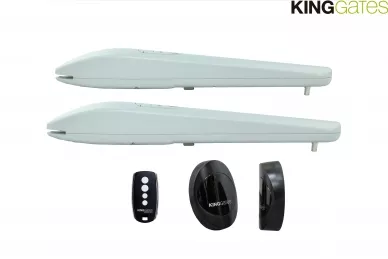

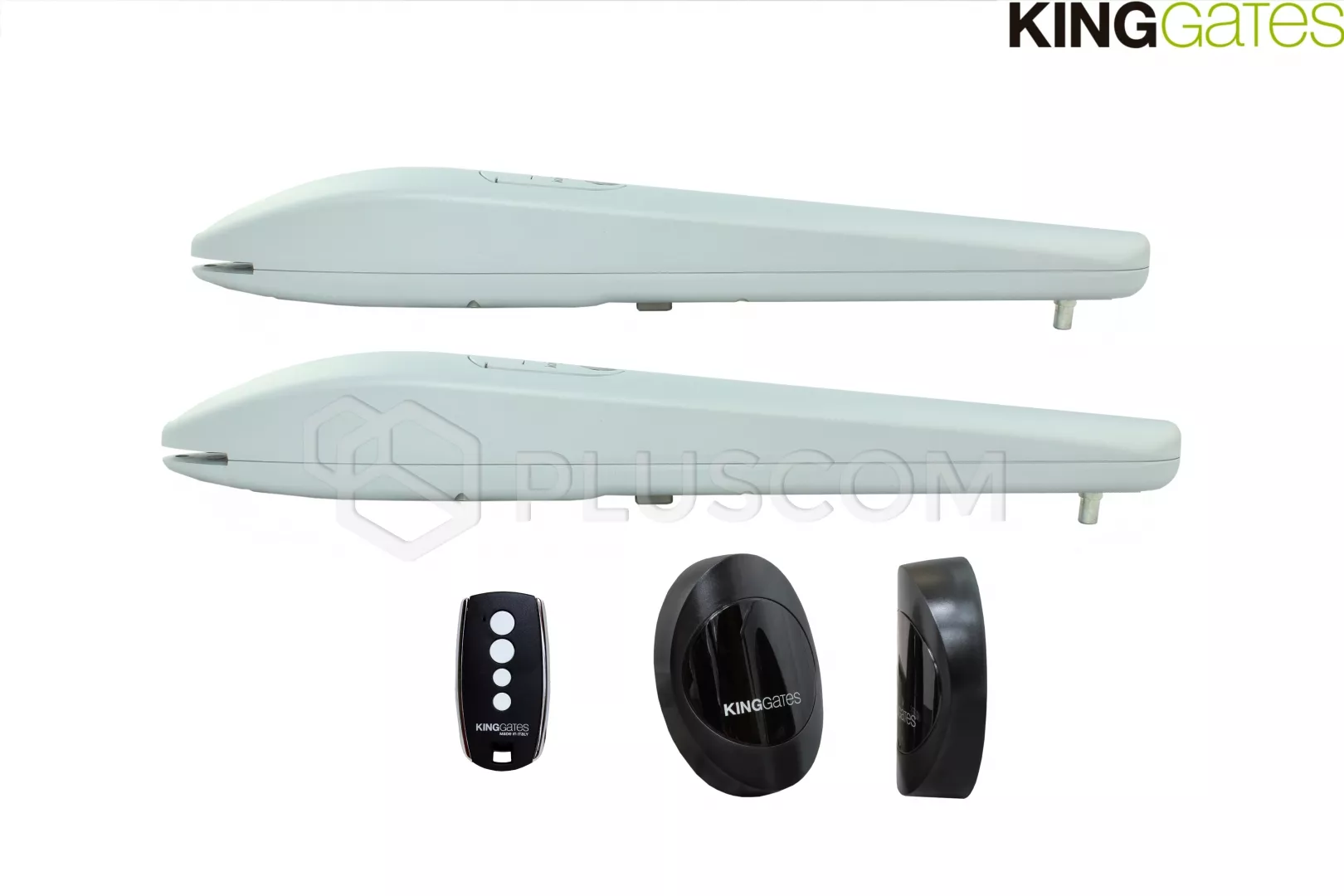

KingGates JET 230V - set for double-leaf gates with leaf length up to 3m and weighing up to 600kg with the STARG8AC control panel

KIT CONTENTS:

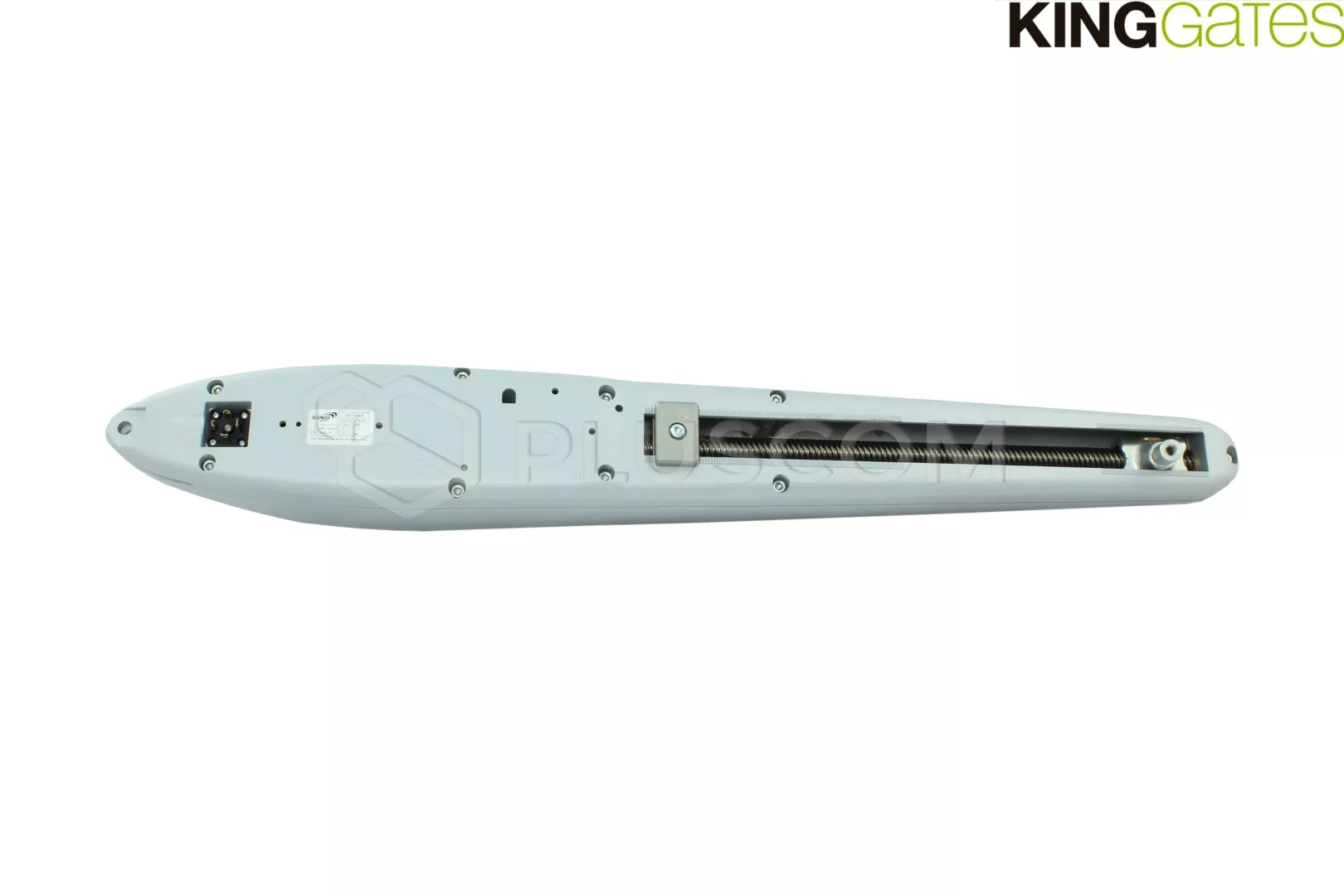

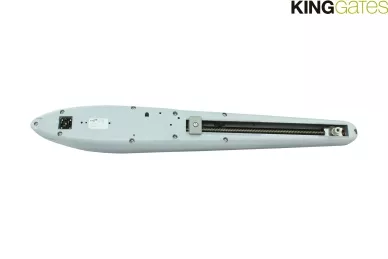

2 self-locking cylinders with end stop
KingGates STARG8AC BOX Control Unit for 230V gate motors in a complete box
KingGates STYLO4K 4-channel
KINGgates Photocell VIKY 30

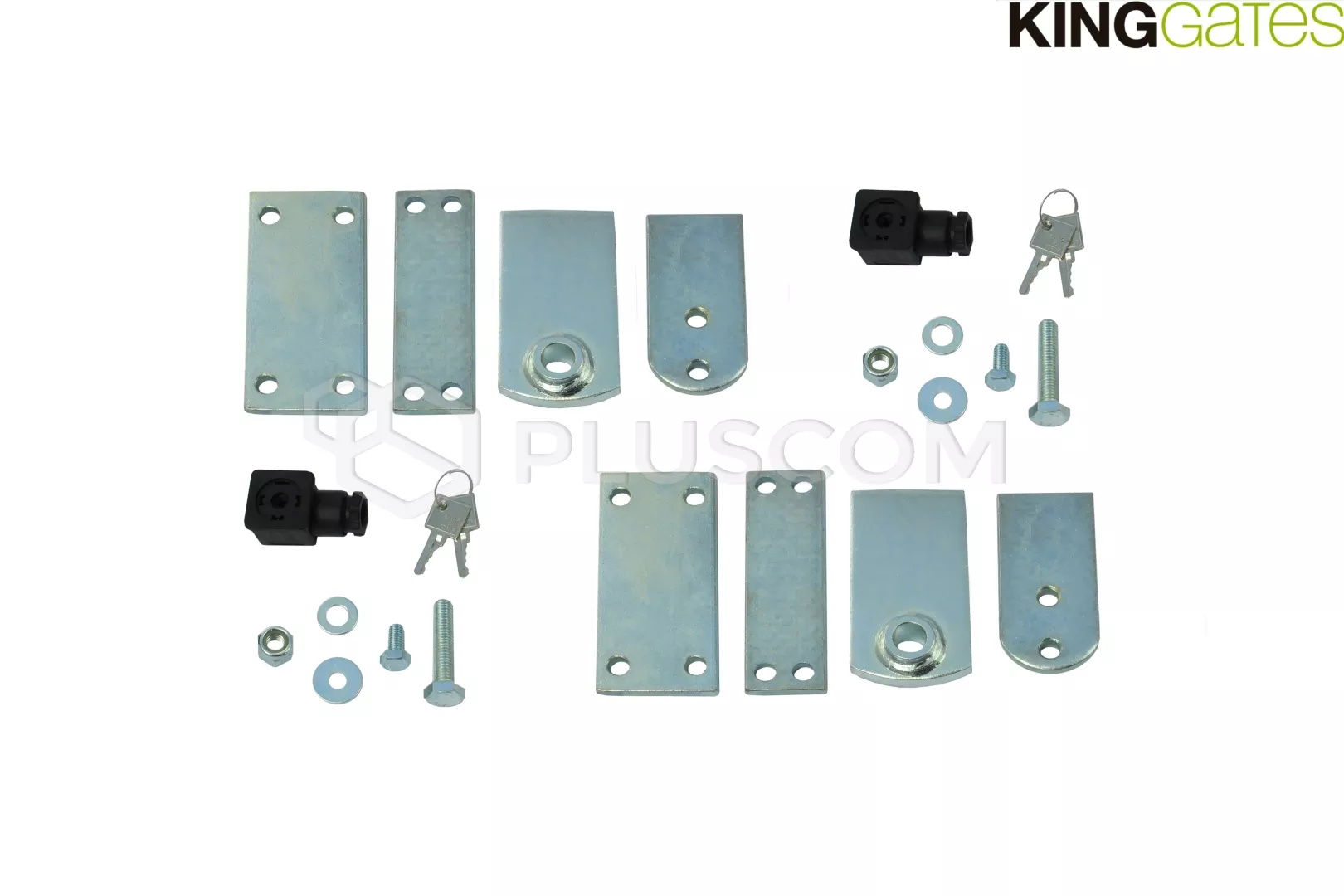

mounting accessories
user manual and warranty card

KingGates JET KIT 230V witch Star 2230 Box control panel

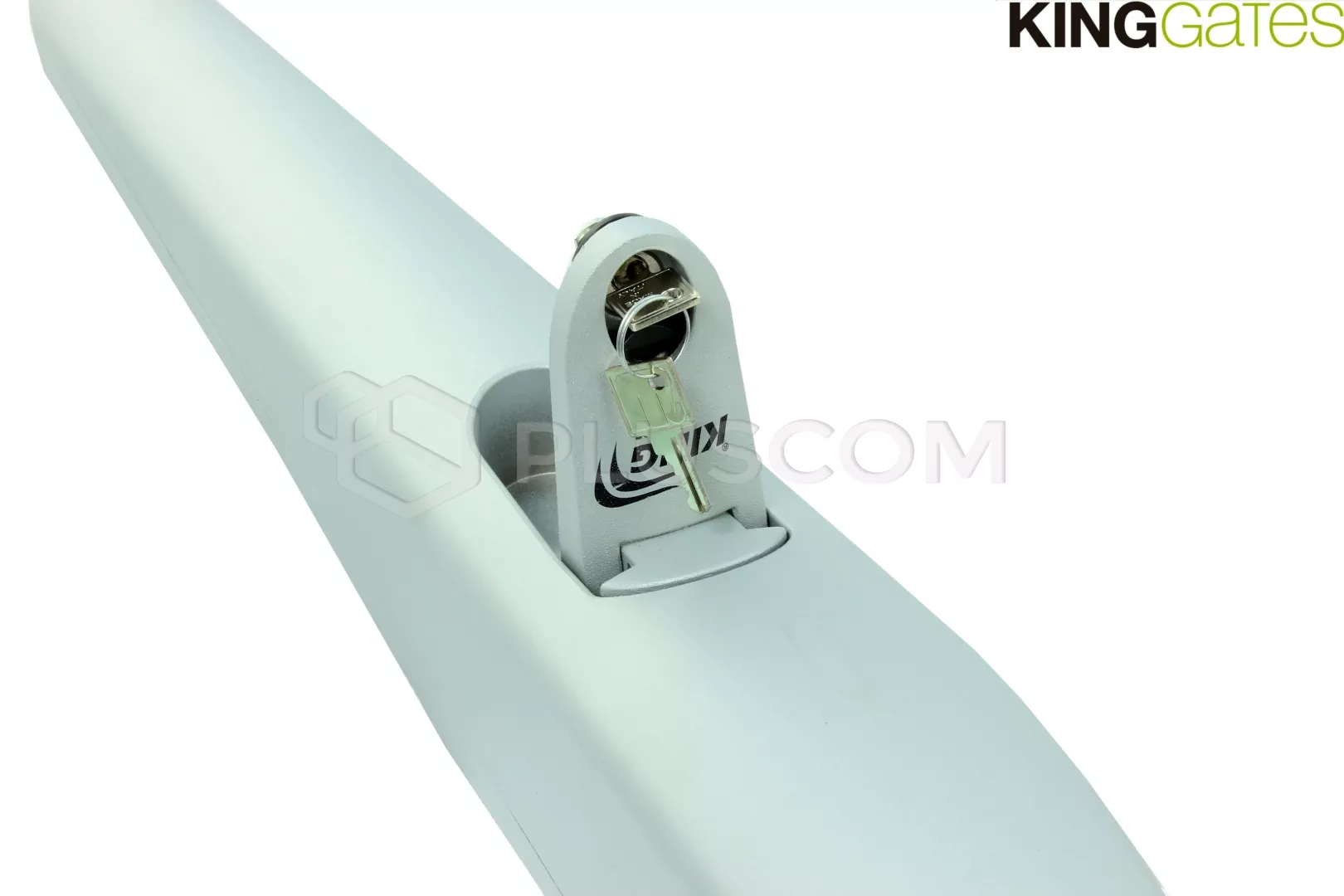

Jet 230 LT Swing gate kit is complete with a pair of 230volt ram motors and capable of handling up to 3m / 600Kg per gate leaf gate.The kit is complete with a motor all the brackets required, override keys housed in a strong aluminium casing. Note: No gate stops are required for the Jet as they have a adjustable mechanical stop included but an additional pair are required if both open and closed stops are missing. The controller is housed in a I.P housing complete with power supply, auto programming, Built in radio receiver, Slow down for the end of travel, Obstacle detection, Pause time, Pre lamp, Pedestrian opening, Safety edge input and much more. Complete with. A pair of Infra red safety photo beams. Two 4 Channel radio transmitters.

Moonclever control unit (King Gates STARG8AC:

433.920Mhz rolling code built-in receiver
removable memory containing up to 180 memorized radio codes
6 signaling led
predisposition for the 12 Vdc card for electric lock control connection
predisposition for the battery charge card and the 24Vdc batteries up to 7Ah
predisposition for the 230 Vac card for courtesy light control connection
customizable and differentiable slow down in opening and closing thanks to the professional
learning procedure
built-in lamp intermittent manager
function of partial opening of the gate - wicket
customizable delay between the wings in closing from 0 to 15 sec. by trimmer
pause time before automatic reclosing customizable from 0 to 90 sec. by trimmer
double safety inputs
input for warning light to signal the wings position

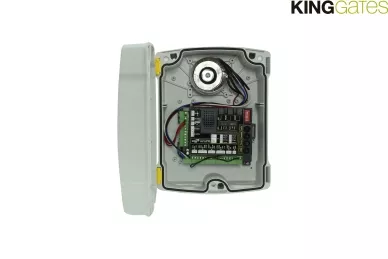

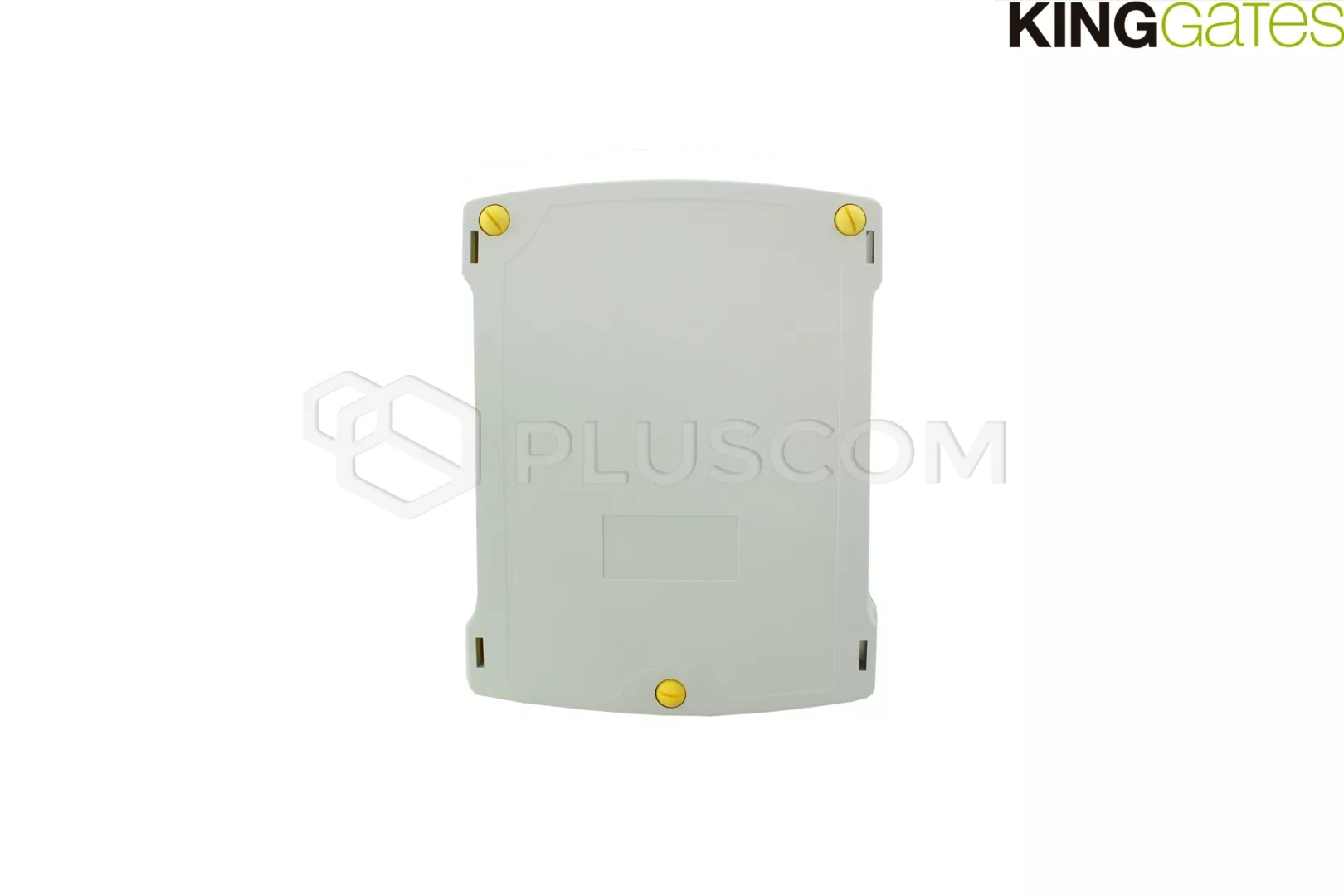

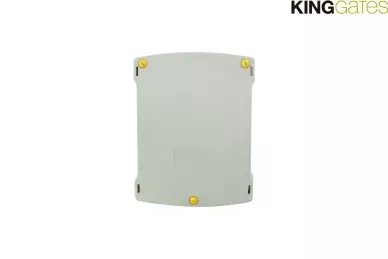

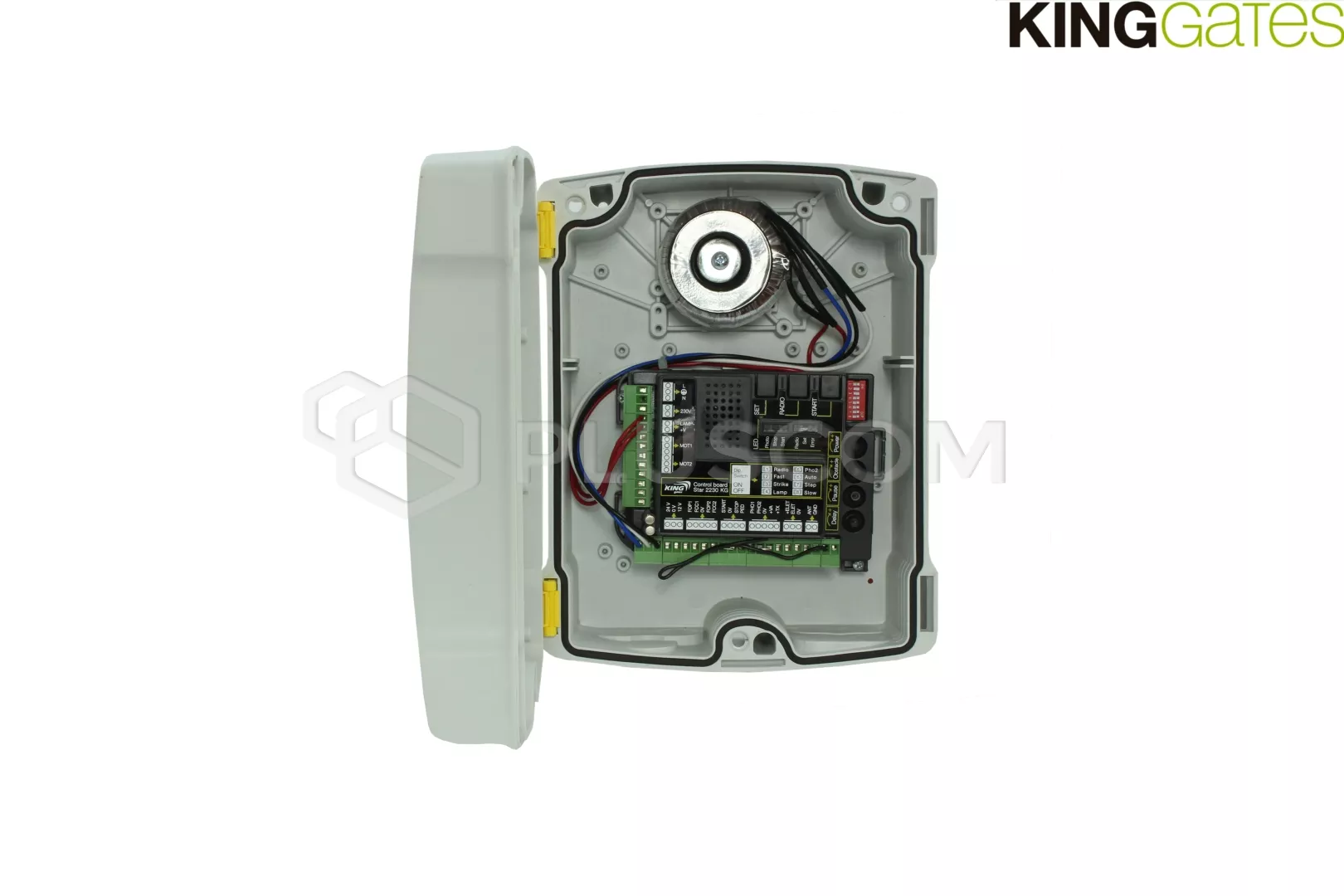

Star 2230 Control panel:

Download

Instruction 1.99 MB
