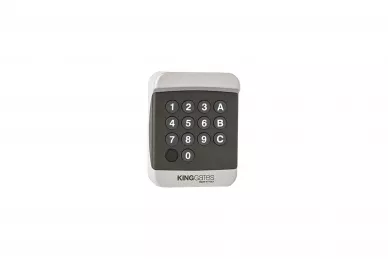

KingGates DIGY PAD 3-channel radio keyboard

KingGates DIGY PAD Illuminated 3-channel radio keyboard with code dynamically variable

l DIGYPAD is a fixed radio transmitter intended for commanding one or more automations for sun screens, rolling shutters, shutters, doors, garage doors, gates of various types and other similar applications. It works with three security passwords (each paired with one of three command keys) that the user needs to know to be able to control the automation.

DIGYPAD has a numeric keypad (0 to 9) for entering the security passwords and three command keys (A, B, C), each paired with a security password that is preset in the factory, but can be customized by the User
The transmitter is tuned to 433.92 MHz.

PARAMETRY TECHNICZNE

• power: 3V CR2032
• battery life: Approx. 2 years with 10 transmissions a day
• radio frequency: 433.92 MHz ±100 KHz
• security code: one or more digits (max. 8 digits). The digits must be in the range “0” to “9”
• disable security code: yes
• estimated range: 100 m; 20 m indoors
• operating temperature: -10°C...+55°C
• protection rating: IP 54
• dimensions: 77x100x36mm
• weight: 215g
