KingGates DYNAMOS 230V 500kg Set

348,73 EUR including 23.00% VAT
In stock. Ships today!
Product code: #22141
Manufacturer: KingGates
  • Set for gates up to 500kg
  • 2 STYLO4K remote controls included
  • VIKY30 photocells
  • Built-in control panel
  • Motor power supply: 230V
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
KingGates Stylo 2K 2-channel KingGates WI-CLAVIS control module TULPLAST LZP/33 Polyamide rack with steel core 1m KINGgates Photocells NOVO PH180 KINGgates NOVO LED PLUS Signal light with 433.92MHz antenna KINGgates KINGKONNECT Programmer for STARG8 control panels TULPLAST LZP/40 Polyamide rack with steel core 1.2m

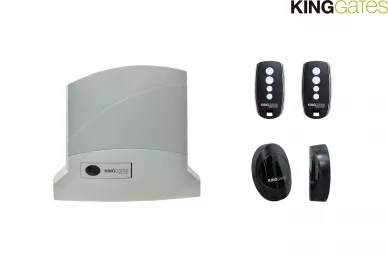

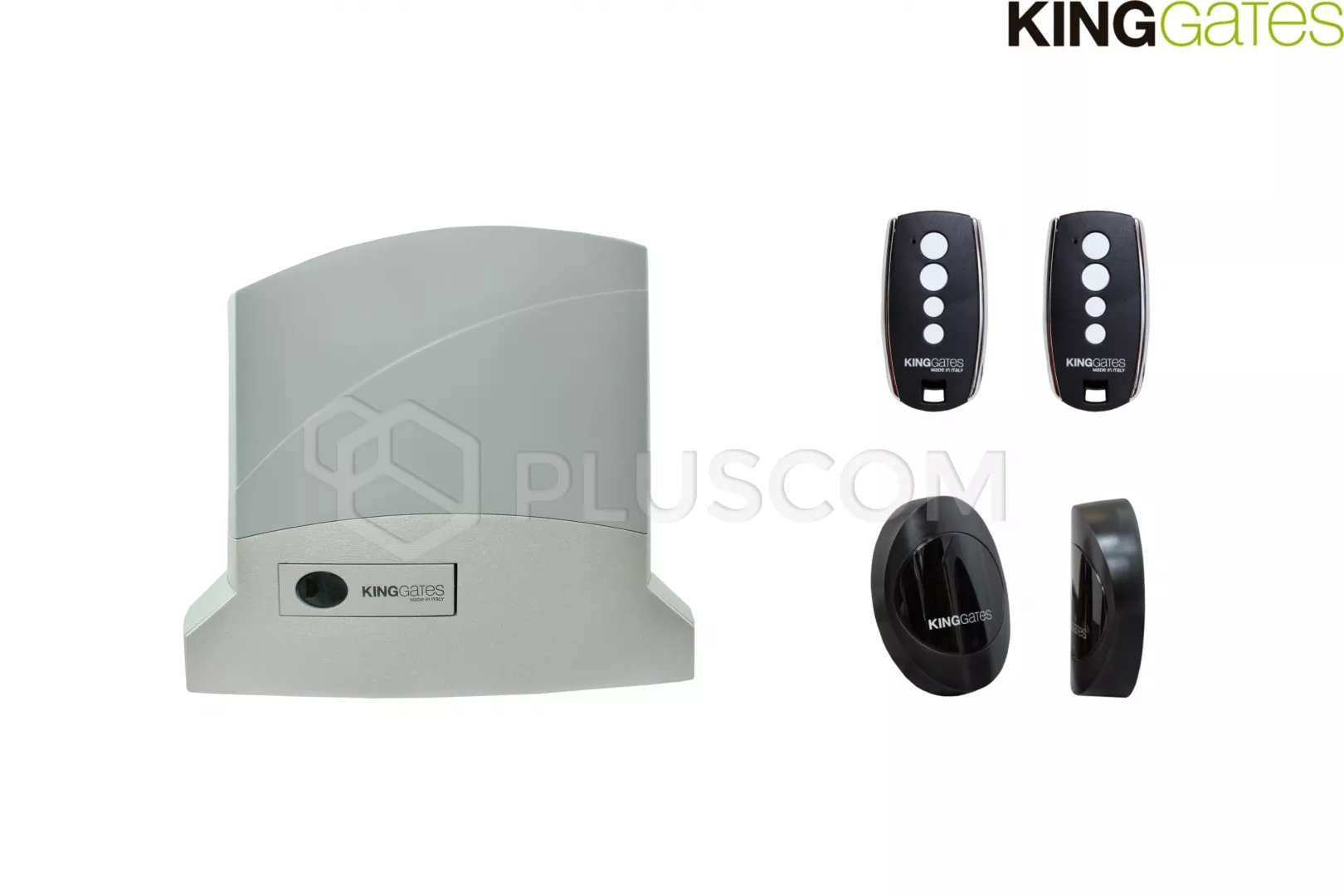

KingGates DYNAMOS KIT 230V for sliding gates weighing up to 500 kg.

SET CONTAINS:
KingGates DYNAMOS KIT 230V 500kg

KingGates DYNAMOS KIT 230V 500kg

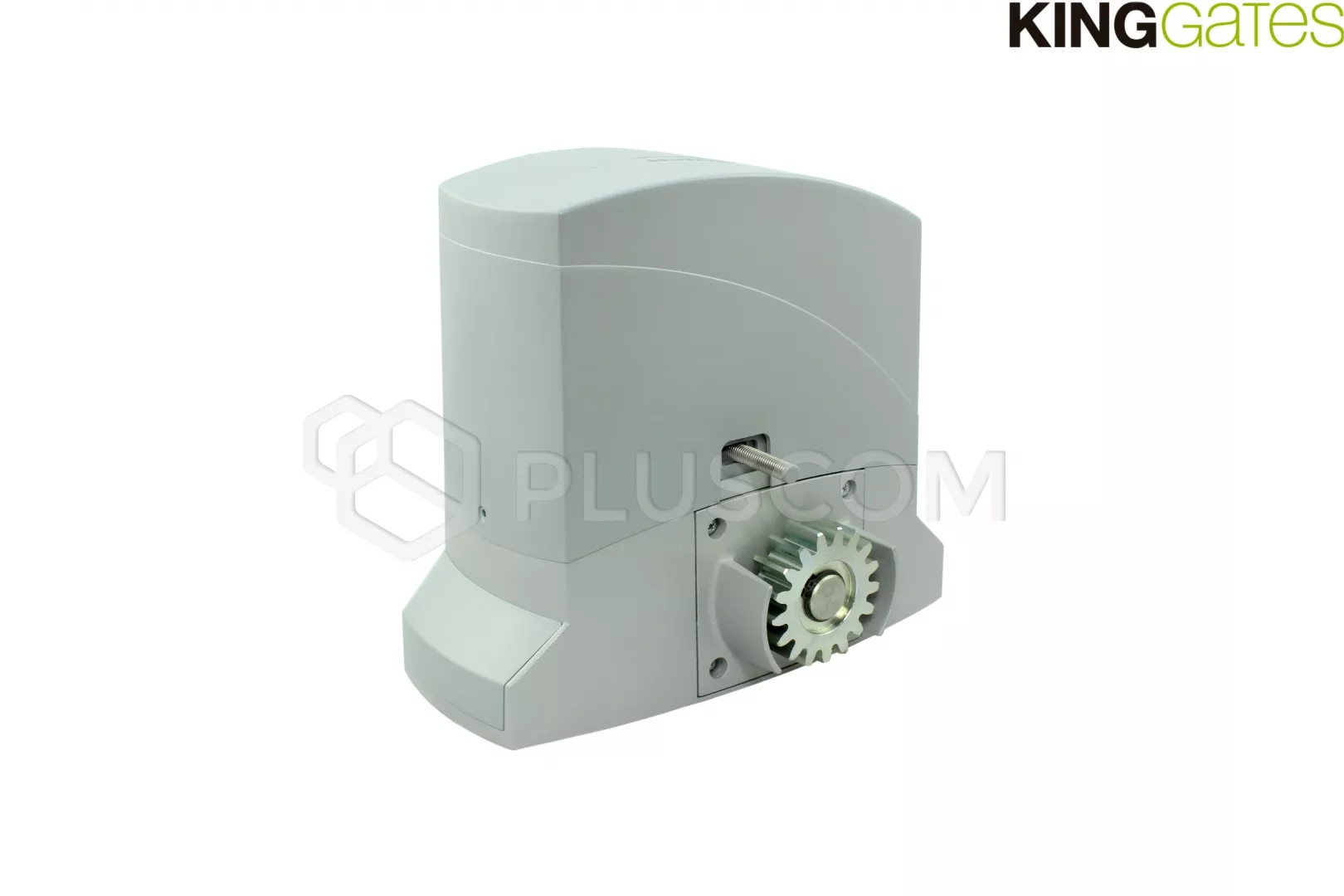

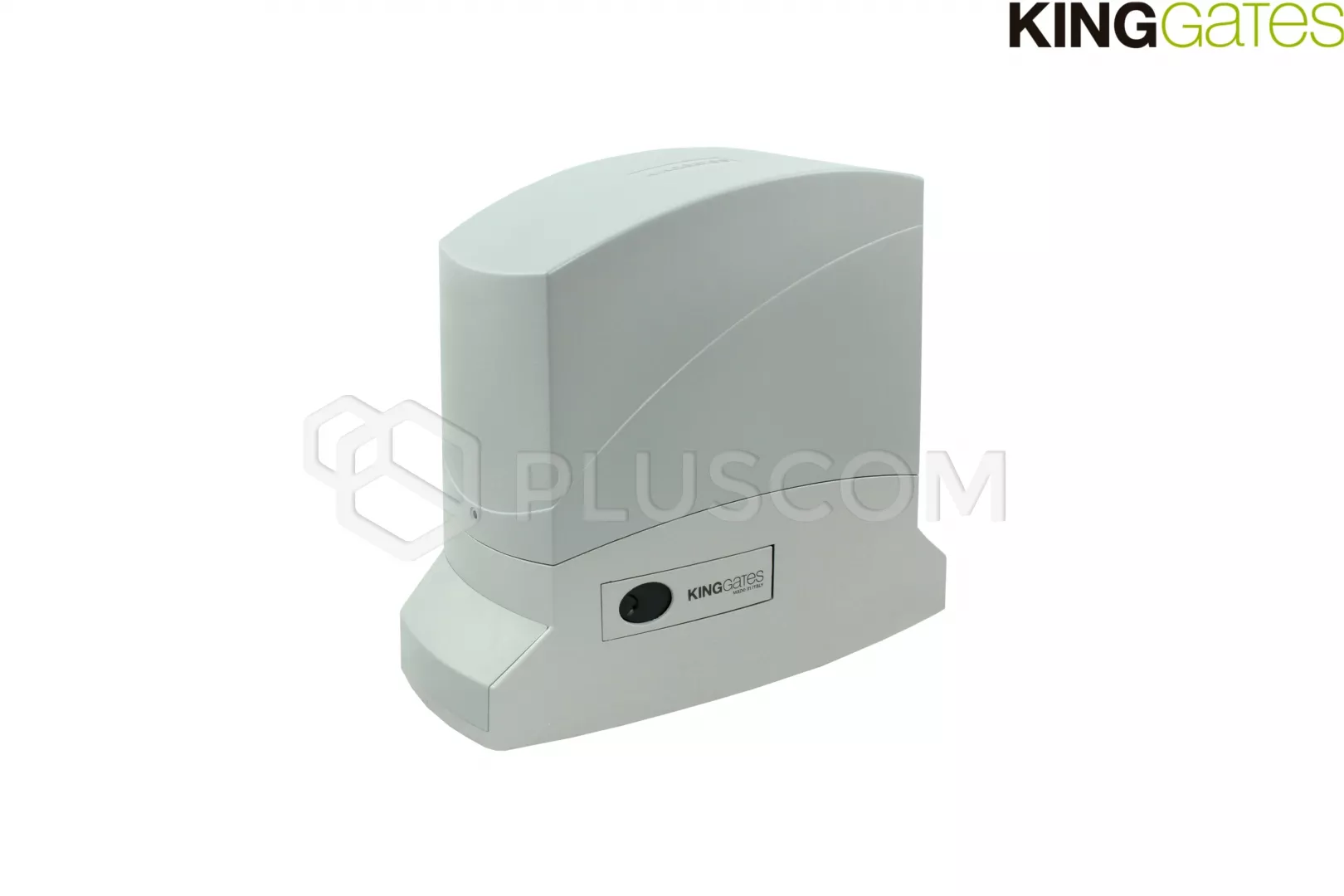

Dynamos is a solid actuator made of aluminum casting, with elements made of ABS plastic, which are covered with a coating that protects against UV radiation, therefore it can work in all conditions.

The most important advantages of the drive and the set include:

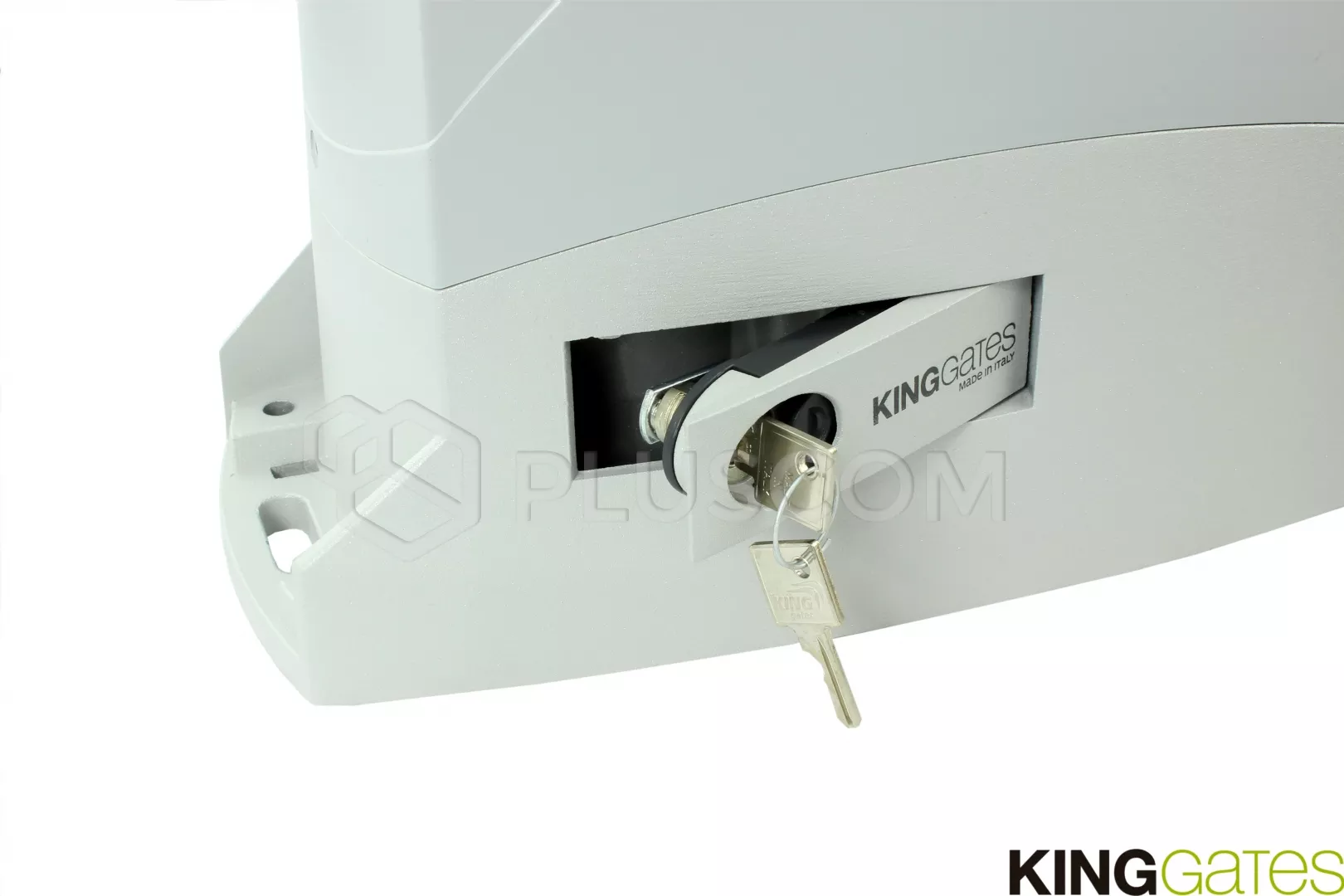

  • Manual unblocking - in the event of a power failure, the practical mechanism for unlocking the drive enables the actuator to be disengaged from the actuator and the gate opened manually
  • Smooth operation - the actuator is programmed so that the door leaf gently starts and slowly stops movement when opening and closing. Thanks to this the door runs smoothly and - what is equally important - it does not make noise when closing.
  • Automatic closing - the gate closes automatically after each opening
  • Wicket function - there is no need to wait until the whole gate opens and closes. Thanks to the wicket function, it will open in such a way that you can move quickly and freely
  • Safety - thanks to the photocell system, the removal of an obstacle will keep the gate at a suitable distance
  • Phototest - the actuator checks whether the photocells are functional before each door opening
  • Water-resistant - the hermetic, waterproof housing of the device can cope with all weather conditions
TECHNICAL PARAMETERS:
  • power supply: 230V AC
  • engine power: 230V AC
  • 1.9A power consumption
  • power: 200W
  • max pulling force: 550N
  • speed: 10 m / s
  • work intensity: 30%
  • working temperature: -22 ° C ... 55 ° C
  • dimensions: 325x185x274mm
  • Weight: 10kg
DYNAMOS 500 230V has an integrated STARG8AC control unit with integrated 433.92 MHz radio receiver. The headquarters is distinguished by its multitude functions and an easy programming process.

Main features:
  • Step by step mode
  • Automatic closing
  • Wicket function
  • Phototest
  • Locking buttons or control center
  • Gateway status indicator
  • Amperometric obstacle detection system (adjustable level sensitivity)
  • The sequence of flash flashes indicates the need for maintenance (number of cycles programmed individually)
  • Photocells on opening and closing
  • Adjustable time of automatic closure
  • Adjustable delay between wings;
  • Integrated radio - memory for 170 pilots
  • Programmable control inputs
  • Maintenance management

EMERGENCY POWER

The drive can be equipped with an additional battery, which will guarantee work even in the event of a power failure.


KingGates Bat M016 Emergency battery 24V
KingGates Bat M016 Emergency battery 24V
98.08 EUR
 Add to cart
KINGgates BAT K3 Battery charging card BAT M016
KINGgates BAT K3 Battery charging card BAT M016
59.16 EUR
 Add to cart
Download
Manual 0.56 MB
