KingGates DYNAMOS gate drive 500kg 230V

KingGates DYNAMOS 230V 500kg Sliding Gate Operator for 500kg Sliding Gates

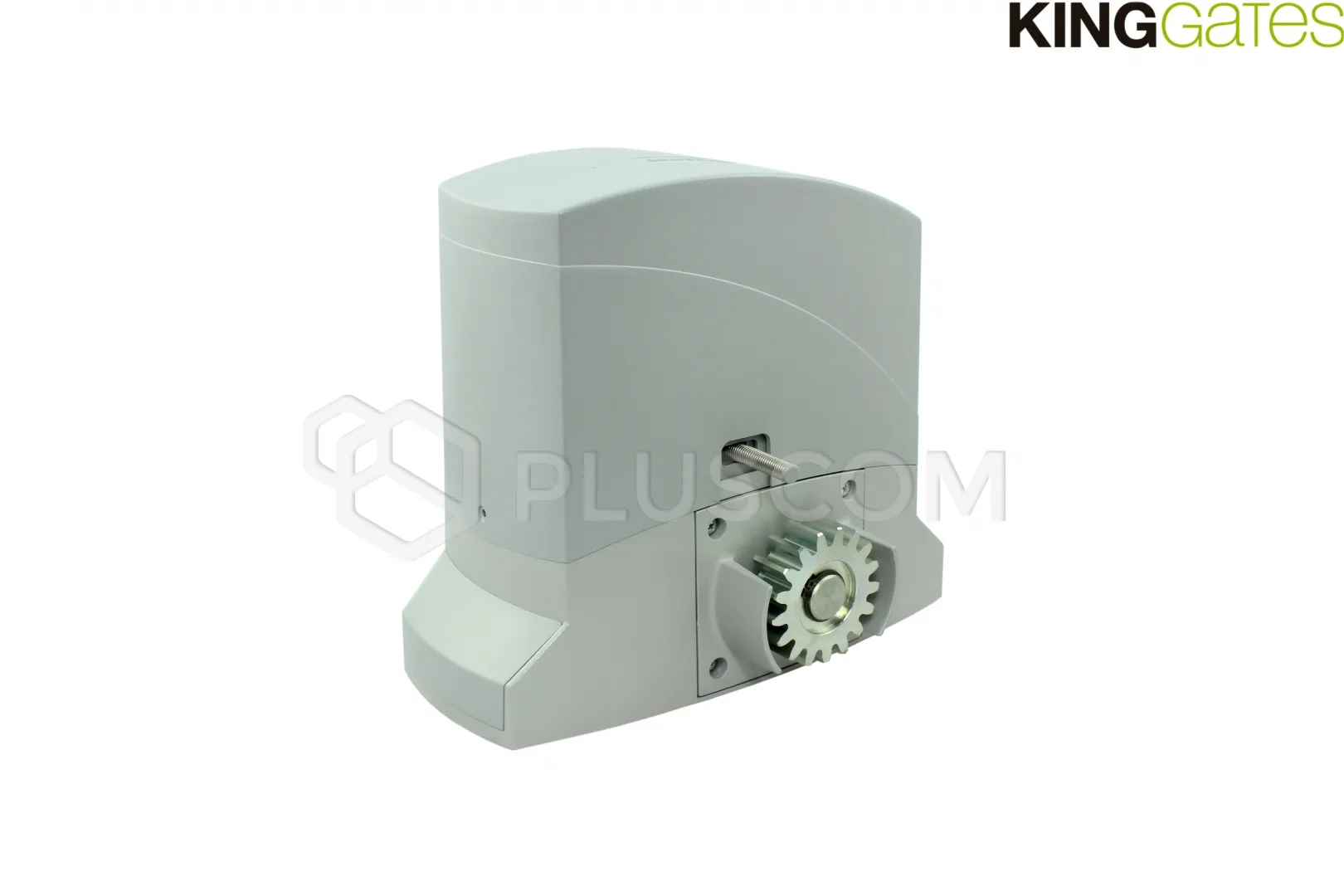

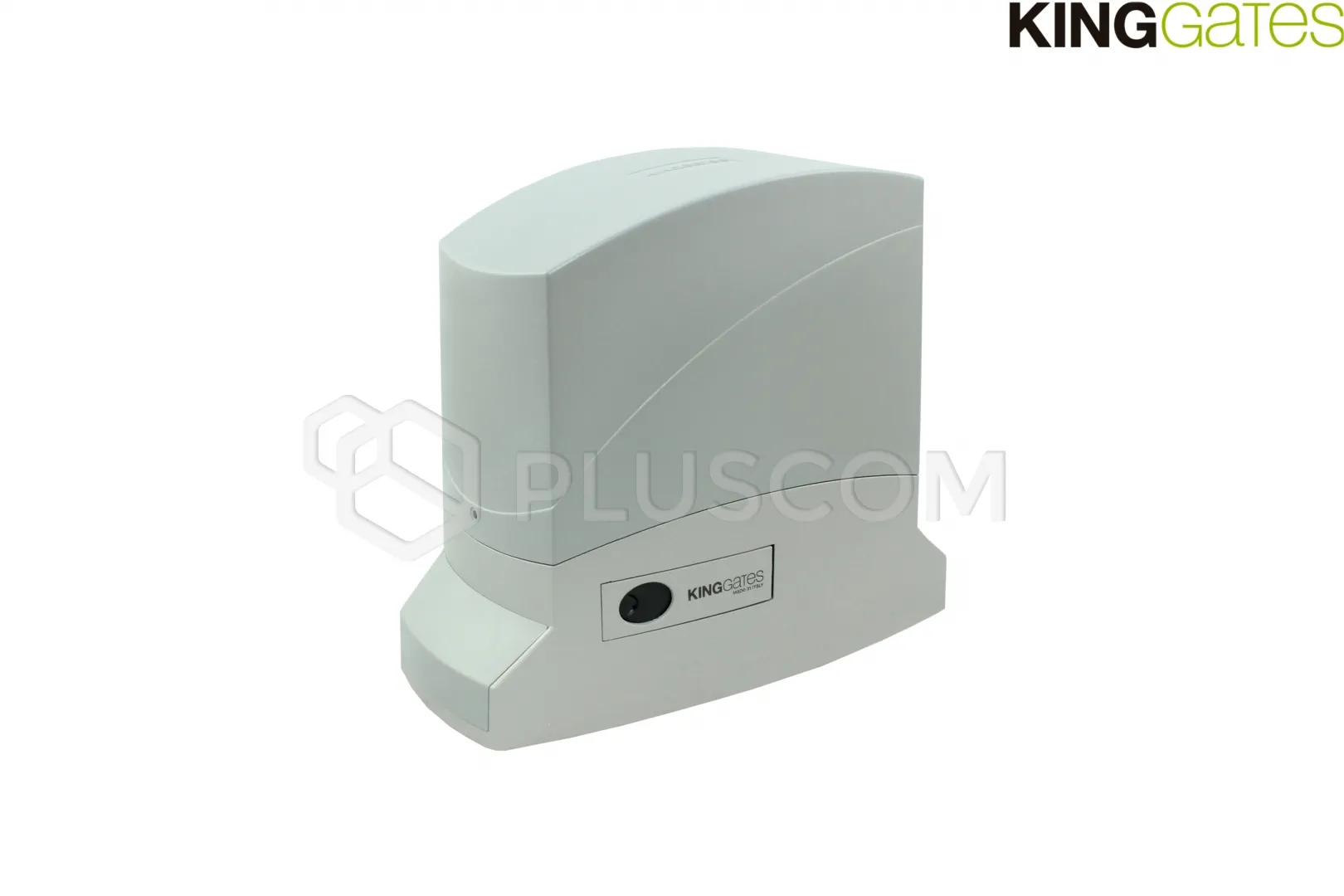

Dynamos is a robust operator, made of cast aluminum, with ABS plastic components coated with a UV-protective coating, making it suitable for operation in all conditions.

The key advantages of the drive and the set include:

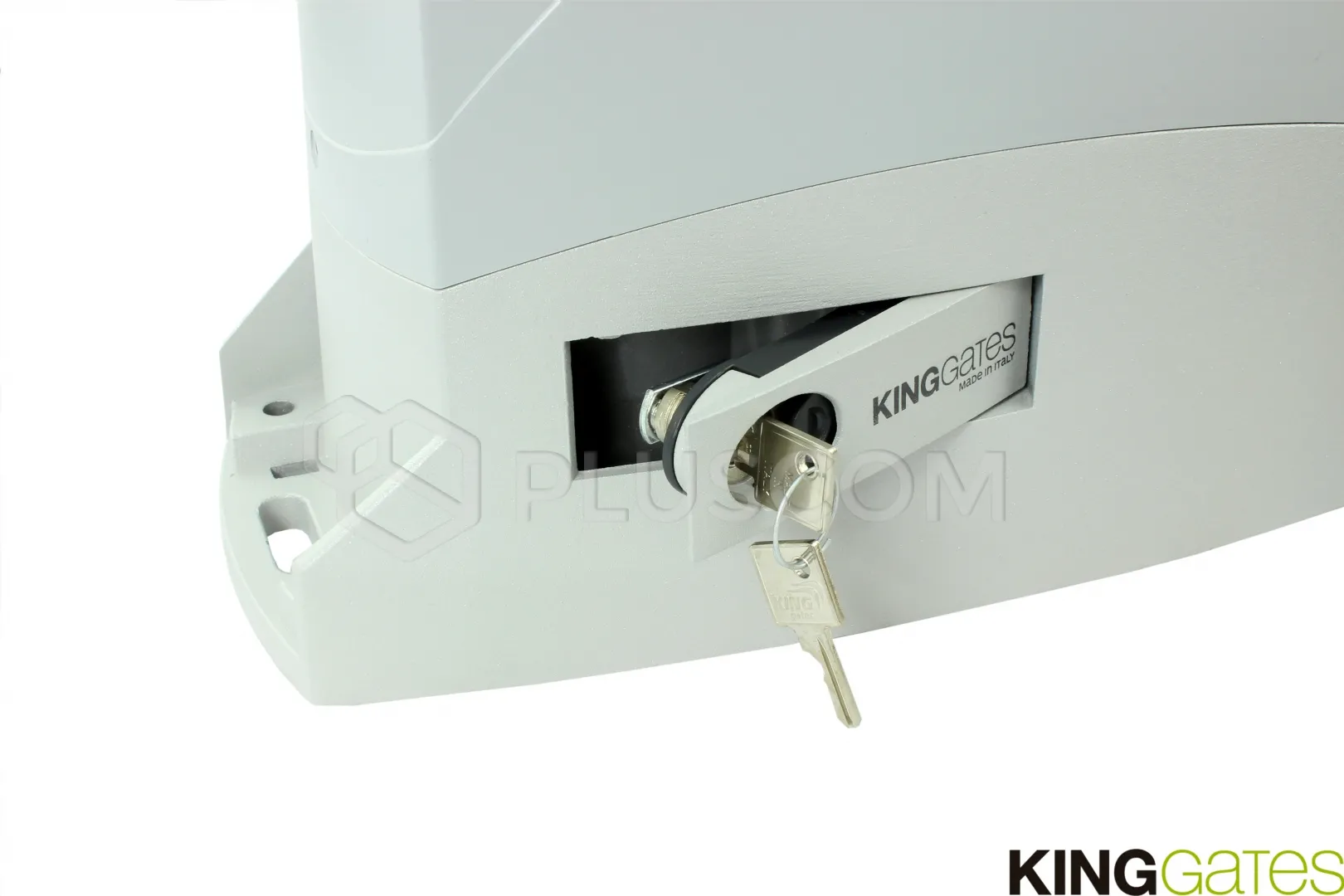

• Manual release - in the event of a power outage, A practical release mechanism allows for emergency disengagement of the drive and manual opening of the gate.
• Smooth operation - The drive is programmed so that the gate leaf starts gently and slowly stops during opening and closing. This allows the gate to operate smoothly and – equally importantly – makes no noise when closing.
• Automatic closing - the gate will automatically close after each opening.
• Wicket function - there's no need to wait for the entire gate to open and close. Thanks to its wicket function, it will open so that you can quickly and freely pass through.
• Safety - thanks to the photocell system, detecting an obstacle will stop the gate at the appropriate distance.
• Phototest - the actuator checks the photocells for operational functionality before each gate opening.
• Water-resistant - the device's airtight, waterproof housing will withstand all weather conditions.

DYNAMOS 500 230V has a built-in STARG8AC control unit with an integrated 433.92 MHz radio receiver. The control unit is distinguished by its multitude of functions and easy programming.

Main features of the control unit:

• Step-by-step mode
• Automatic closing
• Wicket function
• Phototest
• Blocking buttons or control unit
• Gate status indicator
• Amperometric obstacle detection system (adjustable sensitivity level)
• A flashing sequence signals the need for maintenance (number of cycles individually programmable)
• Photocells on opening and closing
• Adjustable automatic closing time
• Adjustable delay between leaves
• Integrated radio receiver – memory for 170 remote controls
• Programmable control inputs
• Maintenance management
• EMERGENCY POWER SUPPLY

  The drive can be equipped with an additional battery, which will guarantee operation even in the event of a power outage.




  TECHNICAL PARAMETERS:



  • Power supply: 230V AC
  • Motor power supply: 230V AC

  • Current consumption: 1.3A
  • Power: 200W
  • • Maximum pulling force: 550N

    • Speed: 10 m/s

    • Work intensity: 30%

    • • Operating temperature: -22°C...55°C
      • Dimensions: 325x185x274mm
      • Weight: 10kg
