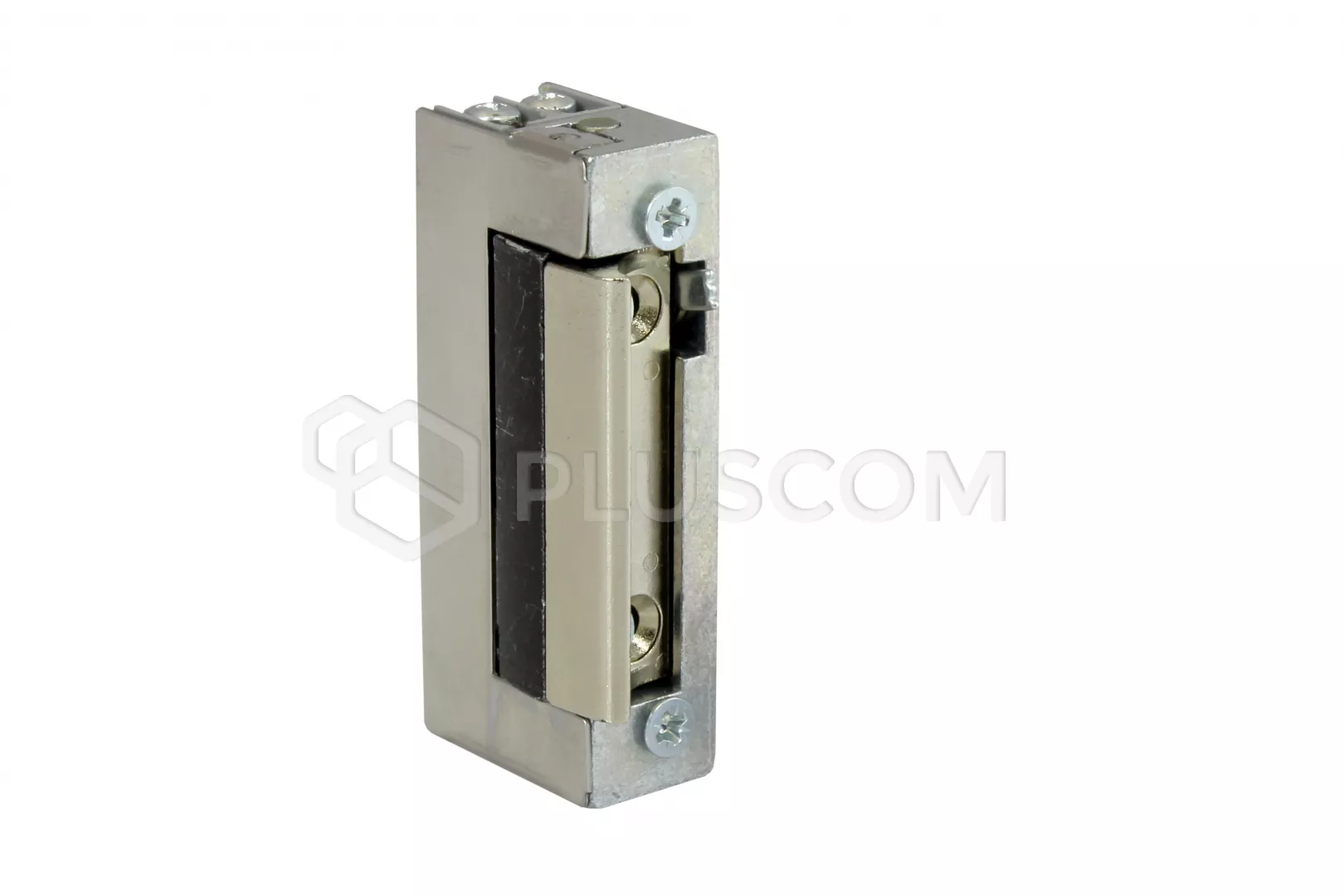

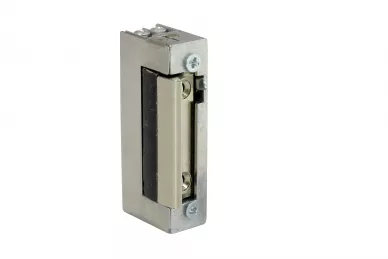

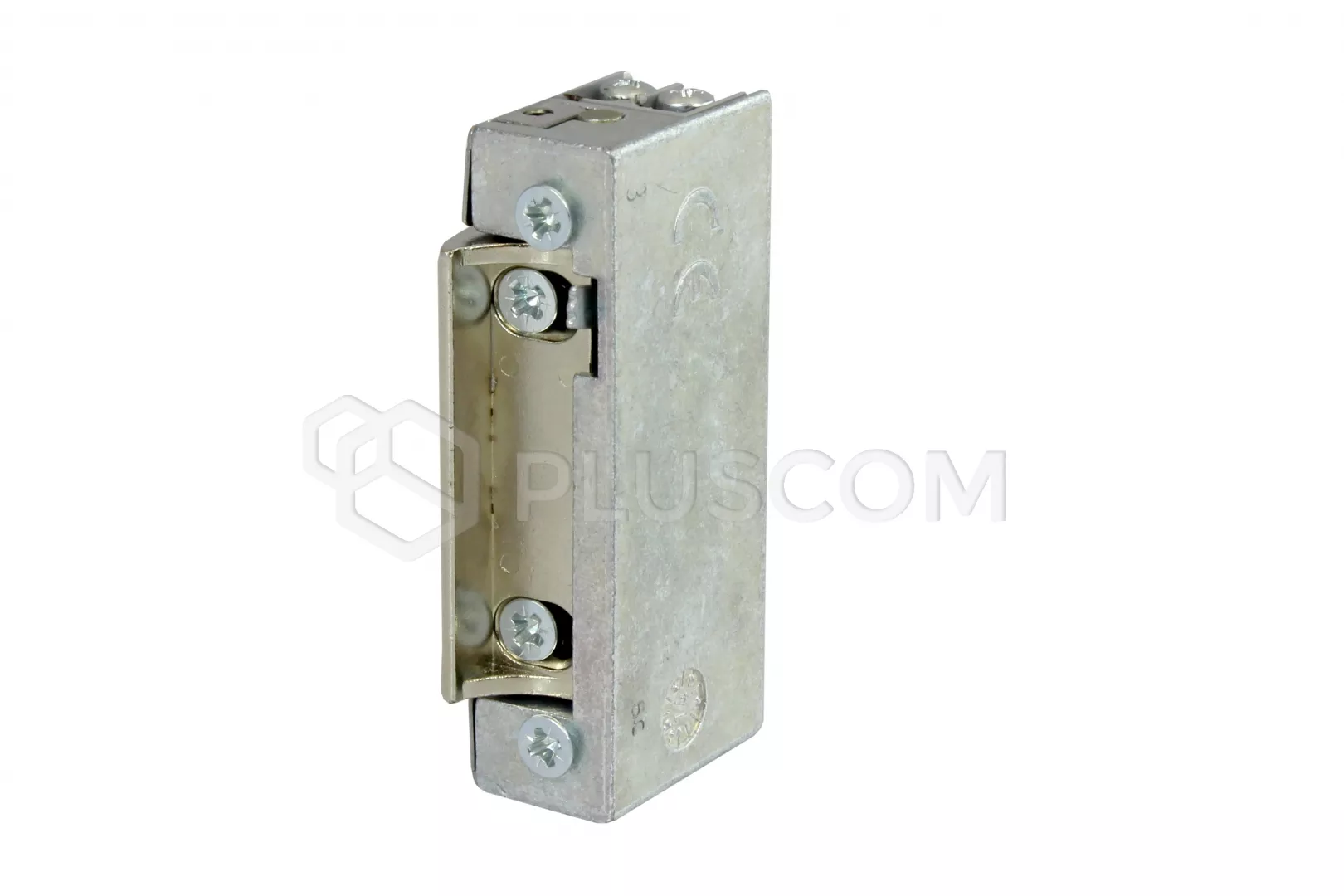

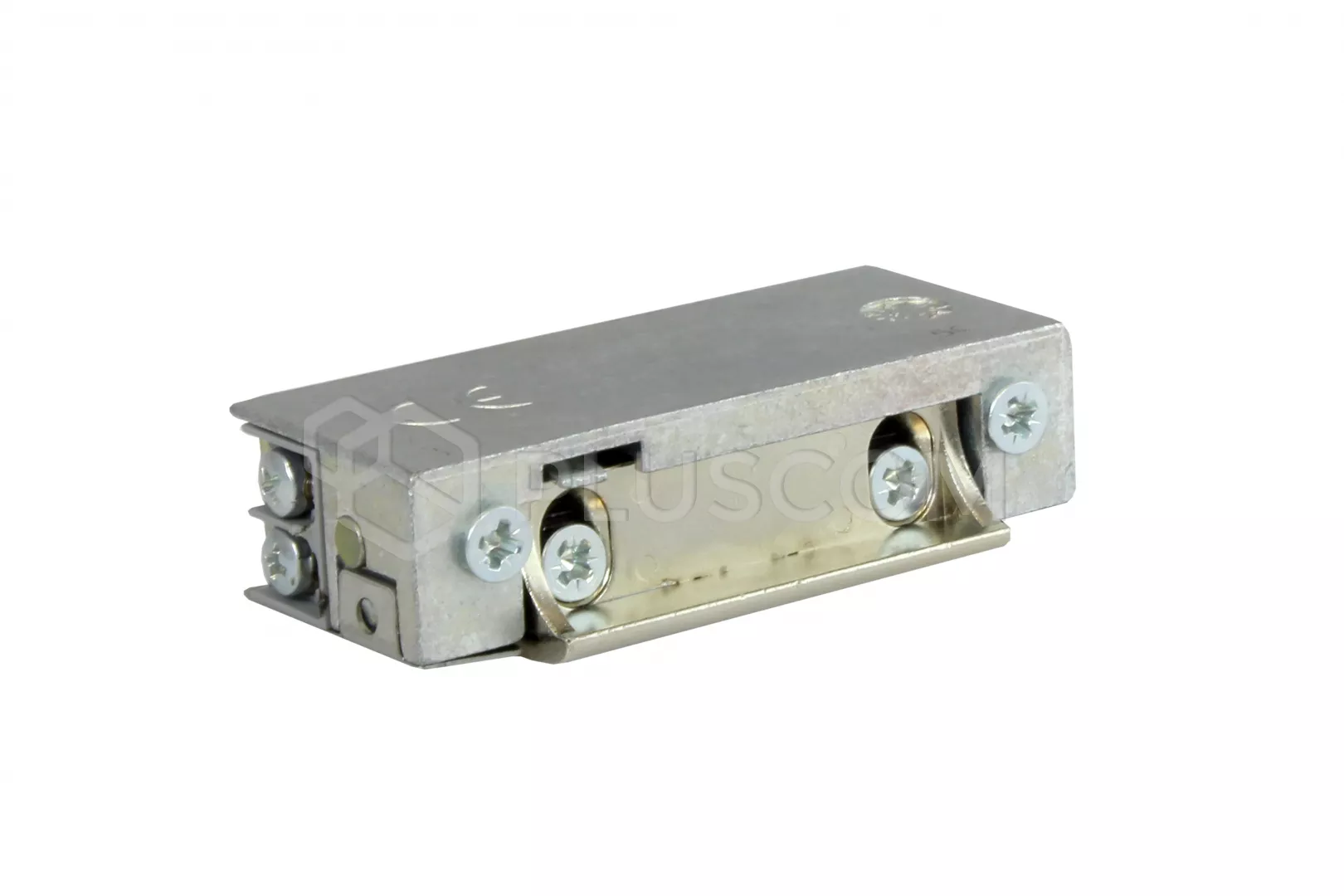

JiS 1443 12-24V AC/DC Electric strike with switch and memory

Electric strike JiS 1443 12/24V AC/DC left/right with switch and memory

JiS 1443 12-24V AC/DC with switch on/off and memory can be installed in door frames left/right, thanks to its compact dimensions designed for use in narrow profiles.

The control can be realized by access control system, video door phone system, intercom, or by using the switch.

PRINCIPLE OF OPERATION:

Electric strike releases is equipped with a memory mechanism. Its function is to pass a short pulse which releases the lock, it remains in this state until the opening of the door. After opening the lock is released when the door closes door lock remains closed. This feature works in a situation of battery power, which is required low power consumption.

In addition, electric strike releases is equipped with a switch on/off that can be activated only with the door open. It releases the lock and the door can be opened without providing electrical impulses through any time.

DIMENSIONS AND ADJUSTMENTS:

• "lip (keeper)" electric strike releases can be adjusted in the range of 4 mm
• 52,5mm spacing of the mounting screws
• universal left/right
• width 16,5mm

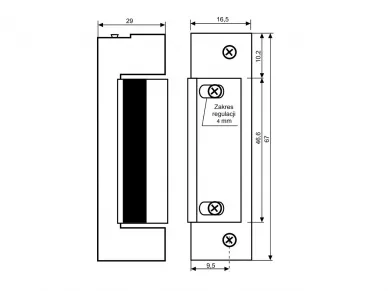

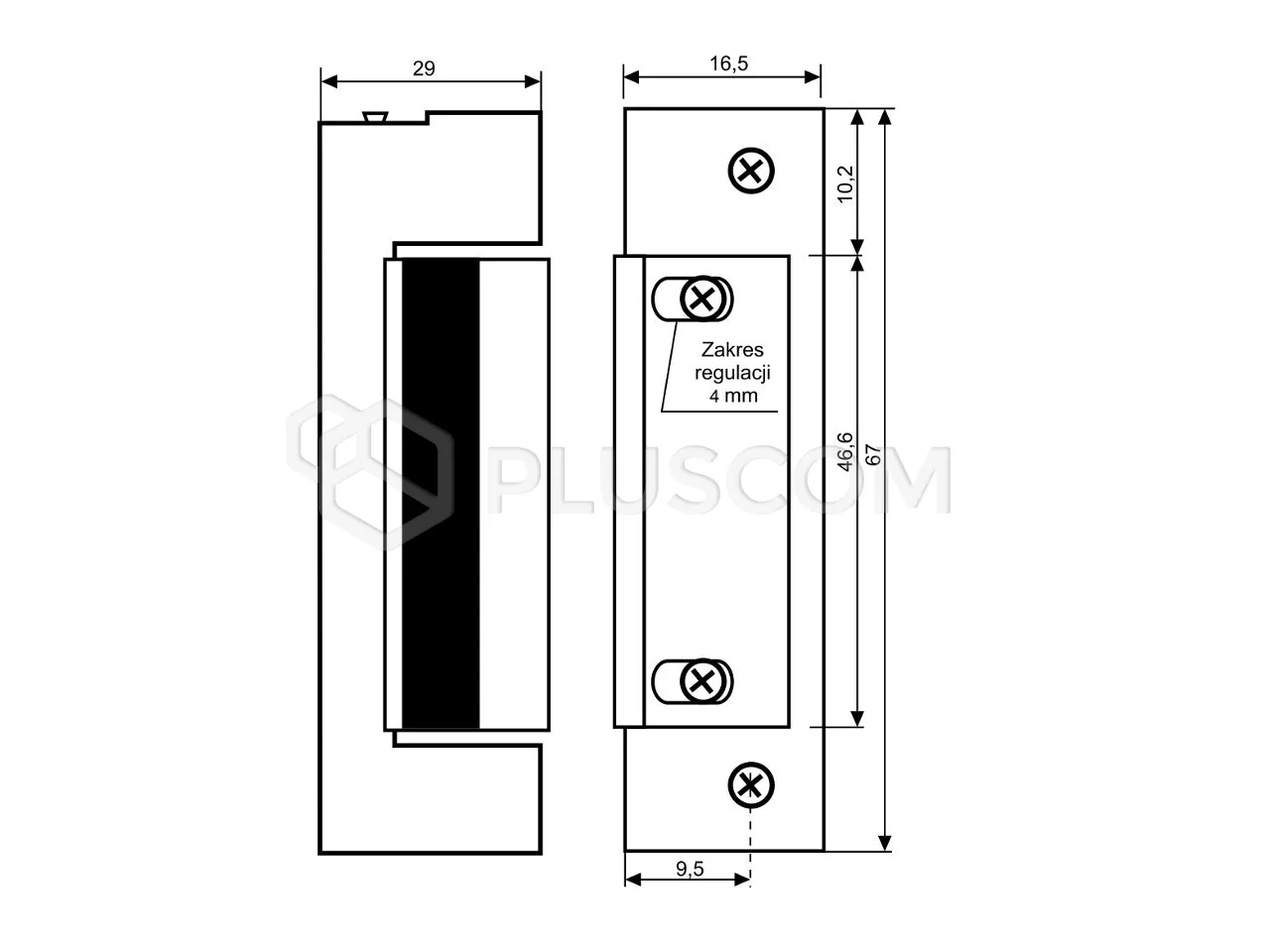

Dimensions (mm):

Front plates for electro strikes:
