JiS 1433 12-24V AC/DC Electric strike with memory

26,24 EUR including 20.00% VAT
On stock. Ships in one business day
Delivery time: 3 - 5 days
Product code: #22088
Manufacturer: JiS
  • Universal, left/right with memory
  • Power: 12-24V AC/DC
  • Regulation: 4mm
  • Width: 16,5mm
  • For use in narrow profiles
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Pulsar PSC12010 switch mode power supply 12V/1A DC Pulsar PSC12015 switch mode power supply 12V/1,5A DC Pulsar PSCL12015 12V/1,5A Power supply

Electric strike JiS 1433 12/24V AC/DC left/right with memory

JiS 1433 12-24V AC/DC with memory can be installed in door frames left/right, thanks to its compact dimensions designed for use in narrow profiles.

The control can be realized by access control system, video door phone system, intercom, or by using the switch.

PRINCIPLE OF OPERATION:

Electric strike releases is equipped with a memory mechanism. Its function is to pass a short pulse which releases the lock, it remains in this state until the opening of the door. After opening the lock is released when the door closes door lock remains closed. This feature works in a situation of battery power, which is required low power consumption.

DIMENSIONS AND ADJUSTMENTS:

  • "lip (keeper)" electric strike releases can be adjusted in the range of 4 mm
  • 52,5mm spacing of the mounting screws
  • universal left/right
  • width 16,5mm

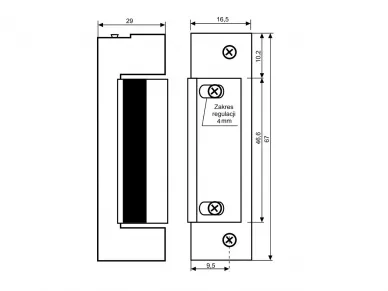

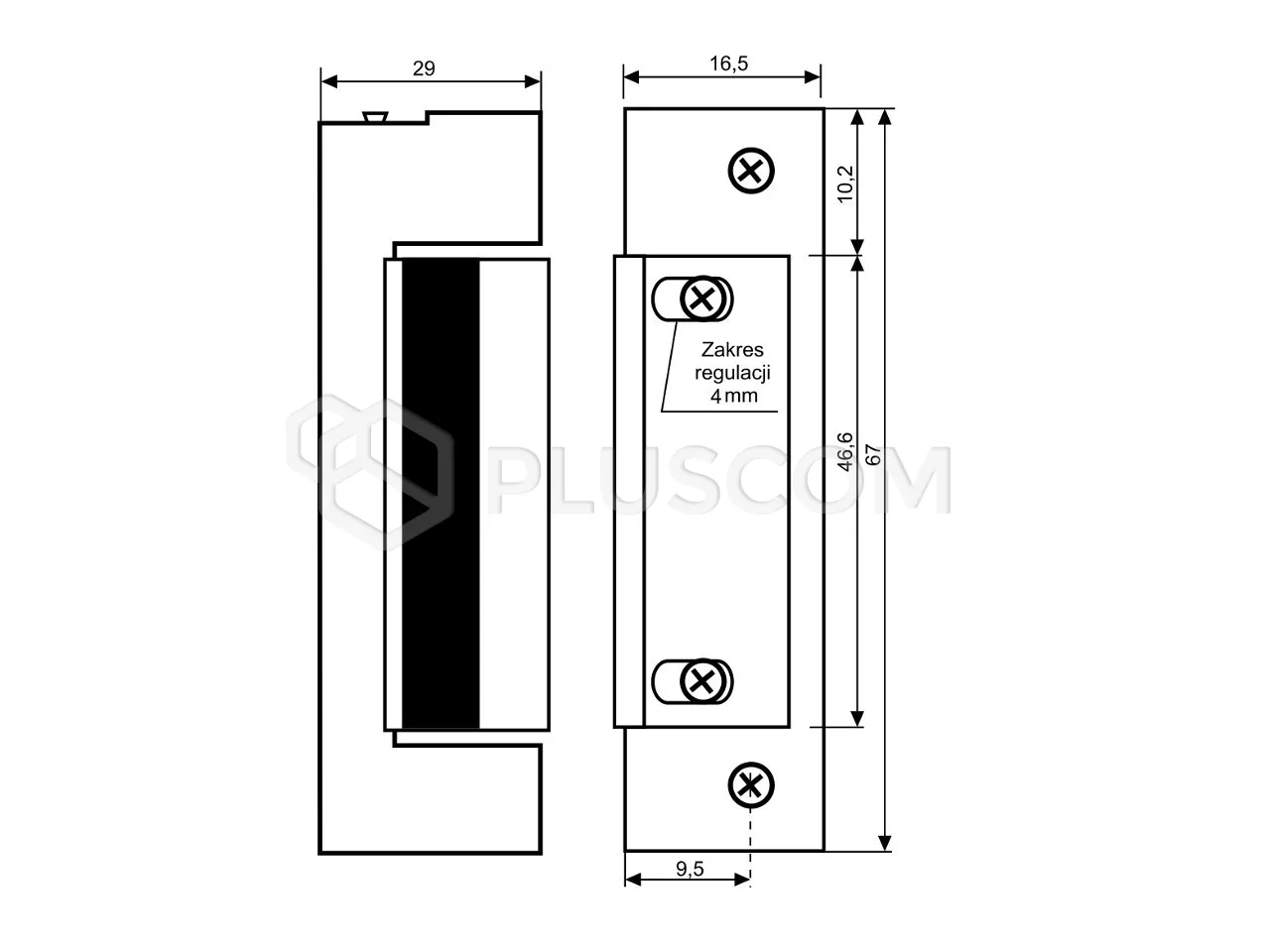

Dimensions:

Dimensions:


Front plates for electro strikes:

Download
0.13 MB
