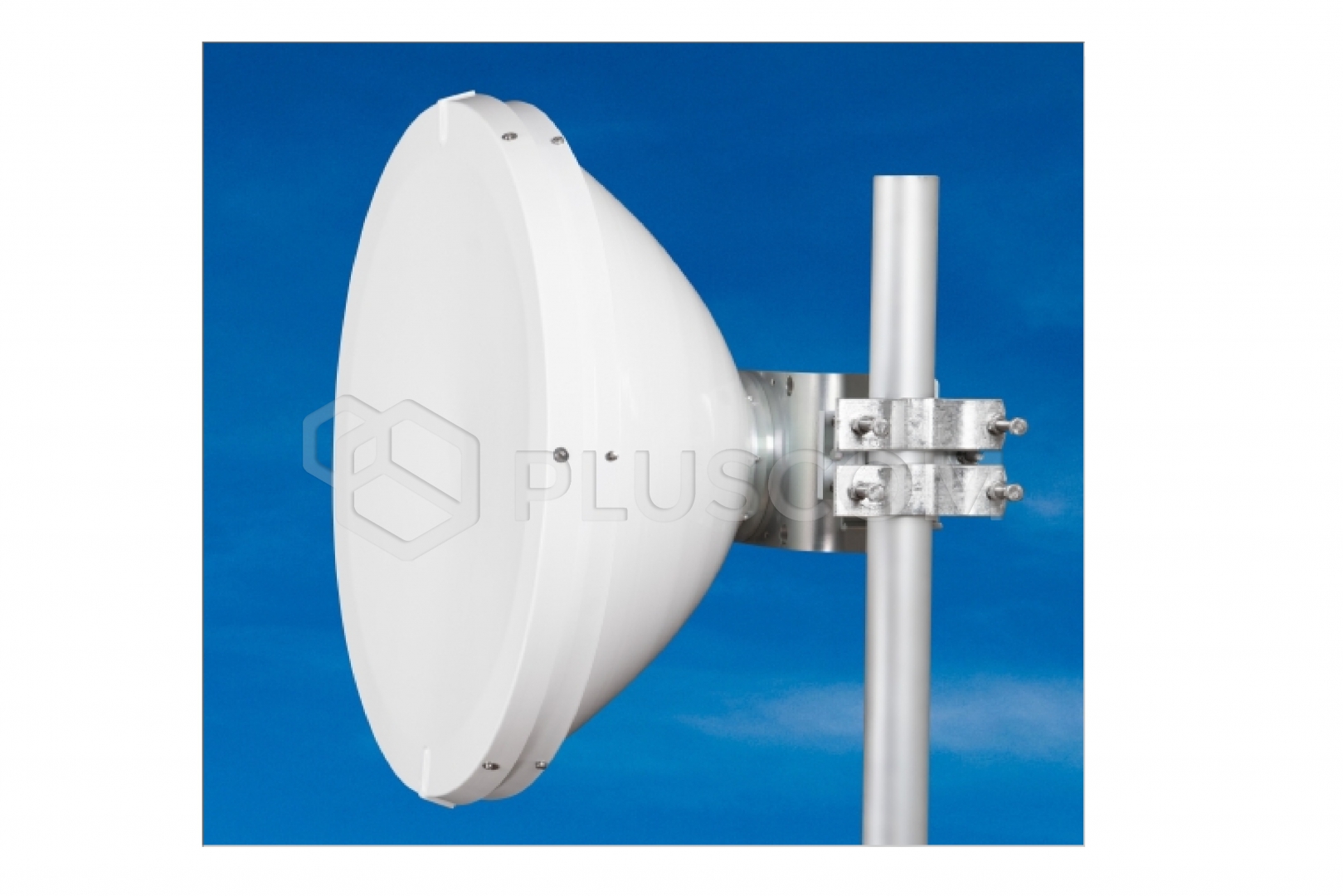

Jirous Parabolic antenna JRME-680-10/11

632,54 EUR including 23.00% VAT
Product code: #21870
Manufacturer: Jirous
  • Gain - Low Frequency: 34.1 ± 1 dBi
  • Gain - High Frequency: 36.0 ± 1 dBi
  • Beam width: 3° ± 0.5°
  • Dimensions: Ø 68 cm
  • Polarization: Linear, vertical/horizontal

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRME-680-10/11


The JRME – 680 – 10/11 antenna is designed for microwave communications in the 10 and 11 GHz frequency bands. Precise operation with a deep reflector and flange meets ETSI Class 3 and ACMA - RALI FX3 Class B standards.

FEATURES:

  • Deep parabola and additional flange for exceptionally high interference immunity and high mechanical strength
  • Very high front/rear ratio
  • High isolation of adjacent cells
  • Radar shroud included

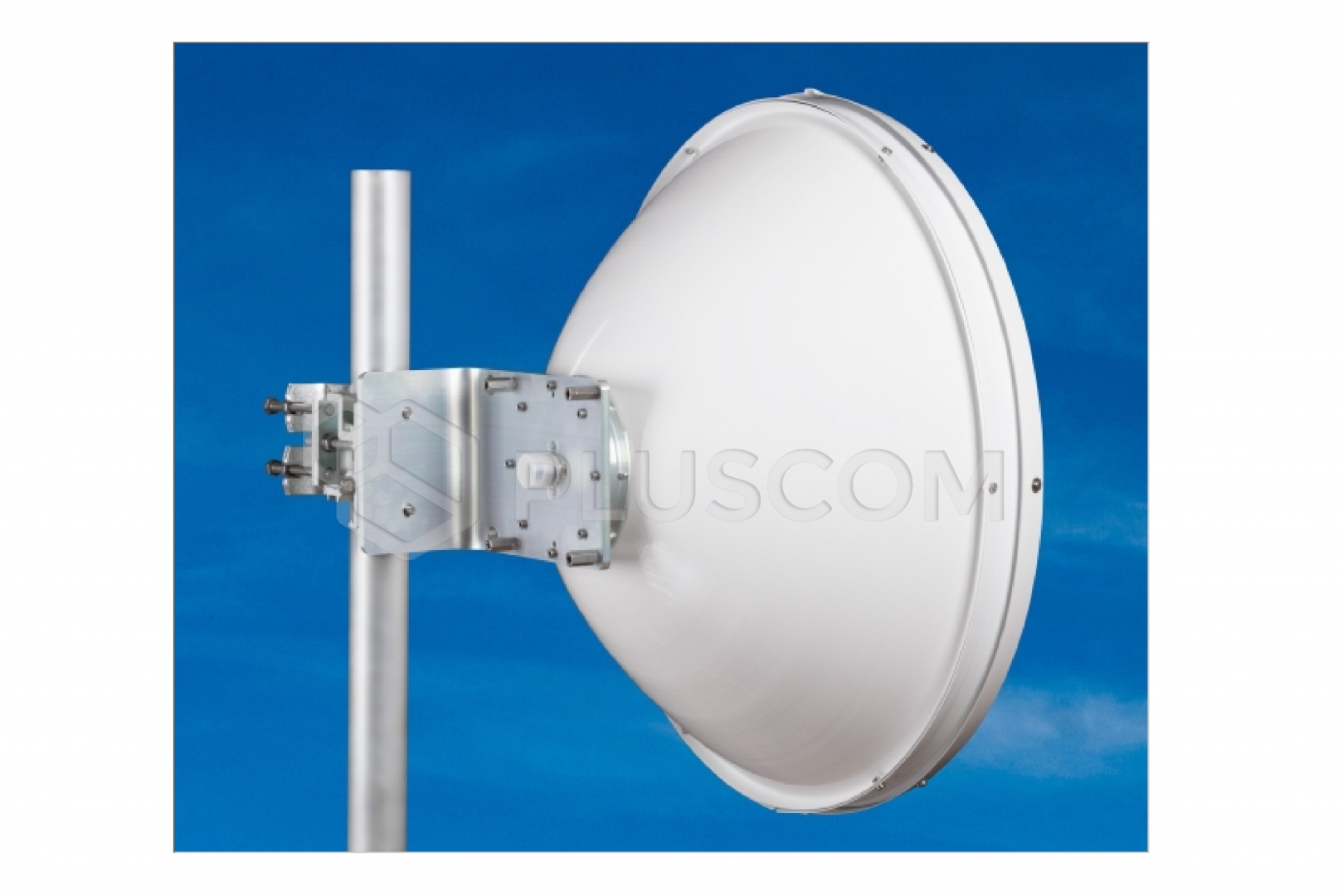

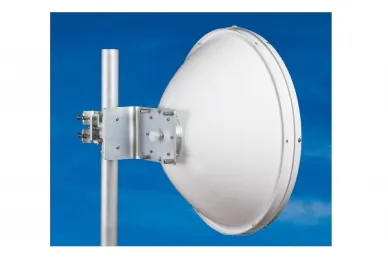

  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- and left-hand mounting
  • Exceptional wind stability
Designed for MW units:
  • Please see the adapter overview
  • Other adapters available at order

Electrical parameters:

  • Frequency range: 10.0 – 12.0 GHz
  • Gain – low frequency: 34.1 ± 1 dBi
  • Gain – high frequency: 36.0 ± 1 dBi
  • Front-to-back ratio: ≥ 61 dB
  • XPD: ≥ 35 dB
  • Beamwidth - 3 dB: 3° ± 0.5°
  • Reflection loss: ≥ 18 dB/10.3 – 11.7 GHz
  • Polarization: Linear, vertical/horizontal
  • Electrical compliance
    - US FCC part 101A | 10.550 – 10.680 GHz
    - US FCC Part 101B | 10.7 – 11.7 GHz
    - Class 3 ETSI EN 302-217-4-2
    - Class B ACMA - RALI FX3

Mechanical parameters:

  • Parabola: Ø 680 mm, aluminum alloy
  • Radome: UV-resistant ABS plastic
  • Input/output: Circular waveguide Ø 19 mm
  • Mast mounting: Ø 40–120 mm
  • Operating wind load: 180 km/h (112 mph)
  • Wind load resistance: 240 km/h (149 mph)
  • Antenna weight: 7.3 kg
  • Bracket weight: 3.2 kg
We recommend mounting on a mast with a minimum diameter of ø 50 mm in areas where strong winds are expected.

Download
Datasheet 0.59 MB
