Jirous Parabolic antenna JRME-400-80

Product code: #43204
Manufacturer: Jirous
  • Gain - Low Frequency: 46.4 ± 1 dBi
  • Gain - High Frequency: 48.2 ± 1 dBi
  • Beam width: 0.7° | Input/output: Circular waveguide Ø 3.2 mm
  • Dimensions: Ø 40 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.
The JRME–400–80 antenna is designed for microwave communications in the 80 GHz frequency band. Its precise operation with a deep reflector meets ETSI Class 3 and FCC Cat. A

Electrical Parameters:

  • Frequency Range: 71–86 GHz
  • Gain - Low Frequency: 46.4 ± 1 dBi
  • Gain - High Frequency: 48.2 ± 1 dBi
  • Front-to-Back Ratio: ≥ 65 dB
  • Beamwidth -3 dB: 0.7°
  • XPD: ≥ 33 dB
  • Return Loss: ≥ 15 dB
  • Polarization: Linear, Vertical/Horizontal
  • Electrical Compliance:
    - US FCC Cat. A
    -Class 3 ETSI EN 302-217-4-2 v1.5.1

  • Mechanical parameters:

    • Parabola: Ø 400 mm, aluminum alloy
    • Dome: UV, plastic, stable
    • Input/output: Circular waveguide Ø 3.2 mm
    • Mast mounting: Ø 40 - 120 mm
    • Operating wind load: 180 km/h
    • Survival wind load: 240 km/h
    • Antenna weight: 2.3 kg
    • Bracket weight: 2.5 kg kg

    Application:

    • Deep parabola for improved performance
    • Easy installation: first the mount, then the antenna using only 2 screws
    • Excellent stability when tightening after alignment
    • Exceptional wind stability

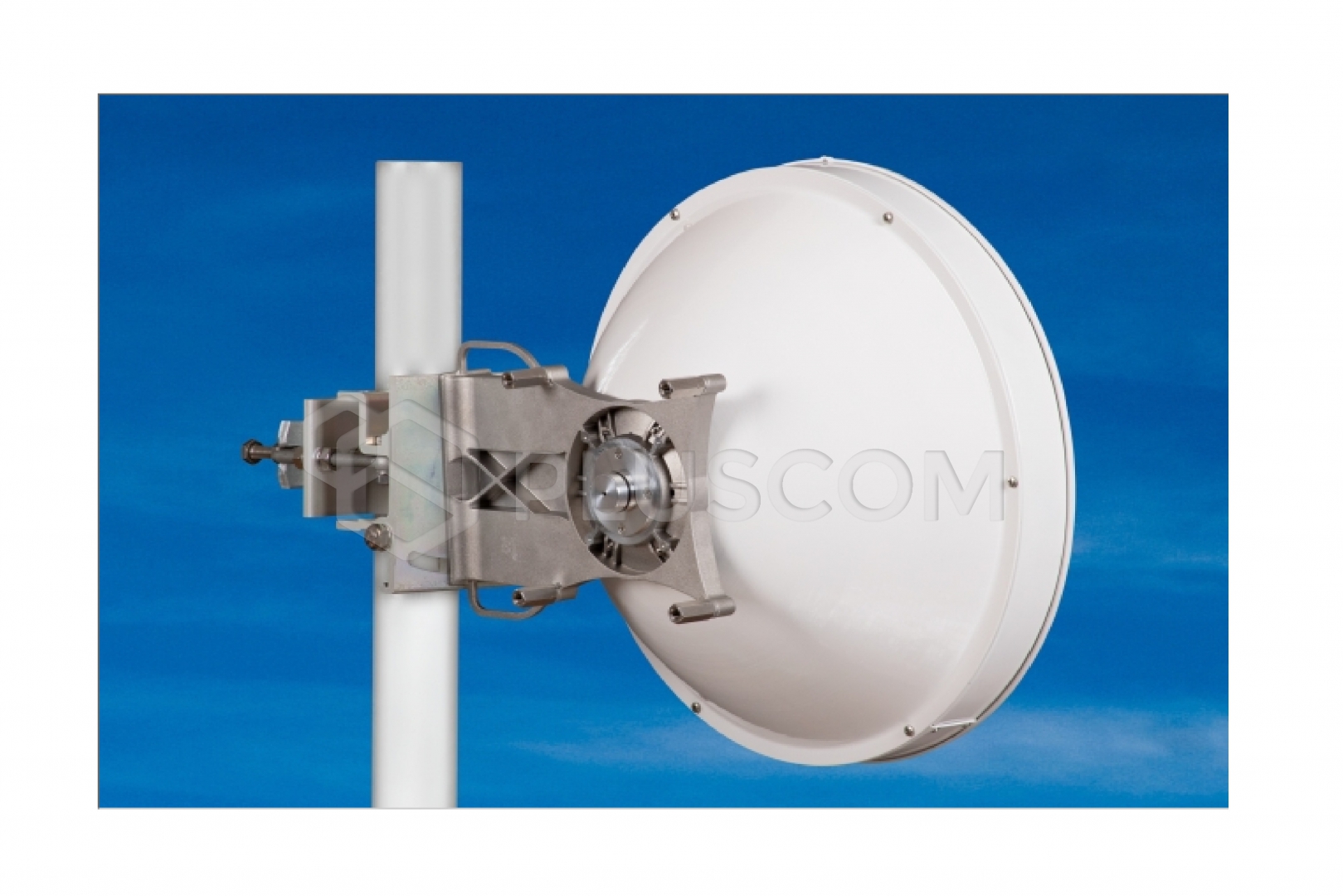

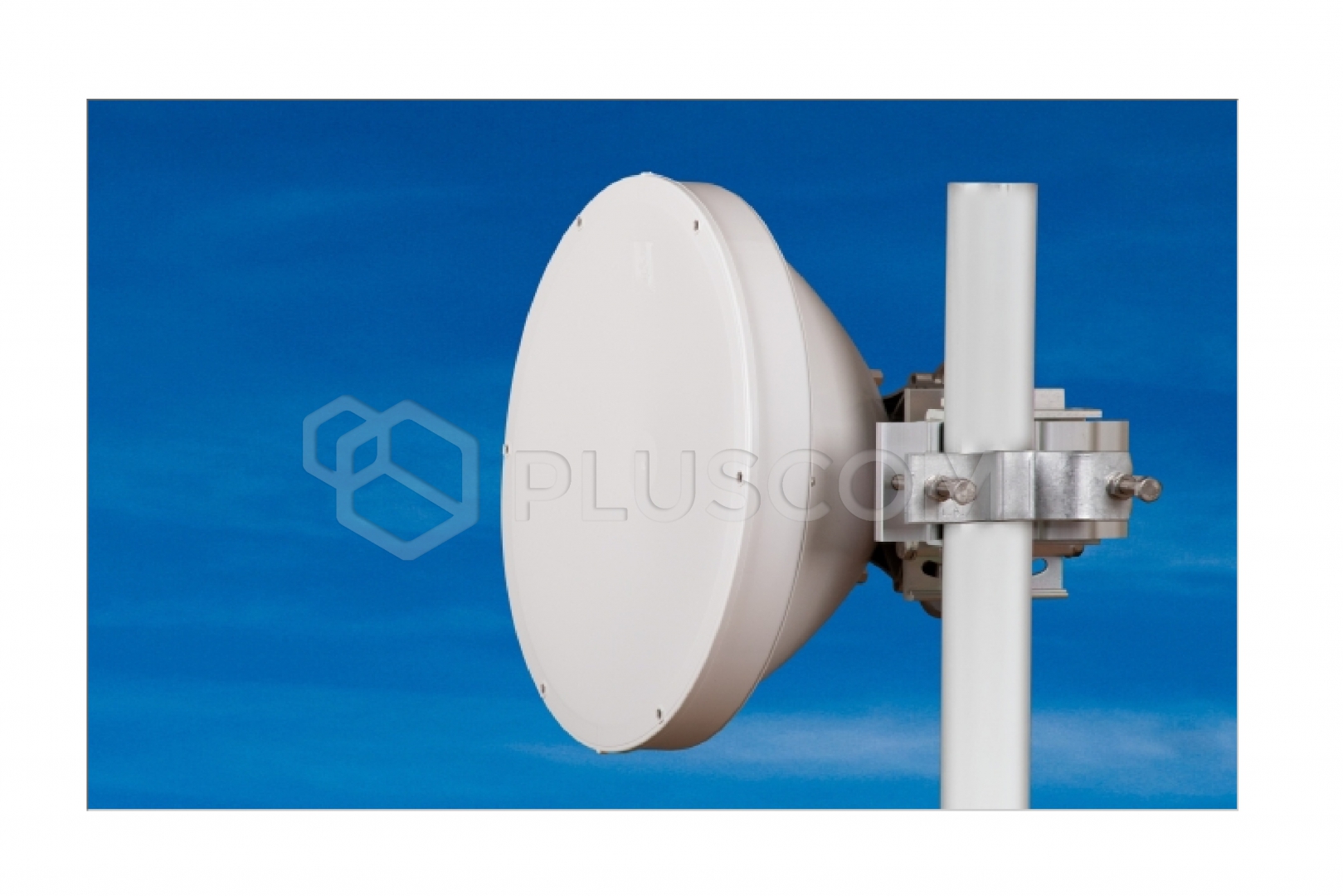

    The antenna comes with a mount that allows for easy mounting on a mast.
    The mount can be mounted separately on the mast. Then simply hang the antenna with the microwave unit.

    The JDMW-410 mount is designed specifically for 80 GHz antennas:
    - Very precise adjustment in both directions
    - Excellent stability when tightening after alignment

    Can be mounted on either the right or left side.
