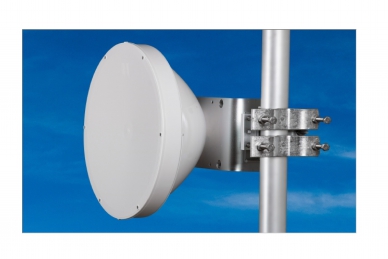

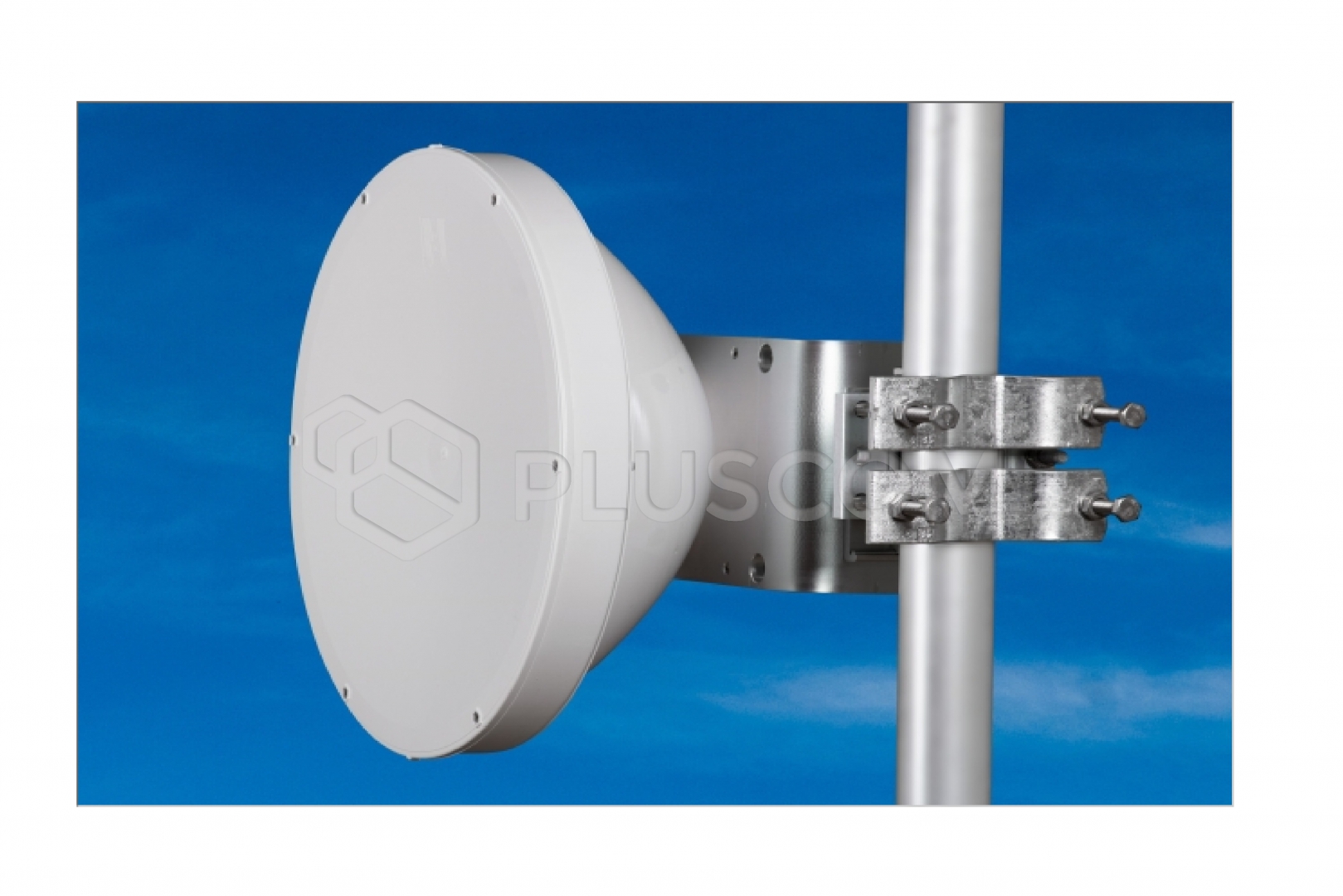

Jirous Parabolic antenna JRME-400-10/11

Jirous Parabolic antenna JRME-400-10/11

The JRME – 400 – 10/11 antenna is designed for microwave communications in the 10 and 11 GHz frequency band. Precise operation with a deep reflector and flange meets ETSI Class 3 and ACMA - RALI FX3 Class B standards.

FEATURES:

• Deep parabola and additional flange for exceptionally high interference resistance and high mechanical strength
• Very high front/rear ratio
• High isolation of adjacent cells
• Radar shroud included

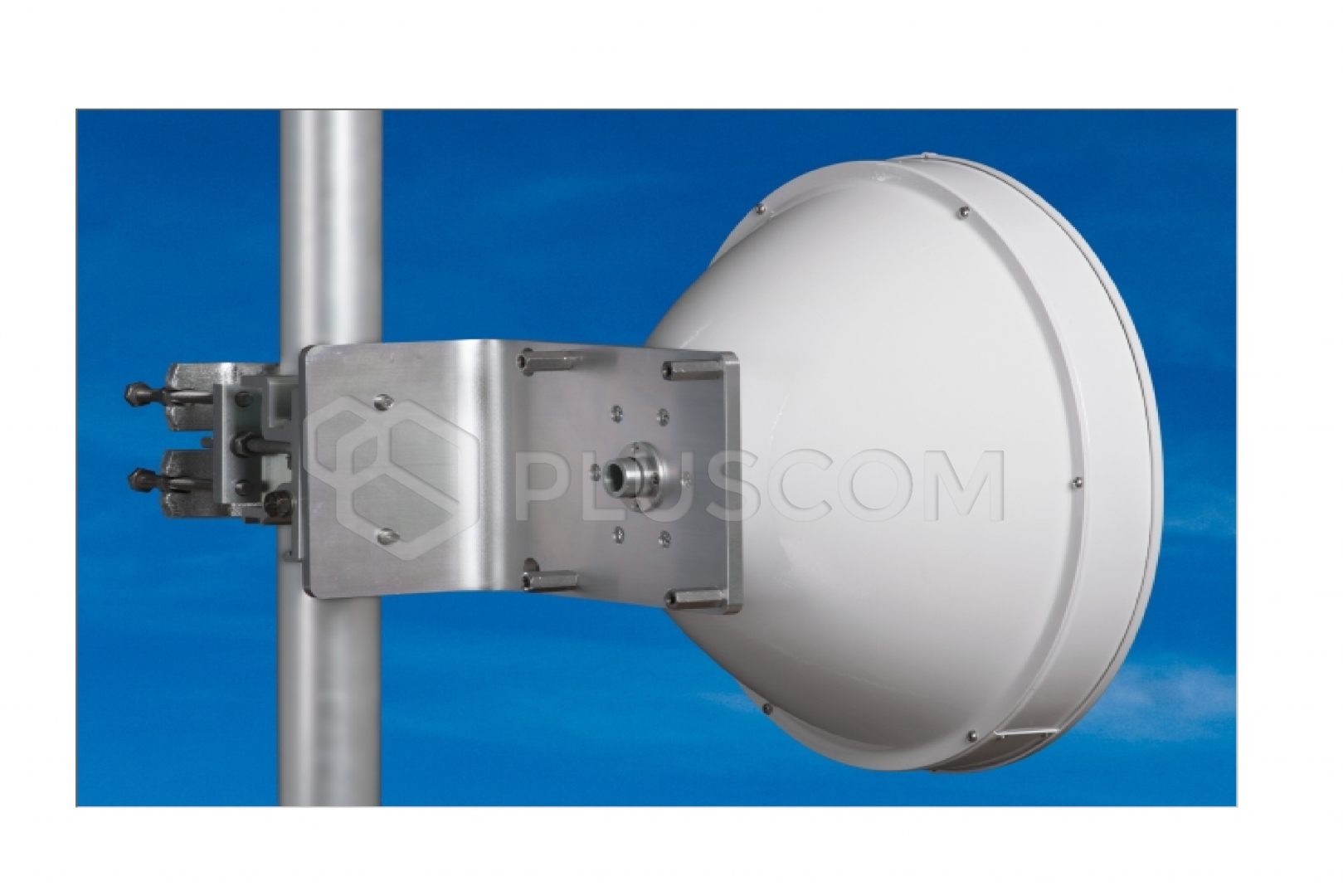

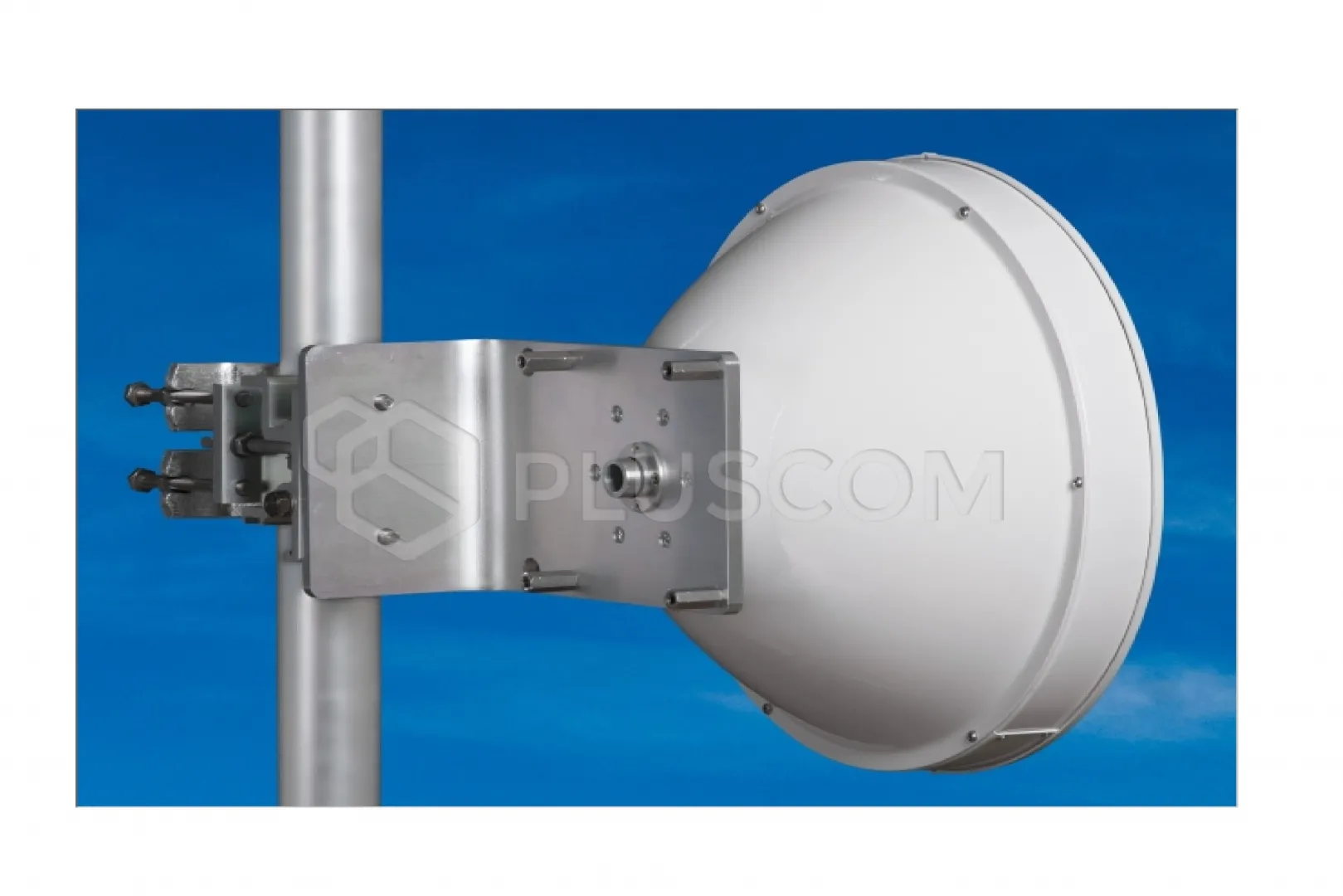

• Massive JDMW-400 mount with precise elevation and azimuth adjustment
• Right- and left-hand mounting
• Exceptional wind stability

Designed for MW units:

• Please see the adapter overview
• Other adapters available upon request

Electrical parameters:

• Frequency range: 10.0 – 12.0 GHz
• Gain - low frequency: 29.5 ± 1 dBi
• Gain - high frequency: 30.5 ± 1 dBi
• Front-to-back ratio: ≥ 61 dB
• XPD: ≥ 35 dB
• Beamwidth -3 dB: 4.6° ± 1°
• Reflection loss: ≥ 18 dB/10.3 – 11.7 GHz
• Polarization: Linear, vertical/horizontal
• Electrical Compliance: Class 3 ETSI EN 302-217-4-2 v1.5.1
• Class: B ACMA - RALI FX3

Mechanical Parameters:

• Parabola Diameter: Ø 400 mm, Aluminum Alloy
• Radome: UV-resistant ABS plastic
• Input/Output: Circular Waveguide Ø 19 mm
• Mast Mounting: Ø 40–120 mm
• Operating Wind Load 180 km/h (112 mph)
• Wind Resistance 240 km/h (149 mph)
• Antenna Weight 2.6 kg
• Handle weight: 2.4 kg
