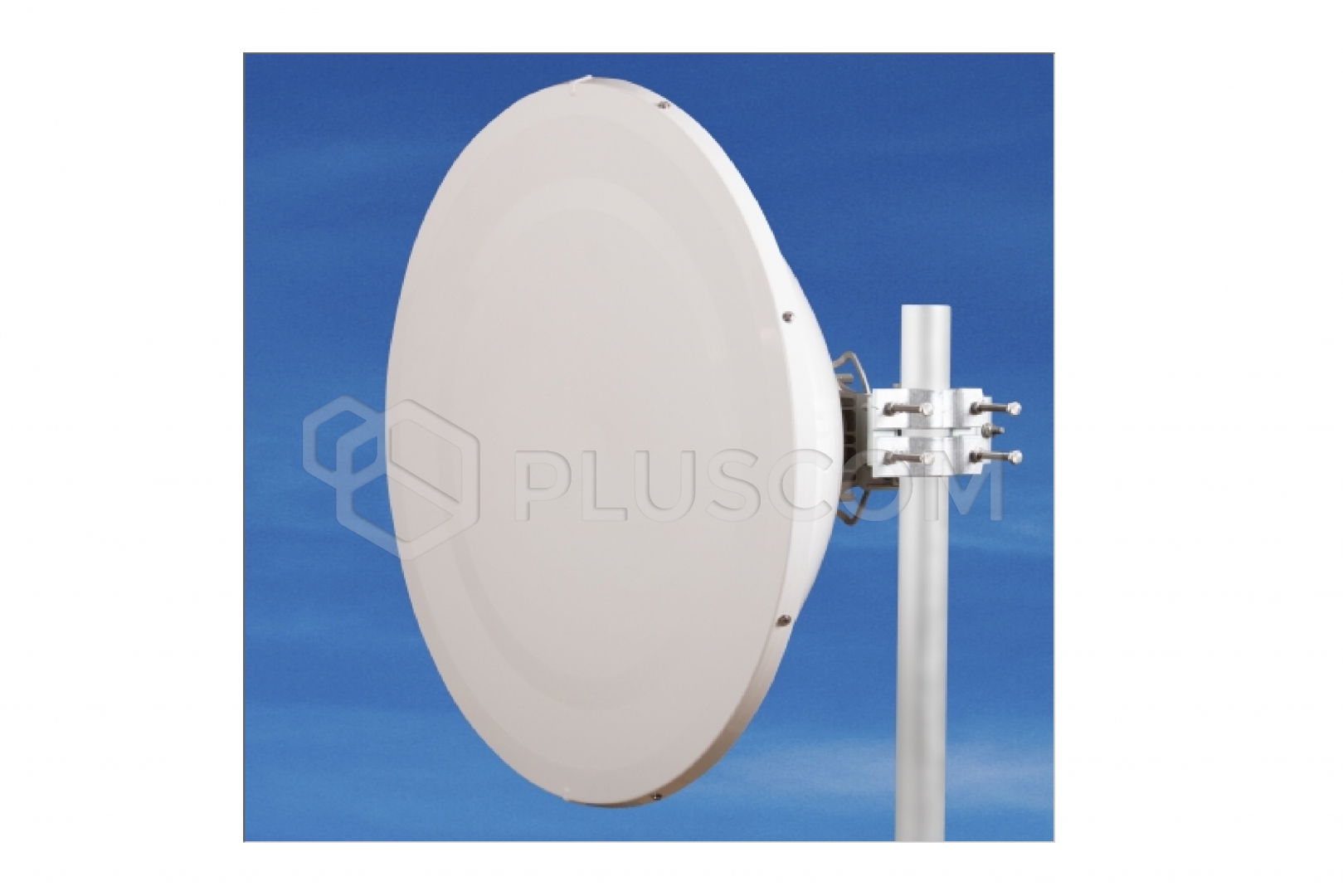

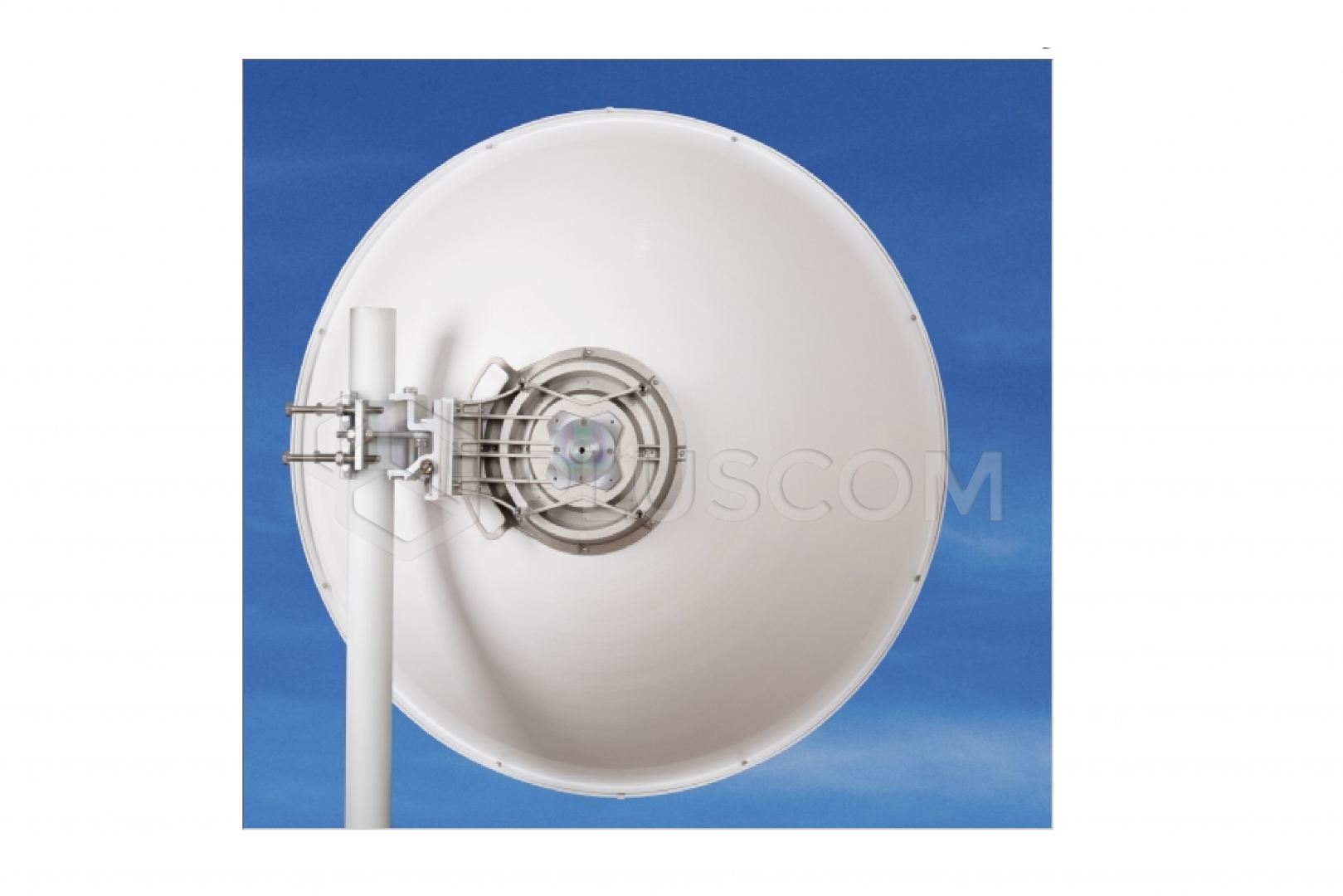

Jirous Parabolic antenna JRMD-900-10/11

Jirous Parabolic antenna JRMD-900-10/11

The JRMD-900-10/11 antenna is designed for microwave communications in the 10 and 11 GHz frequency bands. This new generation features a deep reflector design with a massive handle.

FEATURES:

• Deep parabola with high interference immunity and high mechanical strength
• High isolation of adjacent cells
• Radar shroud included
• Massive JDMW-900 mount with precise elevation and azimuth adjustment
• Right- and left-side mounting
• Exceptional wind stability

Designed for MW units:

• Please see adapter overview
• Other adapters available upon request

Electrical parameters:

• Frequency range: 10.0 – 12.0 GHz
• Gain – low frequency: 36.5 ±1 dBi
• Gain – High Frequency: 37.0 ±1 dBi
• Front-to-Back Ratio: ≥ 57 dB
• XPD: ≥ 37 dB
• 3 dB Beamwidth: 2.3°
• Polarization: Linear, Vertical/Horizontal
• Return Loss (VSWR): ≥ 16 dB/10.3 – 11.7 GHz
• Electrical Compliance
  - US FCC Part 101A | 10.550 – 10.680 GHz
  - US FCC Part 101B | 10.7 – 11.7 GHz
• ETSI EN 302-217-4-2 Class 2

Mechanical Parameters:

• Parabola: Ø 900 mm, aluminum alloy
• Radome: UV-resistant ABS plastic
• Input/Output: Circular waveguide Ø 19 mm
• Mast Mounting: Ø 40 – 120 mm
• Operating Wind Load: 140 km/h (87 mph)
• Wind Load Resistance: 210 km/h (130 mph)
• Antenna Weight: 8.2 kg
• Bracket weight: 3.2 kg

We recommend mounting on a mast with a minimum diameter of ø 70 mm in areas where strong winds are expected.
