Jirous Parabolic antenna JRMD-680-10/11

Jirous Parabolic antenna JRMD-680-10/11

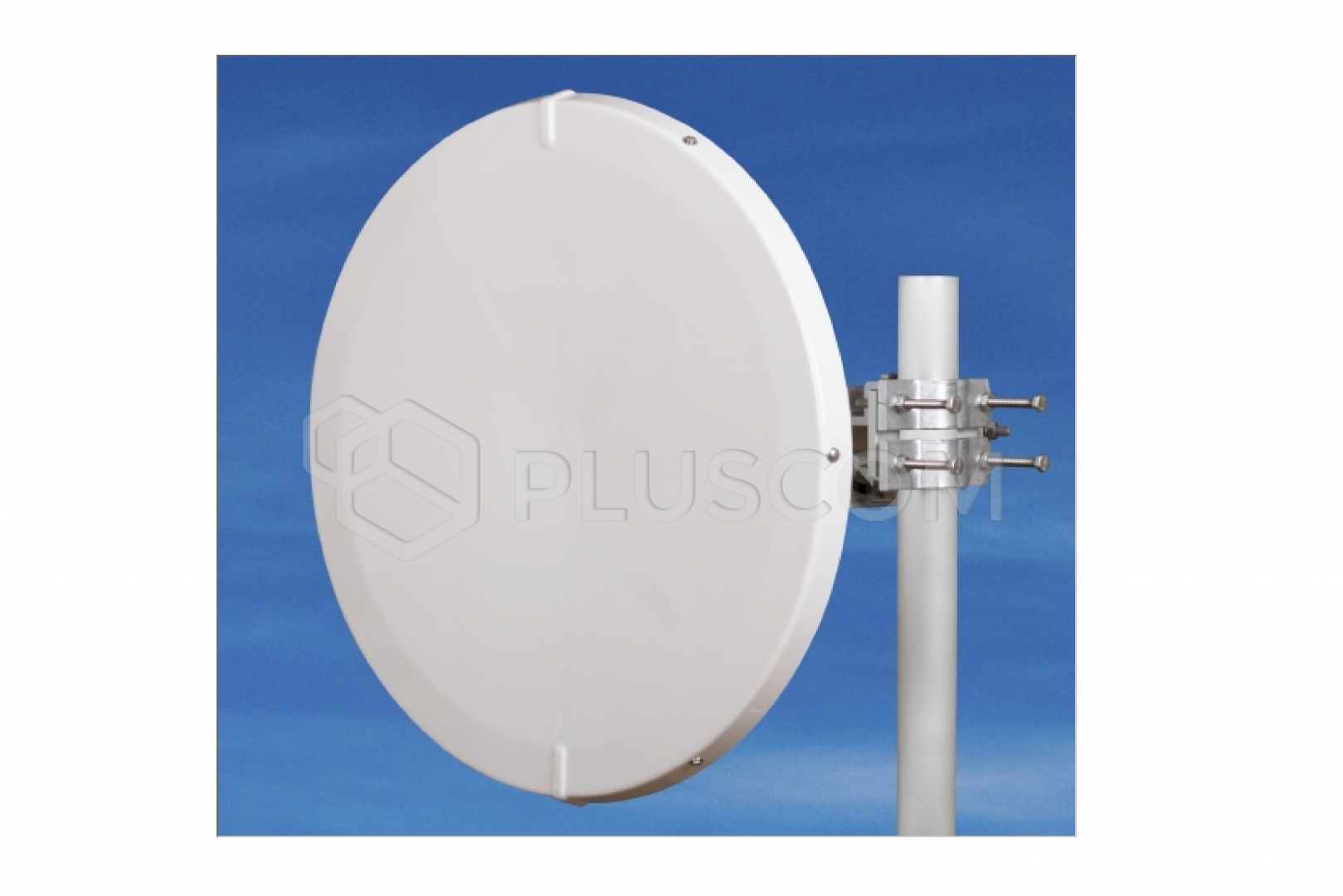

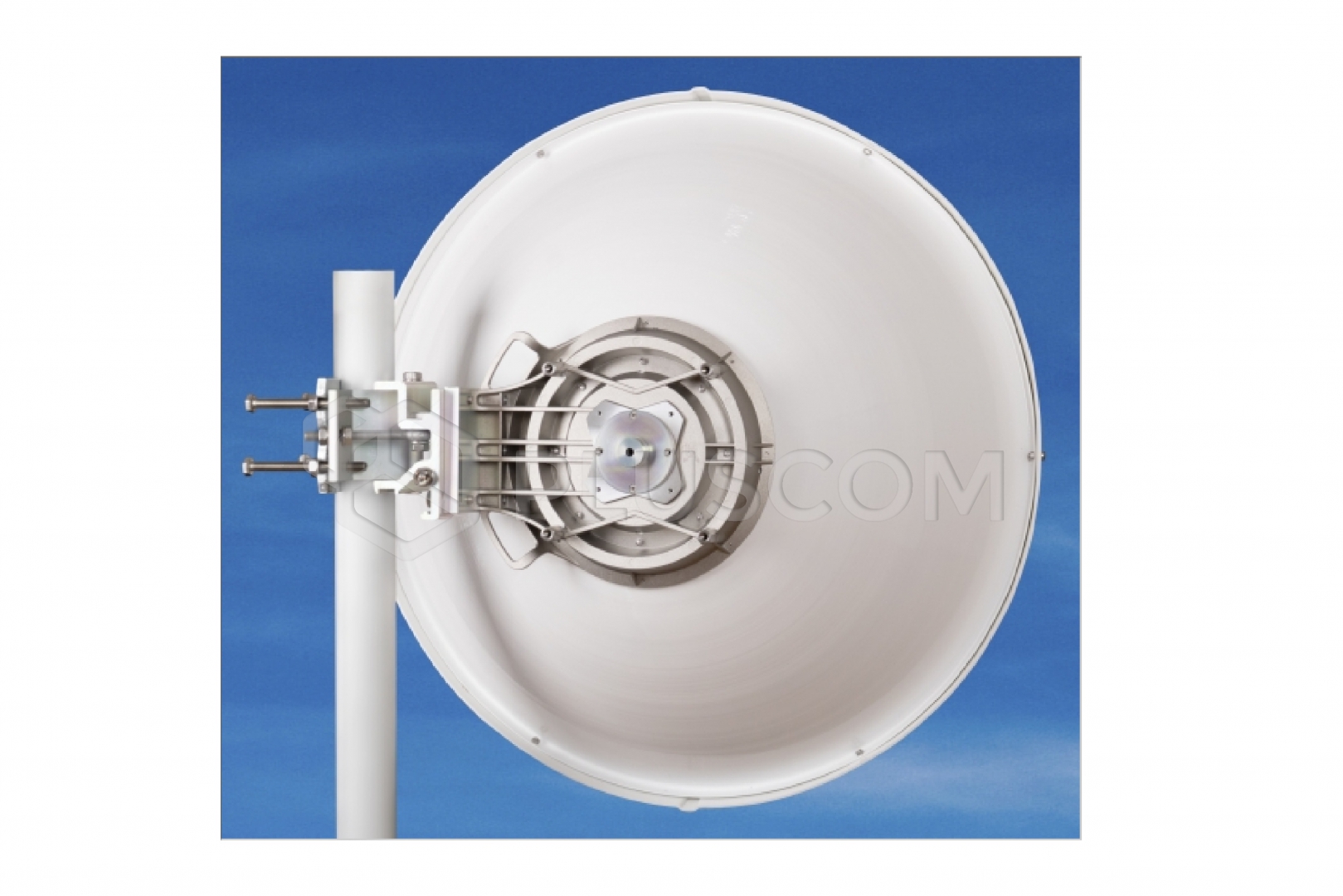

The JRMD-680-10/11 antenna is designed for microwave transmission in the 10 and 11 GHz frequency band. It features a new generation of ejected reflector with a ground mount.

FEATURES:

• Deep parabola with high resistance to interference and high mechanical strength
• High transmission of neighboring cells
• Radar cover included
• Massive JDMW-900 mount with adjustable device and azimuth
• Right- and left-sided mounting
• Exceptional wind performance

Units for MW units:

• Please see the adapter overview
• Other adapters available on request

Electrical parameters:

• Frequency range: 10.0 – 12.0 GHz
• Benefits – disadvantages: 33.6 ± 1 dBi
• Gain - High: 35.5 ± 1 dBi
• Front-to-Back Ratio: ≥ 55.5 dB
• XPD: ≥ 35 dB
• Beamwidth - 3 dB: 3° ± 0.5°
• Return Loss: ≥ 18 dB/10.3 - 11.7 GHz
• Polarization: Linear, Vertical/Horizontal

Electrical Compliance
- US FCC Part 101A | 10,550-10,680 GHz
- US FCC Part 101B | 10.7 – 11.7 GHz
- Class 2 ETSI EN 302-217-4-2

Mechanical parameters:

• Parabola: Ø 68 cm, aluminum alloy
• Radome: UV-resistant ABS plastic
• Input/output: Circular waveguide Ø 19 mm
• Mast mounting: Ø 40–120 mm
• Operating wind load: 180 km/h (112 mph)
• Wind load resistance: 240 km/h (149 mph)
• Antenna weight: 5.1 kg
• Bracket weight: 3.2 kg

Secured mounting on a ø 50 mm mast in areas where strong winds are expected.
