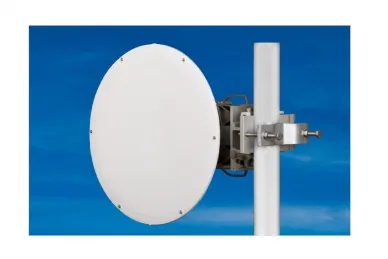

Jirous Parabolic antenna JRMD-400-80

Product code: #43203
Manufacturer: Jirous
  • Gain - Low Frequency: 46.4 ± 1 dBi
  • Gain - High Frequency: 48.2 ± 1 dBi
  • Beam width: 0.7° | Input/output: Circular waveguide Ø 3.2 mm
  • Dimensions: Ø 40 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

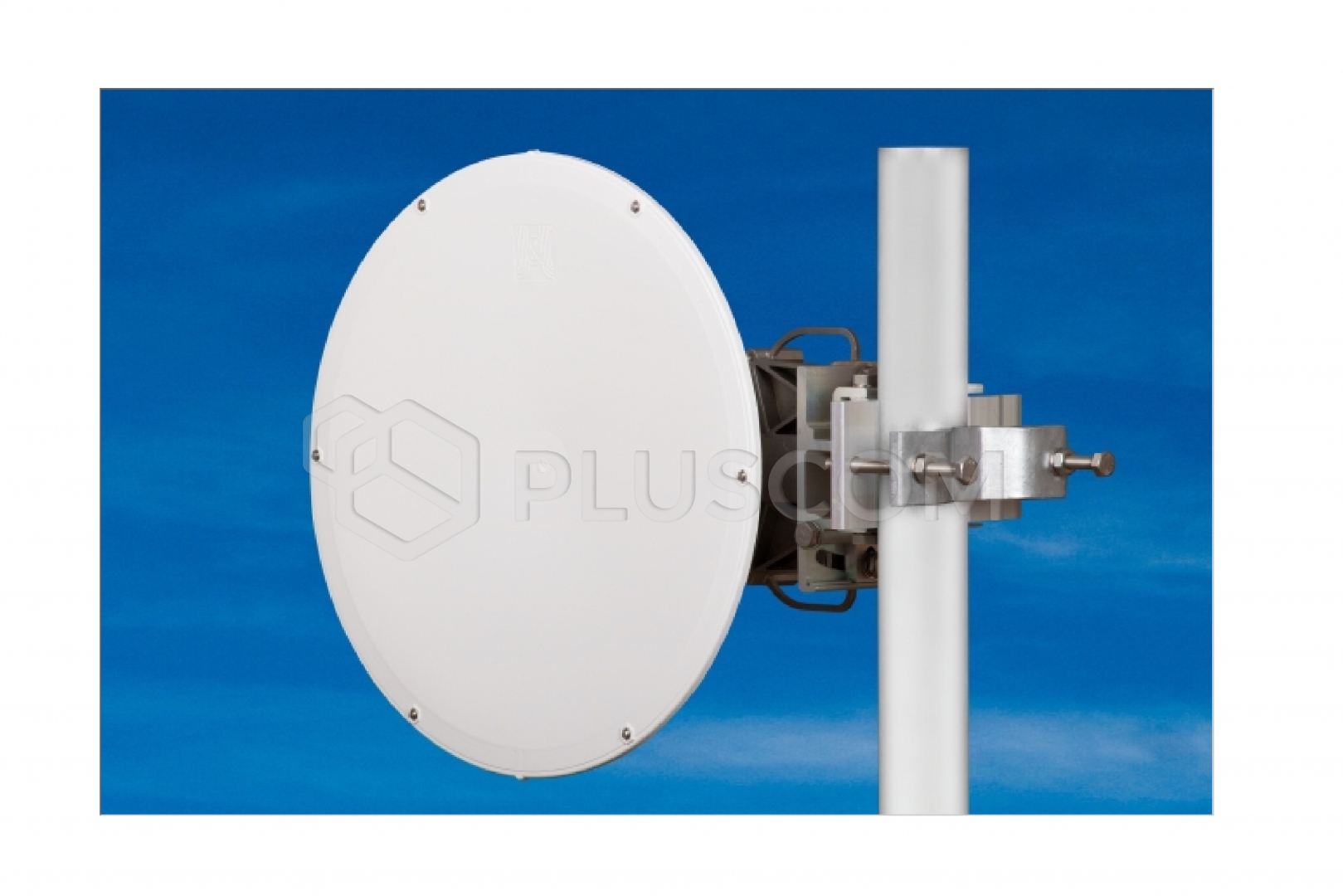

Jirous Parabolic antenna JRMD-400-80


The JRMD–400–80 antenna is designed for microwave communications in the 80 GHz frequency band. Precise operation with a deep reflector meets the ETSI Class 2 standard.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radar shroud included
  • Massive JDMW-410 mount, very precise elevation and azimuth adjustment
  • Right- and left-side mounting
  • Exceptional wind stability
Designed for MW units:

  • Please see adapter overview
  • Other adapters available upon request

Electrical parameters:

  • Frequency range: 71–86 GHz
  • Gain - Low Frequency: 46.4 ± 1 dBi
  • Gain - High Frequency: 48.2 ± 1 dBi
  • Front-to-Back Ratio: ≥ 63 dB
  • Beamwidth -3 dB: 0.7°
  • XPD: ≥ 33 dB
  • Return Loss: ≥ 15 dB
  • Polarization: Linear, vertical/horizontal
  • Electrical Compliance: Class 2 ETSI EN 302-217-4-2 v1.5.1

Mechanical Parameters:

  • Parabola: Ø 400 mm, aluminum
  • Dome: UV, plastic, stable
  • Input/output: Circular waveguide Ø 3.2 mm
  • Mast mounting: Ø 40–120 mm
  • Operation: Max. wind load: 180 km/h
  • Wind load resistance: 240 km/h
  • Antenna weight: 2.1 kg
  • Bracket weight: 2.5 kg

Application:

  • Deep parabola for better performance
  • Easy installation: first the bracket, then the antenna with only 2 screws
  • Excellent stability when tightening after alignment
  • Exceptional stability when wind. The antenna comes with a mount that allows for easy mounting on a mast.
    The mount can be mounted separately on the mast.

    Then simply hang the antenna with the microwave unit.

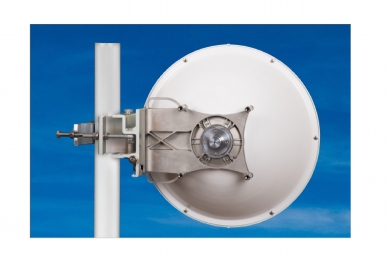

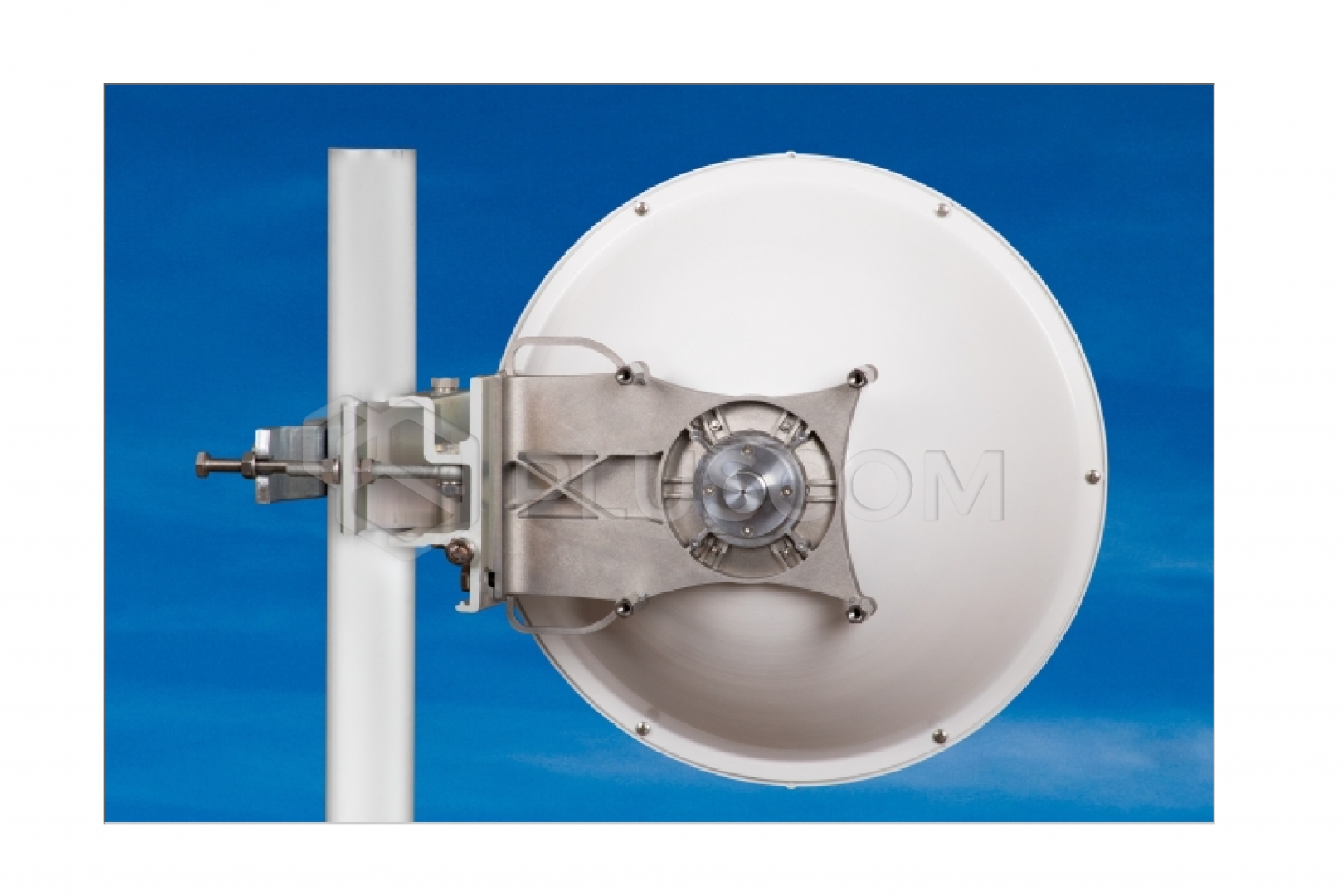

    The JDMW-410 mount is designed specifically for 80 GHz antennas:
    - Very precise adjustment in both directions
    - Excellent stability when tightening after alignment

    Can be mounted on either the right or left side.
Download
Datasheet 1.04 MB
