Jirous Parabolic antenna JRMD-400-10/11

415,53 EUR including 23.00% VAT
Product code: #18317
Manufacturer: Jirous
  • Gain - Low Frequency: 29.0 ± 1 dBi
  • Gain - High Frequency: 30.0 ± 1 dBi
  • Beam width: 4.6° ± 1°
  • Outer size: Ø 40 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

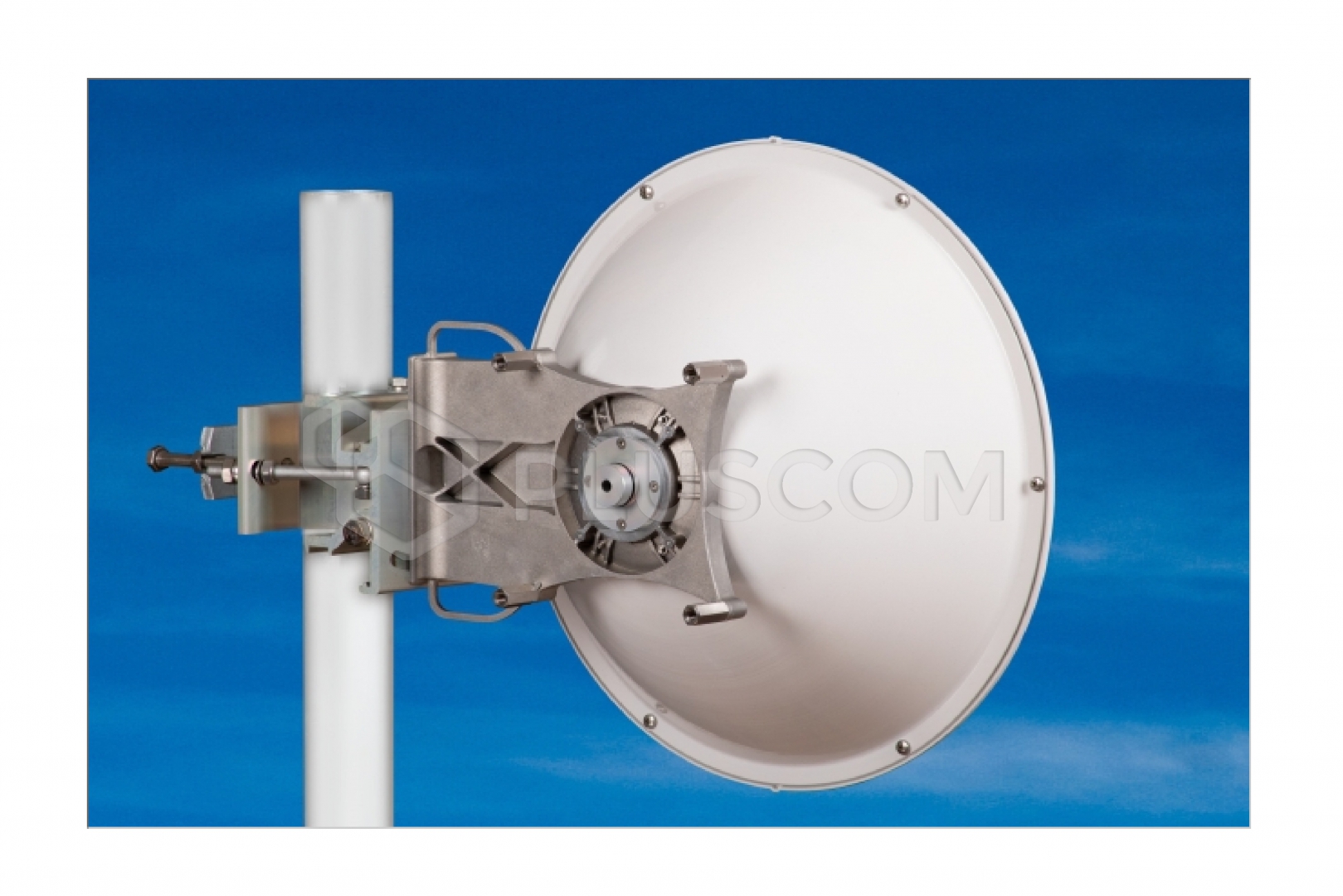

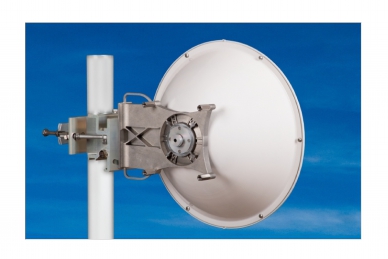

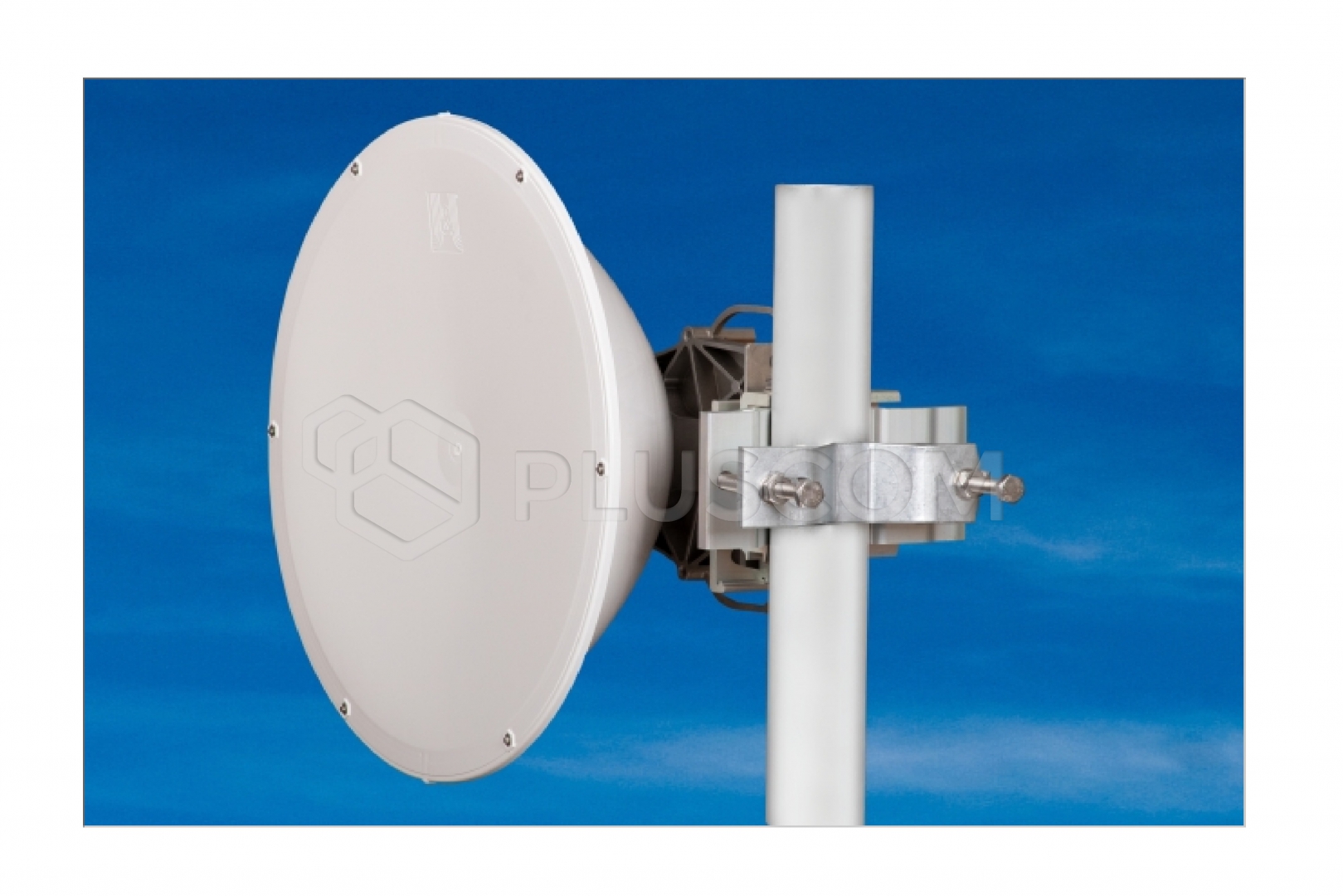

Jirous Parabolic antenna JRMD-400-10/11


The JRMD-400-10/11 antenna is designed for microwave communications in the 10 and 11 GHz frequency bands. This new generation features a deep reflector design with a massive handle.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radar shroud included
  • Massive JDMW-400 mount with precise elevation and azimuth adjustment
  • Can be mounted on the right or left side
  • Exceptional wind stability
Designed for MW units:
  • Please see adapter overview
  • Other adapters available upon request

Electrical parameters:

  • Frequency range: 10.0–12.0 GHz
  • Gain – low frequency: 29.0 ±1 dBi
  • Gain – High Frequency: 30.0 ±1 dBi
  • Front-to-Back Ratio: ≥50 dB
  • XPD: ≥29 dB
  • Beamwidth –3 dB: 4.6° ±1°
  • Reflection Loss: ≥14 dB/10.3–11.7 GHz
  • Polarization: Linear, vertical/horizontal
  • ETSI Standard: Class 2 ETSI EN 302-217-4-2 v1.5.1

Mechanical Parameters:

  • Parabola: Ø 400 mm, aluminum alloy
  • Dome: UV-resistant plastic, ABS
  • Input/output: Circular waveguide Ø 19 mm
  • Mast mounting: Ø 40–120 mm
  • Operating wind load: 180 km/h (112 mph)
  • Wind load resistance: 240 km/h (149 mph)
  • Antenna weight: 1.9 kg
  • Bracket weight: 2.4 kg
Download
Datasheet 0.69 MB
