Jirous Parabolic antenna JRMD-1200-10/11

Jirous Parabolic antenna JRMD-1200-10/11

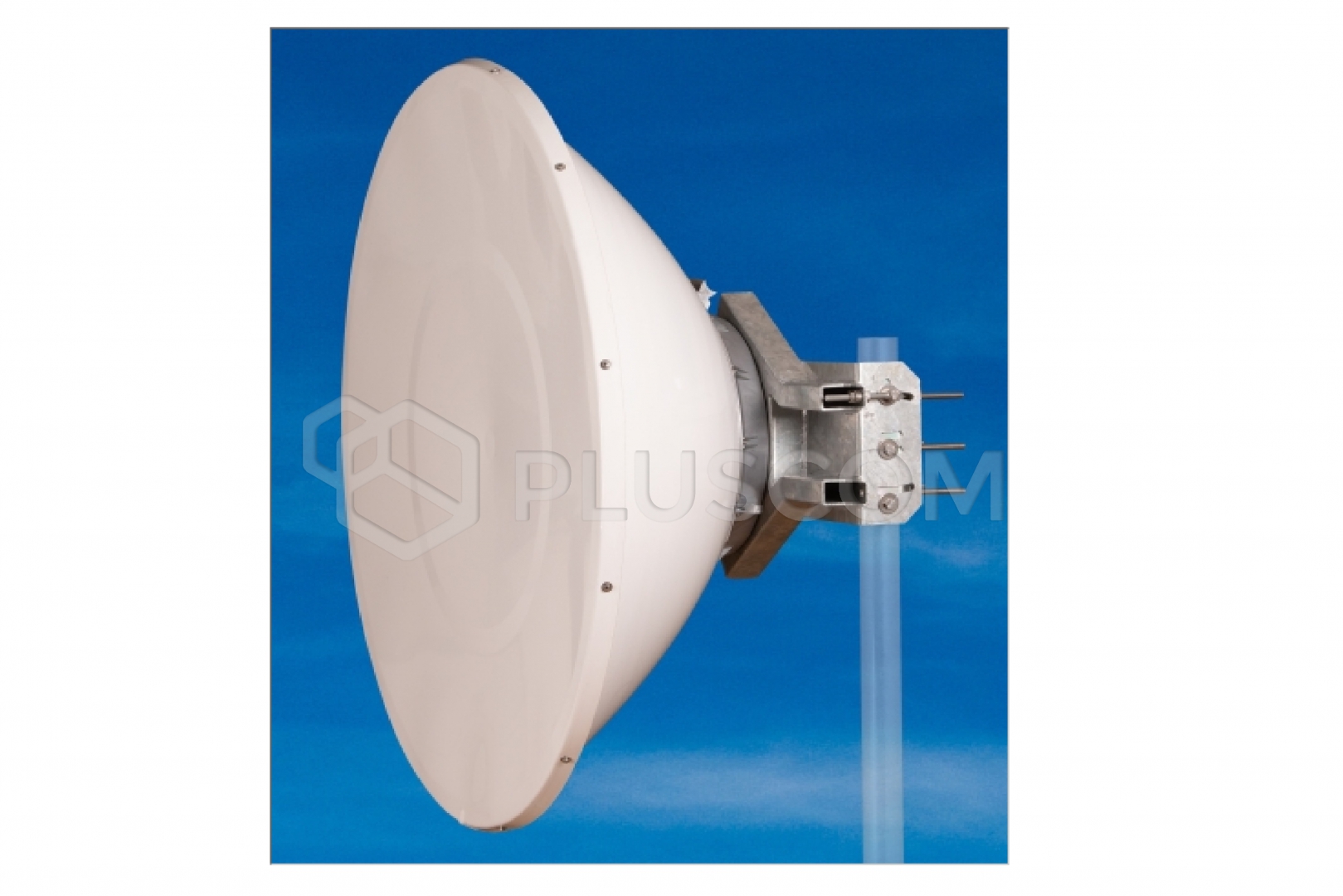

The JRMD-1200-10/11 antenna is designed for microwave communications in the 10 and 11 GHz frequency bands. This new generation features a deep reflector design with a massive handle.

FEATURES:

• Deep reflector dish with high interference resistance and high mechanical strength
• High isolation of adjacent cells
• Radar cover included

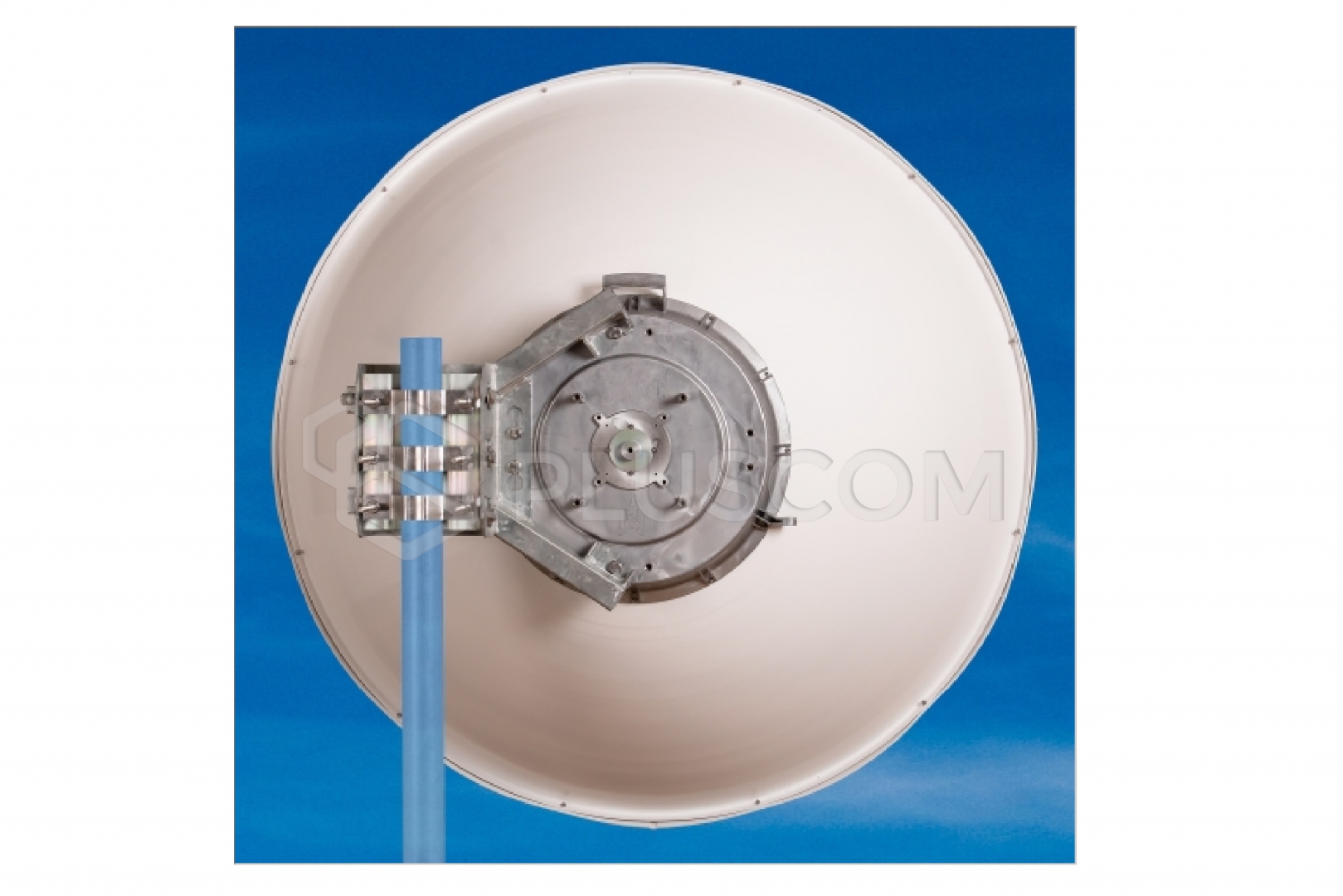

• Massive bracket with precise elevation and azimuth adjustment
• Right- and left-side mounting
• High wind stability

Designed for MW units:

• Please see adapter overview
• Custom modifications possible

Electrical parameters:

• Frequency range: 10.0 – 12.0 GHz
• Gain – low frequency: 39.5 ± 1 dBi
• Gain – High Frequency: 40.5 ± 1 dBi
• Front-to-Back Ratio: ≥ 60.5 dB
• XPD: ≥ 37 dB
• 3 dB Beamwidth: 1.5°
• Return Loss: ≥ 16 dB/10.3 – 11.7 GHz
• Polarization: Linear, Vertical/Horizontal
• Electrical Compliance:
  - US FCC Part 101A | 10.550 – 10.680 GHz
  - US FCC Part 101B | 10.7 – 11.7 GHz
  - Class 2 ETSI EN 302-217-4-2

Mechanical parameters:

• Parabola: Ø 1200 mm, aluminum alloy
• Radome: UV plastic ABS
• Input/output: Circular waveguide Ø 19 mm
• Mast mounting:
  - Ø 80 - 120 mm
  - Ø 60 - 80 mm – with wind guy kit
• Operating wind load
  - without wind guy kit 110 km/h (68 mph)
  - with wind guy kit 140 km/h (87 mph) mph)
• Wind load resistance: 210 km/h (130 mph)
• Antenna weight: 28.5 kg

We recommend using the wind bracing kit for mounting on a mast with a diameter less than 80 mm, as well as in areas exposed to strong winds.

Additional accessories:

JRZ-1200 Wind Bracing Kit
