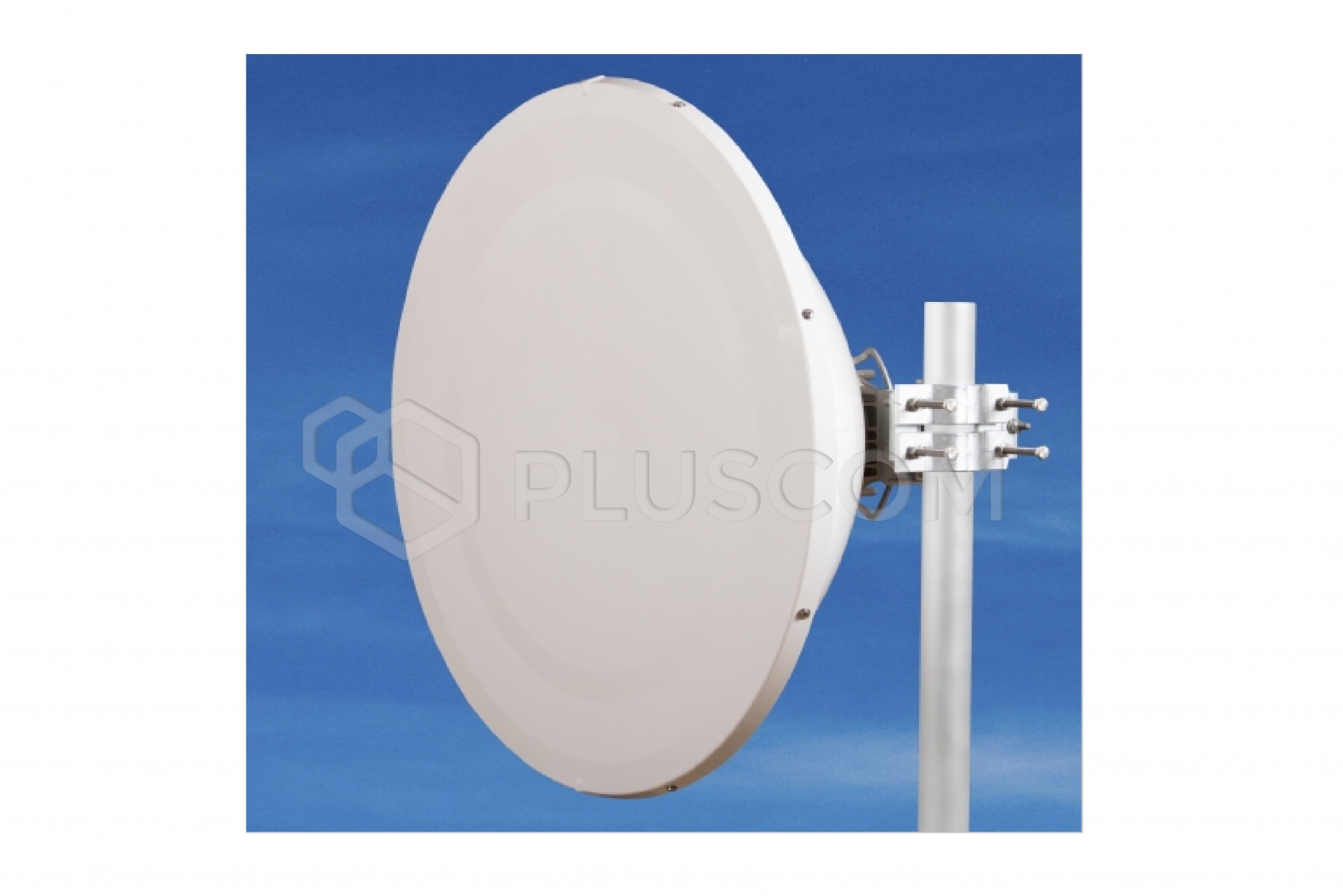

Jirous Parabolic antenna JRMC-900-4.7

Product code: #43084
Manufacturer: Jirous
  • Energy gain - low frequency: 29.5 ± 1 dBi
  • Energy gain - high frequency: 30.5 ± 1 dBi
  • 3 dB beamwidth: 5.0°
  • Dimensions: Ø 90 cm
  • Polarization: Dual – vertical and horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMC-900-4.7 Parabolic Antenna


The JRMC-900-4.7 antenna is designed for microwave communications in the 4.7 GHz frequency band. Precise performance with a deep reflector meets ETSI Class 3 standards.

FEATURES:

  • Dual-polarization antenna with connectors
  • Deep parabola with high interference immunity and high mechanical strength
  • Radar antenna included
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- and left-side mounting
  • Exceptional wind stability

Electrical parameters:

  • Frequency range: 4.4 – 5.0 GHz
  • Low frequency gain: 29.5 ± 1 dBi
  • High frequency gain: 30.5 ±1 dBi
  • Front-to-back ratio: ≥ 55 dB
  • 3 dB beamwidth: 5.0°
  • Return loss: ≥ 14 dB
  • Polarization: Dual – vertical and horizontal
  • Polarization accuracy: ±5°
  • Cross polarization: ≥ 32 dB
  • Electrical compliance: Class 3 ETSI EN 302-217-4-2

Mechanical parameters:

  • Parabola: Ø 900 mm, aluminum alloy
  • Radome: UV, ABS plastic
  • Connectors: 2x N-female 50Ω
  • Mast mounting: Ø 40 - 120 mm
  • Operating wind load: 140 km/h
  • Wind resistance: 210 km/h
  • Antenna weight: 10.3 kg (22.7 lbs)
  • Bracket weight: 3.2 kg
We recommend mounting on the mast with minimal ø 70 mm in the areas with the expected occurrence of the strong winds.
