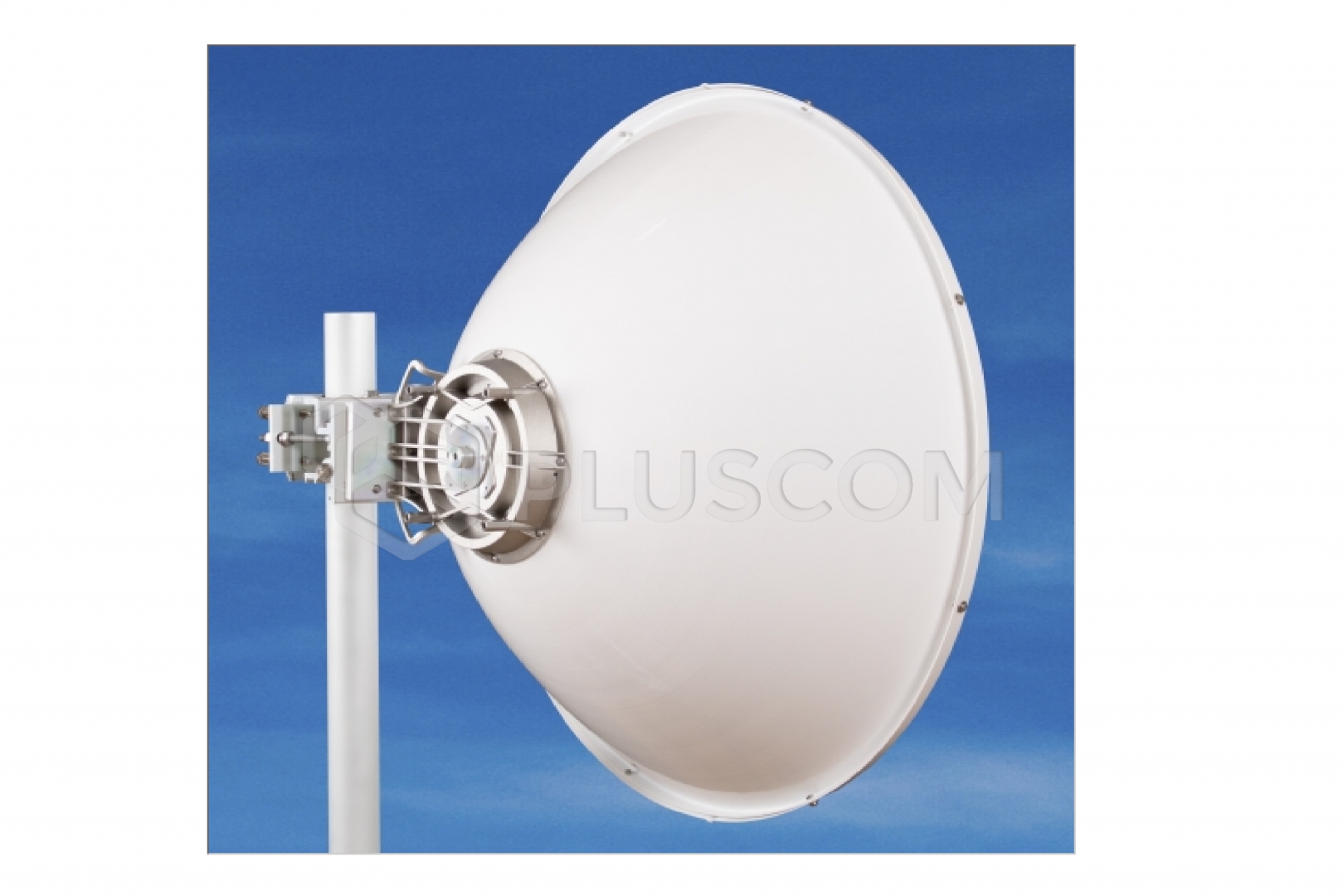

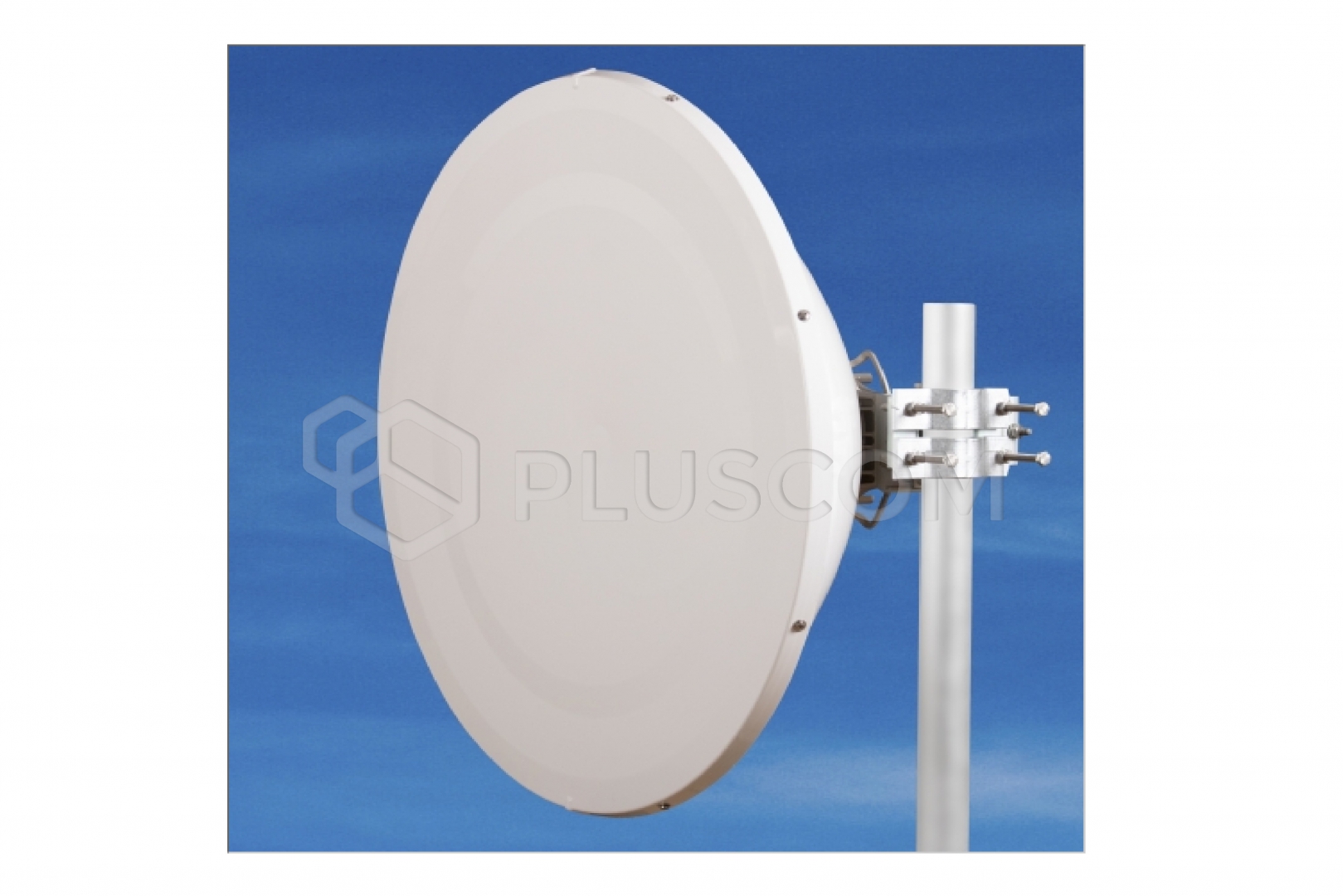

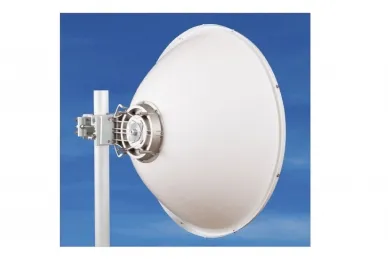

Jirous Parabolic antenna JRMC-900-17/18

Jirous Parabolic antenna JRMC-900-17/18

The JRMC – 900 – 17/18 antenna is designed for microwave communications in the 17 and 18 GHz frequency bands. Precise operation with a deep reflector meets ETSI Class 3 and FCC Category A standards.

FEATURES:

• Deep parabola with high interference immunity and high mechanical strength
• High isolation of adjacent cells
• Radar shroud included
• Massive JDMW-900 mount with precise elevation and azimuth adjustment
• Right- and left-side mounting
• Exceptional wind stability

Designed for MW units:

• Please see adapter overview
• Other adapters available upon request

Electrical parameters:

• Frequency range: 17.1 – 19.7 GHz
• Gain – Low Frequency: 41.4 ± 1 dBi
• Gain – High Frequency: 42.5 ± 1 dBi
• Front-to-Back Ratio: ≥ 70 dB
• XPD: ≥ 40 dB
• Beamwidth - 3 dB: 1.2° ± 0.5°
• Return Loss (VSWR): ≥ 17 dB
• Polarization: Linear, Vertical/Horizontal
• Electrical Compliance: US FCC Cat. A
  - Class 3 ETSI EN 302-217-4-2 v1.5.1

• Mechanical Parameters:

  • Parabola: Ø 900 mm, aluminum alloy
  • Dome: UV-resistant ABS plastic
  • Input/Output: Circular waveguide Ø 11 mm
  • Mast Mounting: Ø 40–120 mm
  • Operating Wind Load: 140 km/h
  • Wind Load Resistance: 210 km/h
  • Antenna Weight: 10.4 kg
  • Bracket Weight: 3.2 kg

  Applications:

  • Deep parabola for better parameters
  • Easy installation: first the mount, then the antenna with just 2 screws
  • Precise elevation (gradient) and azimuth adjustment of ±20°
  • Extreme wind stability
  The antenna is supplied with a mount that allows for easy mast mounting. The mount can be mounted separately on the mast.
  Then simply hang the antenna with the microwave unit.

  The mount allows for precise adjustment in both directions. Suitable for right- and left-hand mounting. In areas where strong winds are expected, mounting on a mast with a minimum diameter of 70 mm is recommended.
