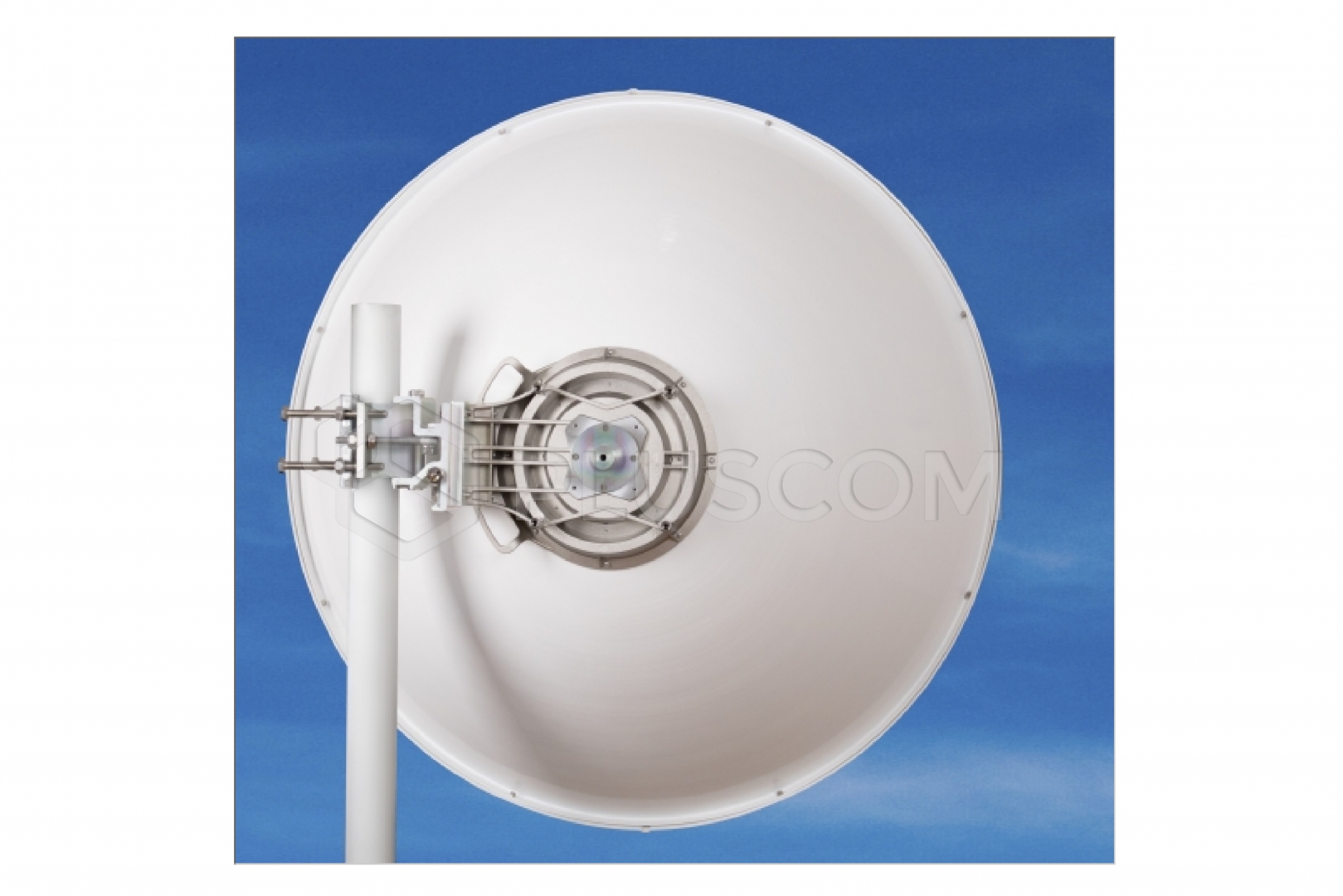

Jirous Parabolic antenna JRMC-900-13

Product code: #43141
Manufacturer: Jirous
  • Gain - Low Frequency: 38.2 ± 1 dBi
  • Gain - High Frequency: 38.6 ± 1 dBi
  • Beam width: 1.7°
  • Dimensions: Ø 90 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRMC-900-13


The JRMC-900-13 antenna is designed for microwave communications in the 13 GHz frequency band.
Precise operation with a deep reflector antenna meets ETSI Class 3 and FCC standards.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radar shroud included
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- and left-side mounting
  • Exceptional wind stability
Designed for MW units:
  • Please see adapter overview
  • Other adapters available upon request

Electrical parameters:

  • Frequency range: 12.7 – 13.3 GHz
  • Low frequency gain: 38.2 ±1 dBi
  • Gain – High Frequency: 38.6 ±1 dBi
  • Front-to-Back Ratio: ≥ 63 dB
  • 3 dB Beamwidth: 1.7°
  • Return Loss (VSWR): ≥ 18 dB
  • Polarization: Linear, Vertical/Horizontal
  • Electrical Compliance:
    - US FCC Part 101B
    - Class 3 ETSI EN 302-217-4-2 v1.5.1

Mechanical Parameters:

  • Parabola: Ø 900 mm, aluminum alloy
  • Radome: UV-resistant plastic, ABS
  • Input/output: Circular waveguide Ø 16 mm
  • Mast mounting: Ø 40 – 120 mm
  • Wind load: 140 km/h (87 mph)
  • Wind load resistance: 210 km/h (130 mph)
  • Antenna weight: 8.2 kg
  • Bracket weight: 3.2 kg
We recommend mounting on a mast with a minimum diameter of ø 70 mm in areas where strong winds are expected.
