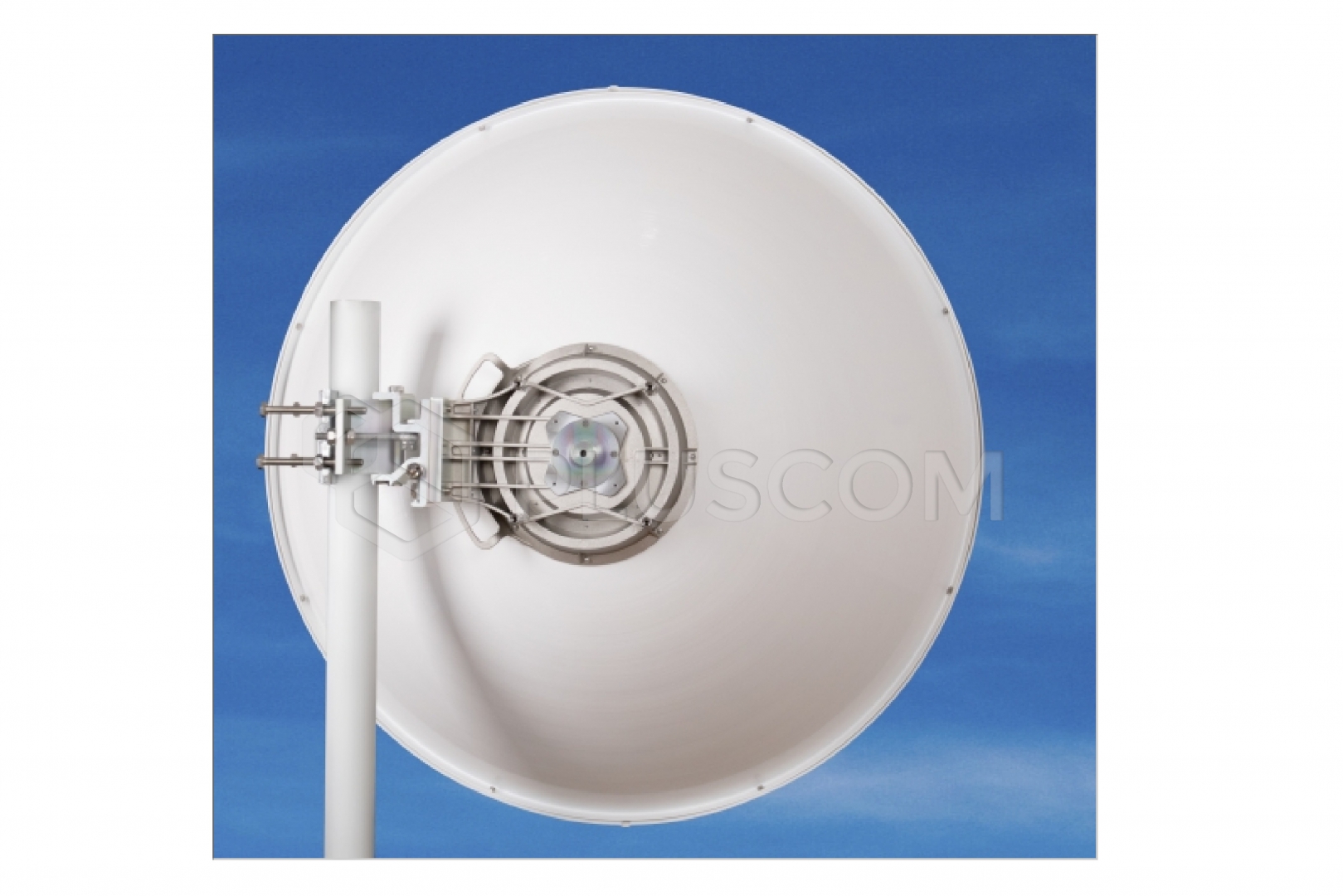

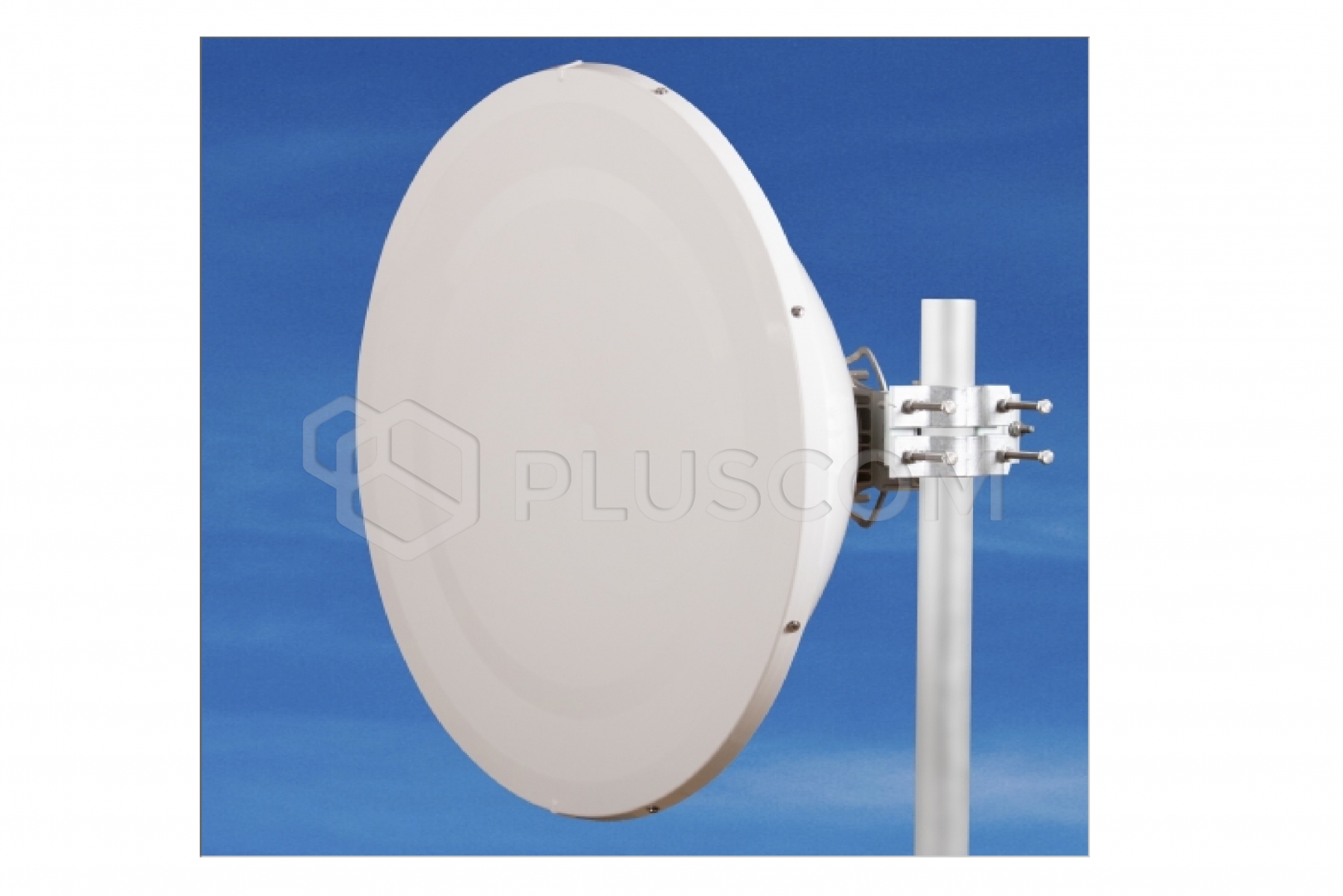

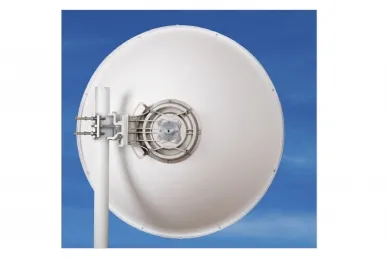

Jirous Parabolic antenna JRMC-900-10/11

798,54 EUR including 19.00% VAT
Product code: #21871
Manufacturer: Jirous
  • Gain - Low Frequency: 37.0 ± 1 dBi
  • Gain - High Frequency: 37.5 ± 1 dBi
  • Beam width: 2.3°
  • Dimensions: Ø 90 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRMC-900-10/11


The JRMC – 900 – 10/11 antenna is designed for microwave communication in the 10 and 11 GHz frequency band. Precise operation with a deep reflector meets the ETSI Class 3 standard.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radar shroud included
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • Exceptional wind stability
Designed for MW units:
  • Please see adapter overview
  • Other adapters available upon request

Electrical parameters:

  • Frequency range: 10.0 – 12.0 GHz
  • Gain - Low Frequency: 37.0 ± 1 dBi
  • Gain - High Frequency: 37.5 ± 1 dBi
  • Front-to-Back Ratio: ≥ 62.5 dB
  • XPD: ≥ 37 dB
  • 3 dB Beamwidth: 2.3°
  • Return Loss (VSWR): ≥ 18 dB/10.3 - 11.7 GHz
  • Polarization: Linear, Vertical/Horizontal
  • Electrical Compliance
    - US FCC Part 101A | 10.550 - 10.680 GHz
    - US FCC Part 101B | 10.7 – 11.7 GHz
    - Class 3 ETSI EN 302-217-4-2 v1.5.1
    - ACMA - RALI FX3 Class B

Mechanical parameters:

  • Parabola: Ø 900 mm, aluminum alloy
  • Dome: UV-resistant ABS plastic
  • Input/output: Circular waveguide Ø 19 mm
  • Mast mounting: Ø 40 – 120 mm
  • Operating wind load: 140 km/h (87 mph)
  • Wind resistance: 210 km/h (130 mph)
  • Antenna weight: 8.3 kg
  • Bracket weight: 3.2 kg
    • We recommend mounting on a mast with a minimum diameter of 70 mm in areas where strong winds are expected.
Download
Datasheet 0.59 MB
