Jirous Parabolic antenna JRMC-680-80

Product code: #43205
Manufacturer: Jirous
  • Gain - Low Frequency: 50.7 ± 1.4 dBi
  • Gain - High Frequency: 51.6 ± 1.4 dBi
  • Beam width: 0.4° | Input/output: Circular waveguide Ø 3.2 mm
  • Dimensions: Ø 68 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

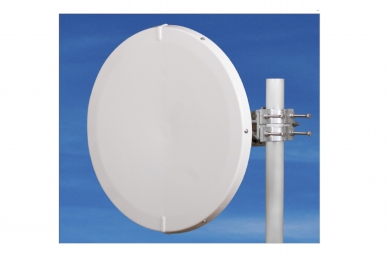

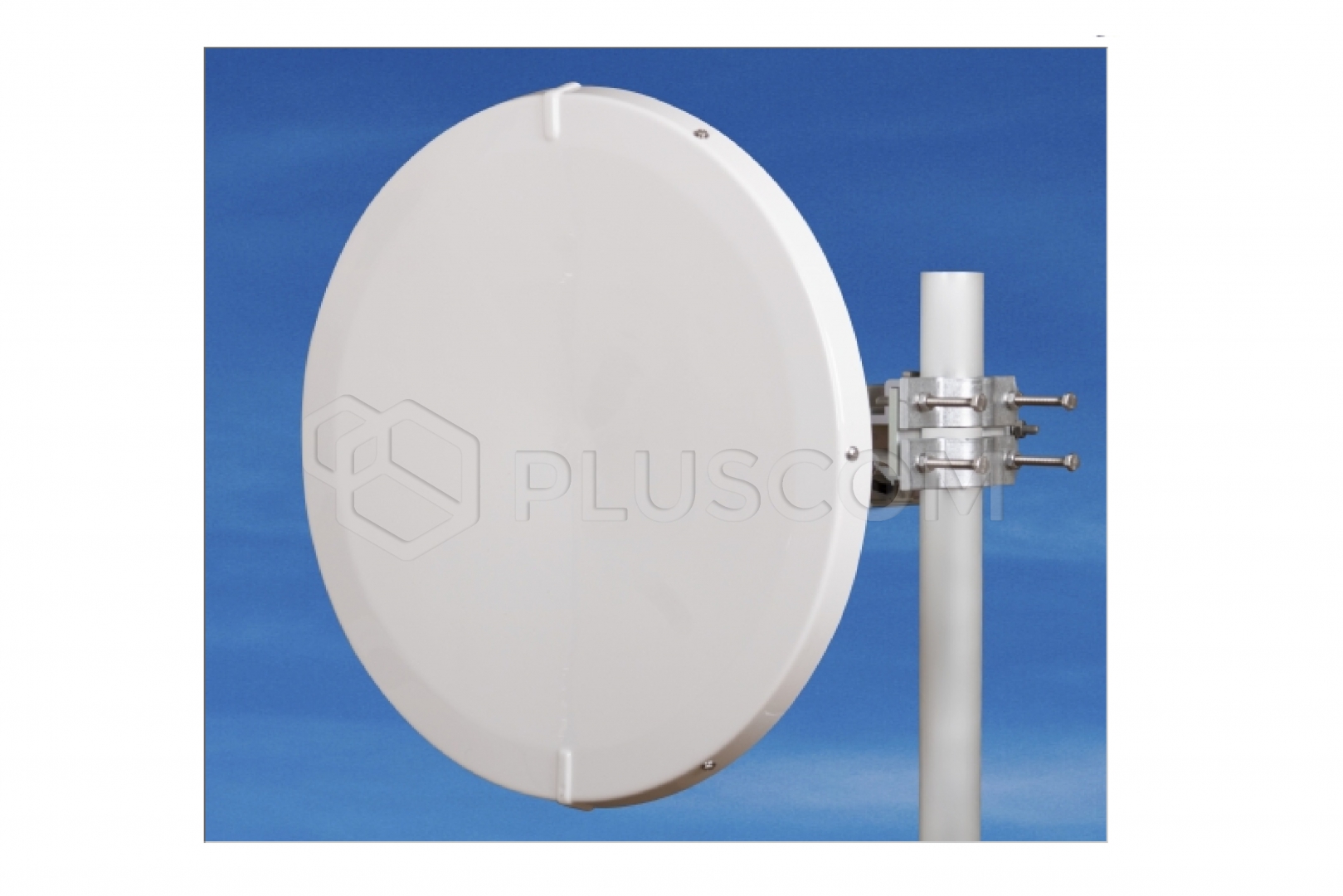

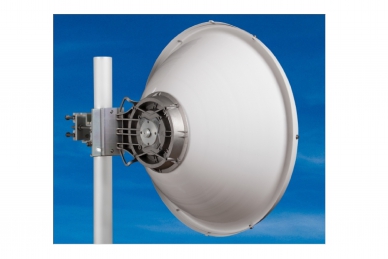

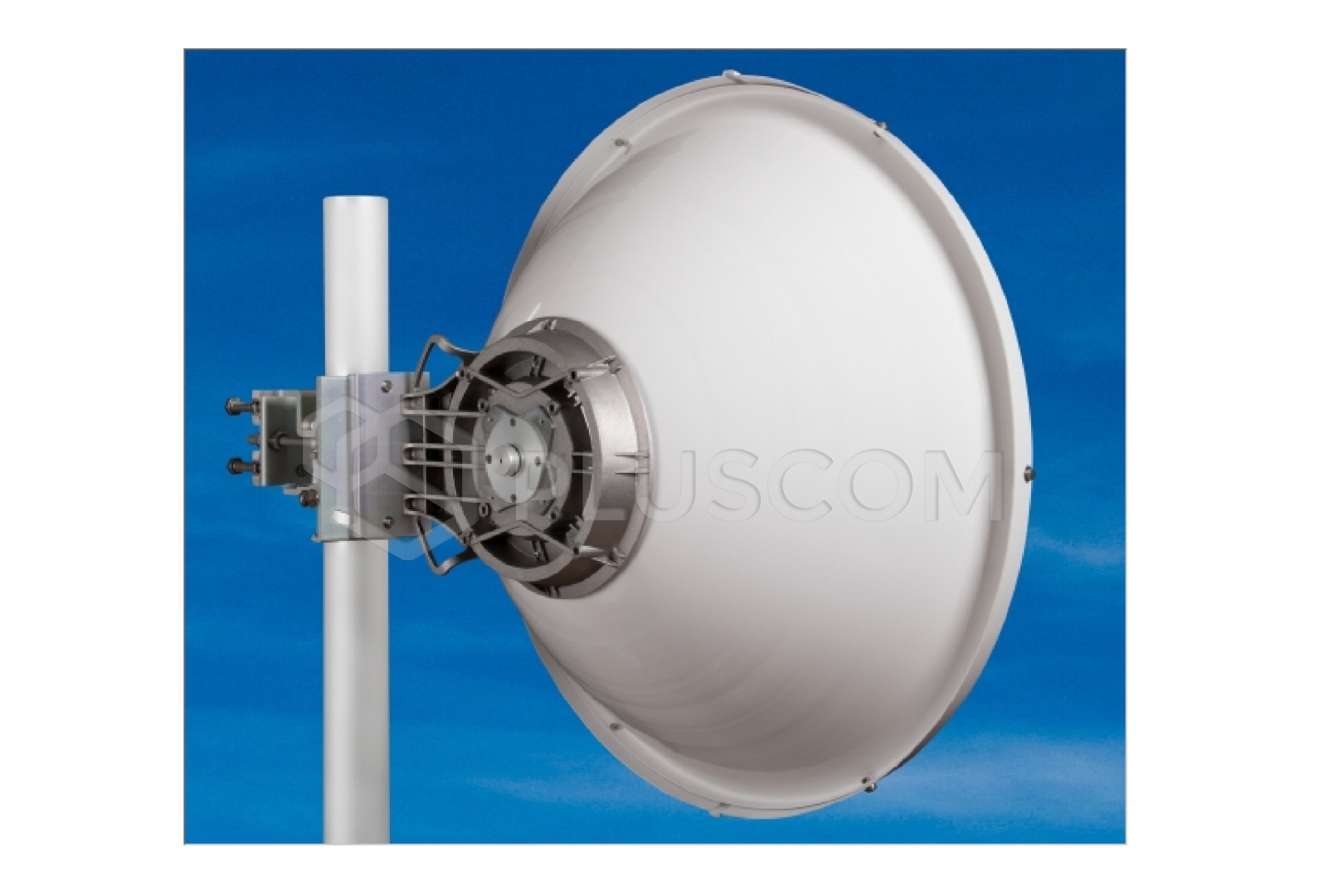

Jirous Parabolic antenna JRMC-680-80


The JRMC-680-80 antenna is designed for microwave communications in the 80 GHz frequency band.
Precise operation with a deep reflector meets ETSI Class 3 and FCC Category A standards.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radar shroud included
  • Massive JDMW-910 mount, very precise elevation and azimuth adjustment
  • Right- and left-hand mounting
  • Exceptional wind stability
Designed for MW units:

  • Please see adapter overview
  • Other adapters available upon request

  • Parameters Electrical:

    • Frequency Range: 71 – 86 GHz
    • Gain – Low Frequency: 50.7 ± 1.4 dBi
    • Gain – High Frequency: 51.6 ± 1.4 dBi
    • Front-to-Back Ratio: ≥ 67 dB
    • Beamwidth 3 dB: 0.4°
    • XPD: ≥ 33 dB
    • Return Loss: ≥ 15 dB
    • Polarization: Linear, Vertical/Horizontal
    • Electrical Compliance:
      - US FCC Cat. A
      - Class 3 ETSI EN 302 217-4 V2.1.1

    • Mechanical parameters:

      • Parabola: Ø 68 cm, aluminum alloy
      • Dome: UV-resistant ABS plastic
      • Input/output: Circular waveguide Ø 3.2 mm
      • Mast mounting: Ø 40–120 mm
      • Operating wind load: 180 km/h
      • Wind load resistance: 240 km/h
      • Antenna weight: 5.2 kg
      • Bracket weight: 3.3 kg

      Application:

      • Deep parabola for improved performance
      • Easy installation: first the mount, then the antenna with just 2 screws
      • Excellent stability when tightening after alignment
      • Extreme wind stability
      The antenna comes with a mount that allows for easy mounting on a mast. The mount can be mounted separately on the mast.
      Then you can simply hang the antenna with the microwave unit inside.

      The JDMW-910 mount is designed specifically for 80 GHz antennas:
      - Very precise adjustment in both directions
      - Excellent stability when tightening after alignment

      Can be mounted on the right or left side.

      In areas where strong winds are expected, mounting on a mast with a minimum diameter of 50 mm is recommended.
      Mast stability should be considered given the extremely narrow antenna beamwidth! Mast stability is important for maximum radio link performance.
