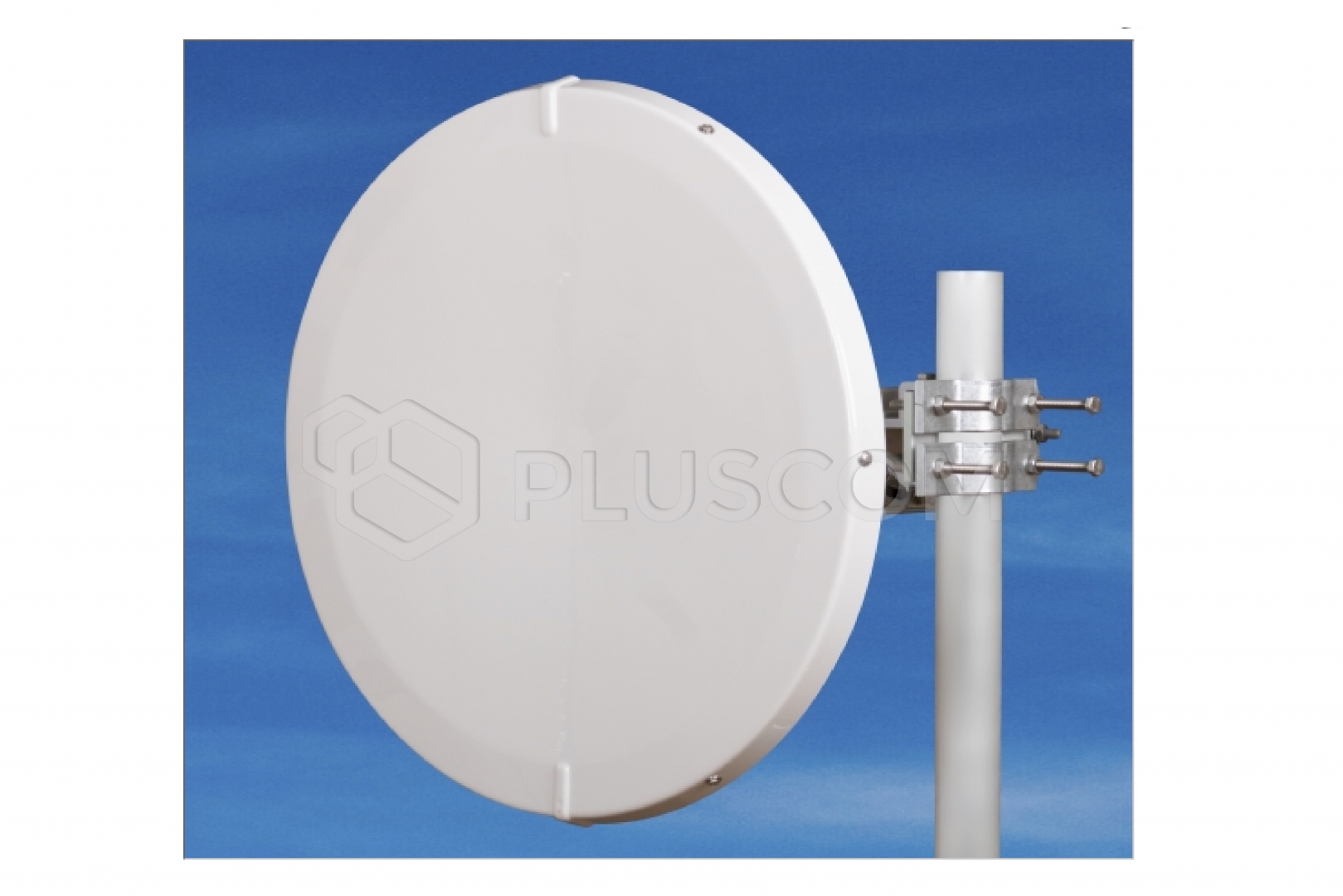

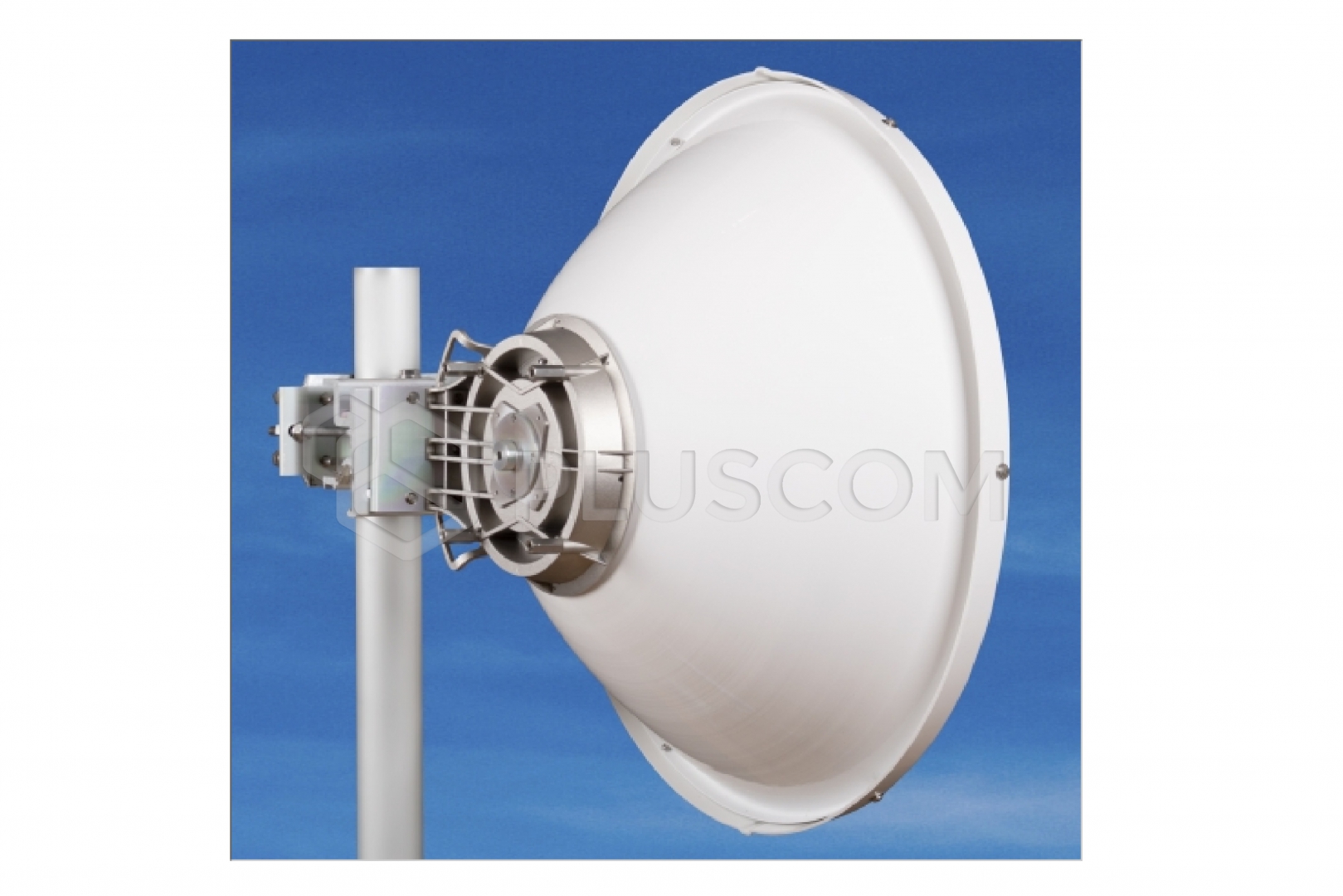

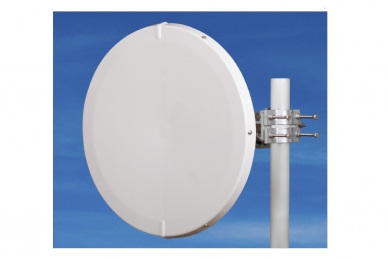

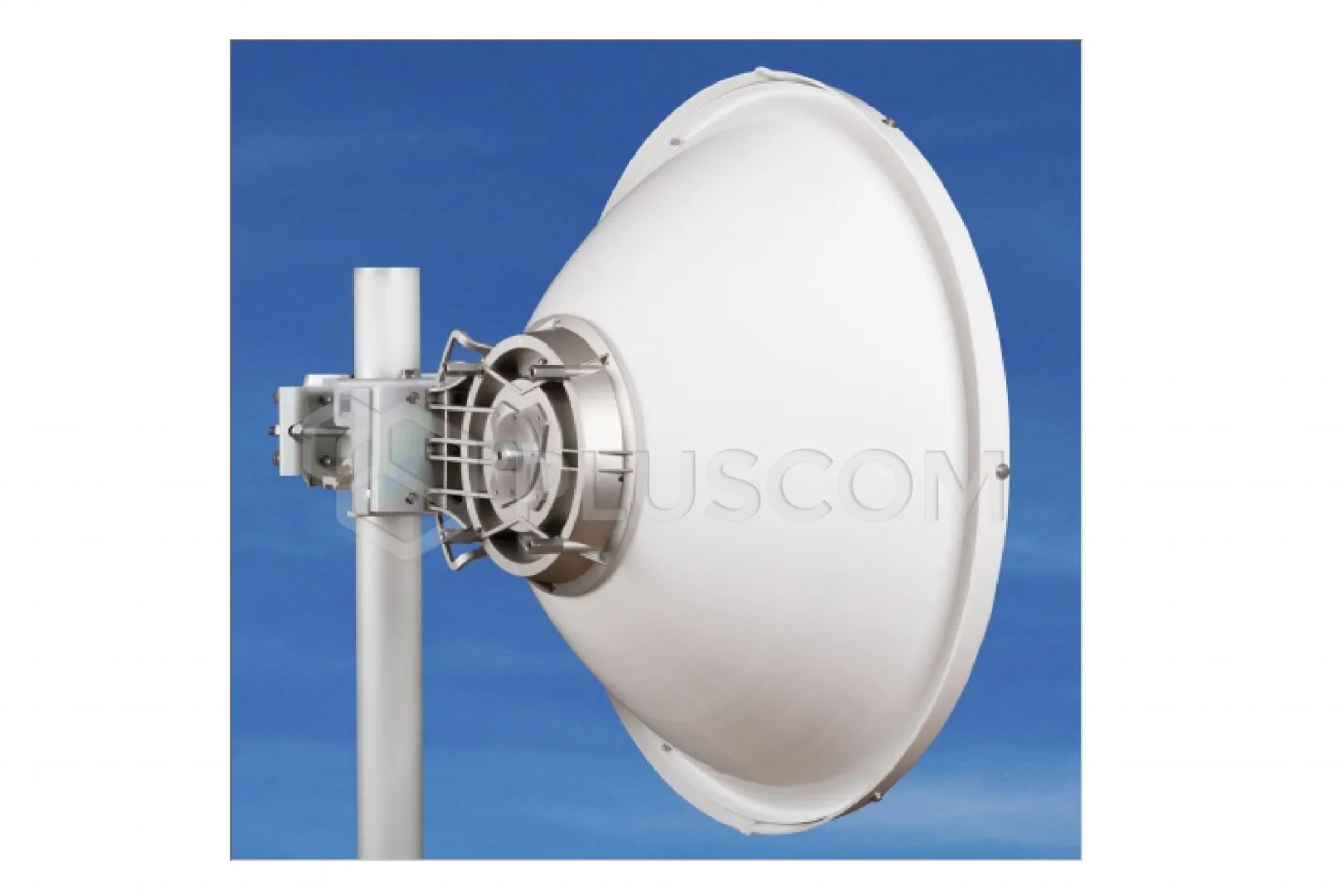

Jirous Parabolic antenna JRMC-680-7/8

Product code: #43130
Manufacturer: Jirous
  • Gain - Low Frequency: 30.5 ± 1 dBi
  • Gain - High Frequency: 32.2 ± 1 dBi
  • Beam width: 4.1°
  • Input/output: Circular waveguide Ø 26 mm
  • Dimensions: Ø 68 cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRMC-680-7/8


The JRMC-680-7/8 antenna is designed for microwave communication in the 7/8 GHz frequency band. Precise performance with a deep reflector meets the ETSI Class 3 standard.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radio included
  • Massive JDMW-900 mount with precise elevation and azimuth adjustment
  • Can be mounted on the right or left side
  • Extreme wind stability
Designed for MW units:
  • For radio units with connectors, use the JXC2N-7/8 N-connector adapter.
  • Other adapters available upon request.

Electrical parameters:

  • Frequency range: 7.1 – 8.5 GHz
  • Low frequency gain: 30.5 ± 1 dBi
  • High frequency gain: 32.2 ± 1 dBi
  • Front-to-back ratio: ≥ 56 dB
  • 3 dB beamwidth: 4.1°
  • Return loss: ≥ 18 dB
  • Polarization: Dual linear, vertical/horizontal
  • Cross polarization: ≥ 39 dB
  • Electrical compliance: Class 3 ETSI EN 302-217-4-2

Mechanical parameters:

  • Parabola: Ø 680 mm, aluminum alloy
  • Radome: UV-resistant ABS plastic
  • Input/output: Circular waveguide Ø 26 mm
  • Mast mounting: Ø 40 – 120 mm
  • Operating wind load: 180 km/h (112 mph)
  • Wind resistance: 240 km/h (149 mph)
  • Antenna weight: 5.7 kg
  • Bracket weight: 3.2 kg
  • We recommend mounting on a mast with a minimum diameter of ø 50 mm in areas where strong winds are expected.
