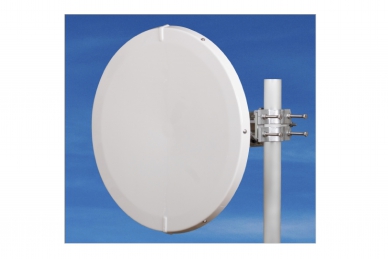

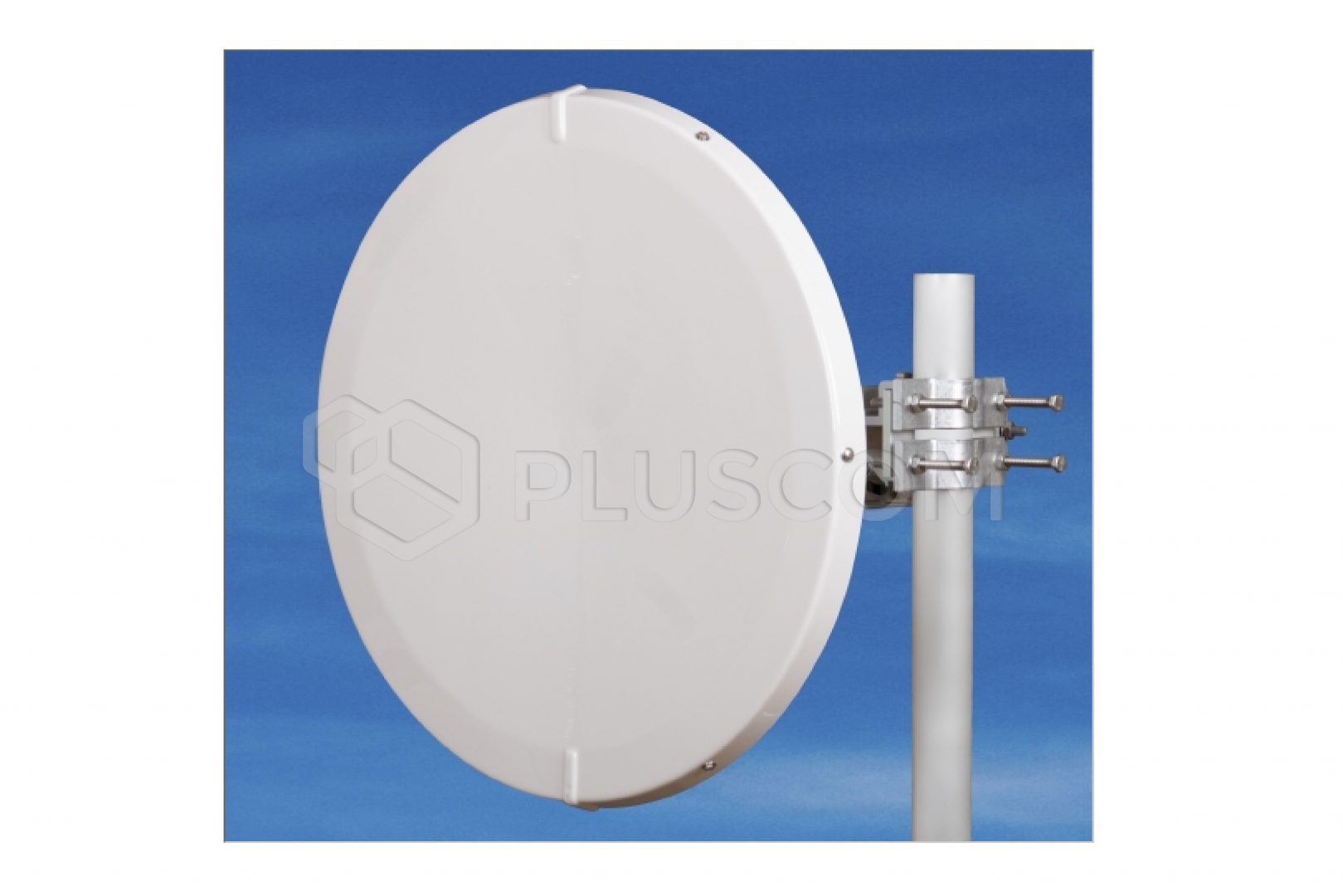

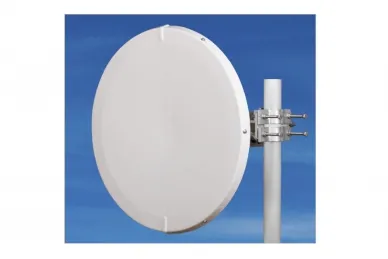

Jirous Parabolic antenna JRMC-680-10/11

Jirous Parabolic antenna JRMC-680-10/11

The JRMC – 680 – 10/11 antenna is designed for microwave communication in the 10 and 11 GHz frequency band. Precise operation with a deep reflector meets the ETSI Class 3 standard.

FEATURES:

• Deep parabola with high interference resistance and high mechanical strength
• High isolation of adjacent cells
• Radio included

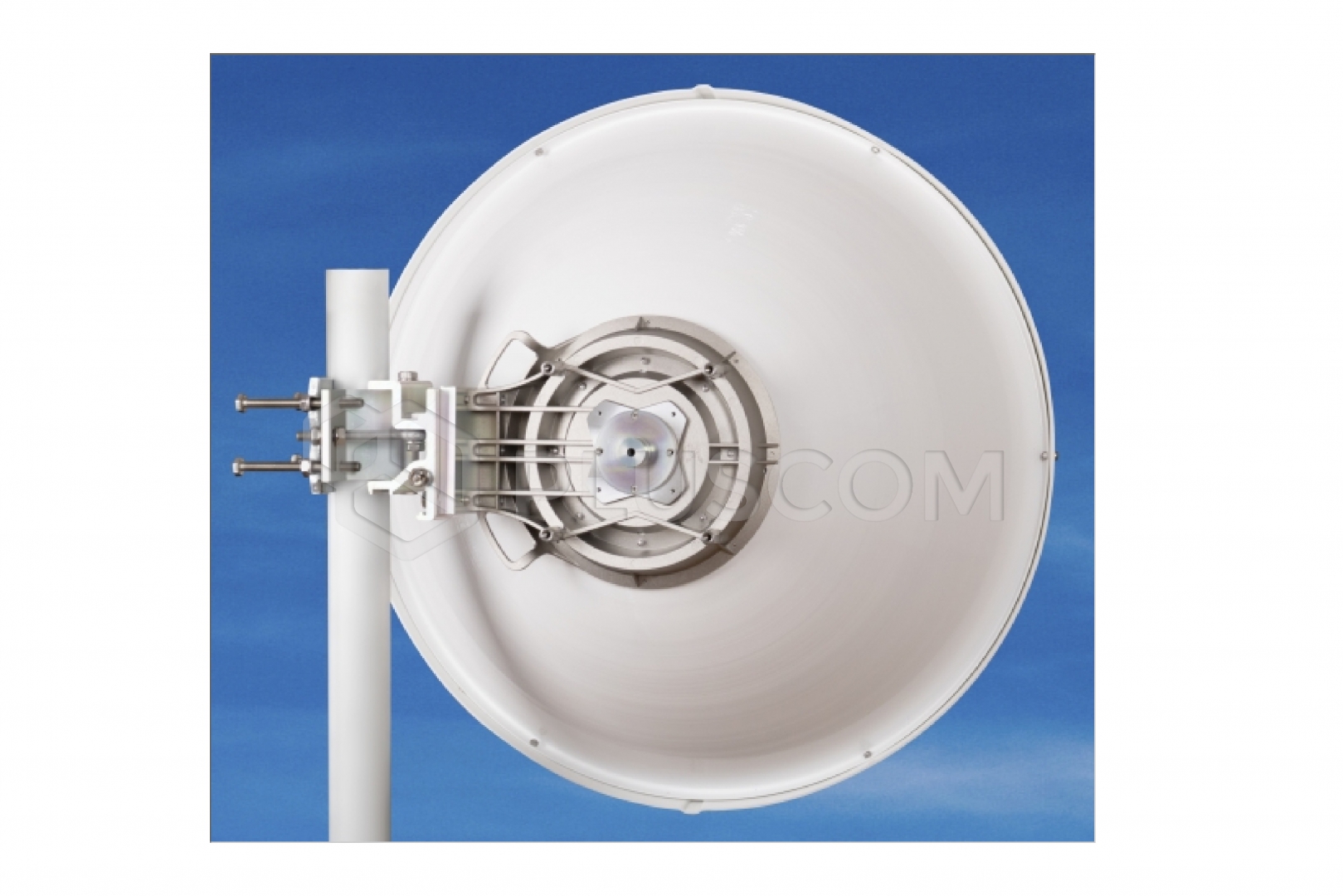

• Massive JDMW-900 mount with precise elevation and azimuth adjustment
• Can be mounted on the right or left side
• Extreme wind stability

Designed for MW units:

• See Adapter Overview
• Other adapters available upon request

Electrical parameters:

• Frequency range: 10.0 – 12.0 GHz
• Low Frequency Gain: 34.1 ± 1 dBi
• High Frequency Gain: 36.0 ± 1 dBi
• Front-to-Back Ratio: ≥ 61 dB
• XPD: ≥ 35 dB
• 3 dB Beamwidth: 3° ± 0.5°
• Return Loss: ≥ 18 dB/10.3 – 11.7 GHz
• Polarization: Linear, Vertical/Horizontal
• Electrical Compliance:
  - US FCC Part 101A | 10.550 – 10.680 GHz
  - US FCC Part 101B | 10.7 – 11.7 GHz
  - Class 3 ETSI EN 302-217-4-2

Mechanical parameters:

• Parabola: Ø 68 cm, aluminum alloy
• Radome: UV-resistant ABS plastic
• Input/output: Circular waveguide Ø 19 mm
• Mast mounting: Ø 40–120 mm
• Operating wind load: 180 km/h (112 mph)
• Wind load resistance: 240 km/h (149 mph)
• Antenna weight: 5.7 kg
• Bracket weight: 3.2 kg

We recommend mounting on a mast with a minimum diameter of ø 50 mm in areas where strong winds are expected.
