Jirous Parabolic antenna JRMC-400-13

Product code: #43139
Manufacturer: Jirous
  • Gain - Low Frequency: 31.4 ± 1 dBi
  • Gain - High Frequency: 31.9 ± 1 dBi
  • Beam width: 4.0° ± 1°
  • Dimensions: Ø 40 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

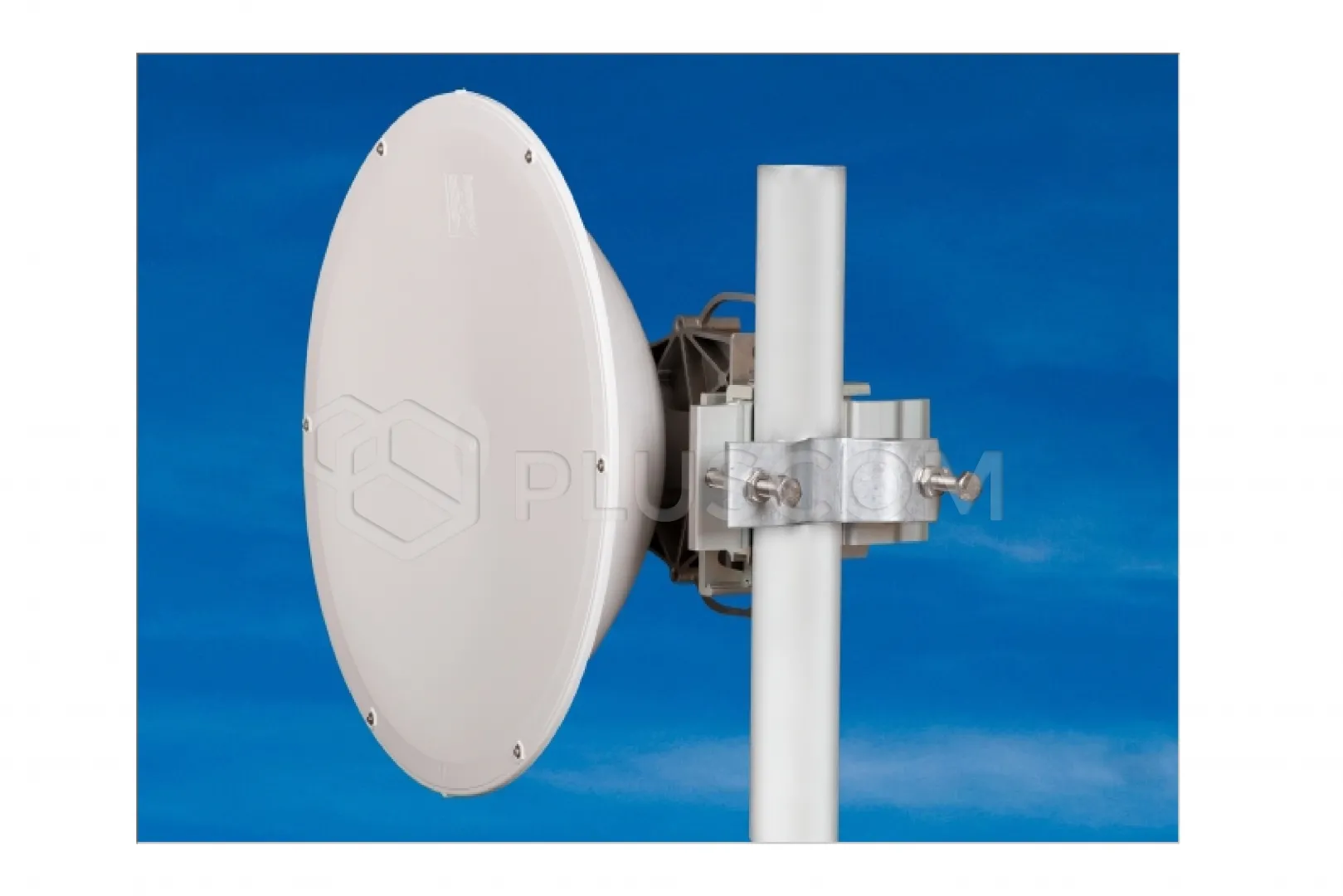

Jirous Parabolic antenna JRMC-400-13


The JRMC – 400 – 13 antenna is designed for microwave links in the 13 GHz frequency band. Precise operation with a deep reflector meets the ETSI Class 3 standard.

FEATURES:

  • Deep parabola with high interference immunity and high mechanical strength
  • High isolation of adjacent cells
  • Radar shroud included

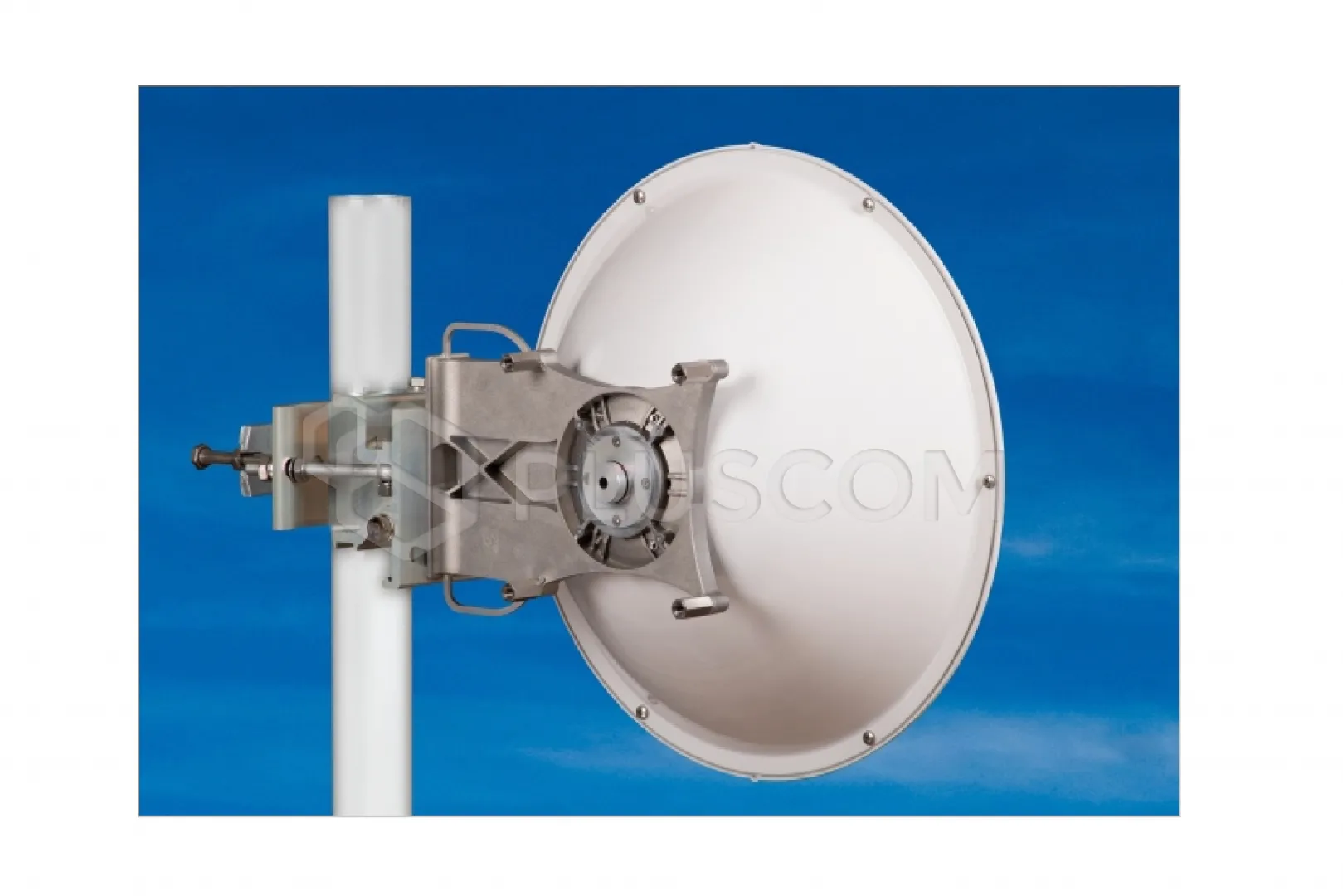

  • Massive JDMW-400 mount with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • Exceptional wind stability
Designed for MW units:
  • Please see adapter overview
  • Other adapters available upon request

Electrical parameters:

  • Frequency range: 12.7 – 13.3 GHz
  • Gain - Low Frequency: 31.4 ± 1 dBi
  • Gain - High Frequency: 31.9 ± 1 dBi
  • Front-to-Back Ratio: ≥ 56.5 dB
  • Beamwidth -3 dB: 4.0° ± 1°
  • Reflection Loss: ≥ 18 dB
  • Polarization: Linear, vertical/horizontal
  • ETSI Standard: Class 3 ETSI EN 302-217-4-2 v1.5.1

Mechanical Parameters:

  • Parabola: Ø 400 mm, aluminum alloy
  • Radome: UV, ABS plastic
  • Input/output: Circular waveguide Ø 16 mm
  • Mast mounting: Ø 40–120 mm
  • Wind load during operation: 180 km/h (112 mph)
  • Wind load resistance: 240 km/h (149 mph)
  • Antenna weight: 2.6 kg
  • Bracket weight: 2.4 kg
Download
Datasheet 0.59 MB
