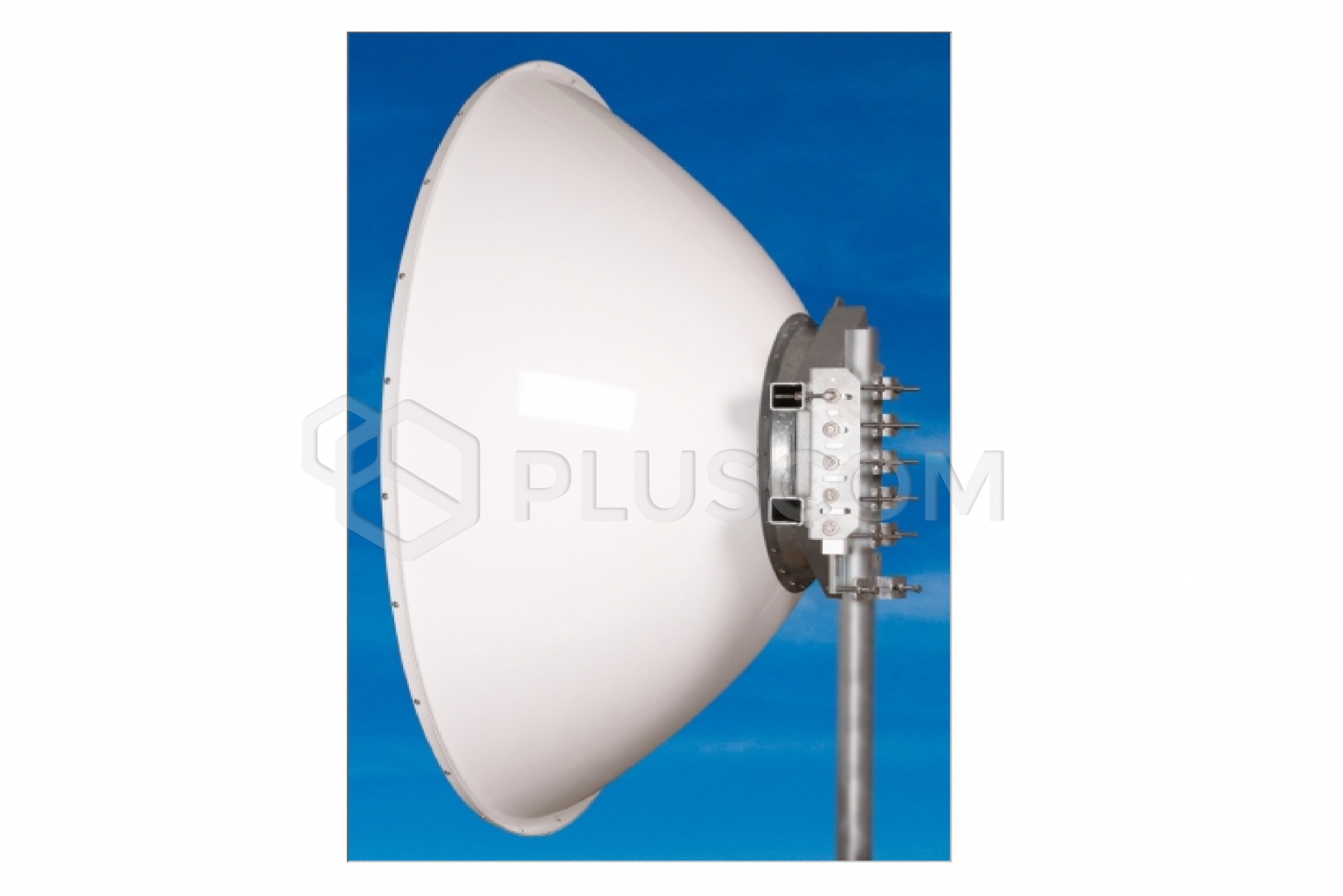

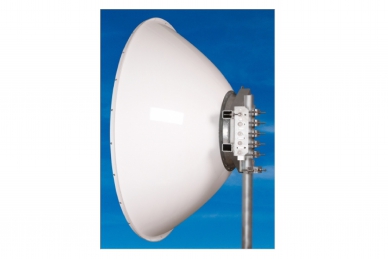

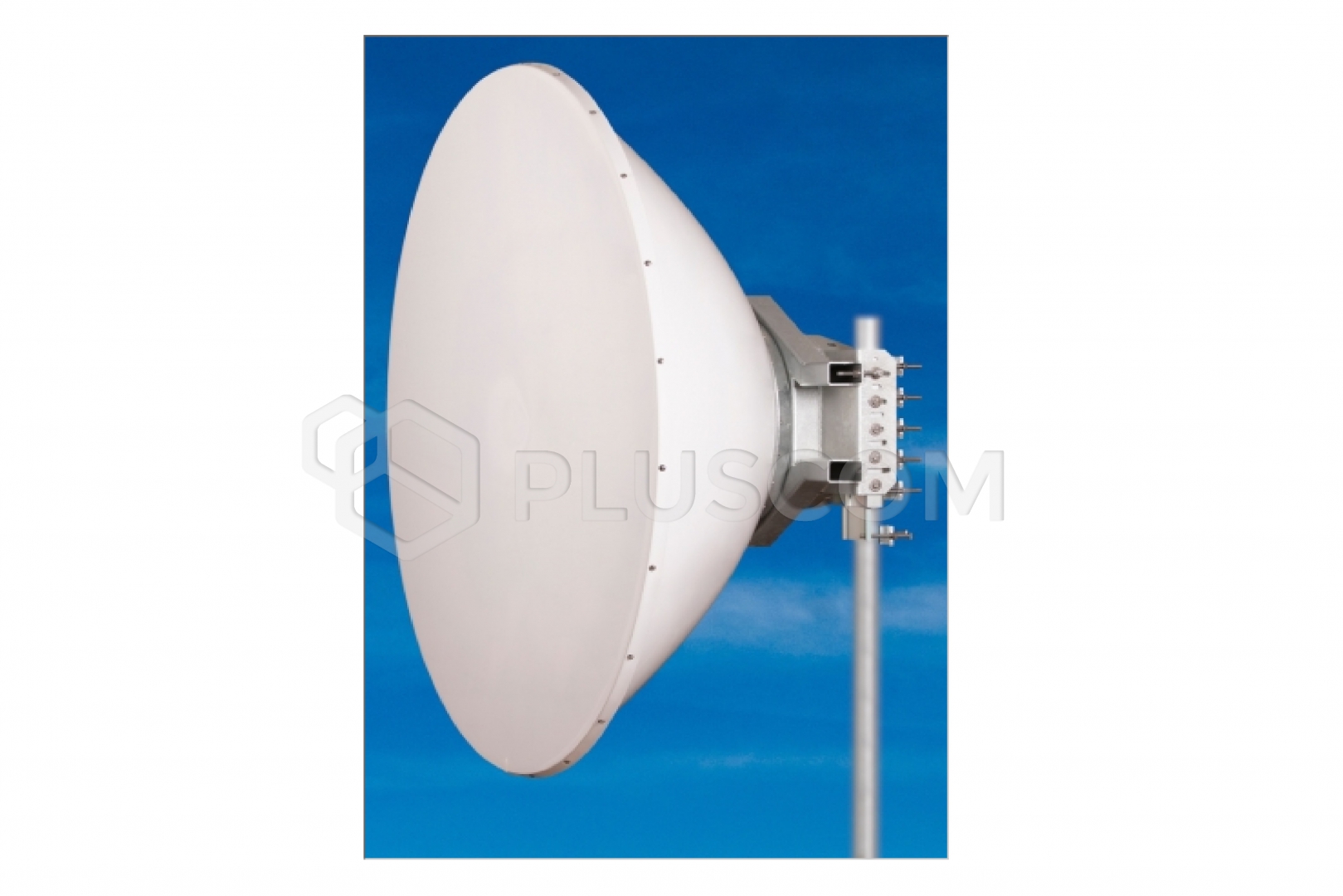

Jirous Parabolic antenna JRMC-1800-7/8

Product code: #43134
Manufacturer: Jirous
  • Gain - Low Frequency: 38.6 ± 1 dBi
  • Gain - High Frequency: 39.8 ± 1 dBi
  • Beam width: 1.6°
  • Input/output: Circular waveguide Ø 26 mm
  • Dimensions: Ø 180 cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRMC-1800-7/8


The JRMC-1800-7/8 antenna is designed for microwave communication in the 7/8 GHz frequency band. Precise operation with a deep reflector meets the ETSI Class 3 standard.

FEATURES:

Deep reflector antenna with high interference immunity and mechanical strength
  • High isolation of adjacent cells
  • Radar antenna included
  • Massive bracket with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • High wind stability
Design for MW units:
  • For radio units with connectors, use the JXC2N-7/8 N-connector adapter.
  • Other adapters available upon request.

Electrical parameters:

  • Frequency range: 7.1 – 8.5 GHz
  • Low Frequency Gain: 38.6 ± 1 dBi
  • High Frequency Gain: 39.8 ± 1 dBi
  • Front-to-Back Ratio: ≥ 65 dB
  • Beamwidth: 1.6°
  • Return Loss: ≥ 18 dB
  • Polarization: Dual Linear, Vertical/Horizontal
  • Cross Polarization: ≥ 33 dB
  • Electrical Compliance: Class 3 ETSI EN 302-217-4-2

Mechanical Parameters:

  • Parabola: Ø 1800 mm, Aluminum Alloy
  • Material: Composite radome, UV-resistant
  • Input/output: Circular waveguide Ø 26 mm
  • Mast mounting: Ø 70 - 120 mm
  • Operational wind load: 140 km/h (87 mph)
  • Survival wind load: 210 km/h (130 mph)
  • Antenna weight: 82 kg
Download
Datasheet 0.69 MB
