Jirous Parabolic antenna JRMC-1800-4.7

Product code: #43087
Manufacturer: Jirous
  • Energy gain - low frequency: 34.8 ± 1 dBi
  • Energy gain - high frequency: 36.0 ± 1 dBi
  • Beam width: 2.8°
  • Dimensions: Ø 180 cm
  • Connector type: N-female
Delivery and tax:
Poland VAT: 23.00% change
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

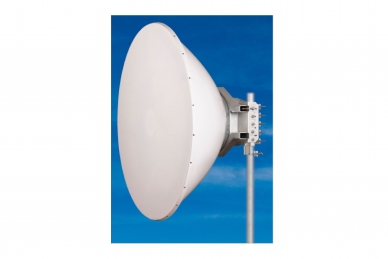

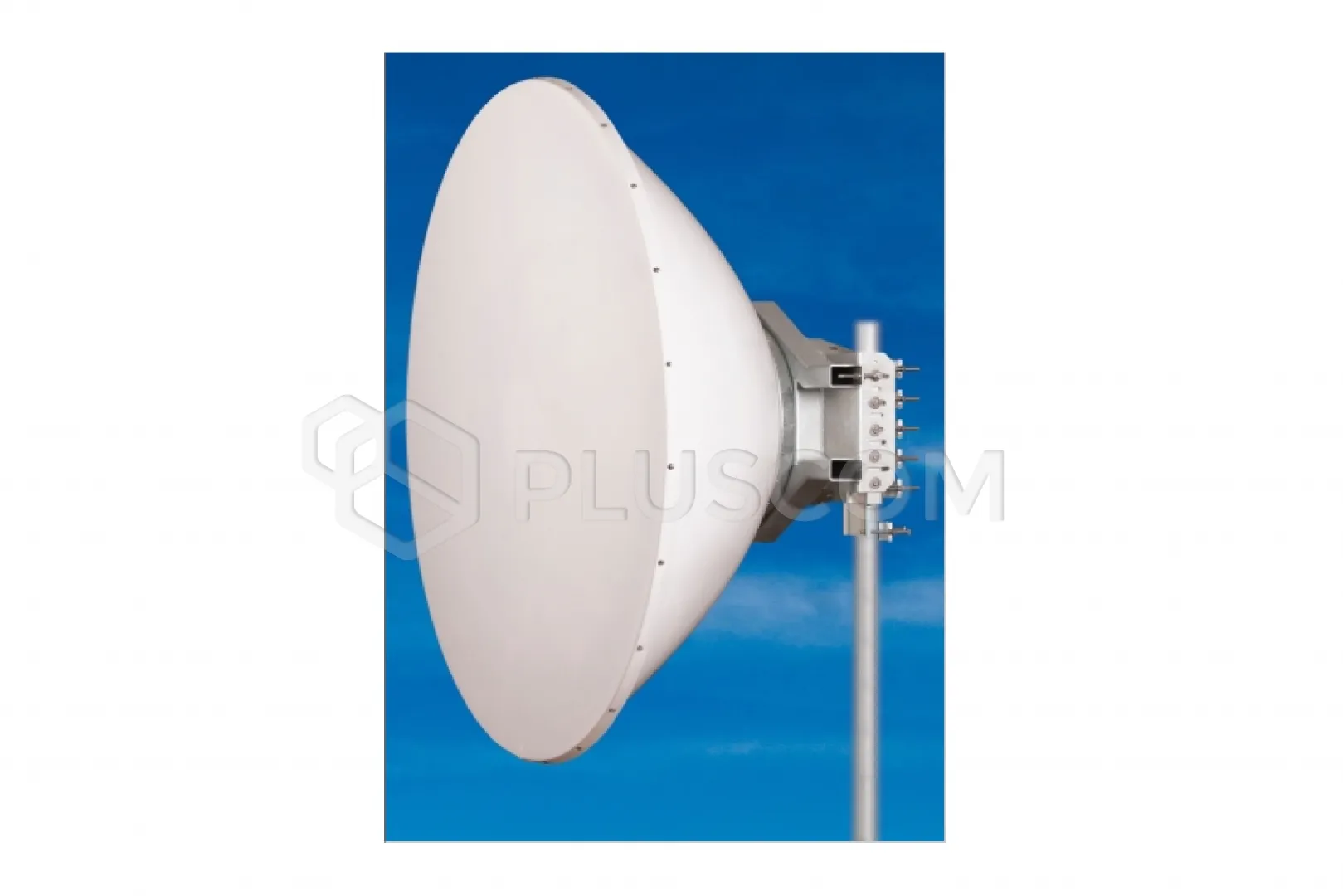

Jirous JRMC-1800-4.7 Parabolic Antenna


The JRMC-1800-4.7 antenna is designed for microwave communications in the 4.7 GHz frequency band. Precise performance with a deep reflector meets ETSI Class 3 standards.

FEATURES:

  • Dual-polarization antenna with connectors
  • Deep parabola with high interference immunity and high mechanical strength
  • Radar antenna included
  • Massive mount with precise elevation and azimuth adjustment
  • Right- or left-sided mounting
  • High wind stability

Electrical parameters:

  • Frequency range: 4.4 – 5.0 GHz
  • Low frequency gain: 34.8 ± 1 dBi
  • High frequency gain: 36.0 ± 1 dBi dBi
  • 3 dB Beamwidth: 2.8°
  • Front-to-Back Ratio: ≥ 61 dB
  • Connector Isolation: > 30 dB
  • Return Loss: ≥ 14 dB
  • Cross Polarization: ≥ 35 dB
  • Polarization: Dual – vertical and horizontal (precise alignment ±5°)
  • Electrical Compliance Class 3 ETSI EN 302-217-4-2

Mechanical Parameters:

  • Parabola: Ø 1800 mm, aluminum alloy
  • Material: UV-resistant composite radome
  • Connector type: N-female
  • Mast mounting: ø 70 - 120 mm
  • Operating wind load: 140 km/h (87 mph)
  • Operating wind resistance: 210 km/h (130 mph)
  • Antenna weight: 82 kg
A set of adjustable wind shields is included with the antenna.
Download
Datasheet 0.59 MB
