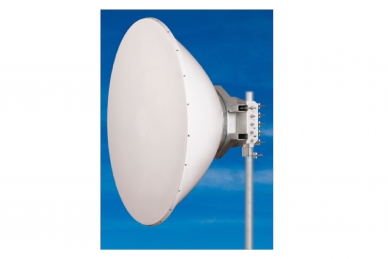

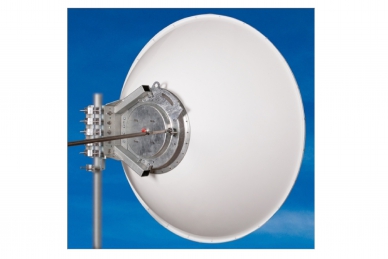

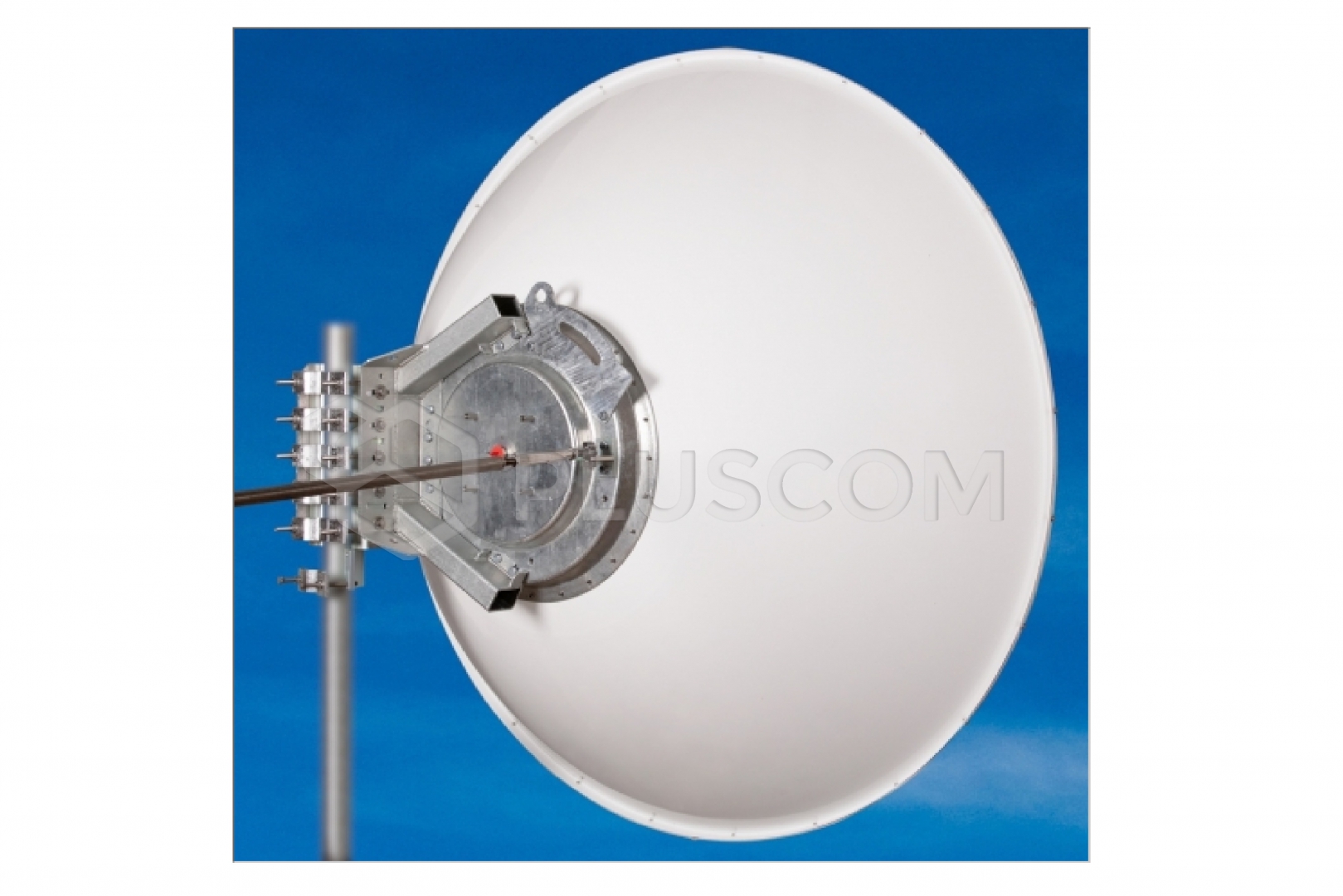

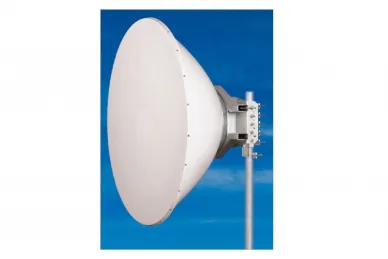

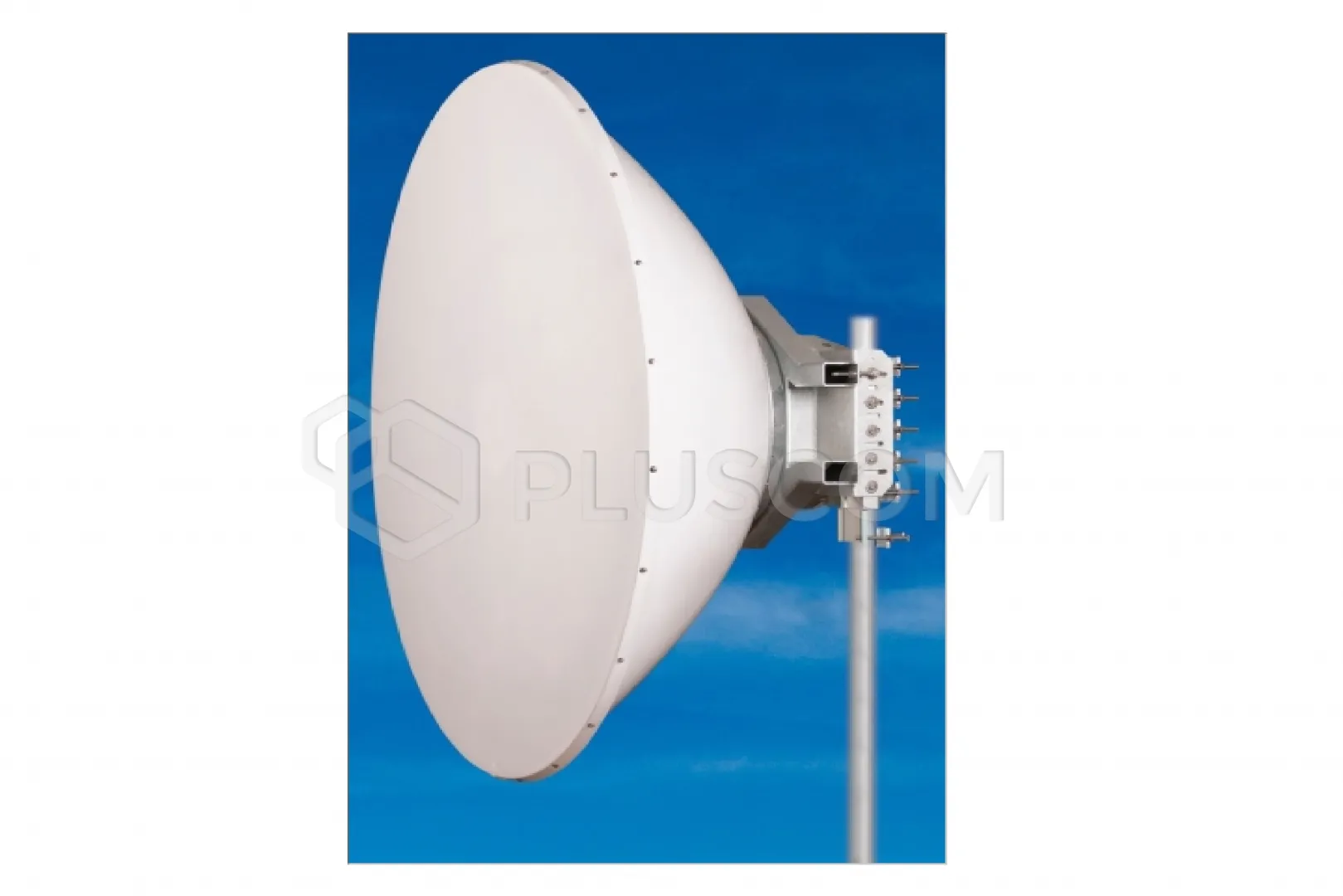

Jirous Parabolic antenna JRMC-1800-13

Product code: #43143
Manufacturer: Jirous
  • Gain - Low Band: 44.0 ±1 dBi
  • Gain – High Band: 44.5 ±1 dBi
  • Beam width: 1.0°
  • Dimensions: Ø 180 cm
  • Polarization: Linear, vertical/horizontal
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRMC-1800-13


The Jirous JRMC-1800-13 is a high-quality parabolic antenna designed for professional applications in wireless radio networks, especially in the 5 GHz band (typically 5.1-5.9 GHz, depending on the precise model and application).

It features a large diameter (180 cm), which translates into high energy gain, typically around 40 dBi.

FEATURES:

  • Deep reflector dish with high interference resistance and high mechanical strength
  • High isolation of adjacent cells
  • Random antenna included
  • Massive mount with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • High wind stability
Designed for MW units:
  • Please see adapter overview
  • Other adapters available upon request

Technical parameters:

  • Frequency range: 12.7–13.3 GHz
  • Gain – low band: 44.0 ±1 dBi
  • Gain – High Band: 44.5 ±1 dBi
  • Beamwidth –3 dB: 1.0°
  • ETSI Standard: EN 302-217-4-2 Class 3
  • FCC Standard: US FCC Part 101A
  • Polarization: Linear, vertical/horizontal

Mechanical Parameters:

  • Parabola: ø 1800 mm – aluminum alloy
  • Radome: UV-resistant composite material
  • Input/Output: ø 16 mm input/output waveguide
  • Mast Mounting: ø 70–120 mm
  • Maximum wind load during operation: 140 km/h
  • Maximum wind load during operation: 210 km/h
  • Antenna weight: 82 kg
    • An adjustable wind shield is included with the antenna.
