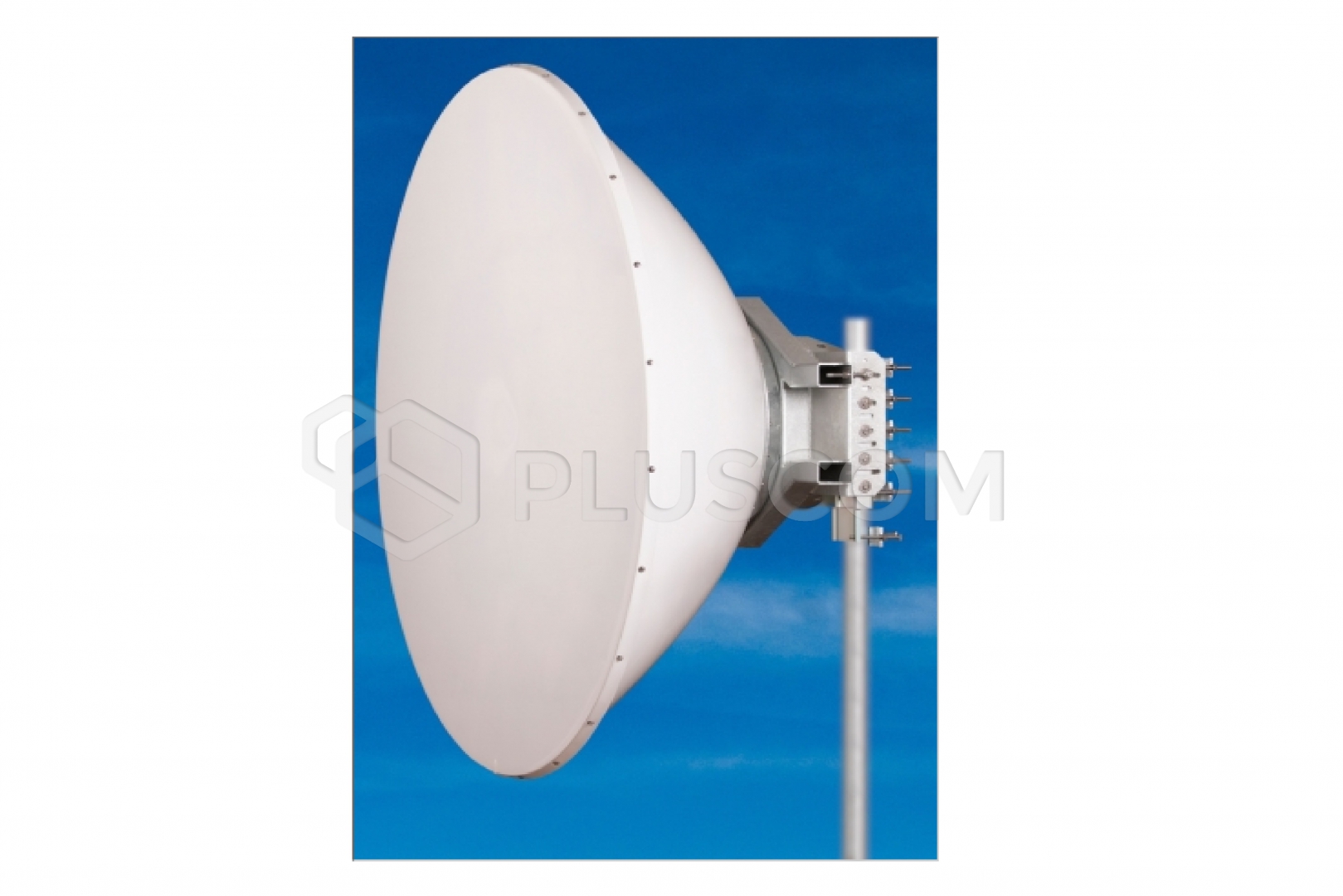

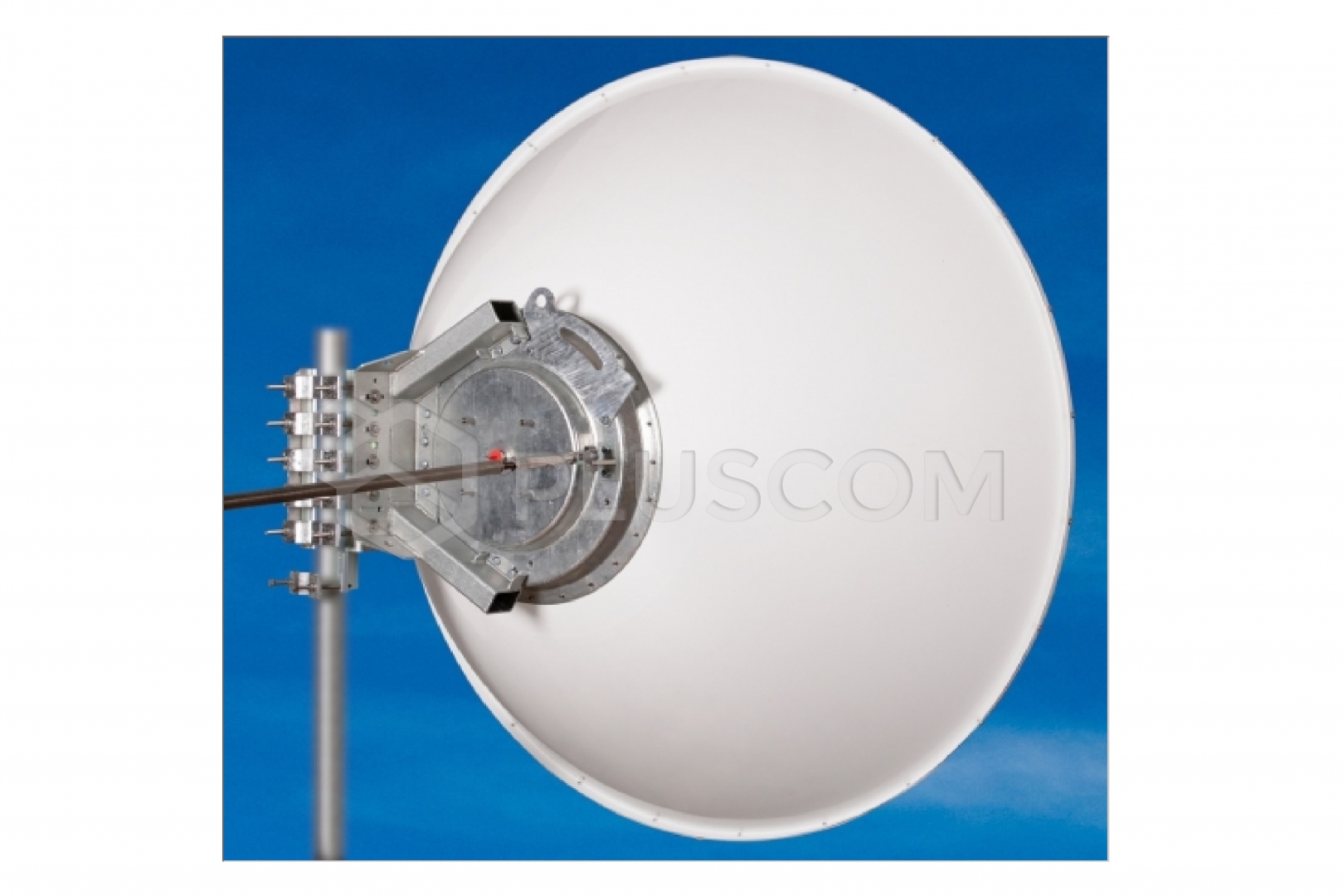

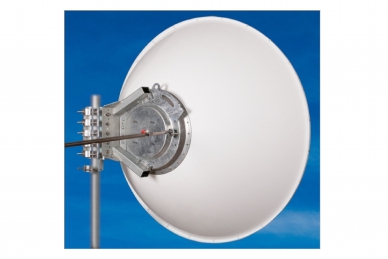

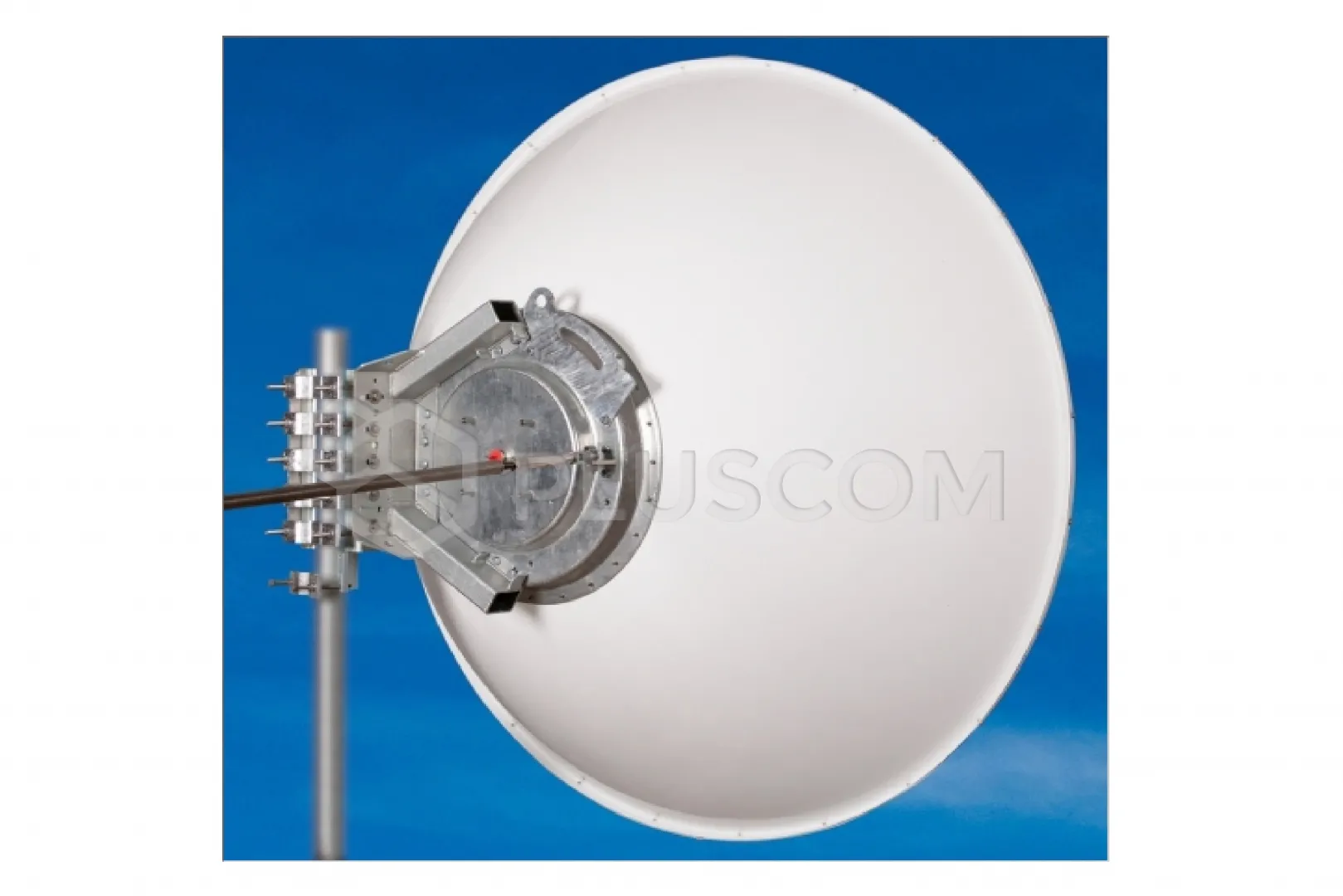

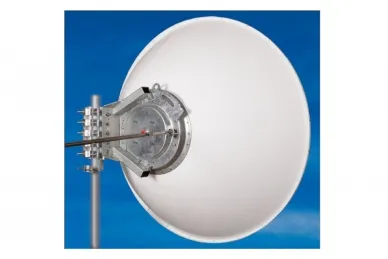

The JRMC-1800-10/11 antenna is designed for microwave communications in the 10 and 11 GHz frequency bands. Its precise operation with a deep reflector antenna complies with ETSI Class 3 and FCC Part 101A standards.

FEATURES:

• Deep reflector dish with high interference resistance and high mechanical strength
• High isolation of adjacent cells
• Radar shroud included
• Massive bracket with precise elevation and azimuth adjustment
• Right- and left-side mounting
• High wind stability

Designed for MW units:

• Please see adapter overview
• Custom modifications possible

Electrical parameters:

• Frequency range: 10.0 – 12.0 GHz
• Gain – low frequency: 43.0 ± 1 dBi
• Gain - High Frequency: 44.0 ± 1 dBi
• Front-to-Back Ratio: ≥ 69 dB
• XPD: ≥ 40 dB
• Beamwidth - 3 dB: 1.0°
• Return Loss: ≥ 15 dB/10.3 – 11.7 GHz
• Polarization: Linear, Vertical/Horizontal
• Electrical Compliance
  - US FCC Part 101A | 10.550 – 10.680 GHz
  - US FCC Part 101A | 10.7 – 11.7 GHz
  - Class 3 ETSI EN 302-217-4-2
  - ACMA - RALI FX3 Class B

Mechanical Parameters:

• Parabola: Ø 1800 mm, aluminum alloy
• Radome: UV-resistant composite material
• Input/Output: Circular waveguide Ø 19 mm
• Mast Mounting: Ø 70 - 120 mm
• Operating Wind Load: 140 km/h (87 mph)
• Wind Load Resistance: 210 km/h (130 mph)
• Antenna Weight: 82 kg

A set of adjustable windage braces is part of the antenna.
