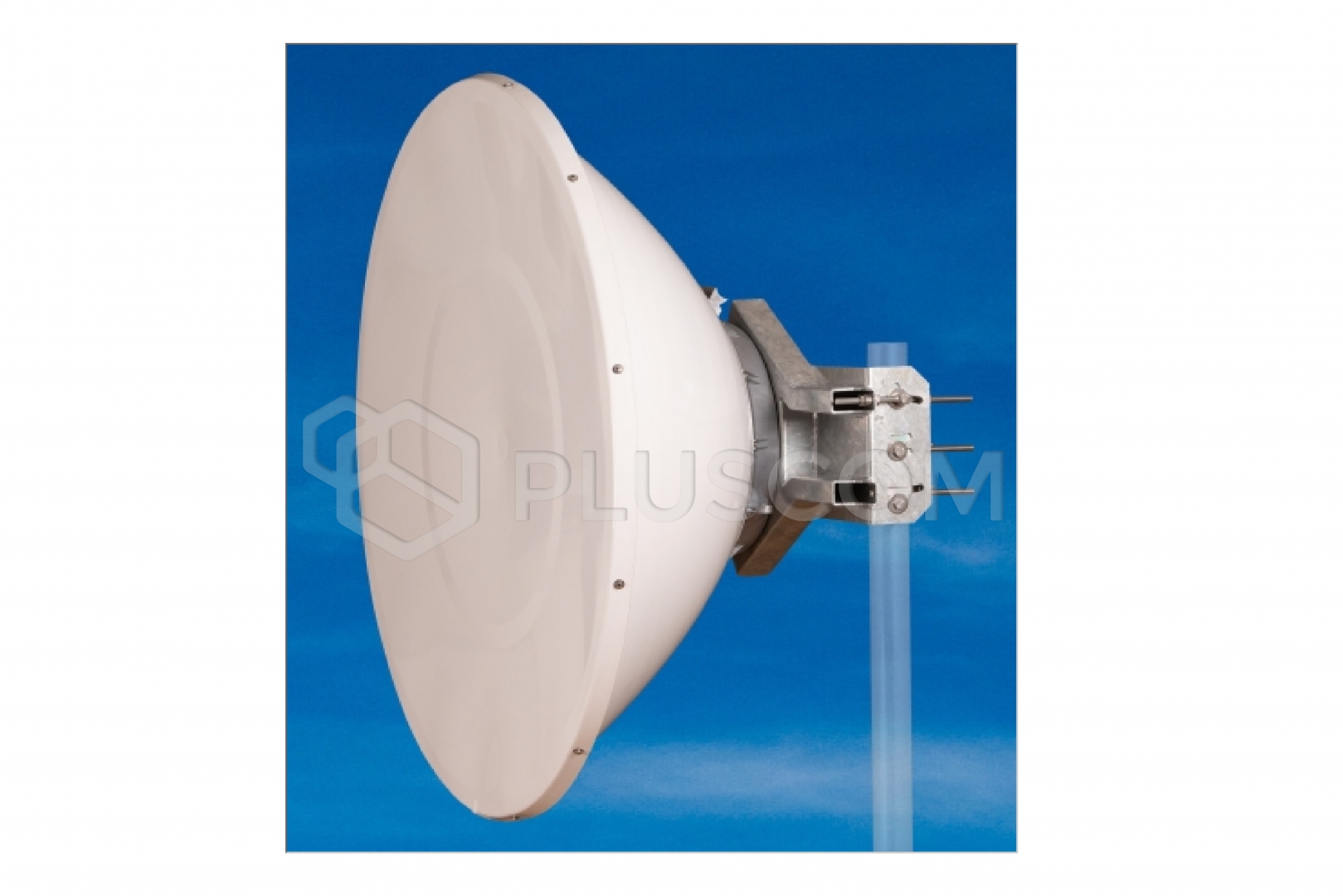

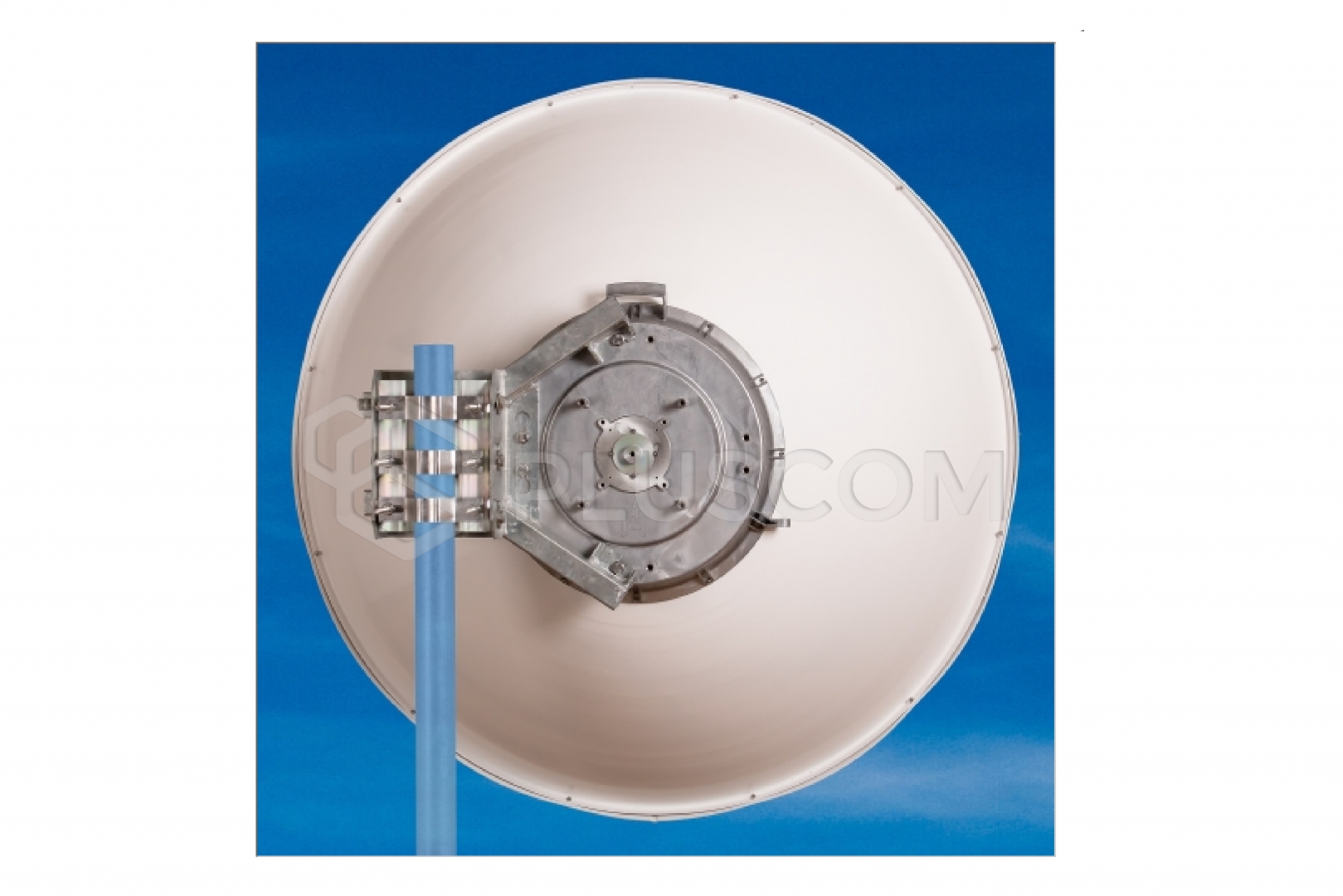

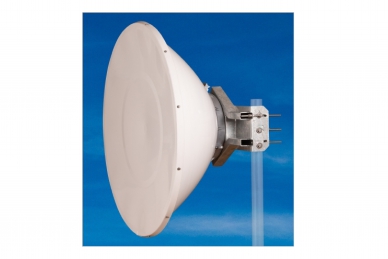

Jirous Parabolic antenna JRMC-1200-7/8

Product code: #43132
Manufacturer: Jirous
  • Gain - Low Frequency: 35 ± 1 dBi
  • Gain - High Frequency: 37.2 ± 1 dBi
  • Beam width: 2.3°
  • Input/output: Circular waveguide Ø 26 mm
  • Dimensions: Ø 120 cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMC-1200-7/8 Parabolic Antenna


The JRMC-1200-7/8 antenna is designed for microwave communications in the 7/8 GHz frequency band. Precise operation with a deep reflector meets the ETSI Class 3 standard.

FEATURES:

  • Deep reflector antenna with high interference immunity and mechanical strength
  • High isolation of adjacent links
  • Radar antenna included
  • Massive bracket with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • High wind stability
Designed for MW units:
  • For radio units with connectors, use the JXC2N-7/8 N-connector adapter.

Electrical parameters:

  • Frequency range: 7.1 – 8.5 GHz
  • Low Frequency Gain: 35 ± 1 dBi
  • High Frequency Gain: 37.2 ± 1 dBi
  • Front-to-Back Ratio: ≥ 61.7 dB
  • Beamwidth: 2.3°
  • Return Loss: ≥ 18 dB
  • Polarization: Dual Linear, Vertical/Horizontal
  • Cross Polarization: ≥ 34.8 dB
  • Electrical Compliance: Class 3 ETSI EN 302-217-4-2

  • Mechanical Parameters:

    • Parabola: Ø 1200 mm, aluminum alloy
    • Radome: UV, ABS plastic
    • Input/output: Circular waveguide Ø 26 mm
    • Mast mounting:
      - Ø 80 - 120 mm
      - Ø 60 - 80 mm – with wind bracing kit
    • Operating wind load
      - without wind bracing kit 110 km/h (68 mph)
      - with wind bracing kit 140 km/h (87 mph)
    • Wind load resistance: 210 km/h (130 mph)
    • Antenna weight: 28.5 kg
    We recommend using the wind bracing kit for mounting on a mast with a diameter less than 80 mm, as well as in areas strong winds.

    Additional accessories
    • JRZ-1200 Wind Bracing Kit
Download
Datasheet 0.94 MB
