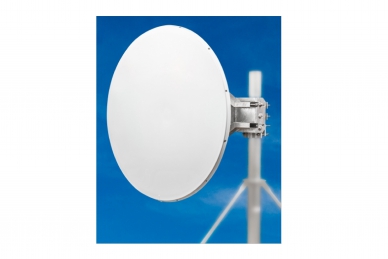

Jirous Parabolic antenna JRMC-1200-4.7

Product code: #43086
Manufacturer: Jirous
  • Energy gain - low frequency: 31.5 ± 1 dBi
  • Energy gain - high frequency: 32.6 ± 1 dBi
  • Beam width: 4.2°
  • Dimensions: Ø 120 cm
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
52,62 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous JRMC-1200-4.7 Parabolic Antenna


The JRMC-1200-4.7 antenna is designed for microwave communications in the 4.7 GHz frequency band. Precise performance with a deep reflector meets ETSI Class 3 standards.

FEATURES:

  • Dual-polarization antenna with connectors
  • Deep parabola with high interference immunity and high mechanical strength
  • Radar antenna included
  • Massive mount with precise elevation and azimuth adjustment
  • Right- or left-sided mounting
  • High wind stability

Electrical parameters:

  • Frequency range: 4.4 – 5.0 GHz
  • Low frequency gain: 31.5 ± 1 dBi
  • High frequency gain: 32.6 ± 1 dBi dBi
  • 3 dB beamwidth: 4.2°
  • Front-to-back ratio: ≥ 57 dB
  • Connector isolation: > 35 dB
  • Return loss: ≥ 14 dB
  • Cross polarization: ≥ 35 dB
  • Dual polarization – vertical and horizontal (precise alignment ±5°)
  • Electrical compliance: Class 3 ETSI EN 302-217-4-2

    • Mechanical parameters:

    • Parabola: Ø 1200 mm, aluminum alloy
    • Dome: UV-resistant composite material
    • Connector type: N-female
    • Mast mounting:
      - Ø 80 - 120 mm
      - Ø 60 - 80 mm with wind mounting kit
    • Operating wind load:
      - 110 km/h (68 mph) without wind mounting kit
      - 140 km/h (87 mph) with wind mounting kit
    • Wind load resistance: 210 km/h (131 mph)
    • Antenna weight: 30 kg
    We recommend using a wind bracing set for the mounting on the mast with a diameter less than 80 mm as well as for the areas with the occurrence of strong winds.
Download
Datasheet 0.79 MB
