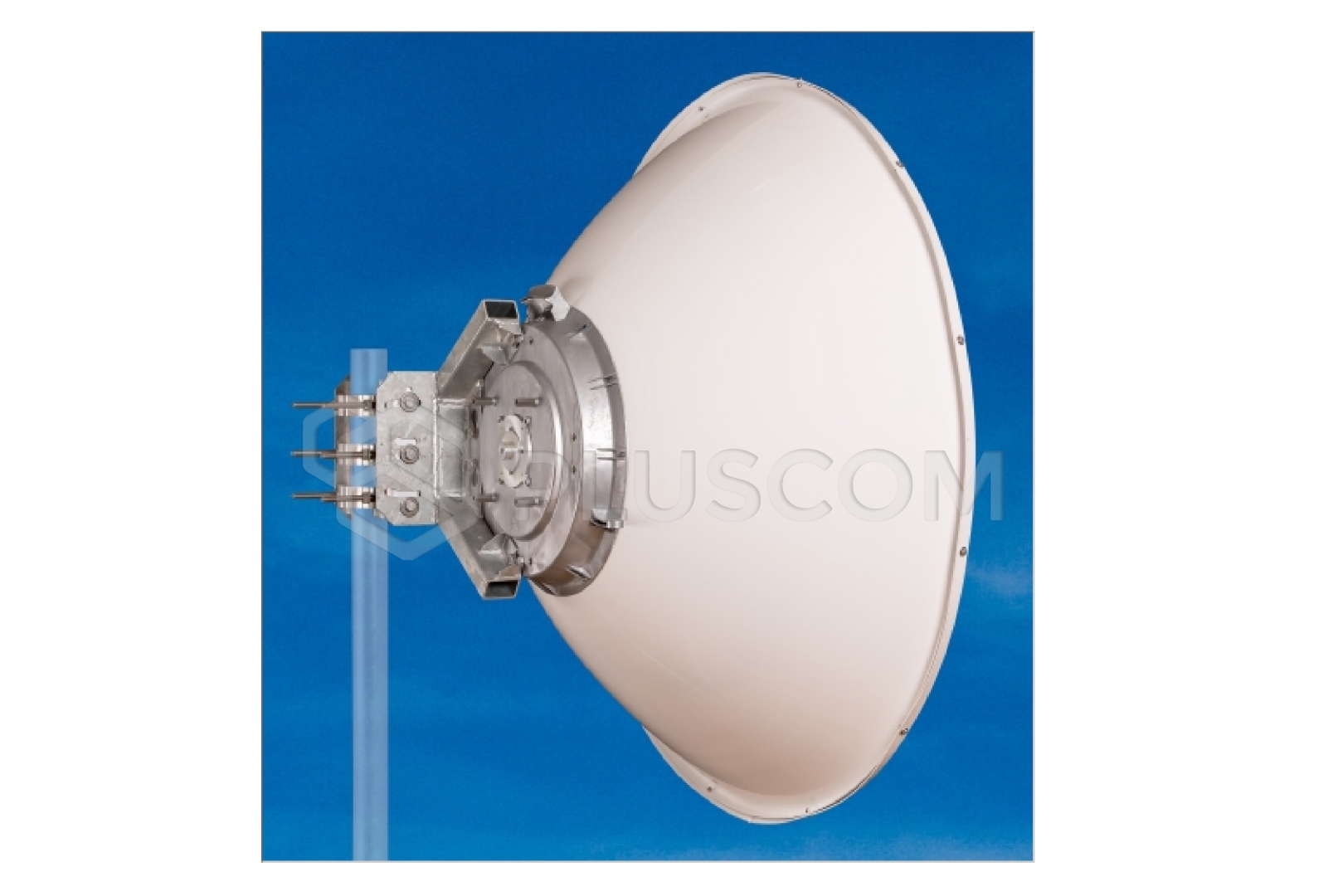

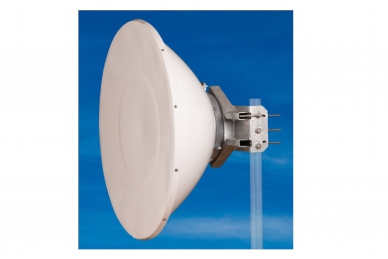

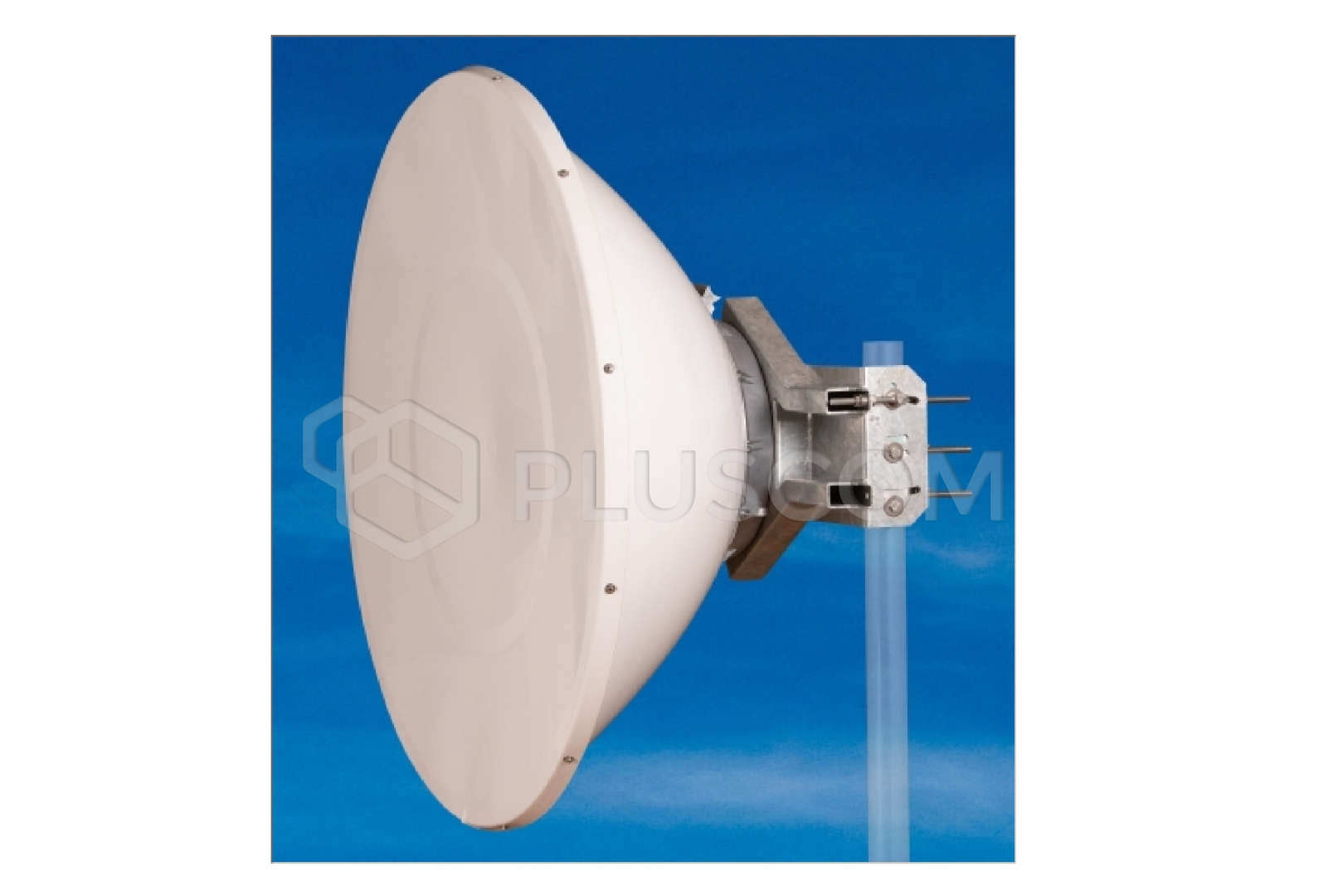

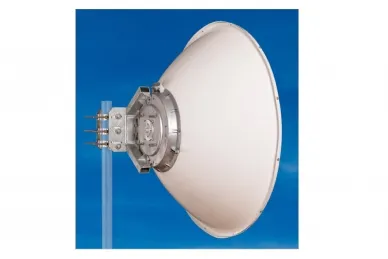

Jirous Parabolic antenna JRMC-1200-17/18

Jirous Parabolic antenna JRMC-1200-17/18

FEATURES:

• Deep reflector dish with high interference resistance and mechanical strength
• High isolation of adjacent cells
• Radar antenna included
• Massive mount with precise elevation and azimuth adjustment
• Right and left-side mounting
• High wind stability

• Please see adapter overview
• Other adapters available upon request

Electrical parameters:

• Frequency range: 17.1 – 19.7 GHz
• Gain – Low frequency: 43.2 ±1 dBi
• Gain - High Frequency: 44.7 ±1 dBi
• Front-to-Back Ratio: ≥ 72 dB
• XPD: ≥ 36 dB
• Beamwidth - 3 dB: 0.9°
• Reflective Loss: ≥ 17 dB
• Polarization: Linear, Vertical/Horizontal
• Electrical Compliance
  - US FCC Cat. A
  - Class 3 ETSI EN 302-217-4-2

• Mechanical parameters:

  • Parabola: Ø 1200 mm, aluminum alloy
  • Radome: Fiberglass
  • Input/output: Circular waveguide Ø 11 mm
  • Mast mounting:
    - Ø 80 - 120 mm
    - Ø 60 - 80 mm - with wind guy kit
  • Operational wind load
    - without wind guy kit 110 km/h (68 mph)
    - with wind guy kit 140 km/h (87 mph)
  • Load resistance Wind speed: 210 km/h
  • Antenna weight: 28.5 kg

  Application:

  The antenna is supplied with a robust bracket that allows for easy mounting on a mast.
  The bracket can be mounted separately on the mast. The antenna with the microwave module can then be simply hung on it.

  The antenna bracket allows for precise elevation adjustment of ±15° and azimuth adjustment of ±7°. Suitable for both right- and left-hand mounting.
  In areas where strong winds are expected, the use of an (adjustable) wind guy kit is recommended.

  For mounting on a 60-80 mm diameter mast, the use of an (adjustable) wind guy kit is strongly recommended.
  Using an adjustable wind guy kit allows for more convenient azimuth adjustment.

  The wind guy kit or adjustable wind guy kit are optional accessories.
