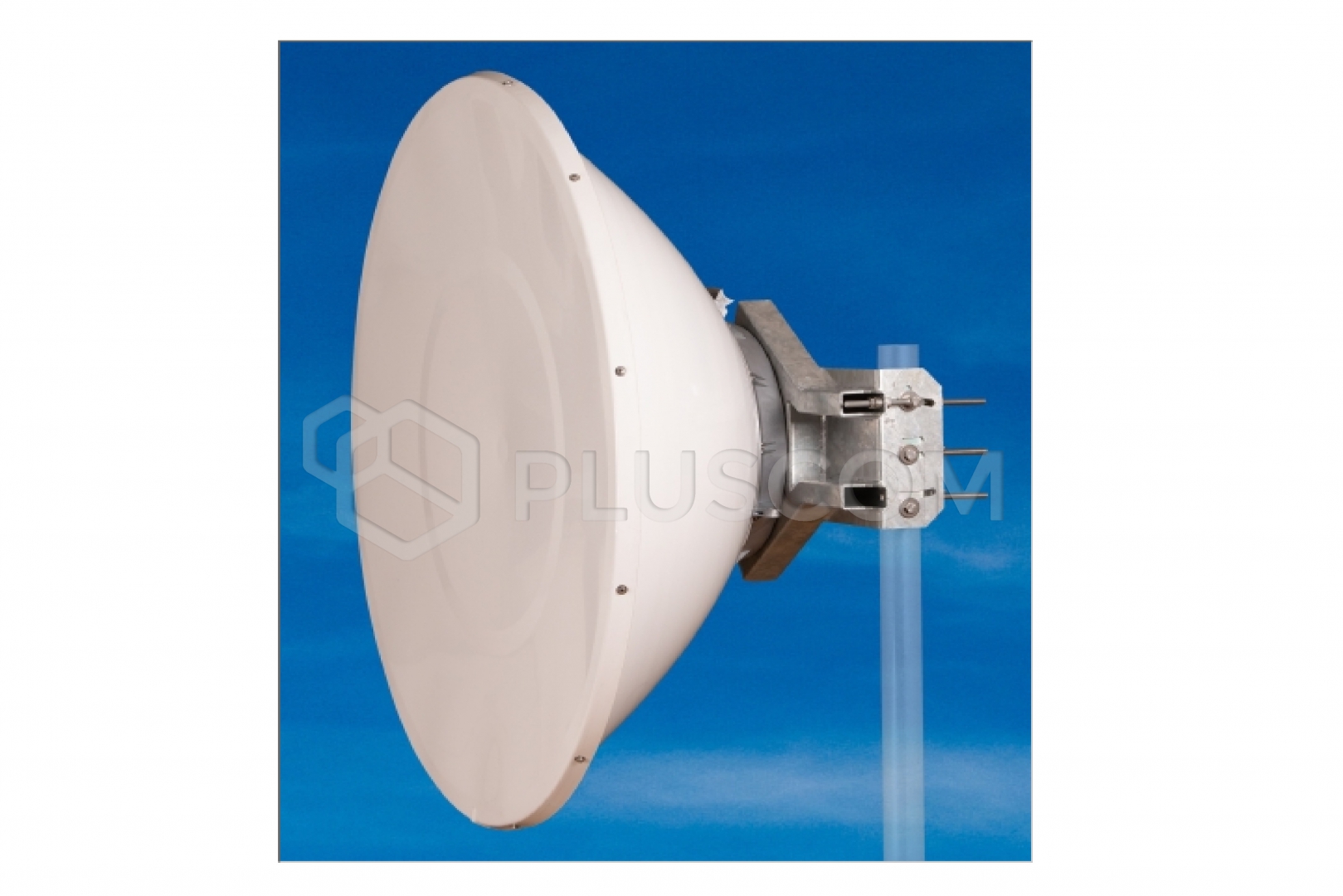

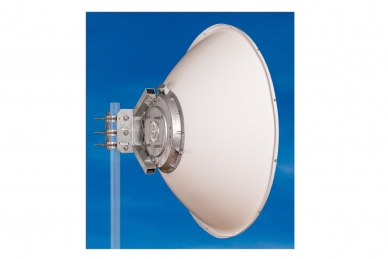

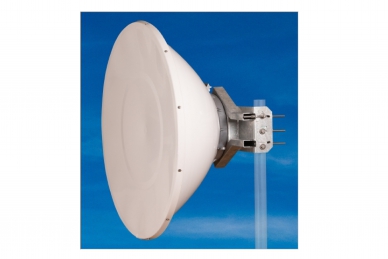

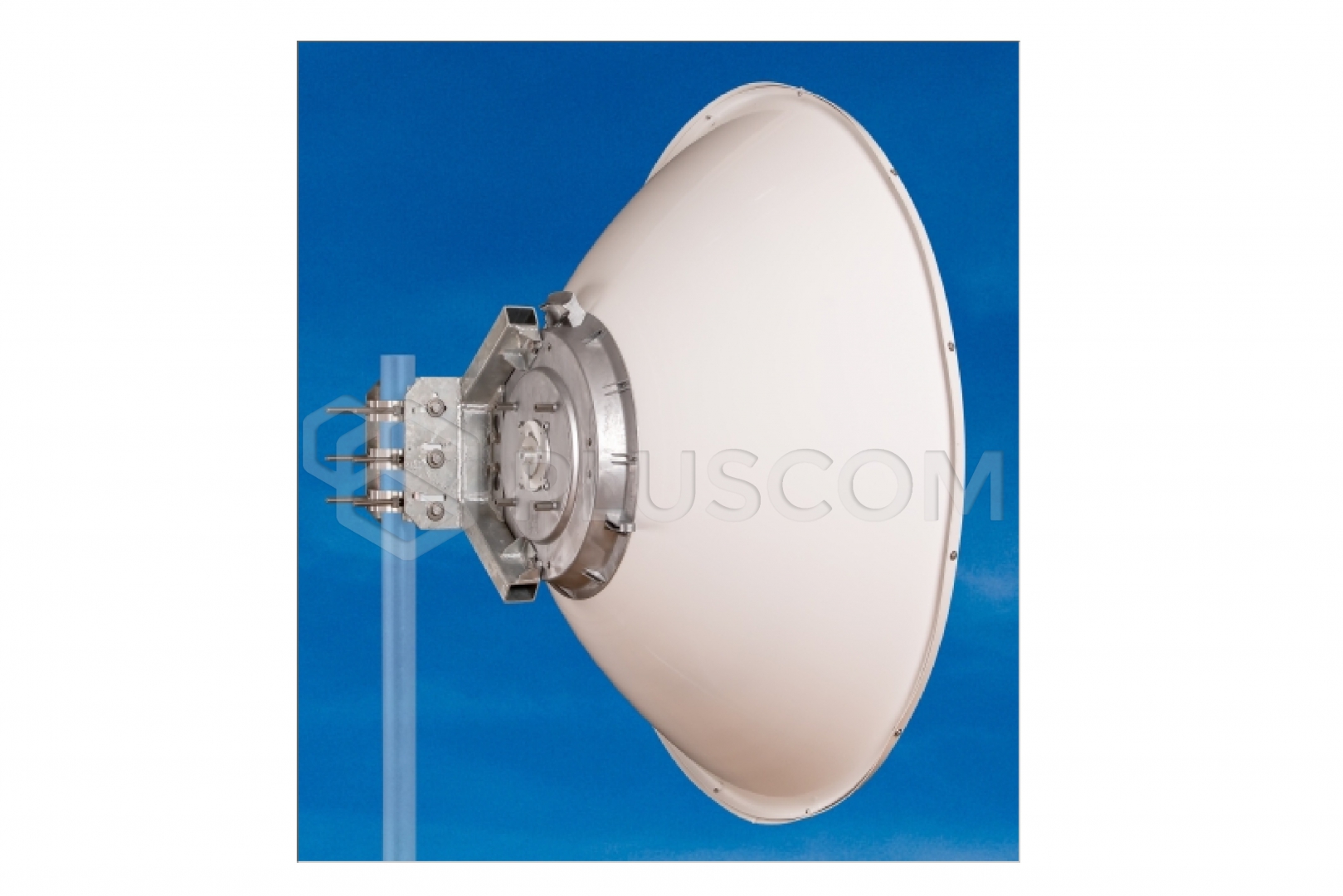

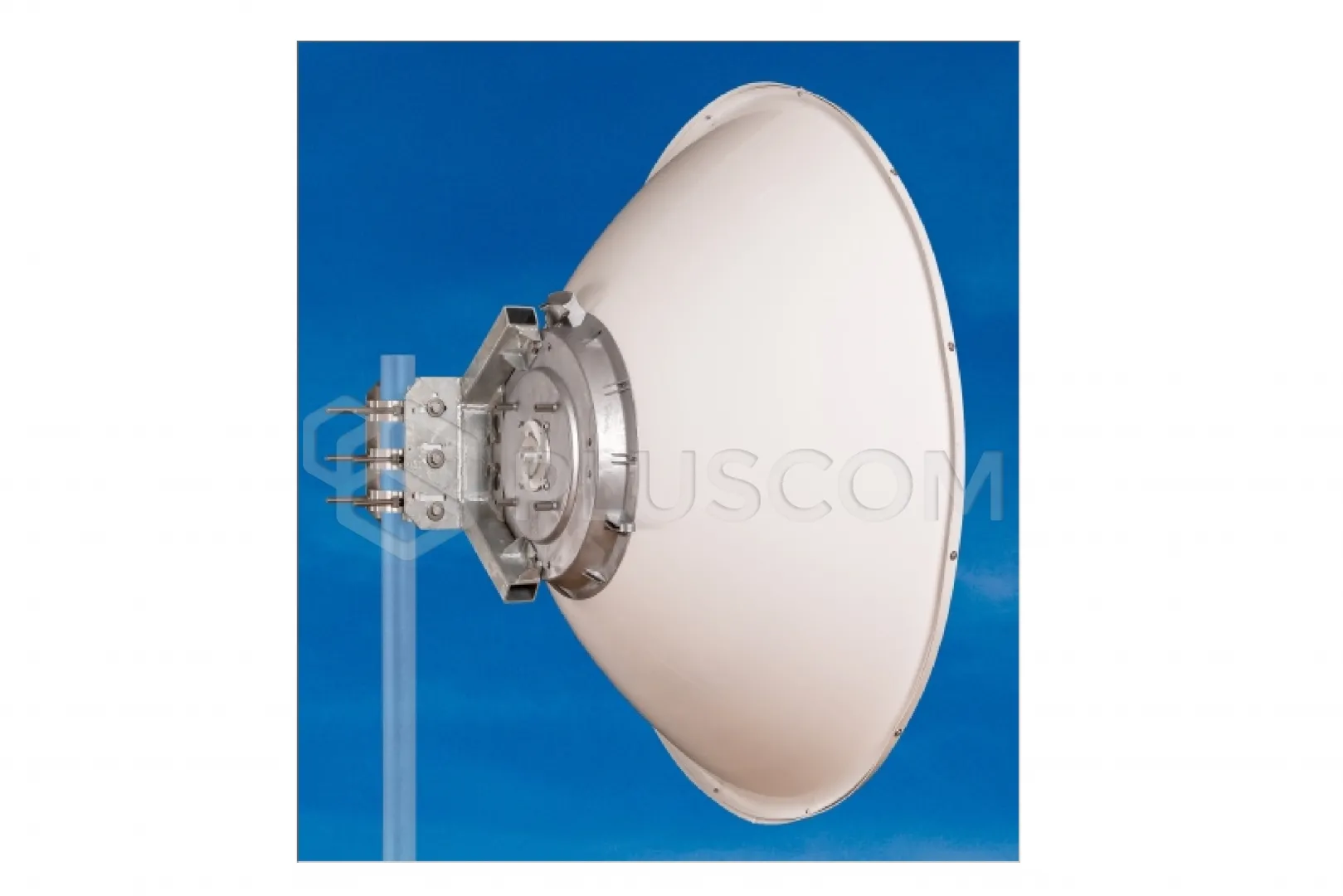

Jirous Parabolic antenna JRMC-1200-15

Product code: #43194
Manufacturer: Jirous
  • Frequency range: 14.4 – 15.4 GHz
  • Beam width: 1.2°
  • Input/output: Circular waveguide Ø 14 mm
  • Dimensions: Ø 120 cm
  • Polarization: Linear, vertical/horizontal | Cross-polarization: ≥ 35 dB
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Jirous Parabolic antenna JRMC-1200-15


The JRMC-1200-15 antenna is designed for microwave communication in the 15 GHz frequency band. Precise Deep reflector performance meets ETSI Class 3 standards.

FEATURES:

  • Deep reflector dish with high interference immunity and mechanical strength
  • High isolation of adjacent cells
  • Radar antenna included
  • Massive bracket with precise elevation and azimuth adjustment
  • Right- and left-sided mounting
  • High wind stability
Design for MW units:

  • Please see adapter overview
  • Other adapters available upon request

Electrical parameters:

  • Frequency range: 14.4 – 15.4 GHz
  • Low Frequency Gain: 42.1 ± 1 dBi
  • High Frequency Gain: 42.7 ± 1 dBi
  • Front-to-Back Ratio: ˃ 69 dB
  • 3 dB Beamwidth: 1.2°
  • Return Loss: ≥ 18 dB
  • Polarization: Linear, vertical/horizontal
  • Cross-Polarization: ≥ 35 dB
  • Electrical Compliance: Class 3 ETSI EN 302-217-4-2

Mechanical Parameters:

  • Parabola: Ø 1200 mm, aluminum alloy
  • Radome: Fiberglass
  • Input/output: Circular waveguide Ø 14 mm
  • Mast mounting:
    - Ø 80 - 120 mm
    - Ø 60 - 80 mm – with wind bracing kit
  • Operating wind load
    - without wind bracing kit 110 km/h (68 mph)
    - with wind bracing kit 140 km/h (87 mph)
  • Wind load resistance: 210 km/h
  • Antenna weight: 28.5 kg
