Jirous Parabolic antenna JRC-38DD MIMO Pris

Jirous Parabolic antenna JRC-38DD MIMO Pris (N-female connector)

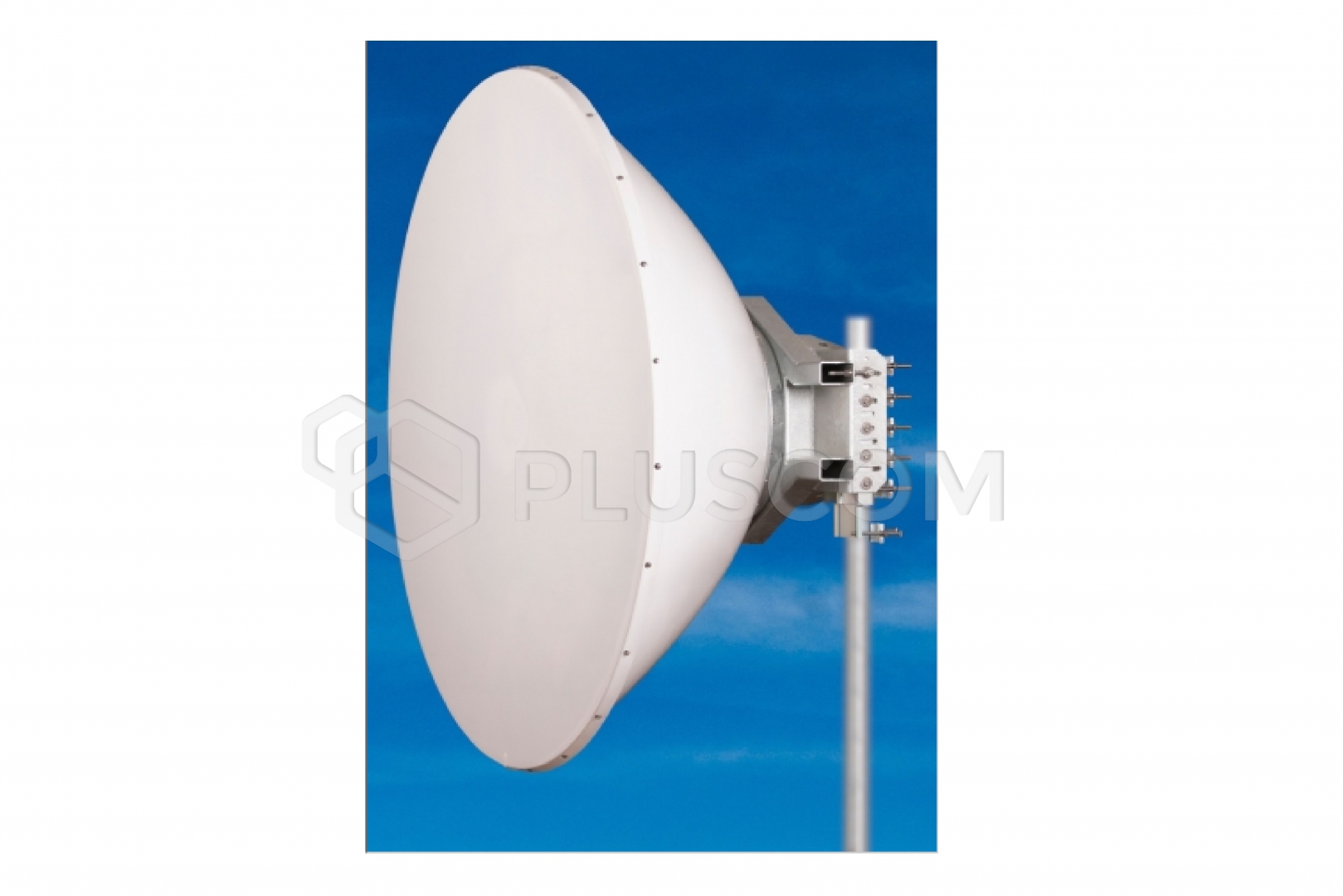

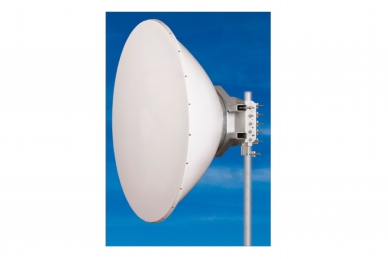

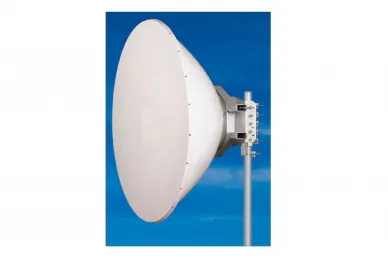

The JRC-38 Deep Dish MIMO PriS dual-polarized parabolic antenna is designed for connection to dual-polarized PrismStation radio units in the 5 GHz frequency band.
The antenna is designed for environments with multiple reflections over long and medium distances in challenging conditions.

Its deep dish design increases isolation between antennas on the mast and increases the front-to-back signal ratio. The new concept expands the frequency band.

FEATURES:

• Antenna for PrismStation UBNT with waveguide mount
• Adjustable polarization ±5°
• Precise, durable mount designed for professional microwave links
• Adjustable windage set included
• Precise and easy azimuth and elevation adjustment
• Additional corrosion resistance
• Deep antenna increases isolation between antennas on the mast
• New concept with extended frequency band
• High front-to-back ratio
• Directional link for very long distances
• Achievable distance can be calculated from the calculation section
• A parabolic shield (plastic cover) is included in the price (parabolic)

Other models:
- JRC-38DD MIMO Precision – standard MIMO antenna with a deep dish
- JRC-38DD DuplEX Precision – full-duplex antenna with a deep dish

Electrical parameters:

• Frequency range: 4.9 – 6.4 GHz
• Gain: 38.0 ± 1 dBi
• SWR: 5.1 – 5.9 GHz ≤ 1.4
• -3 dB beamwidth: 2.1˚
• Port-to-port isolation: 5.1 – 5.9 GHz ≥ 26 dB
• XPD: 5.1 – 5.9 GHz ≥ 25 dB
• Front-to-back ratio: ≥ 60 dB
• Polarization: Linear, vertical/horizontal or 45°

Mechanical parameters:

• Parabola: Ø 1800 mm, aluminum alloy
• Radome: UV composite material, solid
• Connection: Waveguide to PrismStation UBNT
• Mast mounting: Ø 70 - 120 mm
• Operating wind load: 140 km/h (87 mph)
• Wind resistance: 210 km/h (131 mph)
• Weight antennas: 82 kg
